Effective Hardware &
Original Third-generation BLHeli_32 Firmware
The use of superior 32-bit supply microprocessor (which operates at 48MHz),
introduced exceptional MOSFETs (Fairchild) & ceramic capacitors, 3-in-1 drive ICs,
3-ounce copper, 4 examples of PCBs, aside from the third-generation BLHeli (BLHeli_32 firmware)
creates an ESC with additional functions & better performance especially for FPV drones.
Hardware Generated PWM & Damped Light Mode
The ESC firmware uses gear generated engine PWM for smooth throttle reaction and calm
procedure. Damped light does regenerative breaking, causing quickly motor retardation, therefore
inherently additionally does active freewheeling.
Multiple Programmable Items
The initial BLHeli_32 firmware allows users to be able to link four
ESCs on the way to FC flashed utilising the Cleanflight/Betaflight
firmware via indicator cables (regarding the ESCs) developing fundamental
parameters of ESCs at the same time, update the firmware
or adjust advanced parameters on the internet at precisely the same time.
Several Protections
Multiple safety functions like motor
lock-up security, heat safety,
low RPM energy safety, low-voltage
safety and current safety effortlessly
prolong the answer life associated with ESC.

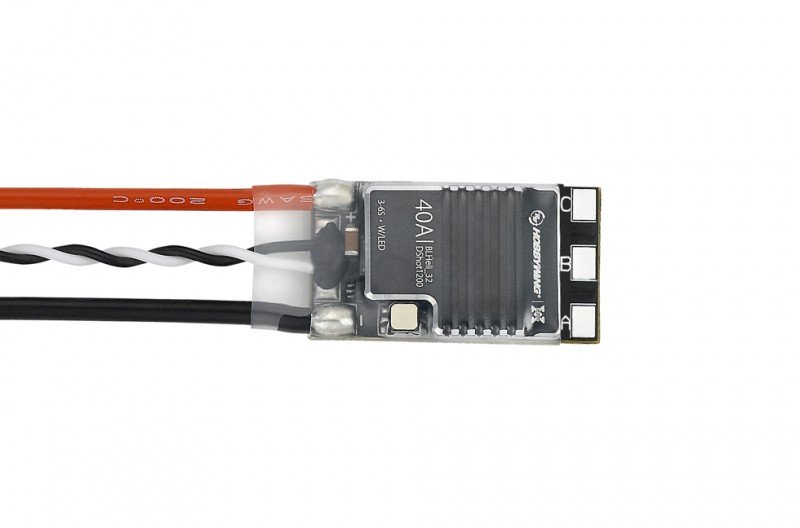

Light-emitting Diode Indicator (just the XRotor 40A
BLHeli_32 has it) & Beacon Functionality
The light color associated with Light-emitting Diode indicator on ESC is adjustable.
The Beacon functionality, that may drive the motor to beep if throttle indicator has
been zero for all time, efficiently assists finding lost crafts.
Specifications
- Cont./Peak active : 40A / 60A
- LiPo Cells : 3-6S Lipo
- BEC production : No
Wires & Connectors
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli_32
- ESC Programming : Supported
- Stick Programming : BLHeliSuite
- DEO : Supported
- Throttle volume Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 32.7x18.4x6.2mm
- Weight : 11.5g
