Dshot 150/300/600, Oneshot125,
Oneshot42, Multishot Modes Supported
Besides the newest Dshot 150/300/600 mode, the ESC also supports
regular PWM (1000µs -2000µs) mode, Oneshot125 (125-250µs) mode,
Oneshot42 (42-81µs) mode and Multishot (2-25µs) mode.
Super Small & Light
With the remarkably little size (23.8x14.5x5.8mm) and lightweight (6g),

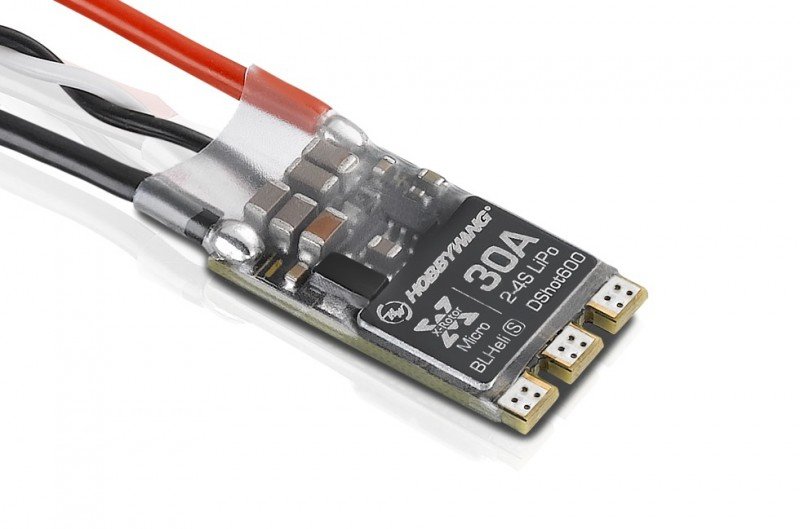

XRotor Micro BLHeli-s 30A DShot600 is an ESC specifically designed for competition FPV drone(s).
Quality Components
The making use of EMF8BB21F16G MCU (as a result of running regularity as high as 48MHz),
united states Fairchild MOSFETs, introduced 3-in-1 drive IC and quality ceramic
capacitors, 3-ounce copper and 4 types of PCBs guarantees less heat, greater
effectiveness and rapider reaction.
BLHeli-S Firmware Ready
The ESC supports initial BLHeli-S firmware. Users can flash or upgrade the firmware through
indicator cable (on ESC) and prepare 4 ESCs also after connecting their journey controller on
BLHeliSuite pc software (in the event journey controller utilizes the CleanFlight or betaflight firmware).
Hardware Generated PWM & Damped Light Mode
The ESC firmware employs hardware released engine pwm for smooth throttle effect and
peaceful procedure. Damped light does regenerative braking, causing quickly engine retardation,
and yes it inherently also does active freewheeling.
Twisted-Pair Signal Cable Reduces Interference
The twisted-pair throttle sign cable effortlessly decreases interruption stated in alert
transmission and makes the journey alot more stable and dependable.
Specifications
- Cont./Peak active : 30A/40A
- Input Voltage : 2-4S LiPo
- BEC production : No
Wires & Connectors
- Input Wires : Red-18AWG-100mm*1 / Black-18AWG-100mm*1
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick development, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle number Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 23.8x14.5x5.8mm
- Weight : 6g
