Seriously incorporated & Compact

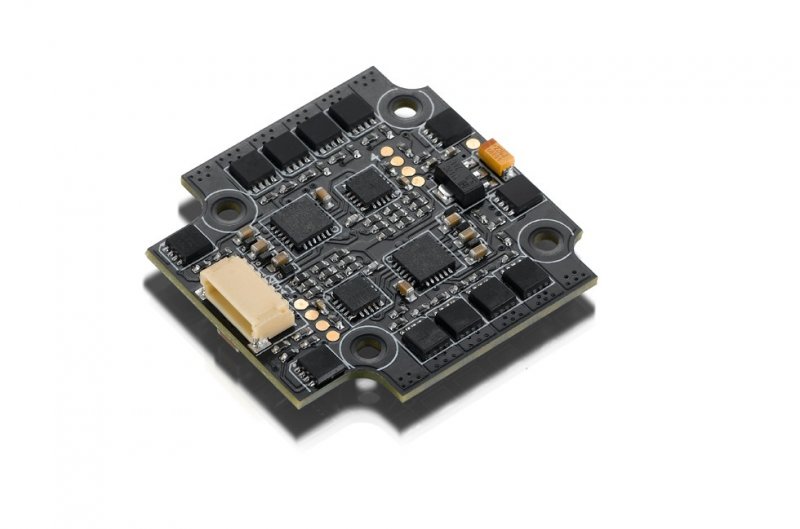

The XRotor Nano 20A 4in1 BLHeli-S DShot600 not just includes 4
superior 20A ESCs, and a volt monitoring slot permits FC to
monitor the voltage instantly (on condition your FC supports this function).
Due to very small size, the installation and wiring can be fairly simple
and simple whenever combining it as a result of Hobbywing XRotor Nano Flight Controller.
It’s an ESC particularly made for super mini-sized interior FPV(s).
Top-notch Components
The usage of EMF8BB21F16G MCUs as a result of the working regularity totally to
48MHz, introduced top-notch MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 levels of PCBs guarantees less heat,
greater effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
utilizes the first BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various techniques
(this fundamentally means. via throttle signal cable with using other development board
or a FC flashed because of the Cleanfight / Betaflight firmware).
DShot150/300/600 Ready
Besides the standard PWM mode,
Oneshot125/Oneshot42/Multishot modes, the newest
DShot150/300/600 modes may supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware uses gear produced engine pwm for smooth
throttle response and calm procedure. Damped light does regenerative
breaking, causing quickly engine retardation, therefore inherently furthermore
does active freewheeling.
Specifications
- Cont./Peak active : 20Ax4/ 30Ax4
- Input Voltage : 2-4S Lipo
- BEC production : No
Wires & Connectors
- Input cables : Red-16AWG-85mm/ Black-16AWG-85mm
- Output cables : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 32x31.9x5.8mm
- Weight : 6g
