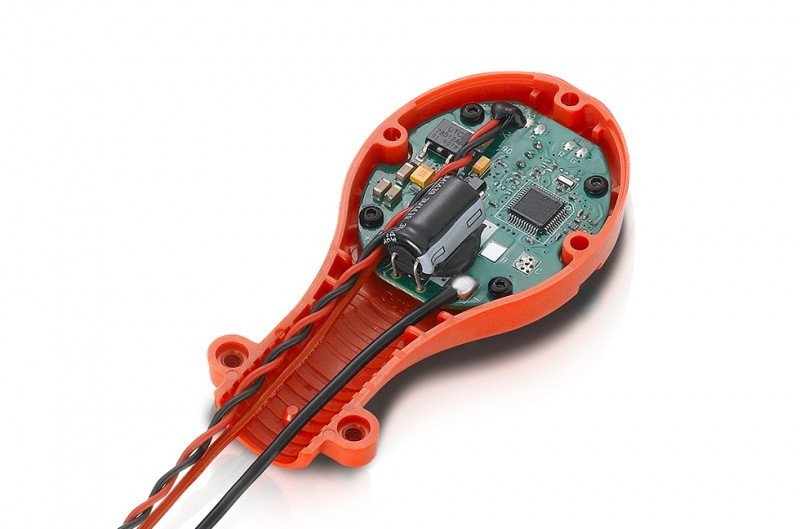

HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023  [HW-30902023]

Simple Installation

Motor is closely installed regarding ESC, which notably simplifies wiring and
establishing the propulsion system.

Popular Choice

The mount is excellently worth the most used 16mm
(outer diameter) carbon soluble fbre supply pipeline.

Excellent Protection

The included framework from ESC and engine mount has
exemplary dustproof and splash proof safety.

DEO Technology

The DEO (Driving effectiveness Optimization) technology implemented
in ESC features its own advantages:
● Active braking. Whenever reducing the throttle amount, the engine will
decelerate quickly. This feature permits pilots to faster
perform all maneuvers like razor-sharp turns, altitude changes, and
unanticipated braking.
● greater driving effectiveness, considerably longer journey time.
● Lower ESC heat and an infinitely more dependable procedure .
* various organizations call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

A facile task to Use

Highly smart and adaptive standard settings like
auto-adjusting timing for easy procedure.

Item Specification

Product Number

Specifications

• Cont./Peak Present : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC production : No

Wires & Connectors

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : No

Features

• Throttle amount Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : not Supported

Size & Weight

• Size : 89.3x44.5x20.9mm
• Weight : 50.5g(w/ Engine Mount)
