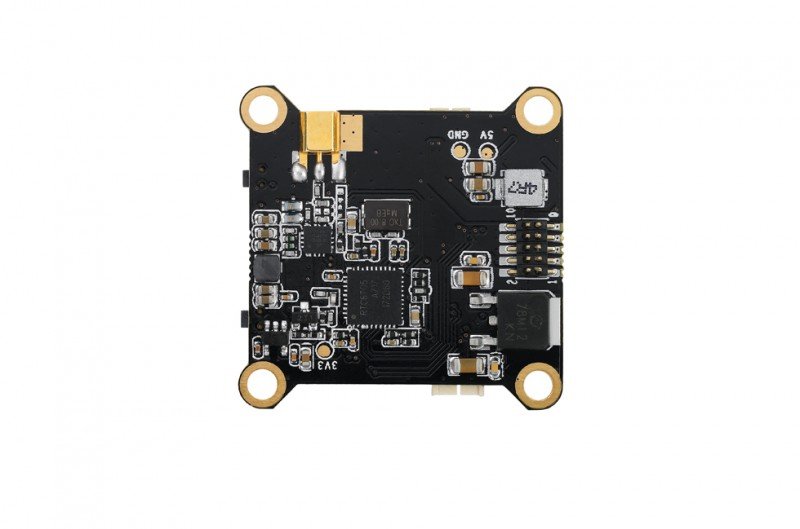

HOBBYWING XRotor Video Transmitter - 30505000  [HW-30505000]

Tiny Size & Exquisite Design

The STM32F405 MCU which features the effective computing capability and super-high
working regularity enables the FC to perform the PID and gyro with greater regularity.

Voltage-regulating Filter,
Adjustable Transmitting energy &
Adjustable Voltage for Camera

The included voltage-regulating filter isolates the interruption
the vitality system through VTX to make sure the image continues to be
clear and stable in case aircraft flies at advanced level. The
adjustable transmitting energy (0/25mW/200mW) and
stable manufacturing power guarantee long transmission distance.
For various applications, the supply voltage the digital camera
is adjustable between 5V and 12V.

48 Adjustable Frequencies & Race Bands Supported

The 6 regularity groups with 8 systems in each team form 48 frequencies; the frequency blood circulation is
highly relevant to countless getting gear. One of the regularity groups, group D and team F are
regularity teams for competition; users could use the 8 frequencies in identical group additionally
without worrying all about interference.

Stack-up Installation Supported

When combining the VTX because of the Hobbywing F4 flight controller
and XRotor Micro 40A 4-in-1 ESC, the installation is incredibly
incorporated, simple and easy convenient, and makes the aircraft
right towards FPV Racing.

Item Specification

Part No.

• 30505000

Basic Features

• Input Voltage : 7-25V
• Current : 70mA / 100mA / 250mW @ 12V
• Output Voltage : 5V/12V Adjustable (limited by powering the webcam)
• Transmitting energy : 0/25mW/200mW Adjustable
• Transmitting Frequency number : 5.3GHz-5.9GHz
• Transmitting Frequencies : 48 Frequencies Adjustable
• Antenna Connector Type : MMCX-to-SMA (a MMCX-to-SMA cable is roofed in box)

Size & Weight

• Size : 36x36mm
• Mounting Holes : 30.5x30.5mm
• Weight : 5g
