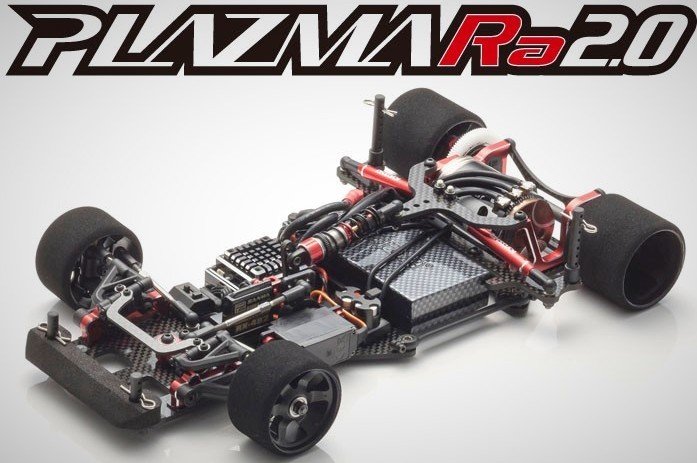

Kyosho 30423 - 1/12 PLAZMA Ra 2.0  [KY-30423]

1/12 Scale Electric Rc 2WD Racing Automobile PLAZMA Ra Series: PLAZMA Ra 2.0

Full of rushing technology developed through most readily useful level!Drive the planet’s revolutionary production competition item!

A whole new competition scene is rolling away inside the four years as the launch the PLASMA Ra in December 2011. Its now time for a new device that embodies just how much each of the knowledge from constant sporting competition. Aided by the freedom to adjust to various conditions, like free motion associated with center surprise place to enhance from high-grip areas to slippery circuits, this means choice of crank or direct steering systems, this groundbreaking device includes essentially the most higher level design features. That and design of each and every carbon and red anodized aluminum component is meticulously developed your can buy optimal energy and fat security. The 2-stage finishing procedure from red anodized aluminum elements produces a feeling of pride in purchasing a machine with such an immaculate high-quality finish.

• Adaptable to everybody else or any area types, complete performance potential is attainable on various competition circuits.
• Red anodized aluminum elements with 2-stage finishing procedure gleam with top-quality engineering.
• Brand brand new king-pin strut system on front suspension system system system system. Slim and easy framework permits screw be properly used down outside for easier maintenance. Alignment of camber, caster and tread are modified.
• Rear suspension system system with center pivot and rear component hyperlink retained because superior control of roll and pitching faculties.
• Back center shock with diaphragm keeps constant oil amount and combines with friction pipeline that completely controls roll choice generate superior working protection. Features accuracy device cut POM (white synthetic) surprise piston and titanium coated spindle.
• Features worldwide standard size right back axle. Thrust bearing included creates smooth diff function and metric size (4mm) diff nut provides improved versatility.
• Height is defined by simply changing the axle mount.
• Grooves inside framework avoid fiberglass tape accustomed secure the battery pack from pressing the road area. O-ring battery power owner also makes battery pack improvements effortless during training runs.
• Center location with this particular motor provides optimal left/right fat security of straight back component. Design permits motor become relocated 2.5mm towards the center which means that hefty fat of engine and ball diff product are regularly optimize fat safety.
• Crank steering system provides exemplary left/right safety. Optional steering dinner permits free Ackerman environment. Crank product is supported by ball bearings towards the most effective and base and may be located in 3 different front-rear settings.
• 1/12 electric battle automobile includes the planet’s revolutionary design technology.
• Interchangeable front suspension system system system (except knuckle) knows upkeep effectiveness.
• Suitable for dependable JR and Futaba mini servos for 1/12 system. *Sanwa may be used with optional component.
• Verified performance of coil springs put up on both front component and back sides. A lot of springs may be found.
• Includes biggest international standard size tires (biggest in its program).
• Uses metric (mm) size screws and peanuts. *Only screws for back wheel and clamp hub (L) are ins size.
• Ball diff has an abundance of capability with big diameter diff musical organization. Standard spur gear for DD automobiles may be utilized.

Kit Articles:

• Unassembled framework kit
• Decals
• Guide

Required for Process :

• 2ch, 1 mini servo R/C system for vehicles
• Brushless motor (540 program)
• ESC (80A minimum proposed) for brushless motor
• 1 mobile (3.7V) Li-Po battery power for 1/12 or 2 mobile (7.4V) Li-Po battery pack for charger for framework
• Pinion gear (64 pitch 13-38T)
• Tires
• 1/12 rushing vehicle body
• Tools
• Paint for body
• Batteries for R/C system

Other Features:

• Big roll surprise features a revised roll piston and knows bigger tread area and increased effectiveness of oil through unit cut lateral grooves.
• Tall durability 7075-grade motor mount changed from two paid down restoring points to top & reduced fixing points including being thinned for lighter fat. In addition, space manufactured in the center of your screws concerning the engine mount and paid down pad decreases anxiety under contact from hits.
• Modification of springtime anxiety are manufactured with no elimination of elements through a hole on repaid pad which allows a 2.0mm hex wrench use of a 2mm hexagonal groove partly springtime owner.
• Stabilizer control is delivered through a carbon supper linking the rest of the & right suspension system system obstructs.
• Urethane bumper included as standard. Body mount spot relocated 10mm in direction of finally causing end human anatomy overhang.
• Roll point between primary framework and paid pad relocated 2mm rearward to supply sharper switching performance.
• Aluminum antenna owner secures antenna and center surprise stay firmly. 6 center shock functions are chosen whenever utilized in combination with optional elements.
• Five ride height adjusters included: 0mm; 1.5mm; 2.5mm; 2.75mm, and 3.0mm. Often used settings from 2.5mm to 3.0mm are modified at 0.25mm increments. Nylon item provides superior effect opposition.
• Big diameter tires the Ra 2.0 could be the biggest in its course. Produced from soft nylon.
• Excess finished up being symmetrically obtained from the framework causing 20g lighter fat for pure race performance.
• Front top supply redesigned to a universal interchangeable kind become wear both front & back, left & right edges, and less play. Lower suspension system system supply redesigned for lighter fat and effective flex.
• Complete ball bearing specifications (total 11). Crank additionally features two ball bearings.
• 92T spur gear included. Successful thrust bearing utilizing 16 balls also included as standard.
• Engine mount restoring changed to top & repaid securement with 0.25mm paid off mount than previous model. Produced from high power 7075-grade aluminum.
• Chassis height could possibly be modified with carbon spacer. Loosen the screw on bulkhead and push from behind to proceed for effortlessly framework height modification. Carbon spacers of numerous thicknesses can be acquired as choices.

Chassis Technical Ideas:

• Length: 281mm
• Width: (F/R) 164mm/166-170mm
• Height: 47mm
• Wheelbase: 200mm
• Tire(F/R): F41mm minimal / F41mm minimum
• Body fat: 730g approx. (JMRCA regulation)
• Engine: 540 program brushless motor (provided separately)
