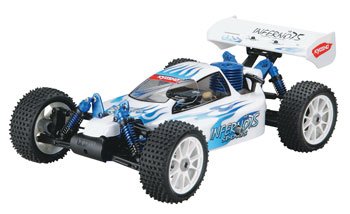

Kyosho (#31275) - Kyosho 1/8 Inferno MP-7.5 Sports RTR (ReadySet)
this is really the Kyosho Inferno MP7.5 Sports 1/8 Readyset nitro driven ready-to-run off road buggy with radio.
which in line with the championship winning MP7.5 Chassis and comes pre-assembled utilising the Kyosho GX21 motor with pull-start.
Compatible with MP7.5 and Kanai Edition II hop ups.
FEATURES:
Chassis: 3mm aluminum main framework and aluminum top deck
Drive: Four wheel drive
Drive kind: Shaft driven
Radio: 2 channel can be pistol hold Kyosho Perfex with a top torque steering servo, trims and servo reverse (produced by Futaba like Futaba 2PH)
Engine: Kyosho GX21 with pull begin and slide valve carburetor
Exhaust: Tuned pipeline with header
Fuel Tank: 125cc (4.2oz) flip top cap
Clutch: 2-Shoe
Transmission: Single-speed
Ball Bearing: complete set included, 18 total
Shocks: 4 oil-filled, blue aluminum with coil-over spring
Main Gear: artificial 46T
Gearbox: Sealed, both front and rear
Differential: Planetary geared, w/ring and pinion
Brakes: Twin dual disk
Tires: 3.2" buggy action pin, moderate ingredient rubber
tires: 1-Piece, 10-spoke, buggy type
Body: certainly detail by detail painted down road buggy human body
Bumpers: Front only
Suspension: Front and rear split twice wishbone
Camber Tie Rods: Adjustable
Steering Tie Rods: Adjustable
Steering: Bell-Crank
Servo Saver: Included
Warranty Period: ninety days
INCLUDES:
Inferno MP7.5 Sports rolling framework with aluminum shocks, GX21 motor, radiance plug, painted lexan human anatomy, tires, 48 enamel spur gear, 10-Spoke Wheels, Wing, 13 enamel Clutch Bell, directions, decal set
NEEDS:
Broadcast Batteries: Twelve AA size
Glow Starter: 1.2 volt
Misc. Things: gasoline container, building and track equipment
Fuel: 2-cycle radiance gas with 10%-15percent nitromethane, 18per cent lubricant-
Most towards fuels we carry satisfy or satisfy or surpass the lubricant content
required for maximum performance and maximum motor life. In the
past, the standard lubricant content used in fuel completed up being 18percent. But
with fresh advanced level technologies, fuels like Red Alert and O'Donnell
for instance, have actually a greater quality of lubricants although the
percentages of lubricant content are paid down. These high-tech
lubricants offer exemplary cooling and safety.
SPECS:
Vehicle-
Length: 19.5" (495mm)
Width: 12" (305mm)
Height: 7.4" (188mm)
fat: 7.1lbs (3220g)
Wheelbase: 12.9" (328mm)
Front Track: 10.2" (258mm)
backside Track: 10.2" (258mm)
Ground approval: 1.1" (28mm)
Gear Ratio: 11.7 :1
Tires- front part: 1.7" x 4.6" (42x116mm)
back: 1.7" x 4.6" (42x116mm)
Body-
Length: 15-1/2" (393mm)
Width: 8-1/2" (215mm)
Height: 4-1/4" (107mm)
Steering servo:
Speed: .20 sec/60 deg. @ 4.8V and .16 sec/60 deg. @ 6.0V
Torque: 72 oz/in @ 4.8V and 90 oz/in @ 6V
5.2 kg/cm @ 4.8V and 6.5 kg/cm @ 6V
OPINIONS: If utilising the GS-21R you'll need (Flywheel).
The stock GX-21R flywheel wont use the GS-21R.
For Substitution Ball Bearings usage:
Qty. Size
(18) 8 x 16mm
