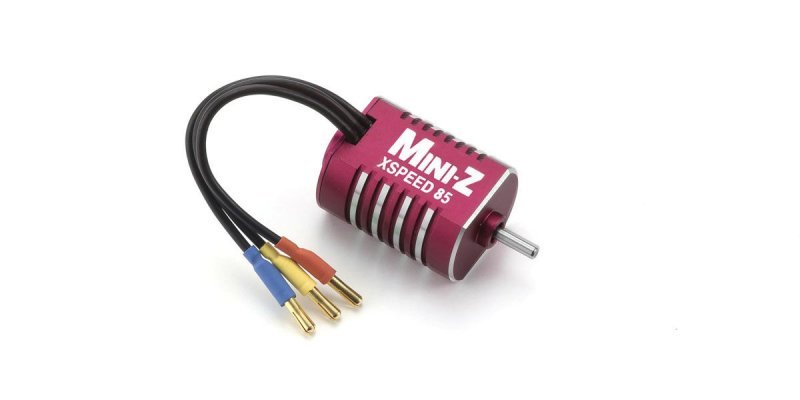

The separable receiver design pioneered regarding MR-03EVO is available with all the current new AWD model MA-030EVO, based on the FWD MA-03F framework. The MINI-Z reaches first beautifully constructed with a receiver, servo and rate controller, within the MR-030EVO the receiver ended up being designed to be purchased and put up as another product permitting the model to be utilized as well as other makes of transmitter such as for example KYOSHO (KT18/EX-6/EX-6R/KT-531P/KT-432PT), KO (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), Flysky (Noble NB4). Besides, top AWD show spec MA-020VE PRO included a 3-stage steering servo product, though the brand new MA-030EVO includes the furthermore greater spec 5-stage gear sort from MR-03. Also, a distinctive CPU for servo control improves the control rate of positioning feedback and the updated control system provides top steering feel of any AWD model through improved responsiveness and linear a reaction to motorist control. The one-piece heatsink and aluminum situation in regards to the KYOSHO SPEED ABODE XSPEED 85 (8500KV) brushless engine keeps it cool for optimized performance. The I.C.S. supervisor allows precision environment changes along with the change to a brushed motor, that has been impossible with past framework sets. Switch between drift and hold driving designs to begin with to understand most readily useful in AWD driving performance.
MA-030 AWD framework is started on MINI-Z FWD MA-03F chassis.Chassis set includes split ESC and receiver unit.Includes KYOSHO SPEED HOME 85 brushless motor (KV8500).I.C.S manager enables accurate environment control utilizing of either brushless or brushed motor.Independent CPU control with a growth of processing expense provides more accurate control.Full ball bearing requirements decreases drive loss.Includes right back twin wishbone suspension.Compatible with L（94mm） and LL（98mm） wheelbases. Merely LL（98mm） works well with straight back double wishbone suspension system system set. Befitting MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set the many MR-03F framework models
TECHNICAL INFORMATION
*Scale: 1/27.6
*Length: 126.0mm
*Width: 65.0 - 76.0mm (adjustable by wheel offset)
*Height: 36.0mm
*Chassis Type: MA-030
*Wheelbase: 94.0mm (simply with strut rear suspension system system system setup), 98.0mm (factory built)
*Weight: 135g
*Brushless 8500KV
*Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
*Tire Diameter (F/R): supplied individually
*Tire Width (F): offered separately
*Tire Width (R): offered individually
*Transmitter: perhaps not included
*Top price: approx. 17km/h
*Runtime: approx. 50min.

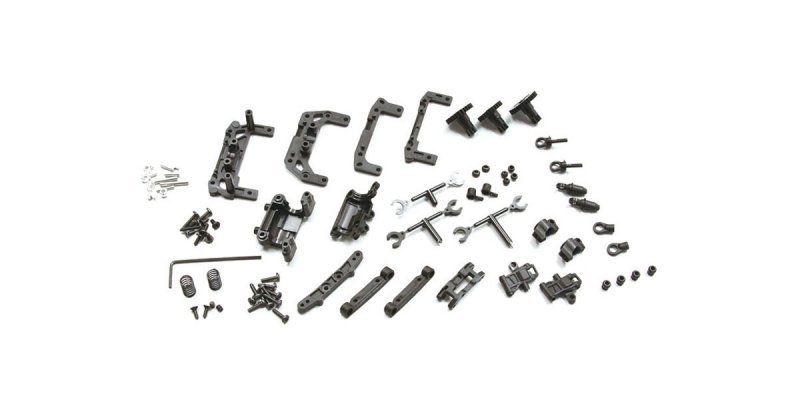

KIT CONTENTS
CHASSIS SET ARTICLES
*Factory-assembled chassis filled with EVO primary product arranged
*Pinion Gears (15T, 17T, 19T, 21T)
*DWS transformation elements *Front tread modification elements
*Pinion gear treatment device
*Spare wheel peanuts
*Wheel wrench
*Center shaft for L wheelbase
*Wide right back suspension system system system hands for DWS
*swing shafts (4 x long)
*Spur gears (27T, 29T, 31T)
REQUIRED FOR OPERATION
REQUIRED FOR PROCEDURE
*8 x AAA batteries
*Auto Scale Collection (human body, tires and tires)
*Transmitter
*MINI-Z EVO receiver unit worth the transmitter utilized
