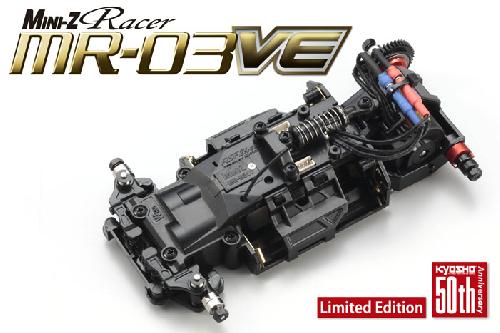

Kyosho 32761 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set (50th Limited Edition)  [KY32761]

These development linked to MINI-Z Racer now includes the most up-to-date brushless motor technology into its performance. Don't ever utilized before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless engine having its characteristic high durability, power, RPM and an organization torque feel. The MINI-Z takes complete advantage of the brushless motor’s efficient low friction; non-contact properties that minimize use and reduce electric noise to provide outstanding linear impact and smooth acceleration for a sensorless brushless motor which authorized become utilized inside MINI-Z Cup as well as other formal occasions. A restriction put on optimum RPM keeps the playing industry level for a number of motorists. Additionally, a newly developed circuit board with ICS function links to a PC (adapter provided separately) for precision environment improvements. Just install the ‘ICS VE Manager’ computer software from Kyosho internet site to control the brushless motor settings and acquire gone the RPM limitation to remove the entire potential from your own device. The newly designed top address additionally allows simple mounting from the optional gyro towards the utmost effective although the framework gets the MR-03 ball diff that has been previously optional. Now the MR-03’s powerful performance is turbo-charged with brushless engine capability to mark a brand new stage in development of MINI-Z performance and technology.

Features:

• MR-03 Chassis Set installed with brushless motor
• Complete bearing, ball differential, gold-plated battery terminal gear.
• Appropriate all present MINI-Z Racer human anatomy kinds.
• Unique brushless motor circuit board features 3 LEDs to point proper function.
• Redesigned top address enables simple putting in gyro.
• Appropriate optional elements the MR-03 framework.
• Features newly developed revolutionary ‘VCS’ front suspension system system system that improvements camber position alongside suspension system system system system move.
• ASF2.4GHz R/C system removes must manage regularity bands. One transmitter works well with numerous models. **Transmitter comes independently.
• Designed with electronic steering servo with essential coreless motor.
• Coil springs on front suspension system system system could be just changed by detatching the springtime stopper with just two screws.
• Features high effectiveness silver plated engine terminals.
• Pre-calibrated zero point steering environment.
• Brushless engine may be the identical size as present 130-class devices. Delivers outstanding durability and power.
• Newly developed brushless motor circuit board can be included on MR-03 framework. Made with 3 LEDs to point appropriate procedure and ICS function.
• Upper address redesigned to test new circuit board which will be perfect for all current body types. Features area ahead for mounting optional gyro.
• Top quality silver plated engine terminals and silicon cables included as standard to regulate the high power output.
• Ball differential unique types of Red anodized.

Kit Articles

• Factory assembled MR-03W framework arranged with Team ORION XSPEED VE brushless motor.
• One-piece RA-27 receiver and brushless engine circuit board beautifully created using ICS connector
• Modification elements for RM-type engine mount
• Upper and reduced dinner and steering tie pole for (front component) slim tread (included)
• Front suspension system system system spacers for adjustment
• Pinion Gears (7T, 8T, 9T)
• Wheel wrench
• Pinion gear product
• Pairing stick
• free wheel peanuts

Needed for procedure

• ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• AAA size alkaline batteries or Ni-MH x 4 for framework
• AAA size alkaline batteries x 4 for transmitter (KT-18), AA size alkaline batteries x 8 (EX-5UR)

*PERFEX EX-5UR ASF Transmitter

Chassis Technical Information

• Length:124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)
• Width: 65~76mm
• Height: 34~35mm
• Wheelbase: 86~106mm(86,90,94,98,102,106)
• Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]
• Tire(F/R): 23.5~25x8.5mm / 25~27x8.5~11mm
• Gear Ratio: 7.3,6.3,5.5,4.9:1
• Bodyweight:135g approx.
• Motor: Team ORION XSPEED VE
