Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set [KY32783]

Price:

CAD$337.33

Brand:

Kyosho

Model:

KY32783

GTIN:

4548565330447

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Mini-Z category

Write a review

alt="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set" title="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set"

Description

Meet with the 4th variation ‘02 colors restricted’ MR-03VE PRO Series framework set which includes the ultra-fast results of this MHS (MINI-Z Hybrid Spread range) 2.4GHz system which 16 times faster set alongside the previous ASF 2.4GHz system + KT-18 transmitter combination and 4 times quicker compared to the ASF 2.4GHz system + KO PROPO EX-1 transmitter combination. The beautiful color scheme ab muscles final generation MR-02 is revived within latest variation including blue Upper Cover Set (No.MZ502) and Chassis Small Parts Set (No.MZ402) and grey molded elements in the Chassis Set (No.MZ501) to generate contrasting visuals towards the straight black of normal MR-03 framework. Plus ball diff and complete ball bearing specifications associated with current VE expert, this groundbreaking variation is filled with a gyro item. The MR-03VE PRO 02 colors Limited is a complete race-ready package distinguished by its restricted variation color scheme which is suited to existing ASF 2.4GHz systems and you'll be combined with Perfex KT-18 plus the KO PROPO EX-1 transmitters.

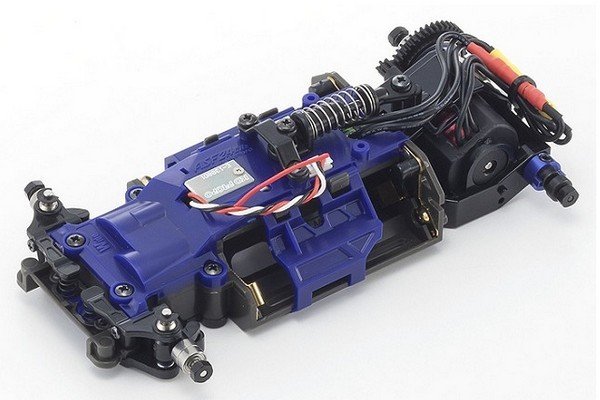

MR-03VE PRO Chassis Set installed with brushless motor and gyro unit

Color scheme revives the sooner MR-02 style

Includes complete ball bearings, ball diff and silver plated electric batteries terminals

All MINI-Z Racer numbers are generate. (someone designs require various motor situation - provided by themselves)

Special circuit board for brushless engine setup with 3 high visibility LEDs

Includes electronic steering servo installed with coreless motor

Equipped with VCS suspension system system through MR-03

Compatible with MINI-Z MR-03VE specialist 02 colors limited Chassis Set (W-MM) (MHS/ASF Compatible 2.4GHz System) Chassis Set the MR-03 chassis

Ultra fast indication processing price results in very nearly instantaneous control reaction.

TECHNICAL INFORMATION

Size 124-133mm (MM framework:125-133mm, RM framework:124-132mm)
Width 65-76mm
Height 34-35mm
Wheelbase 86-106mm(86,90,94,98,102,106)
Tread (F/R) Wide:61.5mm/59mm Narrow:56.5mm/56.5mm (whenever wheel offset is 0)
Tire (F/R) 23.5-25x8.5mm / 25-27x8.5-11mm
Gear Ratio 7.3, 6.3, 5.5, 4.9 : 1
Weight 135g (approx.)
Engine KV 8500 Xspeed VE brushless

KIT ARTICLES

MR-03W-MM factory produce framework installed with Xspeed VE brushless motor
One-piece circuit board for brushless motor and RA-27 receiver with ICS connector
Parts for changing to RM type engine mount
Upper and paid off dishes for slim tread (front component), steering tie pole (included)
Front sus spacer for adjustment
Pinion gear tool
Pinion gear (7T, 8T, 9T)
Spare wheel nut
Wheel wrench
Pairing stick

ESSENTIAL FOR PROCEDURE

MHS 2.4GHz transmitter (EX-6R, EX-6) or ASF 2.4GHz transmitter (Perfex KT-18, KO PRPPO EX-1)
Auto Scale Collection (body set, tires, tires)
4 x AAA alkaline batteries for transmitter
4 x AAA alkaline batteries or 4 x Ni-MH for framework
