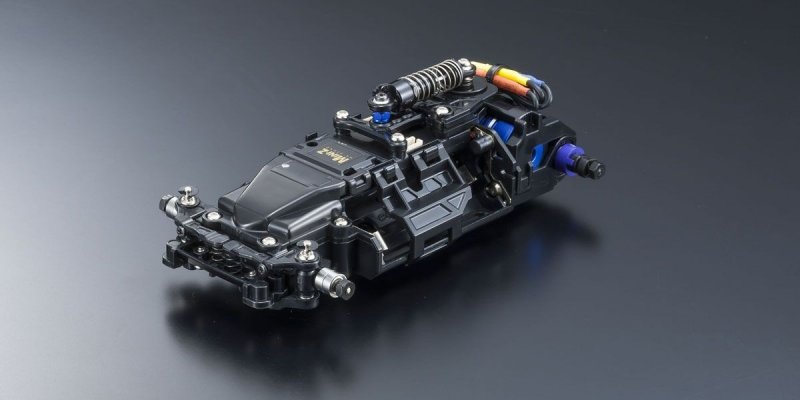

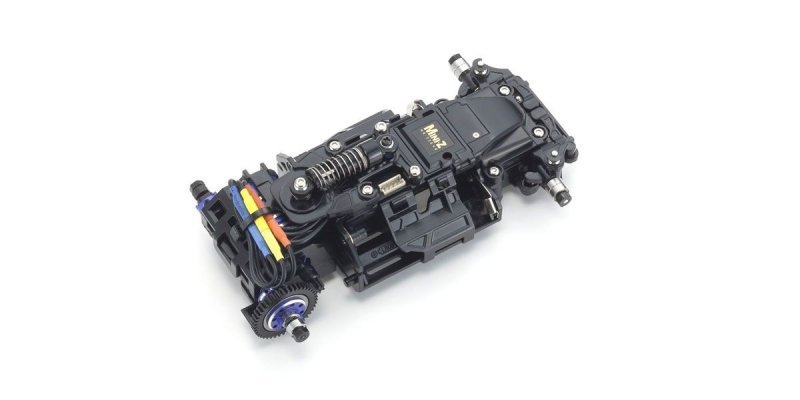

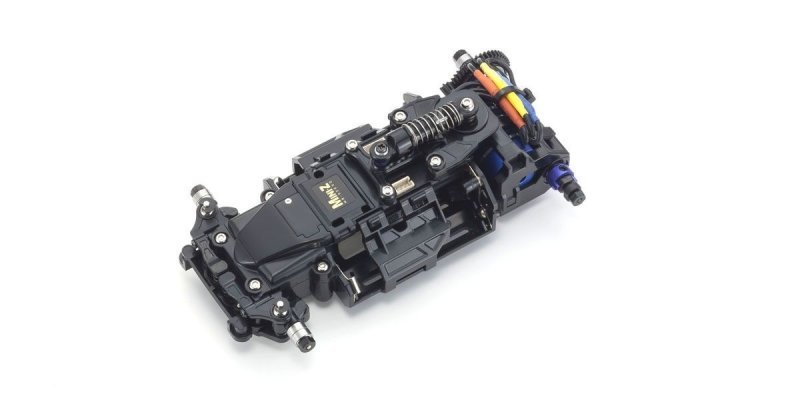

Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV) [KY-32793]

Price:

CAD$277.34

Brand:

Kyosho

Model:

KY-32793

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Mini-Z category

Write a review

Description

The prevailing MINI-Z is established receiver, servo and ESC by 1 managed PCB unit. Although the amazing MR-03EVO Chassis Set has split receiver as 1 unit. By purchasing and developing an optional receiver item suffering from used transmitter, enables Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by developing unique CPU which control servo function only, it improves interior feedback of placement control which will be 11.2 times quicker than current VE expert models. The newly developed control system knows the top ever steering feeling inside MINI-Z history. The ESC additionally improves the reaction expense in maximum 100 times faster than present VE specialist models. The included KYOSHO SPEED HOUSE XSPEED 56 (5600KV) brushless motor features a one-piece aluminum situation offering you efficient heat dissipation for superior cooling. Unlike previous framework sets, you can actually change toward brushed motor mode even though the I.C.S supervisor to create an optional brushed engine. The I.C.S supervisor furthermore allows more accurate environment customizations become made. Completely new higher-level performance features inside MR-03EVO take the MINI-Z battle experience to another level!
The SP variation has nickel plated hex screws and an oil shock (MZW432) as standard. Additionally, the ball diff is quite finished with blue anodizing. More over, groundbreaking top hands with different caster perspectives (1 degree/2 degree/3 degree) are included allowing wider environment range.

first MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.

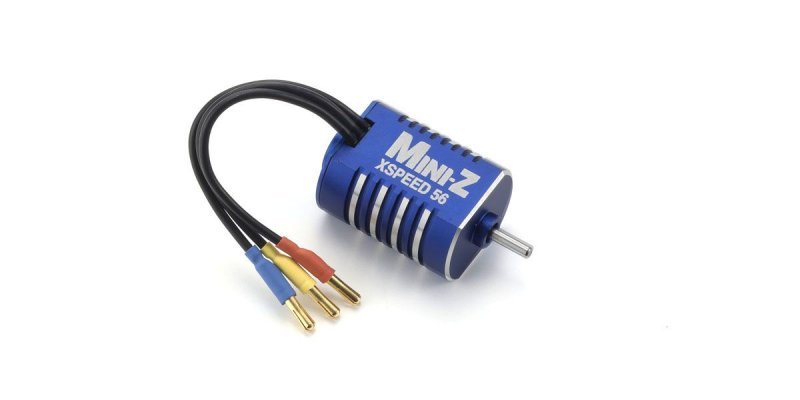

Includes new KYOSHO SPEED ABODE XSPEED 56 brushless engine (5600KV).

I.C.S supervisor features step by step steering and throttle parameter modification, with switching between brushless and brushed modes.

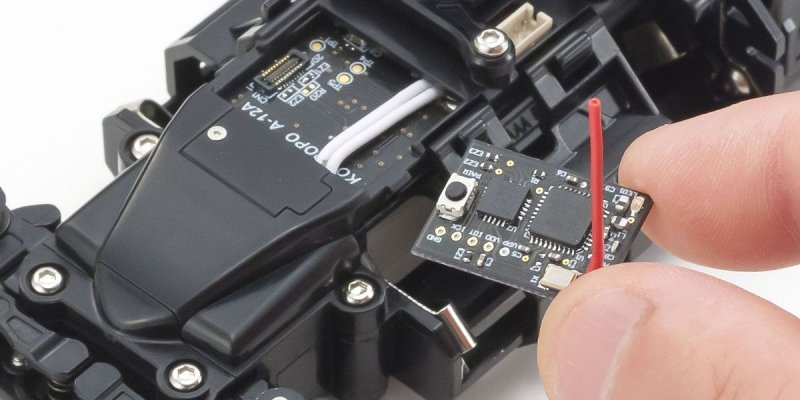

Powered by split CPUs for ESC and receiver, increased inside processing prices is important in precision steering and throttle control.

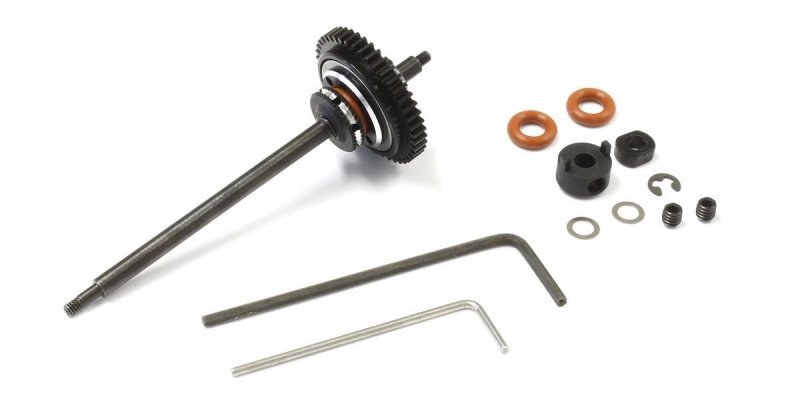

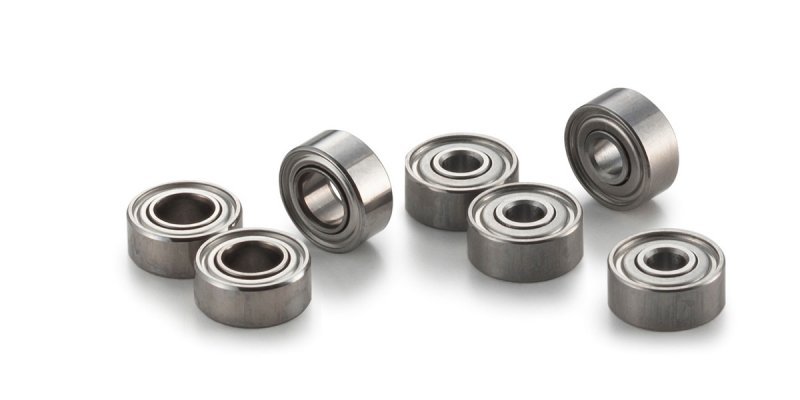

Equipped with ball bearings and blue anodized Ball Diff Set II.

Newly produced split receiver address and front top supply mount render tread modification easier.

Befitting optional components the MR-03 chassis.

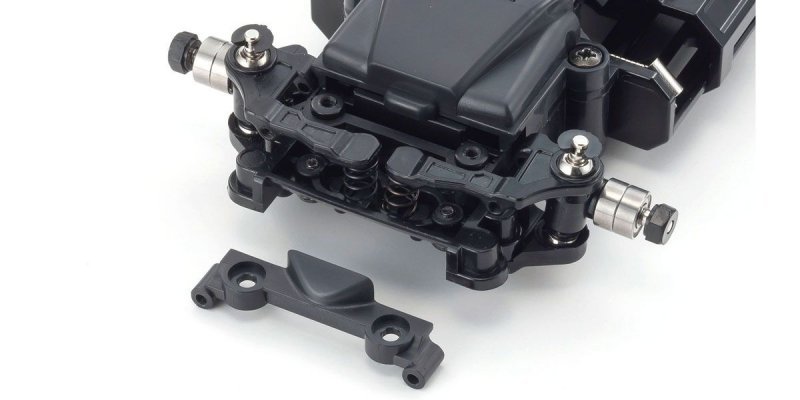

Including newly developed front top hands with caster views (1 level, 2 degree and 3 degree)

TECHNICAL INFORMATION

Length 115.5mm

Width 70~76mm

Height 35mm

Wheelbase 94.0mm(L)

Tread F:61.5~63.0mm/R:61.5~63.0mm

Motor Mount MM2

Tires (F/R) φ25×8.5mm (sold individually)/φ25×8.511mm (offered separately)

Gear Ratio 7.36.35.54.9:1

Weight 135g (approx.)

Motor KYOSHO SPEED ABODE / XSPEED 56 (5600KV)

KIT ARTICLES

MR-03EVO-N-MM2 Factory produce framework with KYOSHO SPEED HOUSE XSPEED 5600KV brushless motor

Parts set for changing front component tread

6T7T8T9T Pinion gears

Wheel wrench

Tools for pinion gears

Spare wheel nuts

REQUIRED FOR PROCEDURE

Receiver unit

Transmitter suited to receiver unit

Auto Scale Collection (body set, tires, tires)

AAA x 4 alkaline batteries or Ni-MH batteries for chassis

Batteries for transmitter
