Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)  [KY-32794]

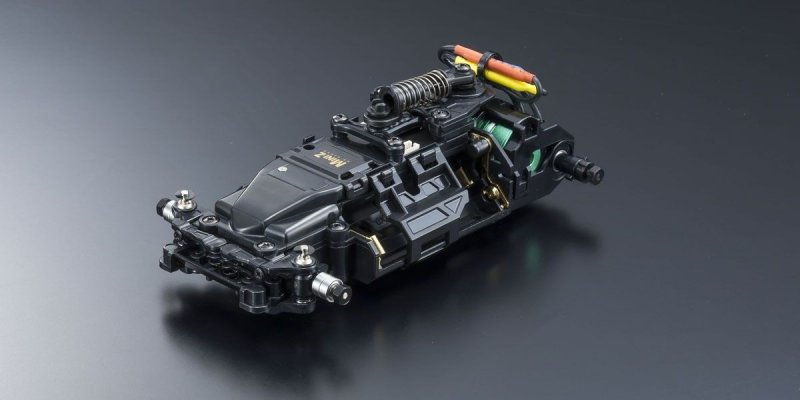

Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)
Price:
CAD$0.00
Brand:
Kyosho
Model:
KY-32794
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"

The existing MINI-Z is set up receiver, servo and ESC by 1 managed PCB product. Nevertheless this new MR-03EVO Chassis Set has split receiver as 1 product. By buying and beginning an optional receiver item ahead of utilized transmitter, permits for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by creating unique CPU which control servo function just, it improves interior feedback of positioning control that will be 11.2 times quicker than present VE expert models. The newly developed control program knows the top ever steering feeling inside MINI-Z history. The ESC also improves the response cost in optimum 100 times faster than present VE professional models. The newly developed KYOSHO SPEED RESIDENCE XSPEED 41 (4100KV) brushless motor features easy-to-drive power characteristics and far considerably longer runtime. Unlike previous framework sets, you'll change in direction of brushed motor mode although I.C.S manager to incorporate an optional brushed engine. The I.C.S supervisor additionally permits more accurate environment alterations become made. Brand-new advanced level performance features in to the MR-03EVO you need to the MINI-Z competition experience to a new level!


  • First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
  • Includes new KYOSHO SPEED ABODE XSPEED 41 brushless motor (4100KV).
  • I.C.S manager features thorough steering and throttle parameter modification, alongside switching between brushless and brushed modes.
  • Powered by split CPUs for ESC and receiver, increased inside processing price plays a factor in precision steering and throttle control.
  • Equipped with ball bearings.
  • Newly produced split receiver target and front top supply mount make tread modification easier.
  • Right for MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) the MR-03 chassis.

    • TECHNICAL INFORMATION

  • Length 117.7mm
  • Width 70~76mm
  • Height 35mm
  • Wheelbase 94.0mm (LL)
  • Tread F:61.5~63.0mm/R:61.5~63.0mm
  • Motor Mount MM2
  • Tires (F/R) φ25×8.5mm (sold individually)/φ25×8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED ABODE / XSPEED 41 (4100KV)

    • KIT ARTICLES

  • MR-03N-MM2 Factory built framework with KYOSHO SPEED RESIDENCE XSPEED 4100KV brushless motor
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

    • REQUIRED FOR PROCEDURE

  • Receiver unit
  • Transmitter appropriate receiver unit
  • Auto Scale Collection (body set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
    •
