The FAZER Mk2 Readyset is perfect for the pure satisfaction of R/C car driving. Available nowadays as a framework kit, owners have actually really in fact in reality the flexibleness to add unique body and R/C system. Specs happen elevated with optional elements including HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system system method stability applying this lightweight framework for R/C racers to savor. Since the deckless design appears effortless, a small range elements improves upkeep effectiveness and optimizes torsional rigidity. Incorporation of nylon item further decreases fat and improves impact opposition. Featuring its unique design, the FZ02 framework embodies features and satisfaction which could attract R/C motorists of all of the quantities.

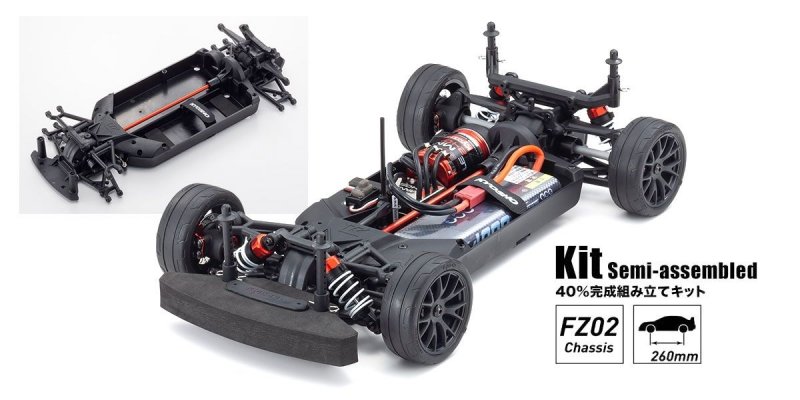

40percent pre-assembled (shocks and diff gears are not filled up with oil so installation is finished to preferred environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front side & right back stiffeners and rib reinforcement at key elements of the framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity set alongside the standard resin shaft into the Readyset. And smoother driving transmission, the red anodized color has striking appearance. Included aluminum dinner protects the motor from dirt and effective heat dissipation, especially in the heat of summertime competition.
TC Universal swing shafts L (FAW202) regarding ahead drive component don’t autumn on hefty contact like dog bone tissue tissue muscle mass muscle shafts. Besides, the move shafts deliver constant drive transmission although joint also come in a comprehensive steering angle.
A certain resin transponder mounting stay is roofed for when the framework is contending in battle occasions. You should not create a handmade stay or holes within the body to fit a transponder.
Included human anatomy mounts enable systems from various manufacturers become fitted. Also, two various brake-disk wheel hubs allow 190mm and 200mm framework width settings for compatibility with various human anatomy kinds.
Oil shocks and springs optimize the front-rear geometric safety, delivering both light handling and precise control. (Silicone oil the shocks comes independently)
Bump steer and scrub radius, both facets combined with the most readily useful influence on control, have been completely optimized regarding front suspension system system. Interchangeable front-rear and left-right hub carriers improve elements effectiveness and upkeep.
Included initial low-profile semi-slick pattern FAT701M TC Tire (M), internal sponge and FAH701BK Wheel (unglued), supplying superior performance.
Designed with Front and right back light buckets suited to optional 97054 LED Light unit which are generally provided individually.
By establishing the Light-emitting Diode light unit, improves scale realism for human body shell.
TECHNICAL INFORMATION
- Length (Body Size) 375mm(464mm)
- Width(Body Width) 200mm /190mm(207mm)
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: φ66mm x 25mm/R:φ66mm x 25mm
- Gear Ratio 6.54:1
- Total room for storing fats Approx. 1,490g (with 7.4V4000 LiPo)
KIT CONTENT
- 40percent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum engine Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width body)
- body mounts for various manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- FAH701BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO EXECUTE
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended items No.82138/82151
- 540-550 system engine *Recommended things No.37031/37032
- ESC appropriate motor used(Size:L36xW32xH23mm or less)*Recommended things No.37051
- Survo *Recommended services and products No.82273
- Battery charger
- Battery for framework perfect for ESC used(SIze:L145xW47xH25mm or less)*Recommended products No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended items No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services No.96162
- Silicone OIL(for Diff)*Recommended things F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless engine )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine )
- Paint for polycarbonate body
- Tools
