Kyosho 32780 - MINI-Z ASF 2.4GHz MR-03VE JSCC Blue Limited sho 50th Anniversary Specification  [32780]

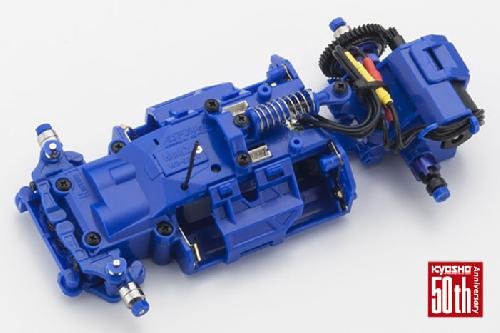

Vivid blue colored framework and framework elements mark the MR-03VE Blue Limited 50th Anniversary Chassis as a particular product. Featuring its brushless motor demands the MR-03VE framework competes for the most part helpful level inside popular JSCC system for this MINI-Z Cup. Form ECO Tuned VE motor’s motorist friendly faculties, comes the dependability and high torque of brushless engine performance. Inside temperature of JSCC system race battle, these advantages could offer the ability. This restricted variation with complete bearing requirements is delivered on identical expense although the present framework set. Also, the framework enables an optional gyro become bolted on and it's befitting all human body designs (somebody designs require additional elements). Down load the free ICS VE Manager computer programs through Kyosho web site and step-by-step settings could possibly be modified (adaptor provided separately is needed). Advanced features and technology prepare the motorist combined with item for future development. Utilising the MR-03VE Blue Limited 50th Anniversary Chassis, there is the essence related to rushing experience.

Priced similar to the prevailing framework set, this model features complete ball bearing must provide high effectiveness and low opposition for JSCC system competition.

• Pre-assembled MR-03VE N-RM framework set fitted with ECO Tuned brushless motor.
• distinctive version blue color finish.
• Complete ball bearings, ball diff, silver plated battery pack terminals included as standard.
• RM engine mount and slim tread demands.
• Includes MM engine mount and front tread replacement components.
• Compatible utilizing the many body designs. (Some systems require additional elements)
• Upper target permits optional gyro become efficiently fitted.
• Appropriate for amount of optional components the MR-03 framework.
• Revolutionary front suspension system system design adjusts camber with suspension system system swing.
• ASF 2.4GHz system instantly manages regularity bands. ※Transmitter offered separately
• Digital steering servo featuring coreless motor.
• Spring stopper is set up or eliminated with just 2 screws.
• Tall conductivity silver plated battery power terminals.

  ＜ Kit articles ＞

• Pre-assembled MR-03VE N-RM framework fitted with ECO Tuned VE brushless engine
• One-piece RA-27 receiver with ICS connector and brushless engine circuit board
• MM engine mount change components
• Front part reduced and top dishes, steering tie-rod for wide tread.
• Front suspension system system modification spacer
• 7T, 8T and 9T pinion gears
• Wheel wrench
• Pinion gear tool
• Pairing stick
• Spare wheel peanuts

＜ needed for procedure ＞

• ASF2.4GHz PERFEX KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• Auto Scale Collection (human body set, tires. tires)
• 4 x AAA-size alkaline or NiMH batteries
• 4 x AAA-size alkaline batteries for transmitter (KT-18), 8 x AA-size alkaline batteries (EX-5UR)

Chassis Technical Information

• Size
  124 – 133mm (MM Chassis:125 – 133mm, RM Chassis:124 – 132mm)
• Width
  65 – 76mm
• Height
  35mm
• Wheelbase
  86 – 106mm (86,90,94,98,102,106)
• Tread (F/R)
  (Wide)61.5mm/59mm (Narrow)56.5mm/56.5mm (whenever Wheel Offset=0)
• Tire(F/R)
  23.5 – 25 x 8.5mm (provided independently) / 25 – 27 x 8.5-11mm (available individually)
• Gear Ratio
  7.3, 6.3, 5.5, 4.9 : 1
• Weight
  135g (approx. without body)
• Engine
  ECO Tuned VE Brushless
