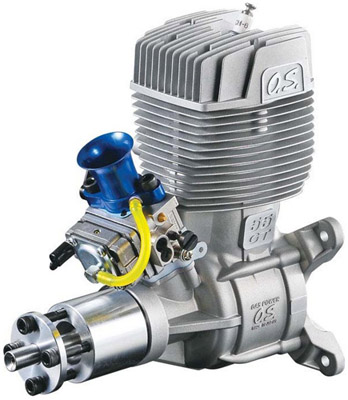

O.S. Engine #38000 - OS GT55  [OS-38000]

Releasing initial O.S. gasoline engine-designed especially for R/C!

Its love explore to numerous other O.S. 2-cycle items, with an important quantity of extra-deep and -thin ac fins on crankcase and mind. A geniune 1-piece crankcase design removes gaskets and enhances power and precision.

An excellent front-mounted carbohydrate, but provides some performance benefits.

• Better carburetor cooling, to obtain additional constant engine runs and high-end.
• Requires smaller standoffs, causing raised installation (mounting) less vibration all together.
• Simple, direct installing the throttle and choke linkages.

Another major performance benefit may be the IG-01 Capacitive Discharge Ignition. Developed from proprietary O.S. technology, it creates use of a microcomputer programmed for optimum spark advance. Magnetic sensors regarding crankcase and prop drive detect ignition timing. The IG-01 additionally detects and compensates for damp plugs, ensuring fast begins. Built to accept numerous input voltages, the IG-01 demands minimal present in standby mode and features a low-voltage care (regular engine procedure).

Features:

• IG-01 Capacitive Discharge Ignition makes use of a microcomputer programmed for optimum spark advance with the use of magnetic sensors based on the crankcase and prop drive, the IG-01 in addition detects and compensates for damp plugs to make sure constant quick begins, additionally demands minimal present stand-by mode and features a diminished voltage care (regular engine procedure)
• Front mounted carburetor remains cooler better value heat percolation plus much more constant performance, quick and simple direct throttle and choke linkages
• Unique one-piece crankcase removes gaskets and enhances power and precision
• Front induction rotary valve crankshaft design for good opening and closing of valve for optimum timing, no oil seal needed which removes RPM loss considering additional friction
• Massive front component and right back crankshaft bearings for longer life and maximum energy production
• Slim superior piston musical organization and high-strength aluminum alloy piston for paid down break-in and high compression through initial run

Includes:

O.S. GT55 Gasoline motor with Electronic Ignition, Carburetor, CM-6 Spark Plug, four Mounting Standoffs, Prop Washer with four 5x40mm Socket Head Cap Screws, Guide

Specs:

• Displacement: 54.93cc (3.325 ci)
• Bore: 41.2mm
• Stroke: 41.2mm
• Practical RPM: 1,500 - 8,000

Suggested Propeller:

• 20x10 - 22x10, 24x8
