RCJAZ CA : Yokomo Master Speed BD12 Graphite Chassis Specification
Among racing machines that tend to be uniform, Yokomo touring cars, which bring innovation with their highly creative design, have evolved into the "BD12". While still keeping the balance between pitching and rolling as before, we have achieved a racing design with a lower center of gravity. With its advanced design, the obvious will turn into the past tense, it will lead the race scene of the 2023-24 series.
Based on the new motor mount that controls pitching rigidity, the chassis roll is controlled with a split front and rear upper deck. Combined with A.T.F active top deck flex, it creates sharp cornering. The front and rear shocks have also been shortened, and by attaching bearings to the spring holder, it absorbs the twisting of the spring when the shock is activated, resulting in linear operation.
SPECIFICATION
- Splits the upper deck and joints with the motor mount to improve pitching rigidity
- Shock length is further shortened, and the spring holder with bearings is attached Eliminate twisting
- The body stepper on the front hub carrier prevents interference between the body and tires and increases traction
- A carbon plate that increases pitching rigidity is attached to the motor mount
- The 90T spur gear is The drivetrain has been adopted to lower the center of gravity. The motor also moves towards the front, allowing for centralization of the masses.
- A new front shock tower has been designed, and a position where the shock upright has been installed has been added
- The rear shock angle can be changed to a variable level. New rear shock tower
- Main chassis has a shallower dish screw processing to prevent damage to the screws
- Uses a large-diameter suspension mount spacer that prevents damage to the main chassis due to crashes

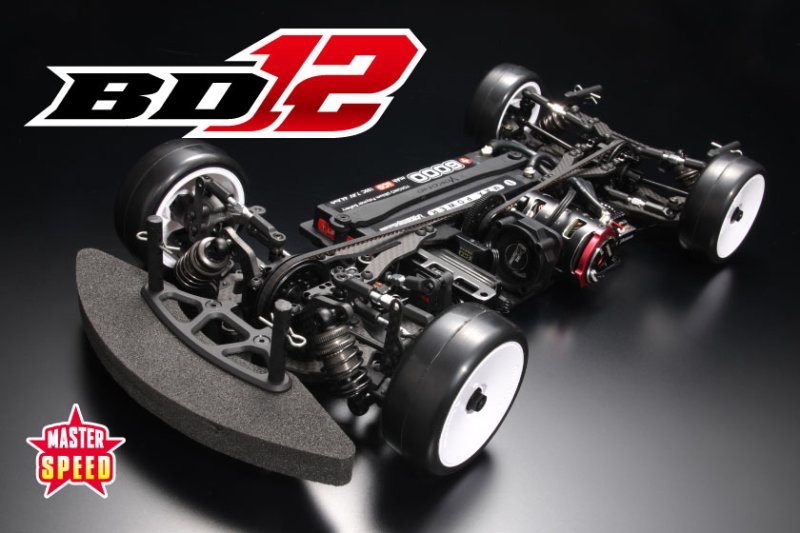

*The photo is a reference example for assembly.
※ The kit includes two-channel propo set (transmitter, receiver, speed controller, servo) battery (Li-po2 cell), charger, motor, tires and wheels, pinion gear (64 pitch), and touring cars Body, polycarbonate paint, etc. are not included. Please purchase separately.
*The kit does not include body, wheels, tires, motor, batteries, pinion gear, and other R/C electricals.
