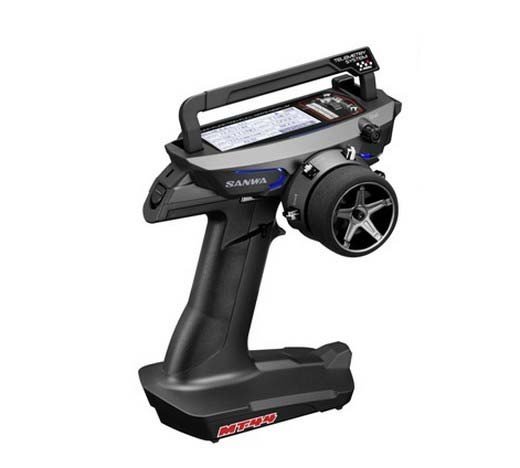

Sanwa MT-44 - 4-Channel 2.4G Transmitter with RX482 and RX472 Receiver  [SW-MT-44-78B]

Beyond Middle Income Radios, The MT-44 Transmitter

• TALL RES SHOW
  Similar detailed dot as M12S allows consequently clear display.
  Three kind of telemetry info is shown and considering grey scale display.
• IDEAL DESTINATION FOR STEERING / THROTTLE
  Steering/Throttle is arranged to the most readily useful spot for procedure.
  Drop Down is very important as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries permits become not only compact and light.
• USB CHARGE
  Whenever alongside optional Li-Po 1 mobile battery pack, fat become lighter and it is actually changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• fast Setup Wizard
• Protection Link
• rushing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry modification
• Clock
• Circumstance Temperature Show
• CSV production for LOG information
• GUIDELINE 10-compatible (Naming help)
• Simultaneous three telemetry data expose
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB modification assistance)

• big complete dot LCD monitor
• Wight LED straight back light
• Complete adjustable trigger
• Telemetry function
• incorporated antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Twin price
• End aim Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Speed Control)
• AUX1 (movement type for 3CH. it's exactly like MT-4S function.)
• AUX2 (motion type for 4CH. it's exactly like MT-4S function.)
• Fail safe (power/ battery power) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever present in combination with sdcard, 250 models can be had.)
• Model Title (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model choose
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• impact Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• ACTION AUX (the initial step - 100)
• POINT AUX (2 - 6 point)
• 4WS BLENDING (Front/Rear/Normal(coordinate period)/Reverse(opposite duration))
• MOA BLENDING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• amount Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

appropriate Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA groundbreaking SSL SYSTEM

• Whenever coupled with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the surroundings of ESC an such like. by Transmitter might be had through SSL functions while driving.
• mainly because environment can be carried out without stop of automobile, the step by step modification based on Race conditions
  could be had without interruption of durations as well as the modification of unit conditions.


[Reaction of Telemetry System]

• it is stated that telemetry system reduce reaction price. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without impact price decrease.
  Our excellent Telemetry System doesn't have reaction price decrease.
• With your telemetry system, the valuable battle information assists another battle environment and driving.


[Reaction Mode]

• Do not use Analog Servo for SHR mode or SSR mode.
  If analog servo may be used for SHR mode or SSR mode, the servo will soon be broken and can maybe not work.
  Digital servo (SRG show, Digital ERG series, SDX show) can be employed both for NOR mode and SHR mode.
• SSR mode can be employed just by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR won't work.
  Please use NOR mode these ESC.
