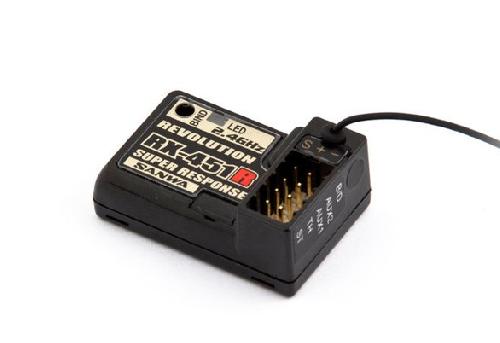

Sanwa RX-451R 4-Channel 2.4GHz Receiver  [RX451R]

2.4GHz FHSS3 Spread range system 4ch,Sanwa Super reaction (SSR) assistance

• Frequency : 2.4GHz FHSS3
• Channel : 4ch
• Nominal Input Voltage: 4.8~7.4V
• Measurements : 36.5 x 24.0 x 14.5mm
• Weight : 9.0g
• Compatible radio : M11X, EXZES X, MT-4,MX-3X,GEMINI-X

Notice:

• This simply does occur on FH3 mode instead of on FH4T mode.
  Whenever there exists making use of M11X with RX-451R, the conventional servos (like analog servos) therefore the ESC aren't capable of utilizing "SSR" and "SHR" mode. Furthermore "NOR" mode wont competent to make use of, when receiver programs above signs.
  Proportions on item specification simply shows the proportions of receiver it self cared for excludes degree of the antenna and crystal projection.
  To steadfastly keep up the reception of product, don't slice the antenna. For additional information, please read official manual for every product.

Notification about RX-451R making use of with FH3 mode.

• Please be noted that due to the unique specification, some transmitters expose below indications utilizing FH3 mode with RX-451R.
  (Indication On Display) (genuine movement)
  NOR > SHR
  SHR > SSR
