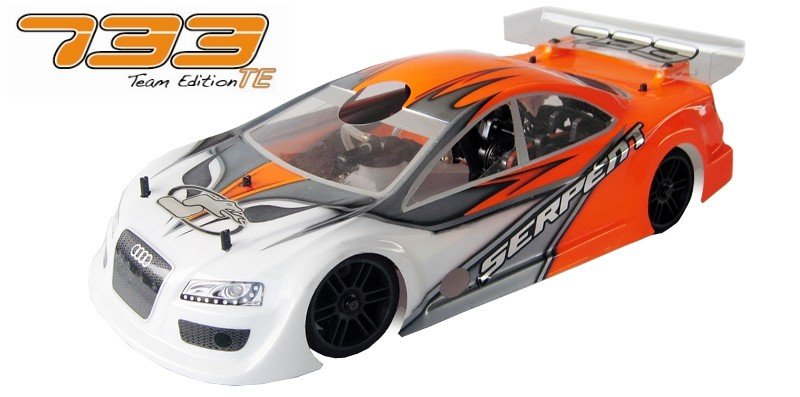

The Serpent 733 has a whole new, acutely distinct available design and sets new needs in 1/10 scale race-chassis design. Numerous revolutionary and practical solutions are build to your unique design, to generate construction, set-up, rushing and upkeep a joy.
Specs:
- Course: 1/10th Scale 200mm
- Purpose: 200mm Touring automobile Racer
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: split enhance wishbone suspension system system
- Broadcast supper: 2.5mm carbon soluble fbre, CNC machined
- Shock absorbers: RCCX shock absorbers
- Gas tank: 75cc design with new lid
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-IIwe clutch system
- Front axle: Gear Differential (Optional a great method axle )
- back axle: Gear Differential
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- body fat: 1.695kg (considering radio gear)
- Max. price: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- instructions: color guide, guide guide
- Maybe not included: engine and pipeline, human anatomy, radio gear, battery power, tires
Features:
Fueltank
Low-mounted 75cc fueltank with bronze sintered filter with exclusive limitation, relocated more towards front part and you will be providing a mounting-position for AMB transponder on base. Small part indent presenting area the throttle lever. Tank-inserts is screw-mounted inside to decrease the articles if required.
Tanks mounts on 3 alu articles, with artificial covers, capped with silicone o-ring and little videos.
Roll-bar
Asymetric roll club with built-in sleeve the fuel-cap musical organization. The roll club increases more over as end-stop the fuel-cap, to prevent the limitation to start after dark right limitation.
Pipe-mount
Machined alu pipe-mount holds the spring-wire , that's from the radioplate. Grub-screw holds cable arranged.
Bumper
the most recent and appealing brand new bumper tasks a split kind foam bumper, and the angled top bumper creates a tremendously sturdy front end, to soak up the result of crashes ( if any). ( A wider foam bumper comes as optional.)
Servo-saver
Ball-raced servo-saver design, along with metal servo saver shaft for this framework only, spring-loaded with pre-tension nut and simple inserts to change Ackermann. The linkages towards steering-servo are brief and views are smooth / direct and easy to access, as installed above the radioplate.
With all the current ultra strong SS-steel trackrods and smooth ball-joints, the installation produces an effective and responsive steering-system.
Pullies
amazing gear-ratio together with unique pullies with tiny sideholes allowing dust out efficiently. Friction free and extremely smooth procedure.
Front Diff - 35
rear Diff - 40
center Pulley - 18
center part Pulley - 21
straight back component Pulley - 21
Brake Pulley - 20
Drive ratio 1.0117
center shaft
the center shaft owner is beautifully integrated inside front left alu bracket and fully guaranteed with 3 screws. This permits strong, flex-free guidance towards the SS-steel center shaft.
2-speed shaft brackets
The 2 alu brackets to carry the 2-speed shaft are genuine artwork. By splitting up them from end brackets, it makes numerous available room towards any workplace on vehicle and better method of air-con too. In top the brackets provide ball-raced back anti-roll club, which will be seated towards brackets with little steel adaptors and higher rate bearings. The left one additionally houses the ball-raced brake-cam and supports the framework stiffner too. Multi-functional.
Shocktower rear
4mm dense carbon dietary fiber straight back shocktower with 6 mounting functions the shocks. The holes sit such means, that after changing to to a different area, how big the shocks can remain comparable. The shocktower includes holes to create the tank-cap band, plus mounting jobs a corner body mounts.
Uprights
unique uprights permitting applying this new geometry. Licenses 2 mounting functions inside top, internal or outside even though the kit comes step-by-step with conical spacers to boost roll-center.
right back suspension system system system
the present day right back reduced wishbones may be used both left and appropriate. The anti-roll club linkage has 2 mounting jobs available. A corner carbon camber bracket in 4mm dense product , has 9 jobs to pick from, 5 internal and 4 exterior each component. The roll-center alterations are developed by changing the inner pivot inserts for a lower, moderate or more destination, in line with the situation.
Wheel-base is changed using the casterclips into the front component or back of wishbone on paid down pin.
Brake
a remarkably available and cool stopping system system. The brake-system is set up suprisingly low towards the automobile for better center of gravity. Spring loaded competition pads that fall on precision machined bushings. Your competition brake-pads are likely to use with pre-baked friction product ( simply just forget about glueing ) that continues and will be offering amazing braking energy with exceptional stopping system feeling / feedback. Hits right temperature quickly, doesn't also provide diminishing and it's effective in the rain too. The nylon braking system lever, that runs the hard-anodised ballraced brake-cam, has 2 mounting functions the linkage. The linkage runs excessively directly to the servo-arm.
Radioplate
the brief and slim radioplate is composed of 2.5mm excellent carbon dietary fiber item and adverts toward overall tightness with regards to the car. The complete design is made such helps to ensure that the whole radioplate with tank, roll-bar, belt-tensioner and all types of kinds of electronic devices occurs of vehicle at the same time. Simply introduce the steeringlever and launch 7 screws. Ideal for cleaning and upkeep. All wiring extremely brief and compact to install. Right aligned servo-linkages to both braking system and throttle levers.
Radio-gear and battery power mounting
The 733 provides a neatly created side-bracket-assembly that provides mounting area the receiver, the switch, the antenna and both servo?s. The receiver switches into the nylon industry with embossed Serpent customized logo. Towards other part the tank, the battery ( Lipo or regular pack) is set up to a carbon fibre bracket (shrink-foil/tape) , which all over again mounts towards the radioplate with nylon spacers.
This acutely compact design means you need to use really brief cables whenever mounted precisely small cables are noticeable through external, but house well protected within the automobile. The steering-servo bracket provides another mounting spot ( 2 holes) the transponder if is prefered as opposed to the paid down mounting location in the tank.
Spacers are offered to properly install the servos, alongside 3 kinds servo levers to help all major brands.
Bearings
tall rate steel bearings through the complete vehicle, lightweight and lubricated with a superior quality Shell bearing oil. Excellent one-way bearing the 2-speed adaptor.
Fasteners
Allen kind good quality metal screw through automobile.
Belts
Kevlar 4mm wide re-inforced drive-belts. Kevlar type belts are standard (the black/brown low friction artificial sort are optional) .
Driveshafts / wheel-adaptors
Leading end has SS-steel CVD system, with laser etched, ultra slim and light driveshafts, and durable wheel-axles and precision machined alu hex wheel adaptors.
The trunk end has SS-steel dogbones also thin/lightweight, yet durable, to handle the beating the increasing horsepower and grip-levels. The Direct Link System (DLS) may be employed as shown, even so the camber bracket is universal, and that means you might run in standard framework.
Geometry
new geometry and roll-centers, reduced center of gravity and modified weight-positioning for improved hold and better protection.Adjustable caster, camber, toe-in, width, wheelbase front side and straight back, ride-height, roll facilities plus much more.
Front end brackets
Alu ahead reduced bearing blocks and suspension system system brackets, with integral anti-roll club holders and built-in alu center bearing block. The gear-diff is seated in eccentric nylon bushings to produce the belt-tension. The greatest spot ( array of 4) from the eccentric bushings are recognised from outside, for easier re-assembly. The paid off front part component end brackets have in fact in fact really metal pins pre-mounted which positioned on the slots in framework, for accurate positioning.
Rear-end brackets
really available design split sort buttocks arranged. The supersmall and light gear-diffs mount suprisingly lower in the car, in accuracy machined split kind alu brackets. The gear-diff is seated in eccentric nylon bushings to generate the belt-tension. The most suitable destination ( selection of 3) of eccentric bushings could be recognised through area, for easier re-assembly.
The reduced buttocks brackets have metal pins pre-mounted which slip towards slots inside framework, for accurate positioning.
The available design really in fact departs countless area for maintenance, cleaning and ac.
Framework
The 3mm framework is composed of precision machined aerospace quality 7075 T6 alu. Countersunk with chamfered edges. Some extra machining where required for the unit, the motor with airscoop for ac, the flywheel and many extra area to allow the moutning the transponder under the fueltank. The closed design of framework produces the maximum amount of rigidity inside car. More flex-control exists as a consequence of alu stiffners on framework. Elaborate anodised framework is optional.
Engine mount
Mono-type motor mount, for sucure sitting of motor. Additional coolingfins for better heat-dissipation. The machine enables accurate positioning with regards to the clutch and 2-speed gearbox.
Chassis stiffners and flex control
one of the keys chassis-stiffner would be the ball-joint pole which are generally installed regarding the radioplate combined with the remaining 2-speed bracket.
suspension system system system front component
amazing front component top and front side paid off wishbones, created from superb M-type nylon materials as well as outstanding fit in regards to your hardened steel pivot pins. The reduced wishbones homes the hard-coated alu pivot-ball, which runs one of several tips anti-roll bar.
The wheelbase might be converted into leading component utilising the little caster-spacers ahead or right back regarding paid down front component wishbone. In top ofcourse modification caster very much the same. The roll-center changes might produced by changing the inside pivot inserts for a diminished, medium or higher location, on the basis of the situation.
Front top bracket
The nylon top bracket, connect the main thing alu bearing obstructs, holds the carbon dietary fiber shocktower because the top hinge pin inserts and includes the downstops. To look for the diff takes 4 screws simply.
Steeringblocks
The kit comes using the strong prooven steeringblocks with off-set 0. Offset 1 can be had as choice. The steeringblocks mount towards wishbones with light-weight coated alu 8.5mm pivotballs, and make usage of the nylon ball-cups for an ultra light and ultra smooth suspension system system procedure.
Anti-roll club front component
Ball-raced cable kind ahead anti-roll club system, better and several other items straightforward to improve. Operated by linkages that mount to alu pivotballs regarding the ower front side hands.
2.5mm is standard, additional alternatives. 1.8, 2.2 and 2.8
Shocktower front component
Carbon fibre front part shocktower in 3.2mm with 4 functions leading shocks. Includes holes to mount another bodymount.
Shocks
Pre-assembled RCCX shock-sets. Brief type both front component and back, in addition brief springs front component and backside. Utilizing the 2009 modification on rod-support and silicone x-ring for supersmooth shocks. SS-steel shock-rods, precision machined covered shock-housings, foam bleeders, accuracy moulded nylon pistons and shock-parts. The springtime pre-load nut has a silicone o-ring inside to prevent undesired modification.
use 1000 Cst (40W) shock-oil as enclosed for standard set-up both front part and straight back.
Gear-differential.
Acutely small and light gear differential, seated just feasible in 733. Comparable gear-diff might be employed inside front and backside because of this automobile, simply various pullies are setup. Good quality, precision machined , hardedned gears, with SS-steel shafts, create a supersmooth gear-diff. The gear-cases are sealed with a captured o-ring. The SS-steel precison machined outdrives are lightened to diminish rotating mass further. For standard set-up usage 80.000 Cst front component and 30.000 Cst right back oil, as supplied.
Its fairly easy and fast to just you will need to just take the diffs out from the car.
Centax
The Serpent 733 includes the famous Centax clutch ( a geniune Serpent innovation) . The ultra dependable Centax III WC variation includes precison machined, hardcoated alu screw on gears ( laser etched) installed on a hardened metal clutch-bell. A tremendously small and light 31mm hardcoated alu flywheel with precision arranged steel pins. Race developed clutch footwear and flyweights, and a difficult Centax springtime, to come up with outstanding working clutch for amazing accelleration and durability.
Ball-joints
quality nylon ball-joints for precision fit on pivot balls. All balljoints connected with automobile just take one larger framework in to the kit. Some have actually really in fact TOP as indicator, showing which direction to create them for a few readily of use procedure.
Gearbox SL6
Ulta smooth gear-changes are furnished by the SL6 automated 2-speed gearbox, which combines totally because of the Centax-3 system. Amazing gears for SL8, new design/ sort, actually durablePrecision machined 2-speed bell and one-way adaptor, and durable centrifugal footwear put up regarding SS-steel polished adaptor. Balanced SS-steel 2-speed layshaft.
Belt tensioner
Alu CNC machined belt-tensioner bracket, which will install extraordinary or underneath the radioplate. Ballraced.
