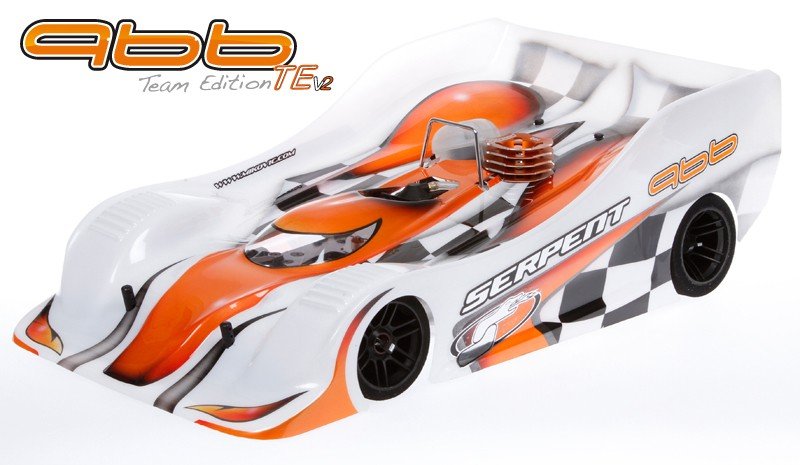

Serpent 1/8 scale 4wd gaspowered rushing car framework inside Team version v2.
Specs:
- program: 1/8th scale gas on-road, IFMAR guidelines
- function: High-end competition
- body fat: 2.520kg (according to radio gear)
- Track-width straight back: 260mm - 266mm
- Track-width front: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent enhance wishbone suspension
- Shock absorbers: RCM shock absorbers
- automobile's gas tank: 125cc design
- right back axle: Solid back again axle
- Front axle: Aluminium front part axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax genuine motion clutch system, hard anodized alu. gears 16-19T std
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and right back get centre
Features:
- Centax genuine movement clutch system
- RCM shocks
- SL8 gearbox included, for paid down inertia
- front component aero bumper
- split-type carbon radioplate with flex-control
- Brand new front side top geometry with interior pivots more away and smaller top arms
- Brand groundbreaking back top geometry wth fresh camber-bracket and top camber-rods as a substitute wishbone
- Back reduced shockmounts/extenders in carbon
- Brand brand new design tank-top/tank-cap ( like S811 )
buttocks connectors
Buttocks connectors in plastic and alu, to influence buttocks flex.
Steering Obstructs
These Wide offset (WOS) steering obstructs is useful in 2 different designs by swapping the medial component connected with vehicle they are typically setup on. These customizations, based on their the steering obstructs can be employed on, will either present more improvement in on component entry, or maybe more on energy steering at component exit.
The included eccenters make certain that the axle is raised greater than centre line, which improves the result as a result of this fresh setup and due to the use of eccenters the bearings are actually also smaller and lighter, reducing un sprung fat.
Front Bumper and Body Mount
the best human anatomy mount of Serpent 966 is screwed reduced along with bumper, permits a few flex in the human body post mounts whilst keeping the tightness from fundamental make. Your system mount is held further through two screws mounted through part.As because of the back roll centre, leading roll centre might be effortlessly modified. The modification is completed by removing the greatest top suspension system system system brackets and placing spacers in brackets and re-attaching them toward automobile.
The 966 includes anodised aluminium front component top suspension system brackets which are generally machined from you small aluminium. These attractive pieces are incredibly strong and great security in case of huge impact. Another great advantageous asset of this component usually due to the usage of inserts, with an offset opening, now you can adjust the pivot location the top front side component wishbones. Another good design feature could be the proven fact that same front suspension system system system bracket can be used into the left and right sides for the car.
Thew unique aero bumper may be used closed, or partially available, by detatching the aligned interior elements.
Chassis Plate
The backbone connected with vehicle could be the chassis dinner, including been CNC-machined from exceedingly rigid american 7075 T6 - 5mm aerospace-quality aluminium and tasks a thorough front side side just starting to alter leading anti-roll club. A cooling slot in motor assists assist heat control while chamfered sides stop the framework from getting on kerbs supplying it better basic ground approval regarding track. It houses the battery pack, which are often put up towards the newly-designed carbon soluble fiber power packs mounting dish and this can be held put up by four screws, screwed directly into the framework meal it self. This 966-TE meal in addition has been machined to merely accept the optional front side stiffener meal.
Brake-system
The stopping system system guarantees strong and efficient stopping power. The braking system pads have two steel dishes along with the friction product pre-baked towards dishes, coupled with stopping system disk is made up of twin ventilated discs with an air-cooling alu centre.The amazing stopping system sits lower in the automobile to simply help LCG. The machine is effectively accessable for maintenance, because acutely open design.
The spring-loaded bar-pads wear refined steel pins and are also also triggered through ball-raced braking system cam, a big pin techniques horizontally to stimulate the stopping system system. Because of the horizontal action through pin, rather than the twisting of the brake cam, all distortion of this kind is expunged and also the braking system pads are evenly forced together. The stopping system cam is supported by ball-bearings for smooth, accurate action. This further increases the accuracy and excellent stopping power from the stopping system.
Brake 966
Lower mounted brake-assembly for reduced LCG. Spring-loaded brake-plates slides on polished steel shafts. Ready-to-run stopping system plate/pads installation with brand new friction stopping system item. The ball-raced difficult anodized brake-cam push both bigger pins that are seated within the aluminium bracket, from brakeplat, to make acutely smooth including force towards supper.
RCM Shock Absorbers
The RCM shock absorbers are super-smooth and extremely a simple task to create. Coated aluminium threaded shock-bodies, perfect pistons, smooth o-ring-bushing package, effective silicone membranes, durable hardened shock-rods, the works !
major right back brackets
Anodized, cnc machined, aluminum top straight back axle supports with coated alu eccenters; more rigid, better straight back axle assist for a really genuine working back shaft, effortless belt-tensioning, comfortable access for upkeep. Utilizing the eccenters you'll be able to choose 3 jobs for rear- belt tensioning. By reducing the eccenter for a passing fancy component a large part shaft with pulley and gear might accessed effectively. Immense back aids are machined maximum to repaid fat, but retain rigidness besides. Pins are pre-pressed towards base of brackets which often seat in positioning holes in framework. Precise and safe.
Front Side Suspension System
the main element anti-roll club levers, which can be because of the down stops allowing easier tweak. They placed inwards, inside bearing-blocks, making them greater as a result of less flex. Leading paid down hands look after the key anti-roll club location.
Battery Mounting Plate
The carbon fibre battery mounting dinner have now been developed to have the power to accommodate numerous battery designs, like traditional 5 cellular pack. The battery mounting meal is made of a 2mm black colored carbon soluble fiber also it's setup toward framework dinner by four countersunk screws.
Broadcast Plate assistance Bracket
the environment dish assistance bracket, spot right while you are viewing engine, furthermore will act as the mounting point the roll over club.
SL8 gearbox
The 966-TE included probably the most up-to-date developed Serpent gearbox with 8mm shaft and amazing flange, bell and gears. a perfectly balanced gearbox with suprisingly low inertia, and outstanding bearing sitting.
Durable and ultra fast shifting.
The brake-disk and pulley-adaptor with 3 pins had been modified, and another alu hardcoated component pully in included to fit the 8mm shaft.
Split-type radioplate
The 966-TE features a split type radioplate. The bigger costly primary components links with a rod towards front side stiffner. The principal component front part screws which link toward bulkheads is loosened to create more flex; the pole will get a handle in regards to the flex.
assessing revealed that flex inside front component has more effect set alongside the trunk or top an element of the framework.
Adjustable Front Belt Tension
good function could be the capacity to modify the concerns in regards to the front side gear. The simple-to-use bearing eccentric holders enable quick and easy quick environment.
Front Shock Tower
Leading surprise tower of Serpent 966 is made of 3mm carbon fibre, causeing the component ultra crash resistant. The genuine secret shock tower also features two surprise mounting jobs to help you fine tune your vehicle or vehicle or automobile or automobile for almost any track conditions.
Driveshafts / wheelaxles
Serpent merely utilize the highest-quality drive train of their automobiles. The 966 automobile comes provided perfect Spring steel drive shafts great at withstanding constant punishment; these shafts are ultra durable and extremely rigid enabling you to put your capability towards tarmac.
Front CVD and straight back regular dogbones.
Produced from Spring steel, leading and straight back wheel axles are specially durable and ultra strong. They've been a precision complement the biggest thing bearings whenever installed using the supplied shims to make sure a substantial precise wheel fit. Top axle additionally comprises an element of the CVD shafts being most notable kit that may consequently be properly used with all the supplied fast launch system and/or optional wheel peanuts.
Pivot Balls
produced from Spring metal, these polished 8.5mm pivot balls are virtually unbreakable and guarantee the smoothest suspension system system system system movement feasible.
Adjusting nut for pivot balls
These adjusting peanuts are produced from Nylon and alter the earlier aluminium nut with artificial insert that'll not simply makes installation easier, it decreases un-sprung fat. Reducing the elements utilized now additionally decreases component perform such that it produces a much more accurate control car then when the item utilized is self-lubricating the movement as a result of this pivot ball will always be smooth throughout use.
Aluminium center bracket
The Serpent 966 comes given an aluminium center bracket as standard. Changing the standard composite variation, todays component is considerably stiffer and thus decreases flex within axle which prolongs lifespan of belts and pulleys.
Front Axle
leading axle is manufactured from high-grade aluminium and possesses the utmost effective quality one-way bearings lubricated with one-way lube. This guarantees day-to-day to day drive on front Spring Steel drive cups.
Front Anti-roll Bar
The Serpent 966-TE comes standard with a variable front part anti-roll club. By rotating the 2 blades, it is in reality quite simple to modify the tightness. Centering with a classy adjuster eccentric.
Chassis Stiffeners
Another function could be the two carbon-fibre component mounted framework stiffeners. These meals form an excellent connection in regards to the front part and back an element of the 960, and they are frequently create to r / c dinner bracket along with a large component bulkheads. They enhance the framework tightness, an essential condition generate effective usage of advanced level suspension system modification options. The left chassis stiffener increases as a belt-tensioner owner to with a lengthy slot enable improvements.
car's automobile's vehicle's gas tank
Serpent need really supplied the 125cc car's gas tank with a silicone synthetic seal the automobile's gas tank lid that stops leakage therefore provides more constant motor performance. Produced from silicone synthetic, the most up-to-date seal is shaped generate an excellent seal through the opening with this tank and enabling the tank lid to shut entirely.
The tank is manufactured from a much more present better product. The tanks have significantly more opposition to shattering in case of huge effect and modifications on lid pivot pin spot further make certain a perfectly sealed tank. This new product tend to be less temperature painful and sensitive and will keeps it contour better additionally whenever hot. The tank offers the replacement mount little spacers inside to fine-tune the amount.
Receiver Mounting
The receiver on Serpent 966 might be installed in 2 various jobs, impacted by whether you choose the laydown throttle servo mounting and/or main-stream upright throttle servo mounting.
If you mount the throttle servo utilizing the laydown setup, the receiver is attached to the staying component regarding the radio dinner, concerning the car's car's vehicle's gas tank as well as the exhaust system.
In the event that you mount the throttle servo using the conventional upright setup, the receiver (and protective target) are installed next to the throttle servo.
The main advantage of these alternative mounting functions is it includes choices for devices positioning, additionally options for eliminating any recurring disturbance conditions that may occur.
Steering Servo Mounting
The steering servo is connected to the maximum component directly to underneath towards radio dish and hangs without other product. The steering system makes use of a centrally arranged servo-saver, which features adjustable springtime anxiety and it's supplied with four Ackerman choices, by making use of inserts, to greatly help fine-tune the 966-TE steering faculties. Adjustable steel track rods with staying and right threads are standard.
right back Axle
crafted from Spring metal, the solid straight back axle is very durable and ultra strong supplying an excellent base to include the trunk drive pulley. A steel pin secures the pulley and an o-ring keeps it constantly set up.
Adjustable back Roll Center and Camber Increase
with regards to the Serpent 966-TE a large part roll centre is adjustable making use of offset composite inserts, which spot the wishbone pivot pins the paid off wishbones.The right back camber enhance is modified through exact same strategy but concerning the top back wishbone pivot pins. The employment of composite inserts means both corrections can be simply made track component.
Right back Anti-roll Bar
The cable type right back anti-roll club into the Serpent 966 is ball-raced for additional precision and many more precision.The blade type backside anti-roll club is optional.
Right back Body Mount
a giant component body mount inside the Serpent 966 could be connected in plenty of other ways to boost or decrease the downforce delivered from body toward back tires. There are longer human body mount hands, which can be installed towards backside uprights at axle level which provides more down force towards tires. Your entire installation may also be without binding, meaning there's absolutely no limitation of motion regarding suspension system.
Rear Suspension System
a large part end geometry provides excellent buttocks hold and will be offering a tremendously stable car both under stopping and at leaving corners. The OS 2 uprights sport small bearings to attenuate un sprung fat, 3 top supply mounting functions along with the possibility to utilize shims for changing the roll facilities. Strong repaid wishbones with sufficient product through pivot pin and pivot balls, as well as the upper fingers help effortless modification in regards to the camber and camber enhance. Longer body mount arms offer more down force towards the tires yet don't have any binding with regards to their mounting location.
straight back Shock Tower
The trunk shock tower of Serpent 966 consists of 3mm carbon soluble fbre, which just as before makes this component ultra crash resistant. A large part surprise tower tasks 4 shock mounting functions to work with you fine-tune your cars managing track component.
Fast launch Wheel System
The Serpent 966-TE comes standard with both spring-loaded aluminium fast launch levers.
Quick-change
This dependable and time-saving system enables extremely quick tire alterations during cross-country races, helping you to return on program in only a little bit time as you're able.
Adjustable Wheelbase
because of leading side wishbone configuration, you'll be able to effectively adjust the car's wheelbase through keeping 1 top and paid caster clip for every single section of this automobile. Inside rear you'll be able to spot shims in-front or in straight back associated with straight back wishbones for plus or minus 3mm.
Throttle Servo Mounting
The 966-TE provides two possibilities the mounting in regards to the throttle servo, firstly which will be the 1st stand-up throttle servo layout. To reduce the automobiles centre of gravity there was clearly an alternative to set up the throttle servo in a lay out setup. This moves the hefty engine and also other aspects of the servo paid and also to the within permitting better fat blood supply and C of G.
The construct throttle servo create is built to match the traditional servo mounting area, consequently permitting the simple modification over between designs. In the event that you find the antique upright mounting, it is possible to install the receiver beside the throttle servo. Otherwise the receiver is in its standard invest all those other component regarding radio supper.
Drive Belt System
The Serpent 966-TE utilizes three Kevlar-reinforced main drive belts, driven by some composite pulleys setup on aluminium pulley adapters. This allows for a very smooth and efficient drive system that may withstand severe punishment.
Engine Mono block
The strong engine mono block that takes advantageous asset of the surplus area where the engine is initiated regarding LCG (minimal Center of Gravity) framework supper. Too because the advantages of the mono block system, to eradicate the engine flexing, the block permits the motor be installed reduced the framework by 2mm. Due to engine being lowered the vehicle gets a substandard diameter flywheel.
Centax True movement Clutch
Serpent gift suggestions brand new Centax clutches for 1/8 onroad. Numerous variants happen tried, in final result it nevertheless comes close to the initial idea.within the current development the tapered sort is relocated from flywheel towards force meal as a substitute, improves punch and dependability. Serpent continues the application of the difficult Centax springtime to create preload, after the less critical and faster to control.
The 1/8 scale Centax genuine movement clutch, gets the black colored colored colored colored footwear and aluminum cutch housing as standard. Yellowish and red footwear is tried aswell, along with the metal or light metal clutch housing.
Exhaust Mounting Spring
using a spring-type mounting cable to split up your lives vibrations, the springtime is from vehicle in the form of an aluminium mounting post connected to the atmosphere supper.
Gearbox
The SL8 2-speed gearbox is competition proven and it's fairly simple to modify and construct as a result of the effortless design. The gearbox features big ball bearings for additional durability and smoother rotation. The 8mm shaft offer increased security.The fresh 2-speed gears are placed up towards providers with three tiny screws plus they are for sale in the total selection of gears for sale in combination with pinions the Centax-II clutch.
Bearings
Given sealed top-quality lightweight bearings throughout, the drive train is quite efficient and runs exceedingly effectively.
30 bearings completely including 3 one-ways.
Adjustment
The Serpent 966 is a top-level competition racer that will be consequently entirely adjustable. The racer can transform many settings effortlessly and efficiently, like suspension system system geometry. The down stops is accessed and modified with maximum impact. Caster, track-width, toe-in, camber, camber enhance, and wheelbase might be modified effectively, combined with front component and back roll-centre and back human body mount mounting angle.
