This new development for Cobra buggy is recognized after another complete 12 months of rushing throughout the world, hearing feedback from many (team)drivers and certain evaluation on many areas. Centered on exact same motorists a responsive end, along side a lot more steering would bring the Cobra on highest degree.
Specs:

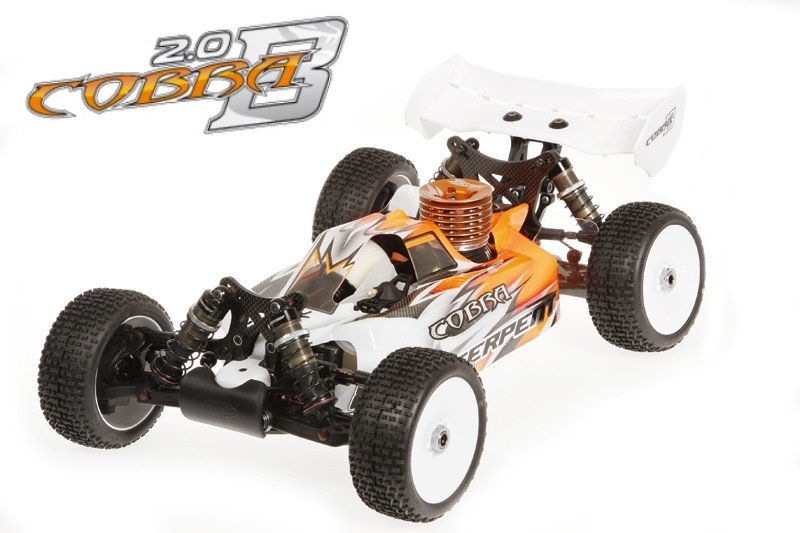

- Name: Serpent 811 Cobra Buggy 2.0
- system: 1/8 scale 4wd buggy
- Type: kit-version, higher end competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.300 grms ( competition ready, differs centered on radio-gear and engine)
- Clutch: 4-shoe centrifugal, carbon shoes
- Differential: lightweight, small geardiffs , front side, main and back
- Brake: piston type with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with built-in bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human anatomy, wing, silicone oil, color manual, decalsheet.
- Maybe perhaps not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
- Groundbreaking wider buttocks with amazing geometry for substantially more right back traction and a less strenuous managing automobile with wider sweetspot
- Tear shockabsorbers relocated towards the trunk from the shocktower
- much longer back shocks, with considerably longer housing and shockrods to have additional travel
- straight back wing with integral holders the ballraced right back anti-roll club
- Longer back paid down hands, new higher carbon shocktower, much longer back shock, fresh upright
- Lexan mud-guards to put together on back fingers
- Nylon mud-scrapers mount regarding right back uprights
- improved differential gears
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to make flex make lighter. Kick-up angle on front for stabile landings. Countersunk holes. Slots to obtain the best and straight back suspension system system system mounts exactly. Angled sides to improve tightness. Laser engraved Cobra custom logo.
Bumper
Aligned with framework kikc-up for accurate landings and to protect front suspension system system holde rand anti-roll club.
Chassis stiffners
Composite stiffner front component and back, to present extra tightness, but nevertheless allow some flex as required.
Central radio / servo mount
Composite radiobox providing you with good space the steering and throttle-servo, the receiver and rx electric batteries. The complete construction including linkages could possibly be eliminated efficiently and fast also, whenever cleansing the automobile, or doing upkeep. One extra post is added towards the servo for security.
Servo arms and linkages
The servo arms have actually in fact the truth is a splined insert to truly have the right fit per brand. The linkages operate actually neat and tight and they are a simple task to find to alter settings.
Suspension brackets
wonderfully machined 7065 T6 suspension system system system brackets in anodized, laser angraved. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks installation
Composite steeringblocks along side 10 dgr C-hubs for accurate steering. Spring steel wheel-axles with big size bearings and larger in with precision threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to make certain you are going to not free a wheel nut in a race.
Front suspension system system system system
Durable oversized paid down suspension system system system system hands in strong composite nylon. Towards paid down side the original shaped downstops screws are generate. The repaid shock-mounting pins are fully guaranteed with a tiny grubscrew from base.
Front part anti-roll club
The ballraced front side component anti-roll club system, include a spring metal fold cable, which is directed through diff-cases and runs in ballraced steel adaptors. The cable is from paid down suspension system system supply, with a captured adjustable threaded pivotball, for really accurate and low friction procedure and simple tuning.
Shocktower and bodymounts front
4.5mm thick carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to lessen the angle of difference between your total caster and steering airplane. Consequently you'll want less bump steer and a truer steering Ackerman through the whole selection of suspension system
Ackerman dishes
Aided by the design for the steering bell cranks whenever changing the Ackerman you will probably not need to manage your steering tie rods. You simply is only going to should adjust your end points within radio.
back suspension system system system arms
Durable considerably longer oversized paid off suspension system system hands in strong composite nylon. In paid off part the special downstops screws are put up. The repaid shock-mounting pins are guaranteed with considerably grubscrew from base. Mud-guards
Superlight polycarbonate mud guards mount towards the most recent reduced suspension system system hands, and certainly will keep dust from your own anti-roll bars transmission and tires.
backside uprights installation
Composite uprights with 3 top roll-center functions. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with big size bearings and bigger internal people who have accuracy threaded aluminum wheel-hubs with offset . Rubber dustcovers inside back to protect the cvd system and keep the lubrication in. Flanged and serrated wheel peanuts to ensure you won't free a wheel nut in a race.
Mud scrapers
Composite mud scrapers which mount towards the most recent uprights, and might keep consitently the inside your wheel cleaner in the event of dirty conditons.
Straight back anti-roll club
The ballraced front side anti-roll club system, contain a spring steel fold cable, which will be directed through diff-cases and functions in ballraced metal adaptors. The cable is through reduced suspension system system system supply, with a captured adjustable threaded pivotball, for very accurate and low friction procedure.
Shocktower backside
4.5mm dense carbon shocktower, incorporated towards trunk component for extra stiffness, with 5 top placement holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts straight back
Composite right back wing, with strong nylon adjustable back bodymounts on wide body-support connection situated far enough toward straight back, to steer the systems in simplest technique.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted constantly put up creating in spring-steel quality. This insures your possibilities to manage to complete 60 moments about long most crucial occasion, while fighting the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve showing to almost any angle without binding.
Shockabsorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Tough anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use big diameter membrames and big diameter o-rings and bushings to produce a supersmooth and leak-proof package. Big diameter pistons happen constantly setup by a nut regarding polished shock-rods tops. Start kind springtime retainer to allow dust out simple. The shock-shafts are protected by artificial boots.
RCM surprise springs
Short sort colorcoded surprise springs can be found the first standard set-up Springs are grinded flat top and base, and examined individually for stress and size.
lightweight geardifferentials
actually lightweight gear differentials with really smooth steel sintered gears, and metal shaft. Perfect sealing example with original gasket and o-rings. Severely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 10T with connector employed in 2 oversized bearings . Drive ratio 4.3:1. This drive ratio offers you amazing acceleration along with low automobile fat. It's a sure triumph, to simply help enhance fuel consumption
front component and rear cvd-sets
Both front component and right back captured driveshafts are now alongside CVD system. Durable yet light springtime steel etched driveshafts with difficult steel pins.
Spring metal transmission elements
the best and right back slim but strong springtime steel cardan shafts link the differentials .
Throttle and brake lever ball cups
assists provide constant pulling on stopping system lever or carburetor in the event that you choose not need the linkage completely aligned.
Piston Braking system
Provides more stopping power than you could have ever imagined before with a good deal less servo energy. Is totally adjustable with 3 types of pistons, solid, O musical organization type, springtime kind. Subsequently you'll adjust your bias or stopping feel towards flavor a lot more practices than formerly.
Fiber Glass disk braking system system
Fiber Glass stopping system disks with oversized front disk.
Brake dinner springs
could keep the washing distribute prepared to accept guarantee un-wanted dragging associated with stopping system discs.
Rushing clutch 4 - footwear
lets you mix and match footwear materials evenly in pairs. Besides provides more area contact to ensure the engagement. 4 carbon shaped footwear are standard ( alu ones optional).
Coil exhaust cable and alu mount
Helps assistance with basically causing back all over again motion through the pipeline whenever framework flex does occur. Helps while we are avoiding problems for your exhaust gaskets.
Motor mount
Machined 7075 T6 aluminium engine mount, with component cooling-fins.
Fueltank 125cc
Splash basin on tank top, self centering Fuel tank seal, the auto's vehicle's gas tank seal is angled to self guide its strategy inside bore related to tank. Simultaneously provides a seal into the chamfered and flat sides from seal, providing constant engine performance from pit end to a new. Included tank splash guard which assists to prevent fuel from splashing on your own ac gear filter in the event of an overly excited pit guy.
Fueline and stoppers
Kit included topqualiity soft silicone fuelline to have associated with tank, vehicle and pipeline, and includes tiny composite stoppers to shut 12 months fuelline whenever taking out tank, motor and or pipeline.
Tank with swiveling nipple and drifting clunk.
Using the swiveling nipple it is possible to adjust the angle that you'll require you fuel line to see. At exactly the same time the drifting clunk assists when you yourself have inverted. The clunk by gravity will fall back the gasoline, utilizing the freedom from silicone gasoline tubing.
Oversized Tank with adjustable quantity.
using the insertion of a simple screw and quantity reducer you should have ROAR, IFMAR and just about almost every other organizations appropriate tank quantity.
Minimal profile ac filter
Centralized ac filter design to cut back cab width and height. Versatile synthetic boot along side strong nylon instance to simply help the foam elements. Exceptional dense foam airfilter elements to keep your products or services clean inside.
Body
Serpent cab ahead Avenger human body, with movie and masking tape is roofed in kit.
Back wing
Minimal variation strong right back white aero back wing is roofed for great downforce and right line security.
Natural oils and oil
The shock-oil, diff oil and lots of oil problems gather the standard set-up.
