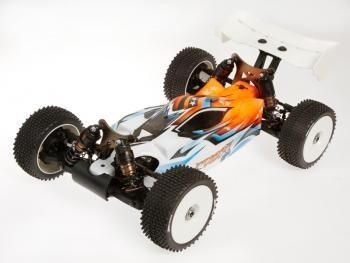

Cobra 811 Buggy Sport 1/8 ElectricPowered the sport sort of the effective higher end Serpent 1/8 Cobra 811 E-Buggy. 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and framework, effortless radiobox, sideguards, batteryboxes, straight back wing. Totally upgradable with elements and alternatives from top end race-version. This super durable Buggy framework allows an excellent entry in the competition scene, at a lower life expectancy cost, and might provide finish your tasks !
Specs:
- Name: Serpent 811 Cobra Buggy-e Sport
- Class: 1/8 scale 4wd buggy, electric powered
- Type: kit-version, competition-car
- Wheelbase: 330mm
- Width: 305mm
- Body fat: 3,300 grms ( competition prepared, is founded on radio-gear and motor)
- Differential: lightweight, small geardiffs , front, main and rear
- Shocks: 16mm big bore
- Gear-ratio: 4:3:1
- Included: Kit, body, wing, silicone oil, color manual, decalsheet.
- Perhaps maybe not included: Radio-gear, tyres-wheels, motor, esc, batteries.
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to come up with flex and or make lighter. Kick-up angle on front part for easier landings. Countersunk holes. Slots to understand top and back suspension system system system mounts properly. Angled sides to improve tightness. Laser engraved Cobra logo design.
Bumper
big curved nylon bumper that withstands effect after big jumps, and makes landing more suttle. Safeguards additionally leading swaybar installation and front suspension system system system system system brackets.
Chassis stiffners
Composite stiffner front part and rear, to provide additional tightness, though allow some flex as needed.
Servo hands and linkages
The servo hands have in reality the truth is in fact a splined insert to have the right fit per maker. The linkages operates in fact neat and tight and they're open to alter settings.
Suspension brackets
Durable nylon suspension system system system brackets. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks and 10 deg C-hubs for exact steering. Metal wheel-axles with big size bearings and bigger in with accuracy threaded aluminum wheel-hubs . Flanged and serrated wheel peanuts to make certain you wont loose a wheel nut in a battle.
Front suspension system system system
Durable oversized repaid suspension system system system system arms in strong composite nylon. In the paid component downstops setscrews are installed. The repaid shock-mounting pins are fully guaranteed with particularly grubscrew through base.
Front part anti-roll club
The ballraced front part component anti-roll club system, contain a springtime steel fold cable, which directed through diff-cases and run in ballraced metal adaptors. The cable is to use this compensated suspension system system supply, with a captured adjustable threaded pivotball, for exceptionally accurate and low friction procedure.
Shocktower and bodymounts front
4.0mm dense anodized aluminium shocktower with 3 top positioning holes the shocks and and 5 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of distinction concerning the complete total caster and steering airplane. Consequently you'll have less bump steer and a truer steering Ackermann through the entire array of suspension system system system
Ackermann dishes
utilising the design the steering bell cranks whenever changing the Ackermann you may not desire to alter your steering tie rods. You simply only will need to adjust your end points inside radio.
Right back suspension system fingers
Durable oversized paid down suspension system arms in strong composite nylon. Concerning the reduced component the downstops set-screws are installed. The paid off shock-mounting pins are guaranteed with just just a little grubscrew through base.
Right back uprights construction
Composite uprights with 3 top roll-center jobs. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Metal wheel-axles with big size bearings 8X16X5 (2) and 15x21x4 (2) with accuracy threaded aluminium wheel-hubs .Flanged and serrated wheel peanuts to make sure that you won't loose a wheel nut in a battle.
Right back anti-roll club
The ballraced front side component anti-roll club system, contain a springtime metal bend cable, that is led through diff-cases and runs in ballraced metal adaptors. The cable is through reduced suspension system system system supply, with a captured adjustable threaded pivotball, for in reality exact and low friction procedure.
Shocktower right back
4.0mm thick anodized aluminium shocktower, built-into a big part component for additional tightness, with 3 top placement holes the shocks and 5 holes for roll-center jobs.
Wingmount and bodymounts backside
Composite low straight back wing, with strong nylon adjustable backside bodymounts on wide body-support connection placed far enough towards backside, to steer the figures in simplest technique.
Captured pivot pins and balls and bolted hinge pins
All steel hinge pins are either captured or bolted arranged. This insures your opportunities to finish 60 minutes more or less roughly extended primary occasion, while fighting the lead. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve showing to just about any angle without binding.
Shockabsorbers big-bore 16mm
Coated aluminium shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops . Pre-load adjusters with nylon spacers. Shocks utilize big diameter membranes and big diameter o-rings and bushings generate a supersmooth and leak-proof package. Big diameter pistons happen make by a nut in the polished shock-rods tops. Start type springtime retainer to allow dust out effortless.
RCM shock springs
fast type colorcoded shock springs get the initial standard set-up Springs are grinded flat top and base, and examined separately for anxiety and size.
Lightweight gear differentials
actually compact gear differentials with acutely smooth steel sintered gears, and metal shaft. Perfect sealing instance with unique gasket and o-rings. Really durable outdrive cups in metal. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings 8x19x6 and 13x19x4
Front cvd-set, back dogbone design
Both front metal riveshafts are increasingly found in combination with CVD system. Durable steel driveshafts with difficult steel pins. In the straight back a dogbone kind system is employed.
Strong metal transmission elements
Leading and back steel cardan shafts link the differentials utilizing the gearbox component.
Servo / speedo mount
This area lies inside front for optimal fat blood circulation. The servo is in standing destination with a remarkably brief and effective steering supply. The positioning the speedo is adequate to suit mostly utilized . The receiver-box is ahead for comfortable access and reduced fat.
Engine install
The motor is placed into the various optimal devote the car, keeping motor-forces and transmission elements / alignment in your thoughts. Simply one-screw is important to secure the BL motor, inside the nicely produced durable machined aluminium motormount. Area for extra motor-cooling available as needed.
The location the motor allows a maximum motor-length of 68mm, which covers most readily useful engines.
Battery-cases / side-guards
the main element eyecatchers could be the extremely low laydown longitudinal destination battery-packs at each and every and every and every component regarding the car, being element of the side-guards, firmly fastened with a flip-lid, for easy and simple fast electric batteries alterations. The excess weight low in the vehicle plus in top place, well-balanced. The Lipo holders abide by ROAR appropriate packages / measurements.
Lightweight Differentials and center spur.
Severely lightweight and light gear-diffs. By reducing the rotating mass, you can actually further raise the consist of component acceleration.
The Cobra-E employs a 13T / 44T combination gearing.
46T core diff gear.
Body
Sleek, low design polycarbonate buggy human anatomy, with lines provided and masking sheet too.
Back wing
big low straight back wing in durable nylon with good downforce and unique shaped for some effortlessly useful airflow over and through wing.
Sebum and oil
The shock-oil, diff oil and lots of oil problems meet up the standard set-up.
