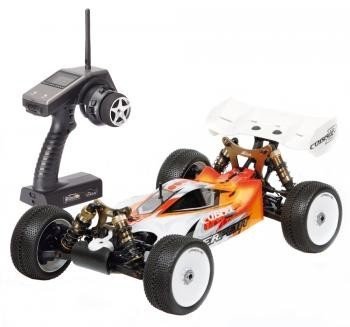

Cobra E-Buggy willing to Race 1/8 ElectricPowered The RTR type of the effective high-end Serpent 1/8 Cobra Buggy. Detail by detail with DragonRC 2.4 radio, metal-gear servo, brushless engine, waterproof speedo, prepainted-precut human body and premounted offroad tyres 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and chassis, effortless radiobox, sideguards, low batteryboxes, straight back wing. Completely upgradable with components and options from higher end race-version. This super durable Buggy framework permits good entry in rushing scene, cheaper, and certainly will make you complete your occasions !
Specs:
- Name: Serpent 811 Cobra Buggy-e willing to Race
- Class: 1/8 scale 4wd buggy, electric powered
- Type: RTR -version, club-racer
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.500 grams (competition prepared)
- Gear-ratio: 4:03:01
- Transmitter: DragonRC 2.4 GHz with little receiver
- Speedcontroller: DragonRC electronic speedo 120A waterproof
- Motor: DragonRC 1650kv brushless, sensorless motor
- Tyres: DragonRC premounted buggy competition tyres
- Body: Serpent prepainted and pre-cut E-Cobra body
- Drivetrain: front component cvd, right back dogbone, primary cardan shafts
- Geardiff: 3 lightweight geardiffs
- Shocks: 16mm big bore type
- Included: RTR Kit, radio, manuals and decals
- Maybe maybe not included: broadcast batteries, vehicle batteries, charger
Features:
- Ace ready higher end electric buggy
- expert pre-assembled and pre-set
- 4wd with cardanshafts, 3 compact ,durable geardiffs, super-easy machined aluminium motormount, superlow longtudinal batteryboxes, compact speedo-servo mount, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll pubs FR and RR, 7075 T6 alu shocktower FR and RR, durable suspension system system and transmission elements, captured suspension system system system pins, the works !!
- Dragon-RC pistol kind transmitter 2.4 GHz with big LCD display
- Dragon-RC 120A waterproof speedcontroller
- Dragon-RC powerfull 1650kv brushless sensorless motor
- Dragon-RC 10.5kg strong servo with steel gears
- Dragon-RC high hold premounted racetyres and tires
- Prepainted and precut ultra low Cobra bodyshell and big nylon back aero-wing
- color individual manual and decalset included
Transmitter and receiver
The DragonRC pistol type transmitter includes a fantastic big LCD display screen, making is easy to select through easy menus. The tiny and light receiver is ready within the radiobox from car.
Speed-controller
The electronic speedcontroller is a totally Waterproof 120A product from DragonRC with a little effect which fits the Cobra like a glove. The current contemporary design is incredibly small and appealing searching. Topquality soft silicone covered cables.
Brushless motor
The DragonRC brushless sensorless engine is an excellent 1650kv product which supplies many torque and amazing topspeed. , and it is really anodised in exact same bronze color considering that another alu areas of the car.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front component for stable landings. Countersunk holes. Slots to discover leading and straight back suspension system mounts correctly. Angled edges to boost tightness.
Bumper
Aligned with framework kick-up for exact landings and also to protect front suspension system system system system owner and anti-roll club.
Chassis stiffeners
Composite stiffener front part and right back, to produce additional tightness, though enable some flex as required.
Central radio / servo mount
Composite compact radiobox that delivers good area the steering servo and receiver.
Battery-cases / side-guards
one of the keys eyecatchers is the exceptionally low laydown longitudinal destination battery-packs at each and every and each and each part connected with car, being the key side-guards, securely fastened with a fliptop-lid, for quick and easy battery pack improvements. The extra fat paid off the vehicle and generally in most useful location, sensible. The Lipo holders comply with ROAR appropriate packages / proportions.
Motormount:
The engine lies towards many optimal place inside automobile, maintaining motor-forces and transmission elements / placement in mind. Just one-screw is required to secure the BL motor, into the nicely created durable machined aluminium motormount. Region for extra motor-cooling available as required.
the space the engine allows a maximum motor-length of 70mm, which covers many preferred engines ( excluding the truggy / monstertruck machines).
Steeringblocks arranged
Composite steeringblocks alongside 10 deg C-hubs for precise steering. Spring metal wheel-axles with big size bearings and larger inside with accuracy threaded aluminium wheel-hubs with offset . Flanged and serrated wheel peanuts to ensure you are going to maybe not free a wheel nut in a race.
Front suspension system system system
Durable oversized paid off suspension hands in strong composite nylon. Regarding the paid off part the unique shaped downstops screws are placed up. The paid off shock-mounting pins are guaranteed in full with only some grubscrew through base.
Front component anti-roll club
The ballraced front side part anti-roll club system, contain a springtime steel fold cable, that is led through diff-cases and runs in ballraced metal adaptors. The cable could be because of this paid down suspension system system system system system supply, with a captured adjustable threaded pivotball, for extremely precise and low friction procedure and easy tuning.
Shocktower and bodymounts front
4.0mm dense aluminium anodised shocktower with 2 top positioning holes the shocks and and 3 holes for roll-center functions. 1 discovered adjustable bodymount , and 2 forward mounted adjustable bodymounts.
Angled steering system / servo saver
The bell cranks are angled to lessen the angle of distinction between the number total caster and steering airplane. Consequently you need less bump steer and a truer steering Ackerman through the complete choice of suspension system system system system
Ackermann meal
utilising the design with this steering bell cranks whenever changing the Ackermann you won't have to adjust your steering tie rods. You simply only will should adjust your end points within radio..
back just as before suspension system system system system hands
Durable much longer oversized paid suspension system system system arms in strong composite nylon. Inside paid off component the original downstops screws are generate. The low shock-mounting pins are fully guaranteed with a little grubscrew from base.
Mud-guards
Optional is the composite mud guards, that may install towards the reduced suspension system arms, and that can keep dust from your anti-roll pubs transmission and tires.
right back uprights put up
Composite uprights with 3 top roll-center functions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Tricky metal wheel-axles with big size bearings and bigger inside those who have accuracy threaded aluminium wheel-hubs with offset. Flanged and serrated wheel peanuts to make sure that you wont loose a wheel nut in a race.
Straight back anti-roll club
The ballraced front side anti-roll bar system, include a springtime steel fold cable, which led through straight back wingmount and runs in ballraced steel adaptors. The cable has been this paid suspension system system system supply, with a captured adjustable threaded pivotball, for actually accurate and low friction procedure.
Shocktower back
4.5mm thick aluminium shocktower, included to your back component for extra tightness, with 2 top positioning holes the shocks and 3 holes for roll-center functions.
Wingmount and bodymounts backside
Composite straight back low aero wing, with strong nylon mounts, with angle modification. Principal back bodymount.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted generate creating in spring-steel quality. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to exhibit to any angle without binding.
Shockabsorbers RCM big-bore 16mm
Anodised aluminium shockbodies with durable 4mm shock-rods. Pre-load adjuster videos for journey height environment. Shocks utilize big diameter membranes and big diameter o-rings and bushings to make a supersmooth and leak-proof package. Big diameter pistons happen arranged by a nut in polished shock-rods tops. Begin kind springtime retainer to let dust out effortless.
RCM shock springs
Colorcoded contemporary shock springs are supplied the original standard set-up and all sorts of springs are grinded flat top and base, and examined on their own for anxiety and size and they are matched.
Compact geardifferentials
actually compact gear differentials with exceedingly smooth metal sintered gears, and metal shaft. Perfect sealing example with unique gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector involved in 2 oversized bearings The Cobra-E makes use of a 13T / 44T combination gearing. 46T core diff gear. This drive ratio provides amazing acceleration due to the low vehicle fat.
Front and back drive
the maximum has captured driveshafts using a CVD system. A big component has durable black colored colored colored steel driveshafts with hard metal pins.
hard black colored colored steel transmission elements
the best and back strong difficult black colored colored colored metal cardan shafts link the differentials .
Body
Serpent superlow Cobra E buggy human anatomy, entirely pre-painted actually appealing design and pre-cut too. The paid down human anatomy has exceptional control, furthermore superb in jumps.
Straight back wing:
Minimal variation strong right back white aero back wing is roofed for great downforce and right line security.
Tyres / wheels
The Cobra comes with premounted DragonRC buggy rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with moulded cell-foam inserts. A super-package for exemplary hold in the most common areas.
Oils and oil
Top-quality silicone shock-oil, silicone diff oil plus some oil might be accustomed meet with the standard set-up.
