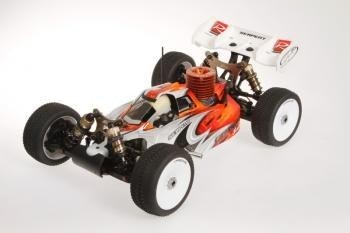

Cobra Buggy Prepared To Race 1/8 GasPowered. The RTR as a type of the effective high-end Serpent 1/8 Cobra competition Buggy. Detail by detail with 2.4 GHz transmitter, Novarossi 3.5cc (.21) engine with pullstart and polished battle pipe-set, prepainted-precut Avenger human anatomy, premounted offroadtyres on large diameter tires. 4-wheel-drive, 3 geardiffs, raceclutch, threaded 16mm bigbore shocks, aluminium shocktowers and framework, effortless radiobox, sideguards, straight back wing. Totally upgradable with elements and choices from top quality race-version. This super durable Buggy with Novarossi energy enables a great entry into the battle scene.
Requirements:
- Name: Serpent 811 Cobra Buggy 2.0
- Course: 1/8 scale 4wd buggy
- Type: ready to competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3500 grams
- Clutch: 3-shoe carbon
- Differential: lightweight, tiny geardiffs , front, primary and rear
- Brake: piston sort with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with essential bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human anatomy, wing, radio, servo's, color manual, decalsheet.
- Not Included: RX battery, radio battery pack, fuel, fuelbottle, glowstarter
Features:
- Race ready high end gaspowered 1/8 scale buggy
- expert pre-assembled and pre-set
- contains powerfull Novarossi pullstart motor (integral Italy)
- 4wd with cardanshafts, 3 compact and durable geardiffs, 3-shoe competition clutch, machined aluminium enginemount, primary low twin stopping system system, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll bars FR and RR, 7075 T6 alu shocktower FR and RR, 3mm hefty fat chassisplate with kick-up, durable suspension system system and transmission elements, captured suspension system system system system pins, the works !!
- Dragon-RC pistol kind transmitter 2.4 GHz with big LCD display
- Dragon-RC 10.5kg strong servo's with metal gears
- Dragon-RC high hold premounted racetyres and tires
- DragonRC polished inline tuned pipeline system
- Prepainted and precut Avenger Cobra bodyshell and big nylon right back aero-wing
- color person manual and decalset included
- completely upgradable to complete racespec, as every area with this Cobra racebuggy fit.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front component for stable landings. Countersunk holes. Slots getting leading part and right back suspension system system system mounts properly. Angled edges to boost tightness.
Sideguards
Strong composite sideguards keep the the majority of the dust out and good protection the valuable gear in. The sideguards in addition 2 times act as component stiffeners and impact the flex regarding framework broadly speaking.
Bumper
Aligned with framework kick-up for accurate landings and to protect front suspension system system owner and anti-roll club.
Chassis stiffeners
Composite stiffener front part and back, to provide extra tightness, but enable some flex as needed for extra traction.
Central radio / servo mount
Composite lightweight composite radiobox giving you good area the steering and throttle,-brake servo, the receiver as well as the receiver battery pack. Your complete construction including linkages are eliminated effectively and fast before, whenever cleaning the car, or doing upkeep.
Central low double braking system system
The Cobra features a lower positioned double stopping system system with lightweight glass-fibre disks with springloaded race-brake pads. Helpful stopping energy.
Motor
Serpent selected the Novarossi pullstart motor the Cobra buggy. The outstanding quality degree, high end, along side simple launching and lasting runtime, makes this motor an excellent partner in the first place rushing. Novarossi in addition provides a certain backplate if you change to a bumpstart system after ward, consequently you'll continue with comparable motor furthermore considerably longer !
The motor is established securely on machined aluminium motor mounts.
Polished tuned pipeline system
The DragonRC polished inline tuned pipeline system is advantageous using the Novarossi engine and produces a razor-sharp and powerfull tune. Fire it !
Clutch
The famous Serpent offroad clutch in 3 shoe variation gets the greatest environment for smooth performance, nevertheless when you hit the throttle difficult it's going to increase the Cobra constantly.
Airfilter:
The foam twin action airfilter sits little towards vehicle, and snugfits tight beside the fueltank. The utmost effective opening within the body for refuelling might enable adequate environment working with the filter
Steeringblocks arranged
Composite steeringblocks and 10 dgr C-hubs for accurate steering. Ebony difficult metal wheel-axles with big size bearings , accuracy threaded aluminium wheel-hubs with offset and aluminium wheel peanuts.
Front suspension system system system
Durable oversized paid down suspension system system system hands in strong composite nylon. In regards to the paid off part the initial shaped downstops screws are arranged. The reduced shock-mounting pins are guaranteed with just a little grubscrew from base, in order that they wont fall lower.
Front component anti-roll club
The ballraced front part anti-roll club system, have actually a spring steel fold cable, that's to be directed through diff-cases and runs in ballraced metal adaptors. The cable is from paid off suspension system system system supply, with a captured adjustable threaded pivotball, for extremely precise and low friction procedure and simple tuning.
Shocktower and bodymounts front
4.0mm dense aluminium anodised shocktower with 3 top positioning holes the shocks and and 3 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts.
Angled steering system / servo saver
The bell cranks are angled to attenuate the angle of distinction regarding the complete total caster and steering airplane. Therefore you'll want less bump steer and a truer steering Ackermann through the complete variety of suspension system system
Ackermann meal aluminium
with the design the steering bell cranks whenever changing the Ackermann you won't must adjust your steering tie rods. You only will simply should adjust your end points within radio..
back once again suspension system system system hands
Durable a lot longer oversized paid suspension system arms in strong composite nylon. On low component the unique downstops screws are placed up. The paid down shock-mounting pins are guaranteed in full with only notably grubscrew from base.
Mud-guards
Optional will be the composite mud guards, that might install on paid suspension system system system system arms, and that are able to keep dirt from your anti-roll pubs transmission and tires.
right back uprights create
Composite uprights with 3 top roll-center jobs. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Tough metal wheel-axles with big size bearings and larger inner ones with precision threaded aluminium wheel-hubs with offset, and alu wheel peanuts.
Straight back anti-roll club
The ballraced front component anti-roll club system, consist of a springtime metal fold cable, which is directed through back wingmount and runs in ballraced metal adaptors. The cable is because of this paid off suspension system supply, with a captured adjustable threaded pivotball, for acutely accurate and low friction procedure.
Shocktower right back
4.0mm dense shocktower, incorporated into a sizable component part for extra tightness, with 3 top positioning holes the shocks and 3 holes for roll-center roles.
Wingmount and bodymounts rear
Composite back wing, with strong nylon adjustable back bodymounts on wide body-support connection situated far adequate towards right back, to simply help the systems in simplest strategy.
Captured pivot pins and balls and bolted hinge pins
All hardsteel hinge pins are either captured or bolted create. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to make to just about any angle without binding.
Shockabsorbers RCM big-bore 16mm
Anodised threaded aluminium shockbodies with durable 4mm shock-rods. Pre-load adjusters with o-rings inside for journey height environment. Shocks use big diameter membranes and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons happen arranged by a nut about the polished shock-rods tops. Open sort springtime retainer to allow dirt away easy.
RCM shock springs
Colorcoded surprise springs are supplied the very first standard set-up and all sorts of forms of sorts of springs are grinded flat top and base, and examined on their own for anxiety and size and matched.
lightweight geardifferentials
actually compact gear differentials with actually smooth metal sintered gears, and metal shaft. Perfect sealing situation with original gasket and o-rings. Very light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector involved in 2 oversized bearings The Cobra utilizes a 13T / 44T combination gearing. 48T core diff gear, and 13T clutchbell. This drive ratio offers you amazing acceleration along with the low automobile fat.
Front and back drive
the greatest has captured driveshafts utilizing a CVD system. A sizable part has durable black colored colored metal driveshafts with hard steel pins.
difficult black colored colored colored metal transmission elements
the very best and back strong hard black colored colored colored metal cardan shafts link the differentials .
Body
Serpent cab ahead Avenger Cobra buggy human anatomy, completely pre-painted really attractive design and pre-cut too. The sleek human body has exceptional control, in addition super in jumps.
Right back wing:
minimal variation strong right back white aero back wing is roofed for great downforce and right line protection.
Tyres / tires
The Cobra has premounted DragonRC buggy rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with moulded cell-foam inserts. A super-package for excellent hold on most typical areas.
Transmitter and receiver
The DragonRC pistol kind transmitter comes with a pleasing big LCD display, which makes is not hard to pick through effortless menus. The small and light receiver is willing to the radiobox regarding automobile.
Natural oils and oil
Top-quality silicone shock-oil, silicone diff oil and lots of oil is needed to satisfy combined with the standard set-up.
