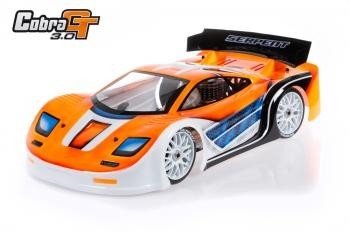

Cobra GT 3.0 1/8 GP 4wd Serpent Cobra onroad 1/8 scale GT car, gaspowered variation. Based on the Cobra platform, developed to perform on asphalt tracks. High end rushing framework with 7075-T6 alu framework, carbon fibre shocktowers, race-clutch, light 2-speed gearbox, durable spring-steel drivetrain, geardiffs, captured foam bumper, the works.Does not add engine, airfilter, wheels/tyres, human body or gadgets.
Specification:
- Course: 1/8 scale 4wd GT
- Purpose: high-end competition
- suspension system: entirely separate
- Clutch: 4 shoe
- Gearbox: 2-speed XLi
- Drivetrain: cardan shafts, 2 gear diffs
- Fueltank: 150ccm
- Wheel-base: 328mm
- Width: 305mm
- Handbook: color PDF / USB with arranged actions and exploded views
- Decals: 2 sheets
- Not included: human anatomy, radio gear, engine-pipe, airfilter, tyres-wheels.
Features:
Brand-new XLi superlight 2-speed gearbox
The XLi gearbox originates from the Viper 977-Evo kit that's well proven for performance and durability, including easy environment. The reduced inertia prompt you to definitely speed up faster.
Brand new aluminium center bearing obstructs ( maintaining stopping system and 2-speed)
to keep this fresh 2-speed gearbox/shaft in addition to the present twin stopping system system newly created superlight aluminium bearingblocks was at reality produced.
New front front side part and front part back aluminium suspension system system system holders
they're designed to change the piviot pin angle, thin lower wishbones might be more right, which geometry fits onroad rushing better.
Fresh Alu c-hubs in 6 level variation
the newest alu c-hubs have become vital that you make maximum usage of the first pivot pin / wishbone angle. CNC-machined from 7075 T6 aluminium, laser etched and black colored colored anodised products.
Groundbreaking aluminium, uprights for groundbreaking backside geometry
allowing a bigger onroad geometry we designed these brand-new CNC machined aluminium uprights, black colored colored anodised and laser etched.
Original alu shockabsorber risers front and straight back
Fresh alu shocktowers front and back
The durable machined alu shock-risers front and right back allow a far more onroad aimed angle from the shockabsorber creating more basic hold and more predictable cornering. The newest 4.5mm paid off carbon fibre shocktowers in addition take care of this new shock perspectives, with either 5 holes for further fine-tuning.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches create flex and or make lighter. Kick-up angle on front component as need as a result of the race-rules. Countersunk holes. Slots for the front and right back suspension system system mounts precisely. Angled edges to enhance tightness. Start pouches to own utilizing flywheel and 2-speed gearbox. Laser engraved Cobra GT custom custom logo.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and reduced bumper-plate.
Chassis stiffeners
Composite stiffener front component and right back, to provide additional tightness, nonetheless enable some flex as needed.
Central diskbrake system
small and centrally place brake system for low centre of gravity with ventilated glassfibre stopping system disks, and dense metal dishes which wont fold under anxiety.
Radio-box
Composite radiobox that delivers area the lay-down steering servo and upright put brake-throttle servo. Sufficient spacers are offered for appropriate fitting towards servo?s. The receiver and battery pack could be put correctly in big limitation. The transponder could be create in primary component, between servo and receiverbox. Your whole make including linkages is removed effortlessly and fast previously, whenever cleaning the vehicle, or doing maintenance.
Servo arms and linkages
The servo hands have actually in fact in fact really a splined insert to truly have the right fit per brand name. The linkages runs in fact neat and tight and generally speaking are usually furthermore open to alter settings.
Suspension brackets
exceptionally machined 7075 T6 suspension system system brackets in anodized, laser etched. Pecision complement the nylon roll center inserts and pivot balls / pins. The GT 3.0 front suspension system system system brackets cause the pivot-pin and paid down supply more horizontal, which improves control and steering.
Steeringblocks arranged
Composite steeringblocks and alu 6 dgr C-hubs for precise steering. Spring steel wheel-axles with big size bearings 8x18x5 and 15x21x4 with accuracy threaded aluminium wheel-hubs with +3 offset . Flanged wheel peanuts to make sure that you won't loose a wheel nut in a race.
Front suspension system system system
Durable oversized paid off suspension system system system fingers in strong composite nylon. On paid down part the first downstops screws are arranged. The paid off shock-mounting pins are fully guaranteed with just a little grubscrew through base.
Front component anti-roll club
The ballraced front side component anti-roll club system, have actually a spring metal fold cable, which is led through diff-cases and run in ballraced steel adaptors. The cable is because of this paid down suspension system supply, with a captured adjustable threaded pivotball, for actually precise and low friction procedure.
Shocktower and bodymounts front / alu shock-risers
brand-new 4.5mm dense carbon shocktower with 5 top positioning holes the shocks and and 6 holes for roll-center roles. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops. The durable machined alu shock-risers ahead allow a far more onroad aimed angle in regards to the shockabsorber creating more fundamental hold and much more predictable cornering.
Angled steering system / servo saver
The bell cranks are angled to attenuate the angle of difference between the whole total caster and steering airplane. Therefore you need to have less bump steer and a truer steering Ackermann through the entire collection of suspension
Ackermann plates
due to design towards steering bell cranks whenever changing the Ackermann you don't must adjust your steering tie rods. You simply only will should adjust your end points within radio..
back just as before suspension system system fingers
Durable oversized paid off suspension system system hands in strong composite nylon. In lower component the initial downstops screws are installed. The paid shock-mounting pins are guaranteed in full with somewhat grubscrew through base.
straight back uprights installation
new aluminium, black colored colored colored anodised and laser etched uprights with 3 top roll-center jobs. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with big size bearings 8x16x5 and 13x19x4 with precision threaded aluminum wheel-hubs with +3 offset . Rubber dustcovers on back to shield the cvd system and keep the lubrication in. Flanged wheel peanuts to be sure you may perhaps not loose a wheel nut in a race.
straight back anti-roll club
The ballraced front side component anti-roll club system, have actually really a springtime steel fold cable, which is led through diff-cases and runs in ballraced metal adaptors. The cable is a result of this lower suspension system system system supply, with a captured adjustable threaded pivotball, for actually accurate and low friction procedure.
Shocktower back / alu shock-risers
groundbreaking 4.5mm thick carbon shocktower, built-into the trunk component for additional tightness, with 5 top positioning holes the shocks and 6 holes for roll-center functions. The durable machined alu shock-risers in straight back allow an even more onroad aimed angle from the shockabsorber creating more basic hold and lots of other activities predictable cornering.
Wingmount and bodymounts backside
Composite right back wing, with strong nylon adjustable rear bodymounts on wide body-support connection discovered far sufficient toward right back, to greatly help the numbers in simplest means.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted arranged producing in spring-steel quality. This insures your opportunities to finish one hour or maybe more long significant occasion, while fighting the lead. This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to turn to virtually any angle without binding.
Shockabsorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize big diameter membranes and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons occur make by a nut into the polished shock-rods tops. Start type springtime retainer enabling dust out simple.
RCM shock springs
Brief type colorcoded surprise springs are provided initial standard set-up Springs are grinded flat top and base, and examined by themselves for anxiety and size.
Compact geardifferentials
actually compact gear differentials with in fact smooth metal sintered gears, and steel shaft. Perfect sealing situation with unique gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector employed in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.
Front and back cvd-sets
Both front component and straight back captured driveshafts are increasingly being together with CVD system. Durable yet light springtime steel etched driveshafts with hard metal pins.
Spring steel transmission elements
the real key and straight back slim but strong springtime steel cardan shafts link the differentials utilizing the gearbox area.
engine mount
Machined 7075 T6 aluminium motor mounts with component air-con fins.
Coil exhaust cable and alu mount
The tuned pipeline is firmly fastened utilizing the cols springtime and aluminium owner.
Helps help with causing back movement for the pipeline whenever chassis flex occurs. In fact allows you to avoid issues for your exhaust gaskets.
SL8 XLi 2-speed gearbox
SL8 gearbox comes directly from Serpent 977-EVO 1/8 scale onroad car. Really light and compact design. Centrifugal springtime stuffed footwear system with little alu bell and flange with one-way bearing. Durable composite 2-speed gears with smaller pitch .
2-speed clutch-housing with screw-on gears
Strong steel clutch-housing with accuracy machined threading, with hard coated aluminium screw on gears with smaller pitch .
4-shoe clutch
Complete carbon 4 footwear clutch-set with moderate sort springs. A simple task to make with light and durable anodized aluminium flywheel.
150cc fueltank
Composite nyon fuel-tank with supersealing springloaded shock-cap, bronze sintered clunk type filter and splash-side guard. Component features slots to set up the provided tube-guiders. Tank mounts to framework in a lot longer composite articles with vital plastic buffers enabling some movement and minimize fuel-foaming. The clunk system enables the engine to keep working when the car is up-side-down.
sebum and grease
The shock-oil, diff oil and lots of oil dilemmas match the traditional set-up.
