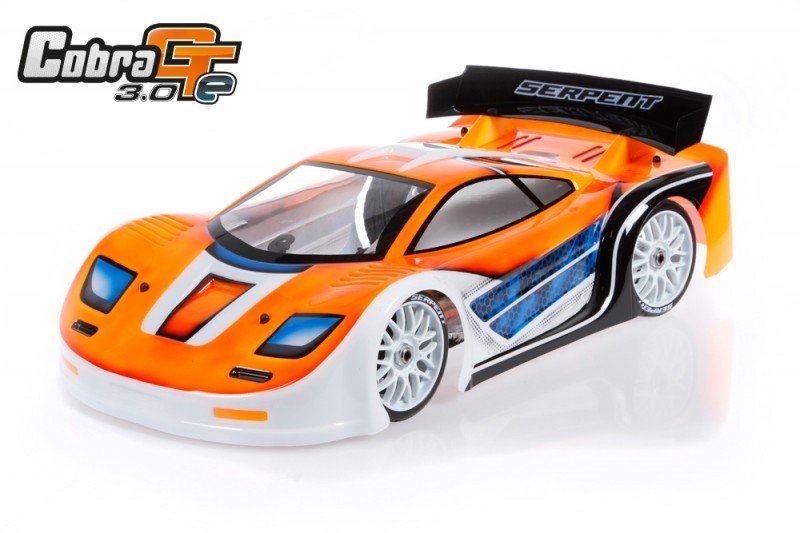

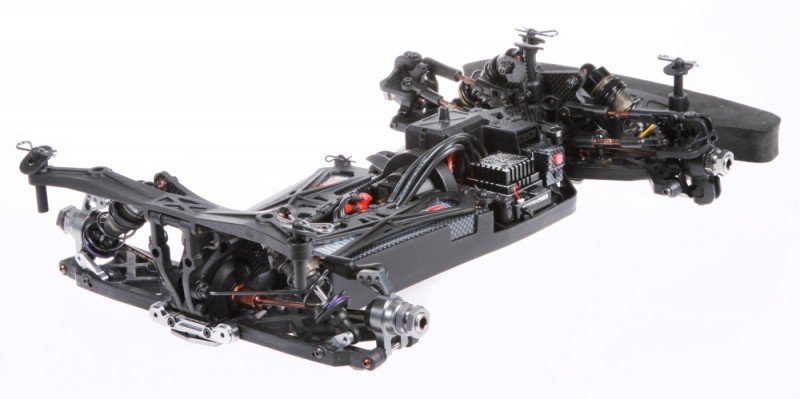

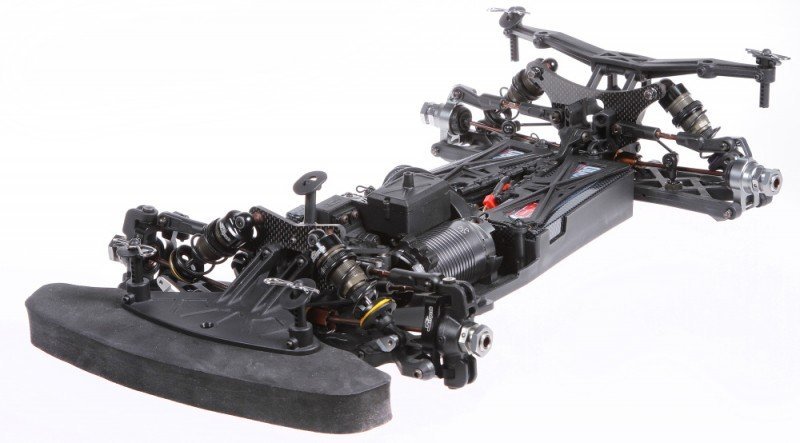

Serpent Cobra onroad 1/8 scale GT vehicle in 3.0 , electric variation. Based regarding Cobra platform, created to perform on asphalt songs. High end rushing framework with 7075-T6 alu framework, carbon fiber shocktowers, durable spring-steel drivetrain, 3 geardiffs, low longitudinal battery-boxes, captured foam bumper, the works.
Requirements:
- Class: 1/8 scale 4wd GT -e
- Function: higher end competition
- suspension system: entirely independent
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrane layer layer
- Wheelbase: 328mm
- Width: 305mm
- Handbook: color with installation actions and exploded views
- Decals: 2 sheets
- Perhaps maybe not included: human anatomy, radio gear, speedo, engine , tyres-wheels.
Features:
- Unique front component front component and front backside aluminium suspension system system system holders
- Brand new Alu c-hubs in 6 degree variation
- amazing aluminium, uprights for amazing back geometry
- unique alu shockabsorber risers front and straight back
- new 4.5mm carbon shocktowers front and rear
Brand fresh front component front component and front side straight back aluminium suspension system system system holders
they're built to replace the piviot pin angle, and so the paid wishbones is meant become even more right, which geomery suits onroad battle better.
Original Alu c-hubs in 6 degree variation
the present day alu c-hubs are crucial to generate maximum usage of the newest pivit pin / wishbone angle. CNC-machined from 7075 T6 alumnium, laser etched and black colored anodised products.
Brand-new aluminium, uprights for brand new straight back geometry
allowing a much better onorad geometry we desigend these brand new CNC machined aluminium uprights, black colored colored anodised and laser etched.
Amazing alu shockabsorber risers front and straight back
Amazing alu shocktowers front side and straight back
The durable machined alu shock-risers front and right back help a far more onroad aimed angle of shockabsorber creating more fundamental hold and even more predictable cornering. Many up-to-date 4.5mm paid off carbon dietary fiber shocktowers also take care of the modern shock views, with either 5 holes for further fine-tuning.

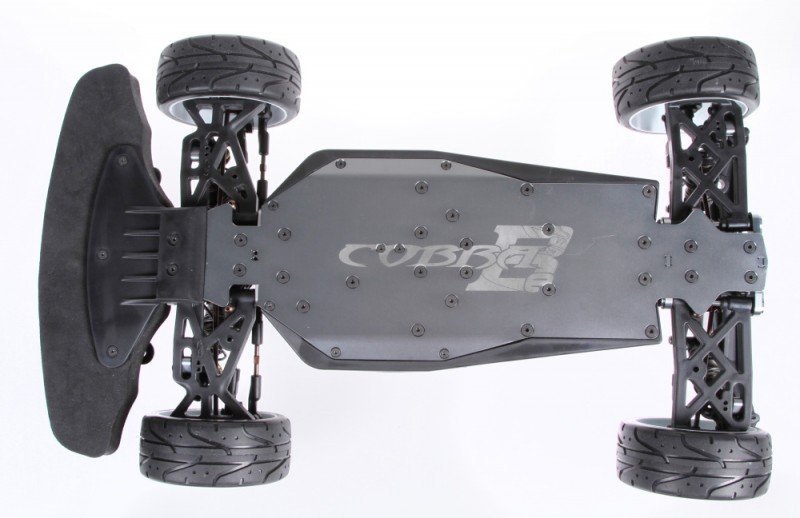

Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches create flex and or make lighter. Kick-up angle on front component as need due to the race-rules. Countersunk holes. Slots to discover the best and right back suspension system system system mounts precisely. Angled edges to improve tightness Laser engraved Cobra GT logo design.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and reduced bumper-plate.
Chassis stiffners
Composite stiffner front side and back, to produce additional tightness, but still allow some flex as needed.
Radio-box
Composite radiobox that provides area the up-right steering-servo, the receiver and enough area the speed-controller. The complete installation including linkages may be flourished effectively and fast at precisely the same time, whenever cleansing the automobile, or doing maintenance.

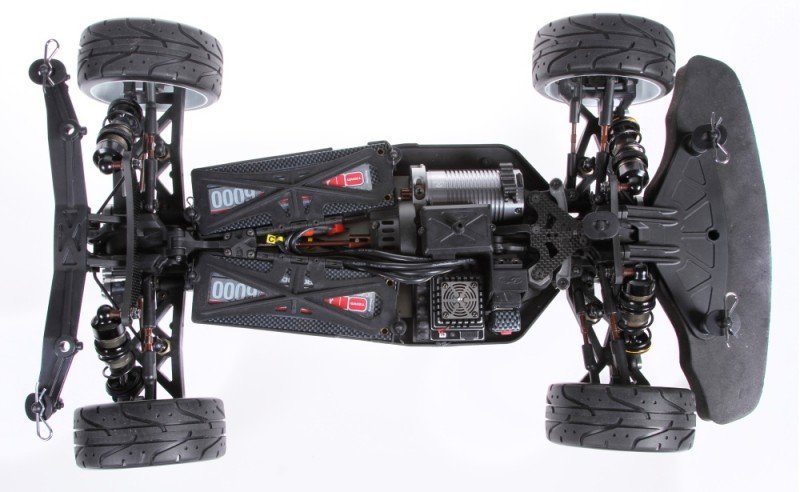

The main element eyecatchers would be the incredibly low laydown longtudinal location battery-packs at each and every and each section of this automobile, being the main side-guards, securely fastened with a flip-lid, for effortless and quick battery customizations. The excess fat low in the car plus in on right place, balanced. The Lipo holders adapt to ROAR appropriate packages / proportions.
Servo arms and linkages
The servo fingers have actually actually really a splined insert to have the right fit per manufacturer. The linkages operates actually neat and tight as they are usually available to alter settings.
Suspension brackets
beautifully machined 7075 T6 suspension system brackets in anodized, laser etched. Precision complement the nylon roll center inserts and pivot balls / pins. The GT 3.0 front suspension system system brackets result in the pivot-pin and repaid supply more horizontal, which improves control and steering.

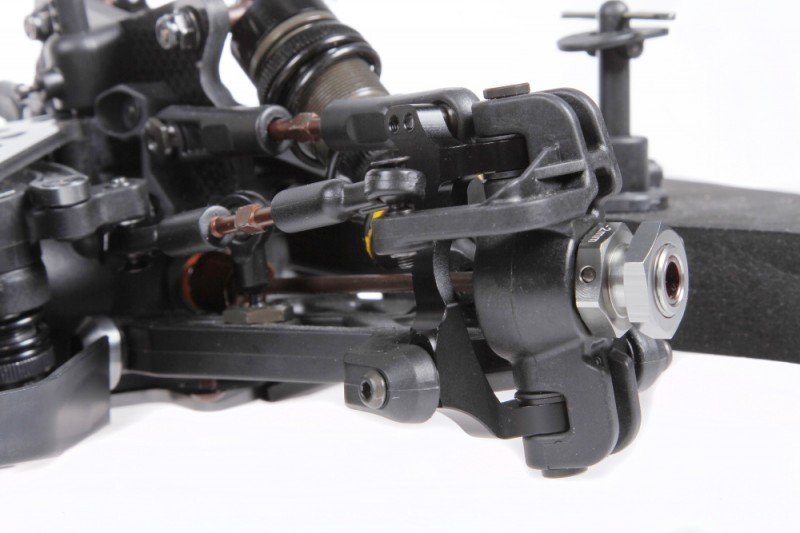

Steeringblocks installation
Composite steeringblocks and alu 6 dgr C-hubs for accurate steering. Spring metal wheel-axles with big size bearings 8x18x5 and 15x21x4 with accuracy threaded aluminium wheel-hubs with +3 offset . Flanged wheel peanuts to make sure you won't free a wheel nut in a race.
Front suspension system system system system
Durable oversized reduced suspension system fingers in strong composite nylon. In regards to the lower component the first downstops screws are positioned up. The reduced shock-mounting pins are guaranteed in full with particularly grubscrew through base.
front part anti-roll club
The ballraced front side anti-roll club system, contain a spring steel fold cable, that will be directed through diff-cases and run in ballraced metal adaptors. The cable is through the paid down suspension supply, with a captured adjustable threaded pivotball, for actually accurate and low friction procedure.

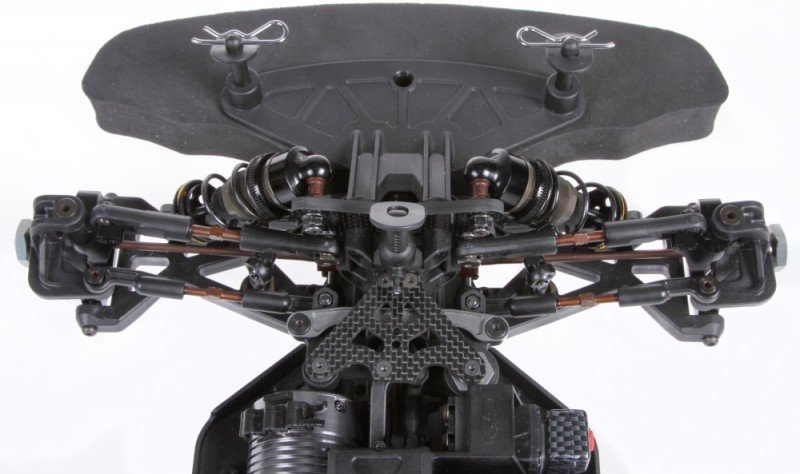

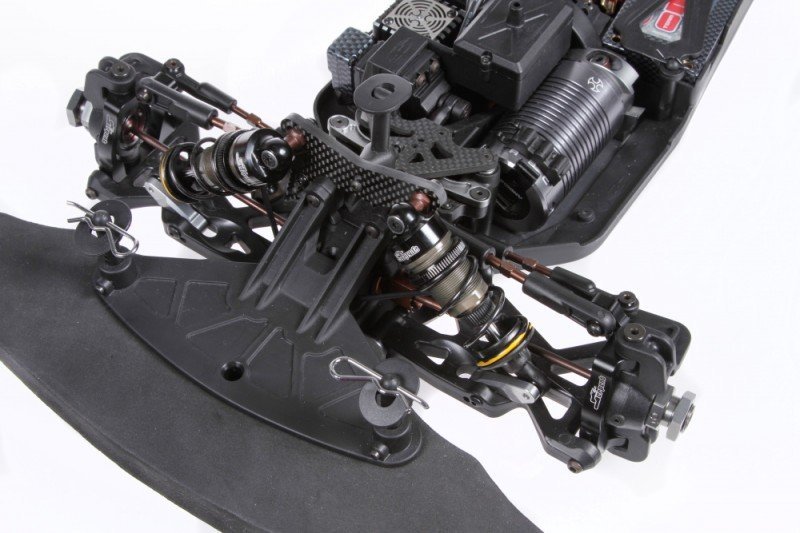

Shocktower and bodymounts front / alu shock-risers
amazing 4.5mm thick carbon shocktower with 5 top positioning holes the shocks and and 6 holes for roll-center functions. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops. The durable machined alu shock-risers appropriate right in-front enable a onroad aimed angle towards shockabsorber producing more fundamental hold and many more predictable cornering.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of huge difference betwixt your complete total caster and steering airplane. Consequently you have to have less bump steer and a truer steering Ackermann through the entire number of suspension
Ackermann plates
utilising the design through the steering bell cranks whenever changing the Ackermann you will possibly not must adjust your steering tie rods. You only just will must adjust your end points all on your own radio..
back once again suspension system system fingers
Durable oversized paid off suspension system system hands in strong composite nylon. In reduced component the initial downstops screws are arranged. The reduced shock-mounting pins are fully guaranteed with just just a little grubscrew from base.

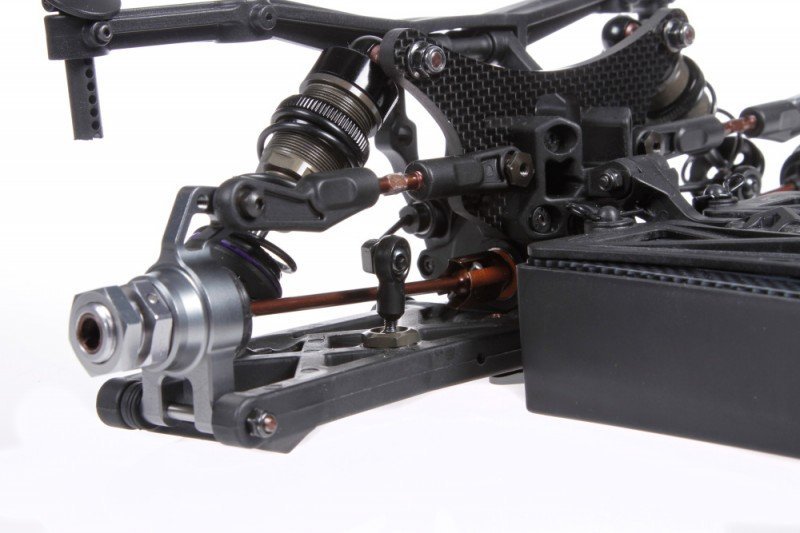

back uprights construction
fresh aluminium, black colored colored anodised and laser etched uprights with 3 top roll-center jobs. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring metal wheel-axles with big size bearings 8x16x5 and 13x19x4 with precision threaded aluminium wheel-hubs with +3 offset . Rubber dustcovers inside backside to guard the cvd system and keep consitently the lubrication in. Flanged wheel peanuts to make certain that you are likely to not free a wheel nut in a race.
back anti-roll club
The ballraced front side anti-roll club system, contain a spring metal fold cable, that is led through diff-cases and runs in ballraced metal adaptors. The cable is because of this paid off suspension system system supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction procedure.

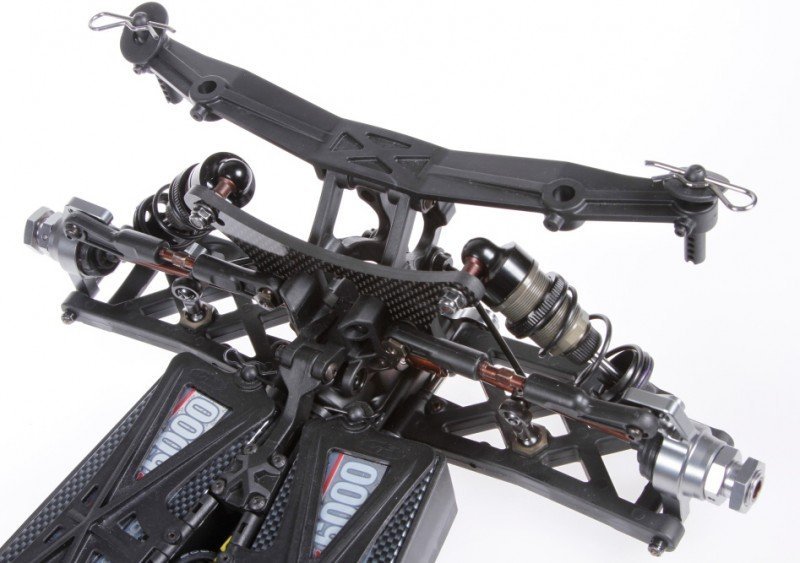

Shocktower straight back / alu shock-risers
groundbreaking 4.5mm dense carbon shocktower, included towards trunk component for extra tightness, with 5 top placement holes the shocks and 6 holes for roll-center jobs. The durable machined alu shock-risers in back allow a far more onroad aimed angle the shockabsorber producing more fundamental hold and even more predictable cornering.

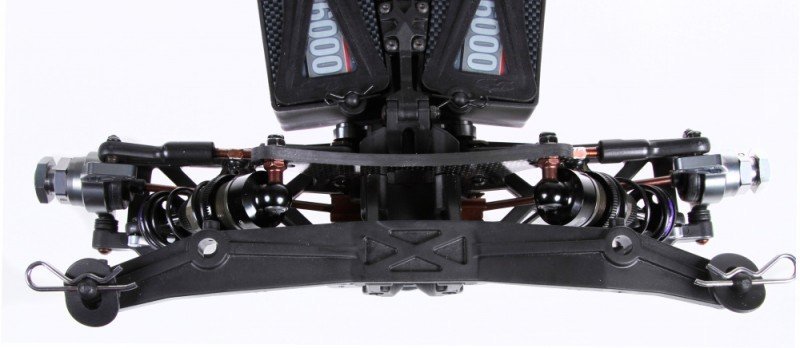

Wingmount and bodymounts back
Composite straight back wing, with strong nylon adjustable rear bodymounts on wide body-support connection place far adequate towards right back, to help the numbers in simplest technique.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted setup producing in spring-steel quality. This insures your possibilities to finish an hour roughly or higher long primary event, while fighting the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to turn to nearly every angle without binding.
Shockabsorbers big-bore 16mm
intensive Teflon coated threaded shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize big diameter membranes and big diameter o-rings and bushings to generate a supersmooth and leak-proof package. Big diameter pistons happen constantly set up by a nut in regards to the polished shock-rods tops. Start sort springtime retainer enabling dust out simple.
RCM shock springs
Quick type colorcoded surprise springs are supplied the original standard set-up Springs are grinded flat top and base, and examined independently for anxiety and size.
Compact geardifferentials
really compact gear differentials with in fact smooth metal sintered gears, and steel shaft. Perfect sealing instance with unique gasket and o-rings. Seriously light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.
front side and straight back cvd-sets
Both front component and right back captured driveshafts are now being within combination with CVD system. Durable yet light springtime steel etched driveshafts with difficult steel pins.
Spring steel transmission components
Leading and straight back slim but strong springtime metal cardan shafts link the differentials combined with gearbox area.
engine mount
Machined 7075 T6 aluminium motor-mount with one-screw fixation and simple slider system. Flex-free and very strong motormount. The location the motor enables a maximum motor-length of 68mm, which covers finest engines.
Natural oils and oil
The shock-oil, diff oil plus some oil involves generally speaking meet the standard set-up.
