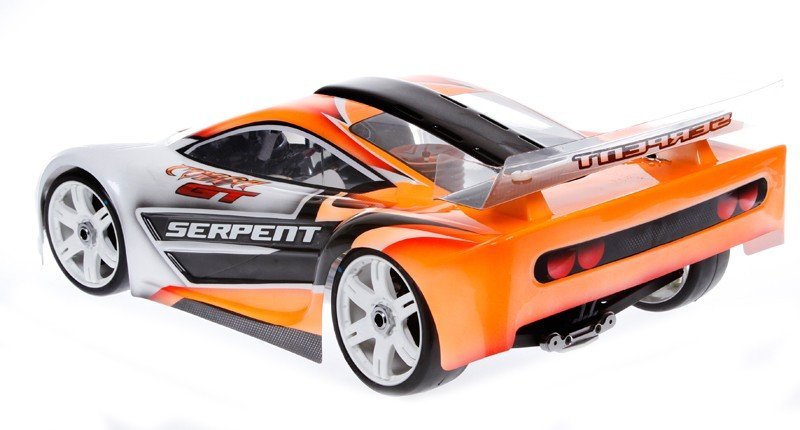

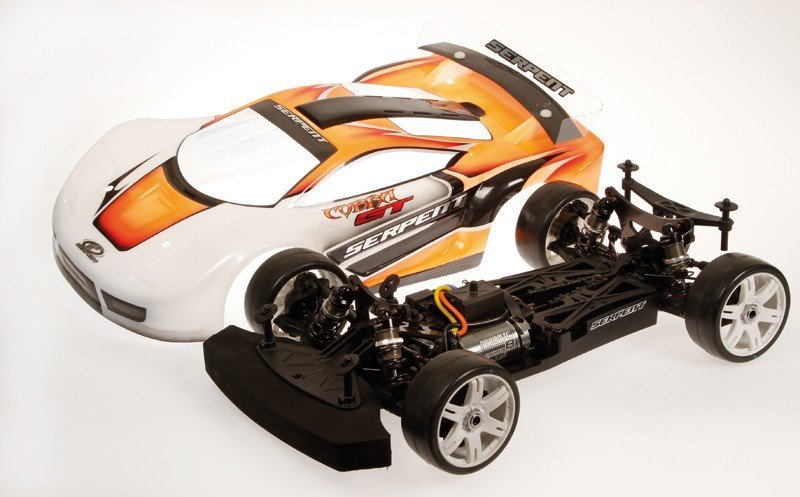

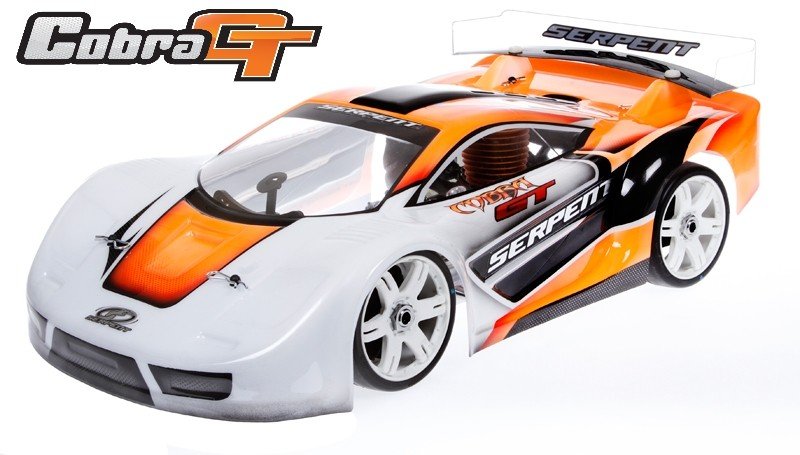

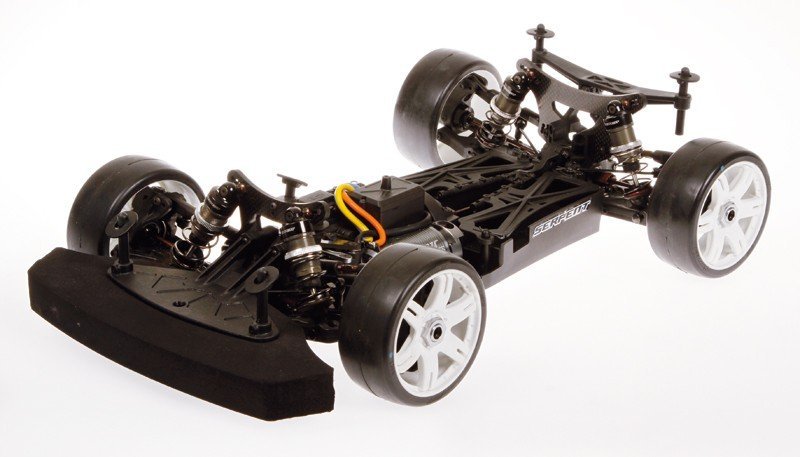

Serpent Cobra onroad 1/8 scale GT automobile, electric variation. Good Cobra platform, designed to perform on asfalt tracks. High-end rushing framework with 7075-T6 alu framework, carbon fibre shocktowers, durable spring-steel drivetrain, 3 geardiffs, low longtudinal battery-boxes, captured foam bumper, the works.
Specs:
- Course: 1/8 scale 4wd GT-e
- function: exceptional competition
- suspension system: totally independent
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrame
- Wheelbase: 328mm
- Width: 305mm
- Handbook: color alongside installation actions and exploded views
- Decals: 2 sheets
- Maybe perhaps not included: human body, radio gear, speedo, motor , tyres-wheels
Features:

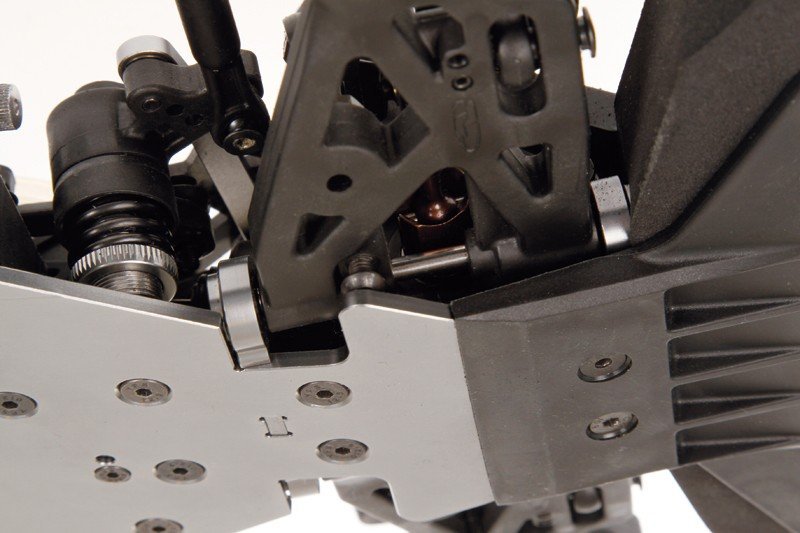

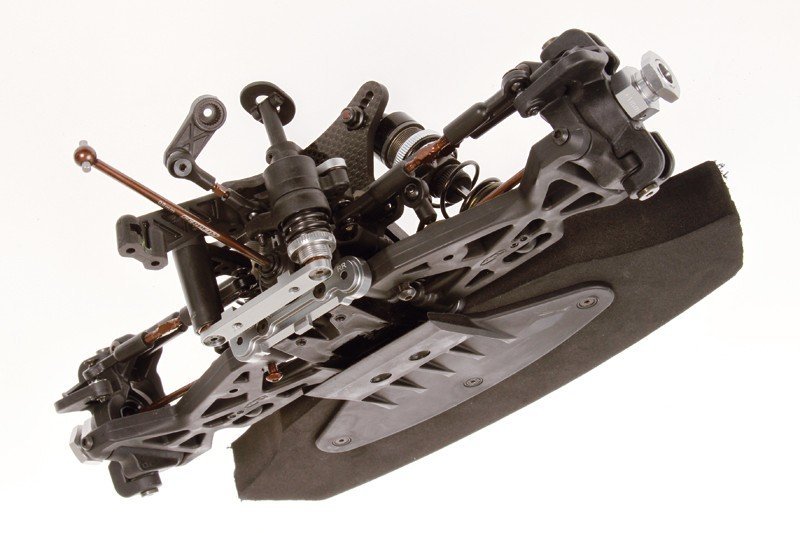

Chassisplate

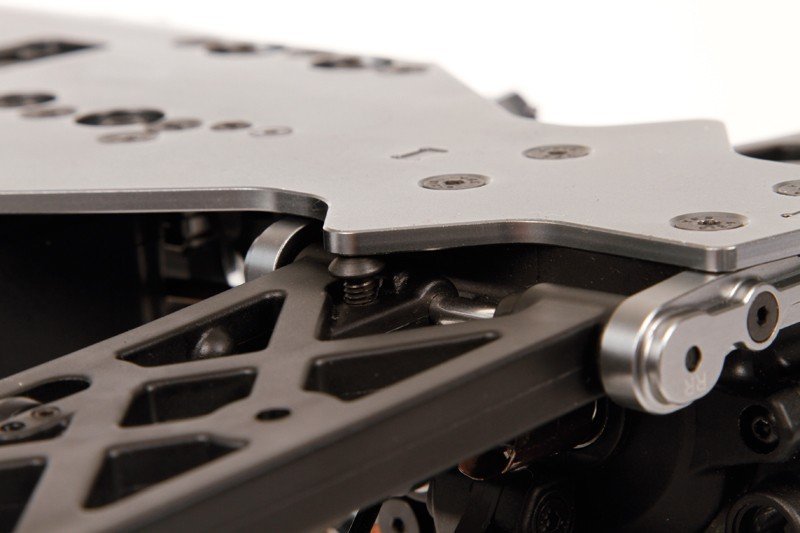

Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to create flex and or make lighter. Kick-up angle on front component as need as a result of race-rules. Countersunk holes. Slots to discover foremost and back suspension system system mounts precisely. Angled edges to enhance tightness. Laser engraved Cobra GT custom logo design.

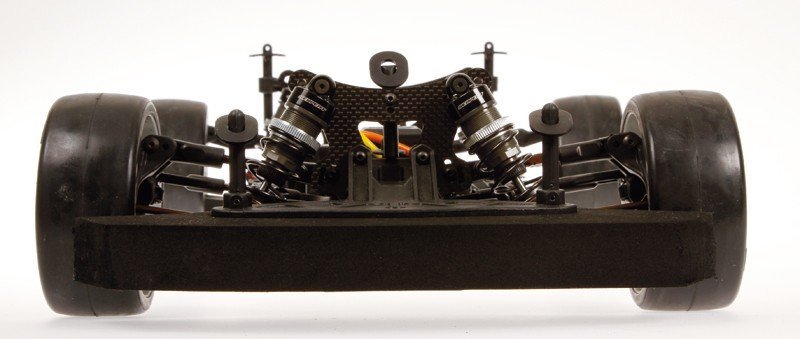

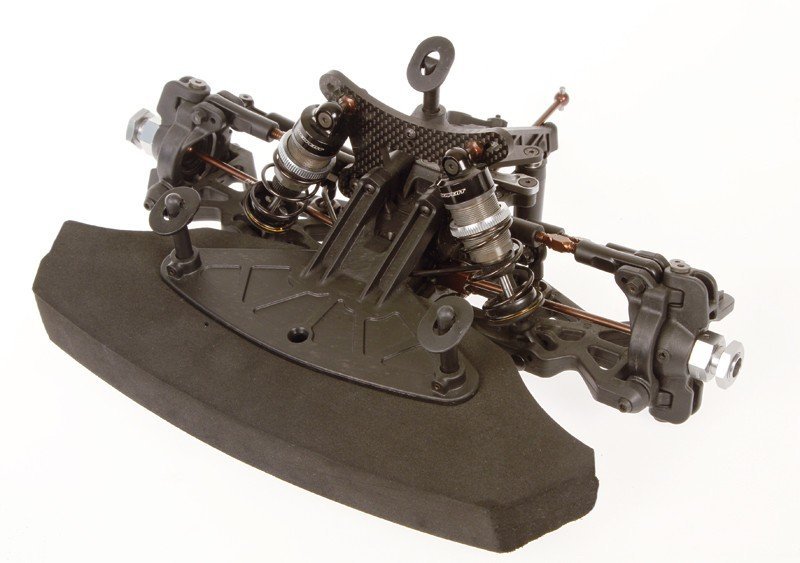

Bumper
Captured foam bumper set, with wide foam bumper and strong top and reduced bumper-plate.
Chassis stiffners
Composite stiffner front component and rear, to provide additional tightness, though enable some flex as required.
Central radio / servo mount
Composite radiobox that provides room the up-right steering-servo, the receiver and sufficient area the speed-controller. The complete installation including linkages is flourished effectively and fast at one time, whenever cleansing the automobile, or doing upkeep.
Battery-cases / sideguards
the important thing eyecatchers will be the acutely low laydown longtudinal place battery-packs at each and every and each component the vehicle, being some the side-guards, firmly fastened with a flip-lid, for simple and fast battery improvements. The excess weight reduced in the auto plus in right position, balanced. The Lipo holders stick to ROAR appropriate packages / dimensions.
Servo hands and linkages
The servo hands have actually in fact a splined insert to truly have the right fit per brand. The linkages operates in fact neat and tight and are usually also additionally easy to reach to improve settings.
Suspension brackets
Wonderfully machined 7065 T6 suspension system system system system brackets in anodized, laser angraved. Pecision complement the nylon roll center inserts and pivot balls / pins.

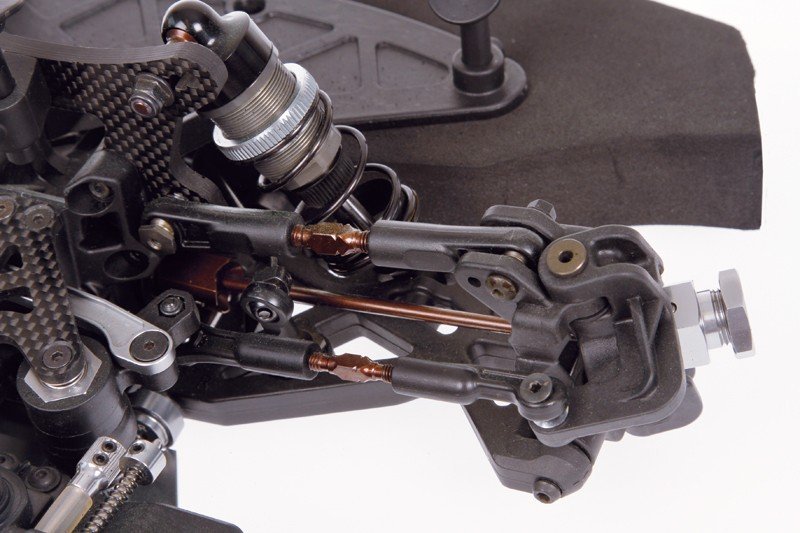

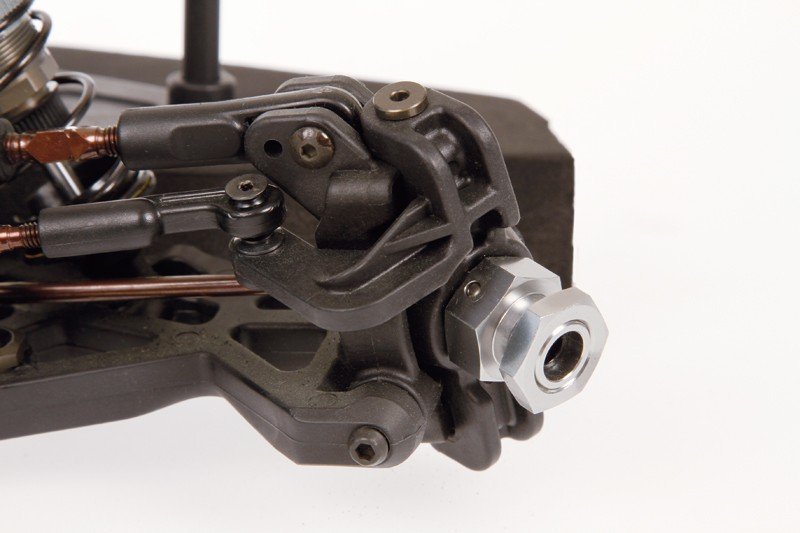

Steeringblocks construction
Composite steeringblocks alongside 10 dgr C-hubs for precise steering. Spring steel wheel-axles with big size bearings 8X16X5 (2) and 15x21x4 (2) and larger inside bearing with precision threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to ensure that you could not free a wheel nut in a race.
Front suspension system system
Durable oversized paid down suspension system system system system fingers in strong composite nylon. Inside the repaid component the initial downstops screws are installed. The reduced shock-mounting pins are guaranteed in full with just a little grubscrew through base.
Front component anti-roll club
The ballraced front side component anti-roll club system, include a springtime steel fold cable, which will be led through diff-cases and run in ballraced metal adaptors. The cable is with this repaid suspension supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction procedure.

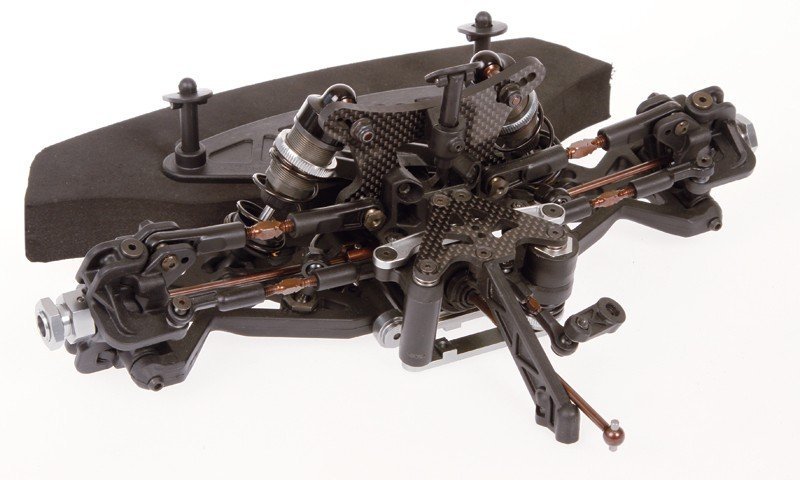

Shocktower and bodymounts front
4.5mm thick carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center jobs. 1 put adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to lessen the angle of difference between the total caster and steering airplane. Therefore you'll have less bump steer and a truer steering Ackerman through the whole range of suspension system system system
Ackerman dishes
utilizing the design connected with steering bell cranks whenever changing the Ackerman you will probably not have to improve your steering tie rods. You simply only will must adjust your end points by yourself radio..
Back suspension system fingers
Durable oversized paid down suspension system system system hands in strong composite nylon. Concerning the reduced component the initial downstops screws are generate. The paid shock-mounting pins are guaranteed with some grubscrew from base.

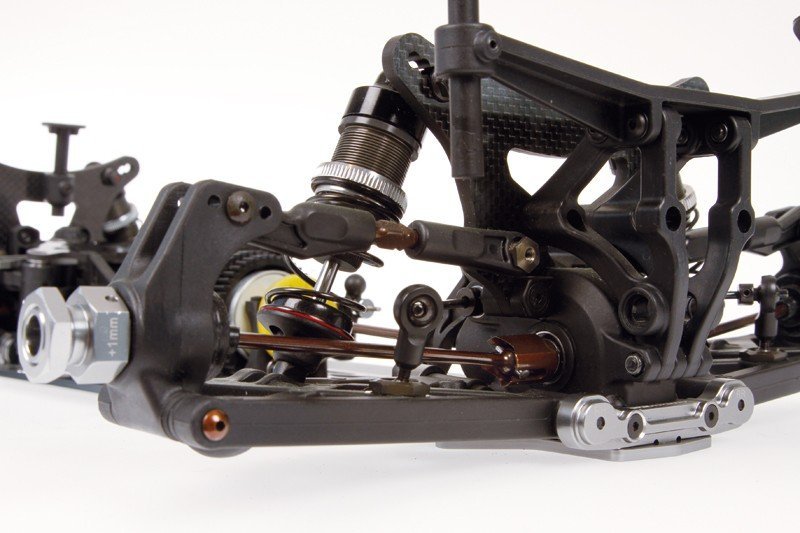

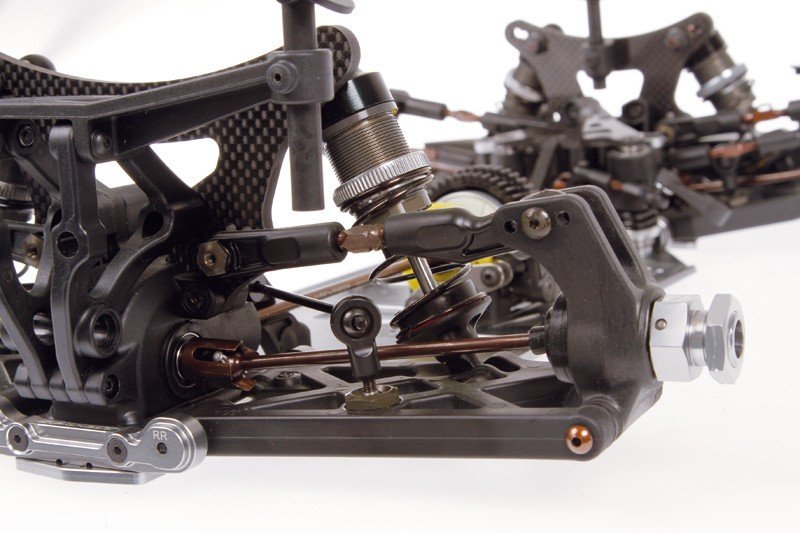

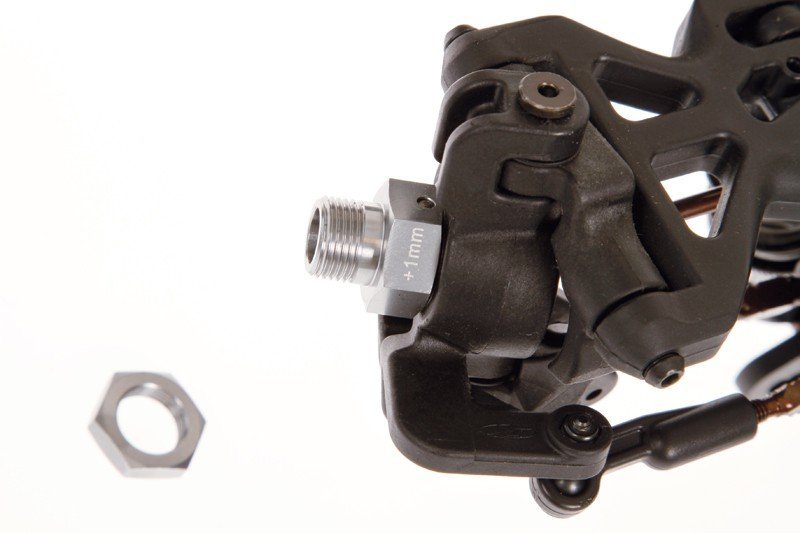

Right back uprights installation
Composite uprights with 3 top roll-center functions. Strog metal track-rods with L/R threading and strog balljoints to pre-set camber. Spring steel wheel-axles with big size bearings and bigger inside 8X16X5 (2) and 15x21x4 (2) with precision threaded aluminum wheel-hubs with offset . Rubber dustcovers into the back to guard the cvd system and kepe the lubrication in. Flanged and serrated wheel peanuts to make sure that you won't free a wheel nut in a race.
Straight back anti-roll club
The ballraced front side component anti-roll club system, have actually really in fact a springtime steel fold cable, which become led through diff-cases and runs in ballraced metal adaptors. The cable is from paid down suspension system system system supply, with a captured adjustable threaded pivotball, for in fact exact and low friction procedure.

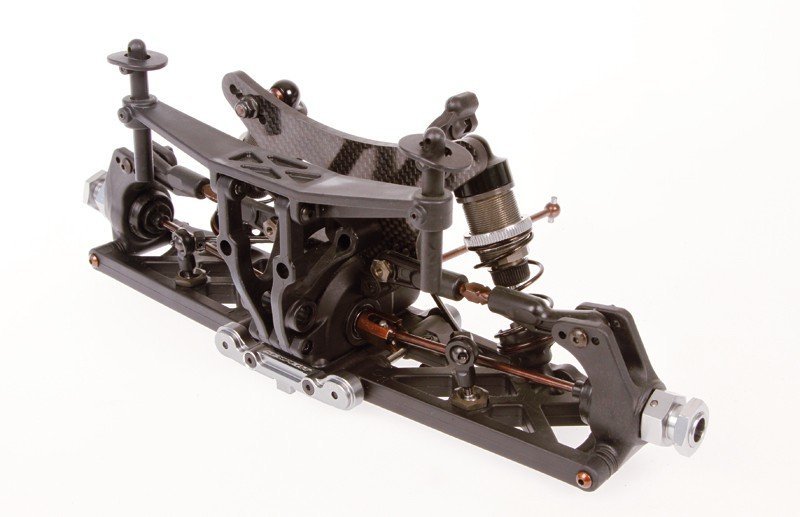

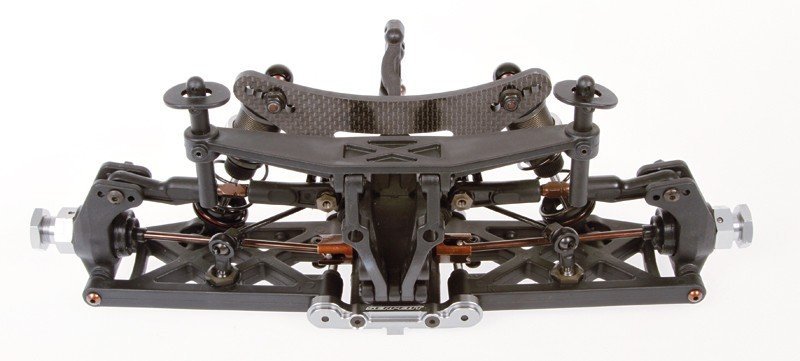

Shocktower back
4.5mm thick carbon shocktower, integrated into a sizable component area for additional stiffness, with 5 top placement holes the shocks and 6 holes for roll-center jobs.

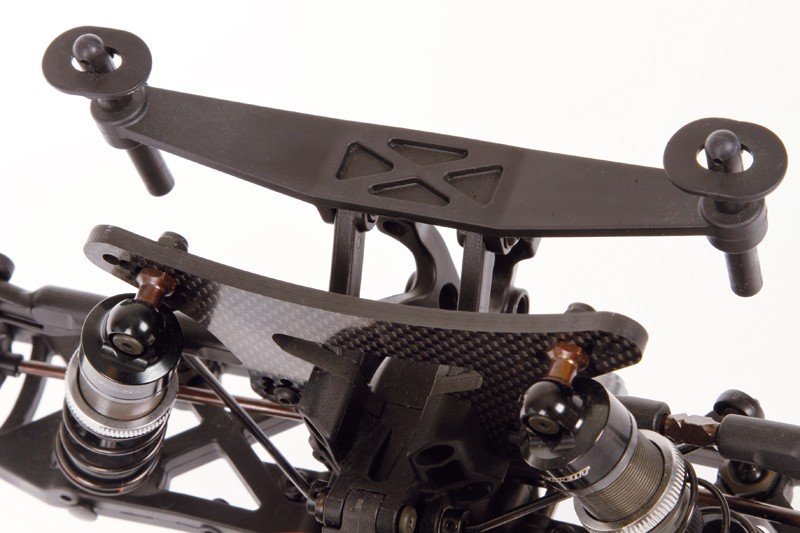

Wingmount and bodymounts backside
Composite back wing, with strong nylon adjustable straight back bodymounts on wide body-support connection situated far adequate toward back, to guide the figures in simplest way. .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted constantly setup making in spring-steel quality. This insures your opportunities to really have the capacity to complete 1 hour around very long primary occasion, while fighting the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to take into account any angle without binding.

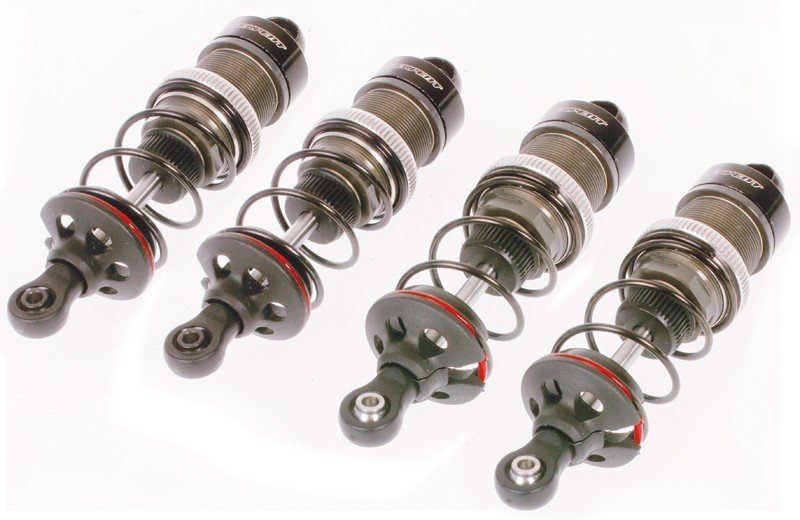

Shockabsorbers big-bore 16mm
Tough Teflon coated threaded shockbodies shockbodies with 4mm shock-rods.. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use big diameter membrames and big diameter o-rings and bushings produce a supersmooth and leak-proof package. Big diameter pistons occur in spot by a nut on polished shock-rods tops. Begin sort springtime retainer allowing dust out effortless.
RCM shock springs
fast sort colorcoded surprise springs are supplied the original standard set-up Springs are grinded flat top and base, and examined individually for anxiety and size.
lightweight geardifferentials
exceedingly lightweight gear differentials with exceedingly smooth metal sintered gears, and metal shaft. Perfect sealing instance with exclusive gasket and o-rings. Actually light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 10T with connector in 2 oversized bearings 8x19x6 and 13x19x4.
Front and straight back cvd-sets
Both front part and back captured driveshafts are increasingly being and CVD system. Durable yet light springtime steel etched driveshafts with hard steel pins.
Spring metal transmission elements
Leading and back slim but strong springtime steel cardan shafts link the differentials utilising the gearbox component.
Engine mount
Machined 7075 T6 aluminium motor-mount with one-screw fixation and easy slider system. Flex-free and extremely strong motormount. The positioning the engine allows a maximum motor-length of 72mm, which covers best devices.
Sebum and oil
The shock-oil, diff oil and many oil involves meet up with the standard set-up.
