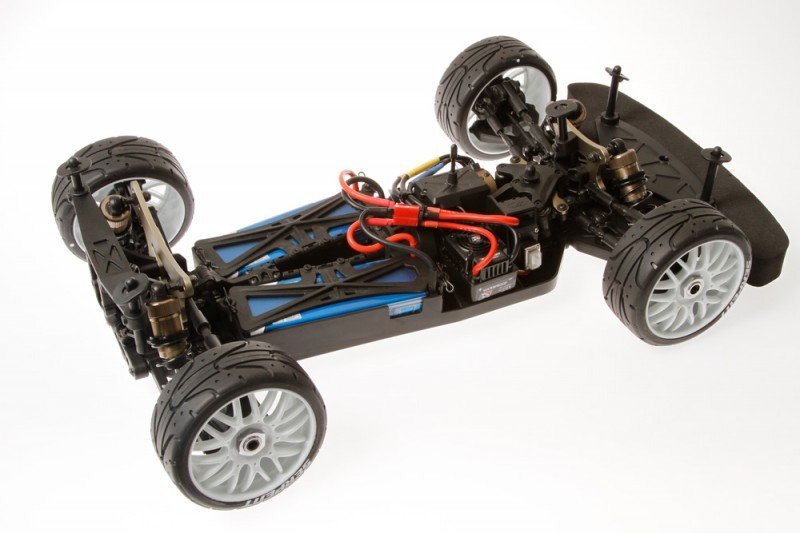

Cobra GT-E raceroller 1/8 electric The Raceroller as a kind of the effective high-end Serpent 1/8 Cobra GT . Pre-assembled and factory pre-set framework with clear GT body with big straight back wing and premounted 1/8 GT tyres. 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and framework, effortless radiobox, low batteryboxes. Totally upgradable with elements and options through the exceptional race-version. This super durable GT framework permits a great entry into the battle scene, cheaper, and that can prompt you to finish your occasions !
Specs:
- Course: 1/8 scale 4wd GT-e Raceroller
- Purpose: clublevel competition and parking lots
- suspension system: totally separate
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrane layer layer layer layer
- Wheelbase: 328mm
- Width: 305mm
- Manual: color manual
- Decals: 2 sheets
- Included: pre-assembled raceroller, clear human body, tyres-wheels
- Perhaps not included: radio gear, speedo, motor , batteries, charger, tools
Features:
- competition roller effective electric GT 1/8
- specialist pre-assembled and pre-set
- 4wd with cardanshafts, 3 compact ,durable geardiffs, super-easy machined aluminium motormount, superlow longtudinal batteryboxes, compact speedo-servo mount, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll pubs FR and RR, 7075 T6 alu shocktower FR and RR, durable suspension system system and transmission components, captured suspension system system system pins, the works !!
- Dragon-RC greater hold premounted GT racetyres and tires
- clear precut ultra low GT bodyshell and big back aero-wing
- color person manual and decalset included
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front side for stable landings. Countersunk holes. Slots discover leading and right back suspension system system system mounts precisely. Angled edges to enhance tightness.
Bumper
big foam bumper, that will be frequently held set up by an upper and repaid nylon bumperplate.
Chassis stiffeners
Composite stiffener front side and straight back, to create extra tightness, though enable some flex as required.
Central radio / servo mount
Composite lightweight radiobox that provides good area the steering servo combined with receiver.
Battery-cases / side-guards
the important thing eyecatchers would be the acutely low laydown longitudinal spot battery-packs at each and each and every part from car, being the main thing side-guards, firmly fastened with a fliptop-lid, for easy and quick fast battery power customizations. The excess weight paid down the vehicle and within the most readily useful spot, well-balanced. The Lipo holders follow ROAR appropriate packages / proportions.

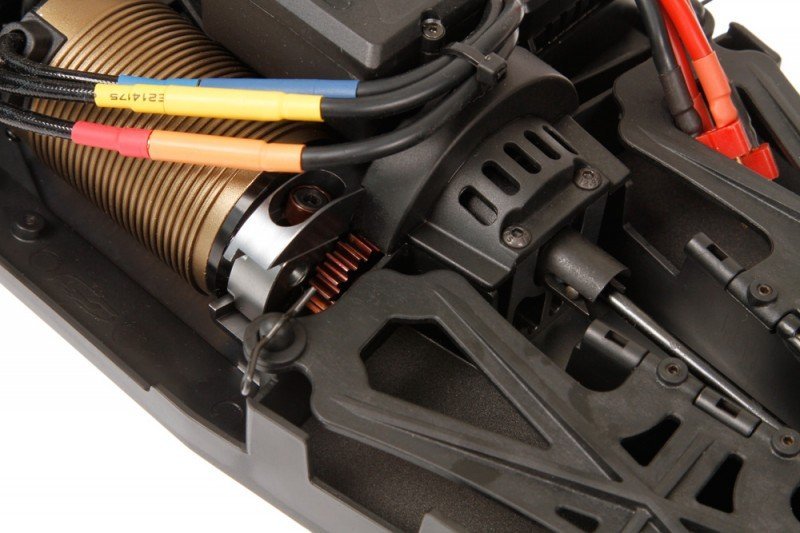

Motormount:
The engine is put in numerous optimal spot to the auto, keeping motor-forces and transmission elements / alignment in mind. Merely one-screw is necessary to secure the BL motor, in well produced durable machined aluminium motormount. Location for extra motor-cooling available as required.
the location the engine enables a maximum motor-length of 70mm, which covers many preferred machines ( besides the truggy / monstertruck products).
Steeringblocks construction
Composite steeringblocks along with 10 dgr C-hubs for accurate steering. Spring steel wheel-axles with big size bearings and bigger interior with accuracy threaded aluminum wheel-hubs with offset . Flanged wheel peanuts to ensure you will not loose a wheel nut in a competition.

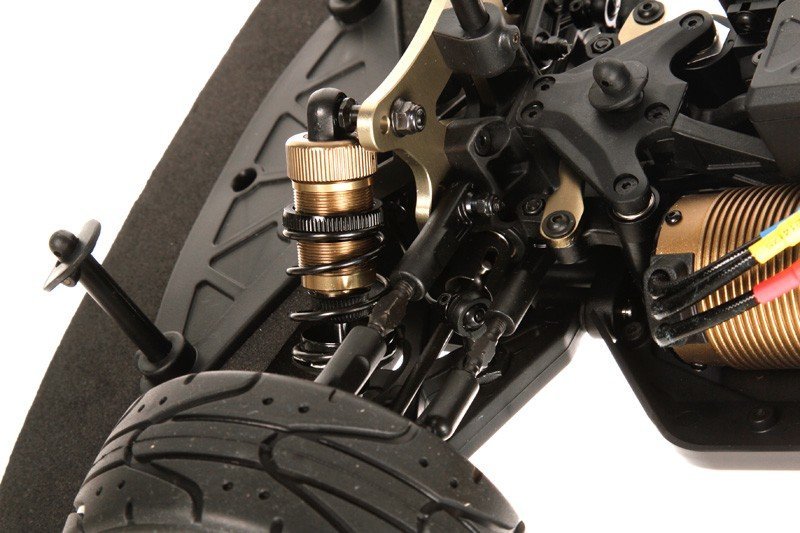

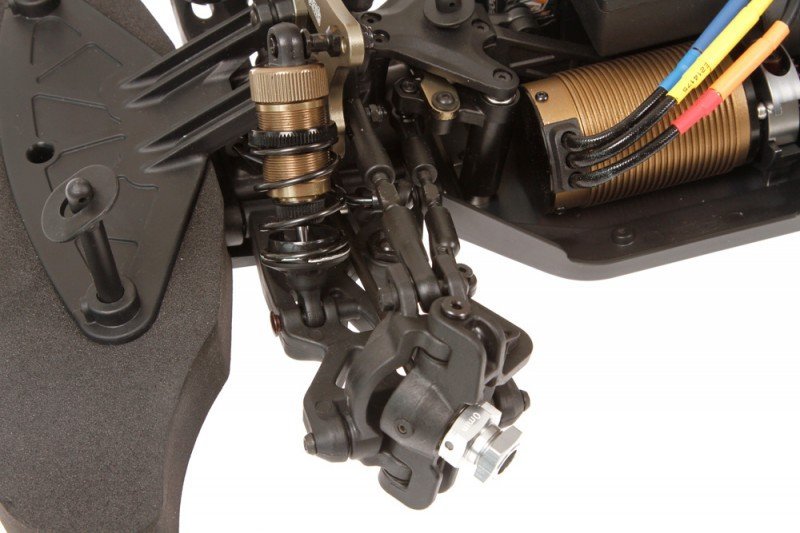

Front suspension system system system
Durable oversized repaid suspension system system system arms in strong composite nylon. Concerning the paid down component the initial shaped downstops screws are installed. The paid shock-mounting pins are assured with grubscrew from base.
Front part anti-roll club
The ballraced front side anti-roll club system, have actually in fact a springtime steel fold cable, which directed through diff-cases and runs in ballraced steel adaptors. The cable is through paid off suspension system system supply, with a captured adjustable threaded pivotball, for actually precise and low friction procedure and easy tuning.

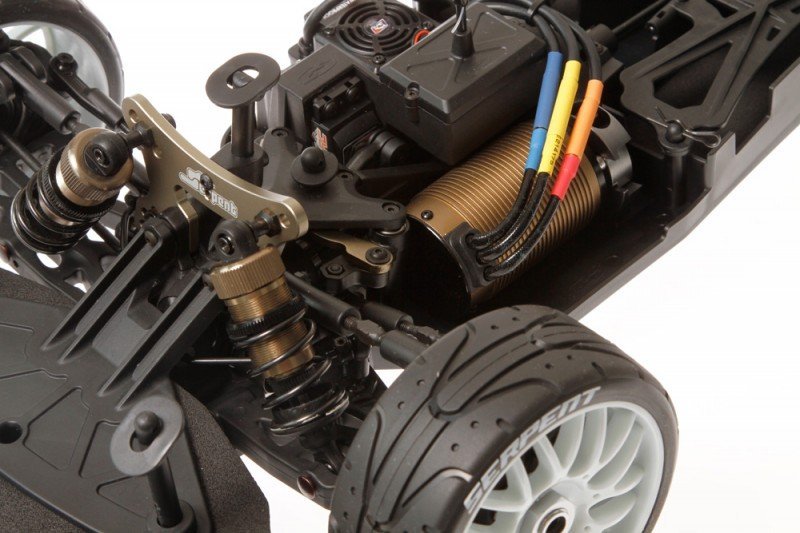

Shocktower and bodymounts front
4.0mm dense aluminium anodised shocktower with 2 top placement holes the shocks and and 3 holes for roll-center jobs. Strong, high adjustable bodymounts with wide top-section to seat the body well.
Angled steering system / servo saver
The bell cranks are angled to lessen the angle of difference between amount total caster and steering airplane. Therefore you must have less bump steer and a truer steering Ackermann through the entire collection of suspension system system system system
Ackermann meal
utilising the design the steering bell cranks whenever changing the Ackermann you will not need to adjust your steering tie rods. You merely only will must adjust your end points all on your own radio..

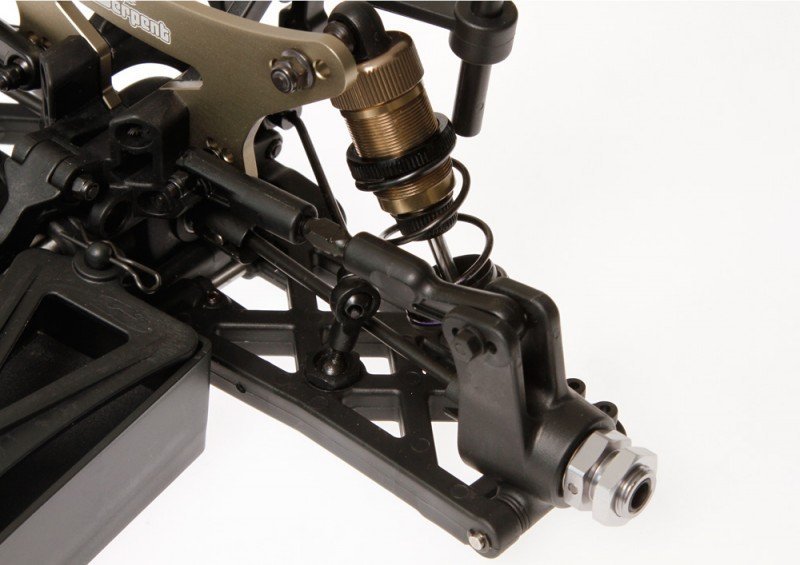

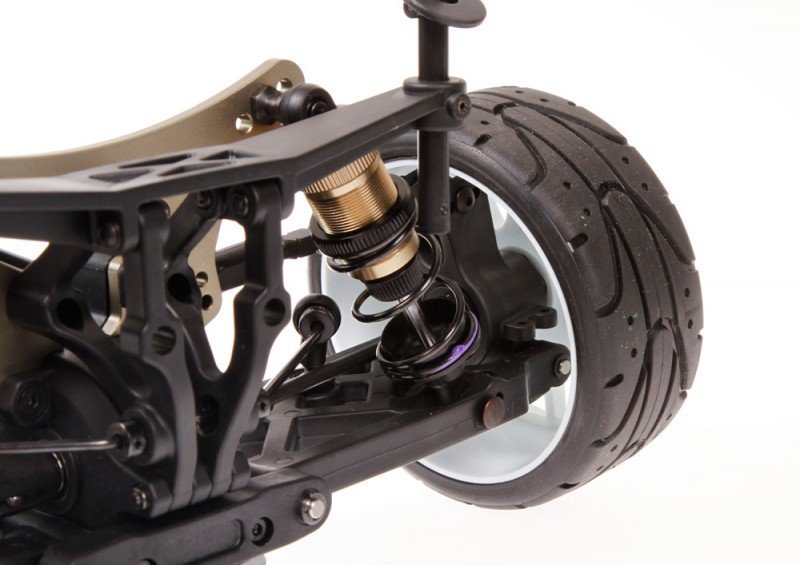

Rear suspension system system arms
Durable considerably longer oversized compensated suspension system arms in strong composite nylon. In regards to the paid off component the first downstops screws are arranged. The lower shock-mounting pins are guaranteed with only a little grubscrew through the base.

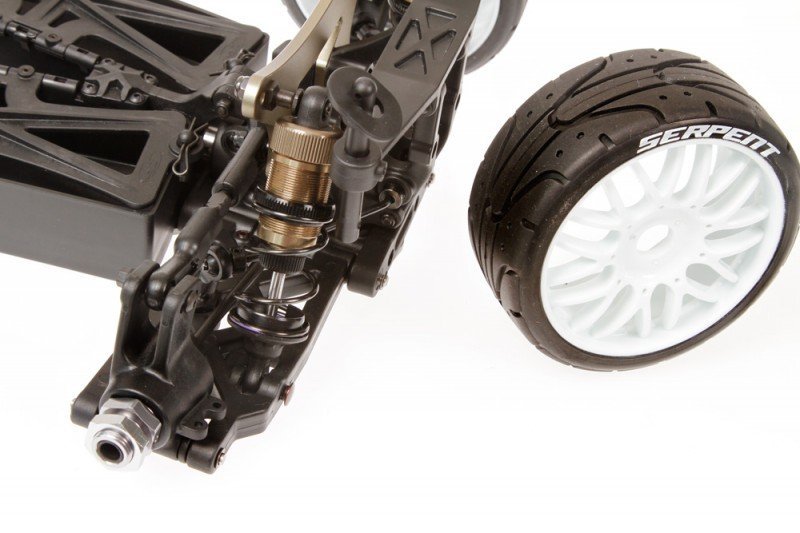

Back uprights put up
Composite uprights with 3 top roll-center functions. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Tough steel wheel-axles with big size bearings and larger inside people who have precision threaded aluminum wheel-hubs with offset. Flanged wheel peanuts to make sure that you shouldn't free a wheel nut in a race.
Backside anti-roll club
The ballraced front side component anti-roll club system, contain a springtime steel fold cable, which is directed through straight back wingmount and runs in ballraced steel adaptors. The cable is from paid off suspension system system system system supply, with a captured adjustable threaded pivotball, for really precise and low friction procedure.

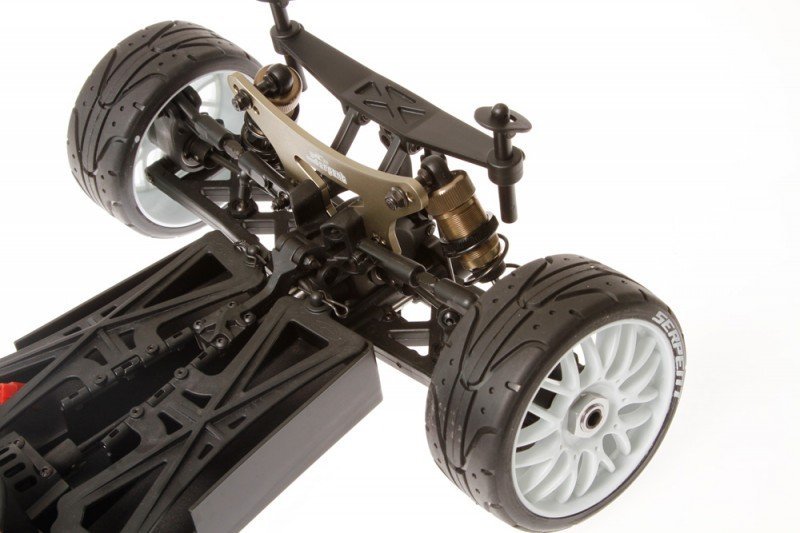

Shocktower right back
4.5mm dense aluminium shocktower, integrated into the trunk component for extra tightness, with 2 top positioning holes the shocks and 3 holes for roll-center functions.
Wingmount and bodymounts back
Polycarbonate straight back low aero wing. Central straight back bodymount along side back bodypost, which are adjustable high effortlessly .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted constantly in place making in spring-steel quality. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to exhibit to virtually any angle without binding.
Shockabsorbers RCM big-bore 16mm
Anodised aluminium shockbodies with durable 4mm shock-rods. Pre-load adjuster videos for journey height environment. Shocks use big diameter membranes and big diameter o-rings and bushings to produce a supersmooth and leak-proof package. Big diameter pistons occur create by a nut regarding polished shock-rods tops. Begin kind springtime retainer to permit dirt away simple.
RCM shock springs
Colorcoded contemporary competition surprise springs obtain the very first standard set-up and all sorts of forms of types of kinds of springs are grinded flat top and base, and examined individually for anxiety and size and broadly speaking are matched.
Compact geardifferentials
exceptionally lightweight gear differentials with exceptionally smooth metal sintered gears, and metal shaft. Perfect sealing example with unique gasket and o-rings. Severely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector in 2 oversized bearings The Cobra-GT-E utilizes a 13T / 44T combination gearing. 46T core diff gear. This drive ratio provides amazing acceleration along side low vehicle fat.
Front and back drive
the leading has captured driveshafts making use of a CVD system. The trunk has durable black colored metal driveshafts with hard metal pins.
difficult black colored colored metal transmission elements
the most truly effective and back strong difficult black colored metal cardan shafts link the differentials .

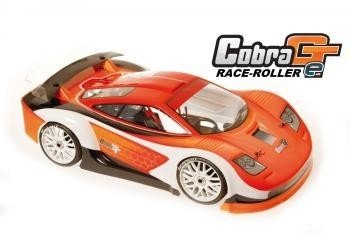

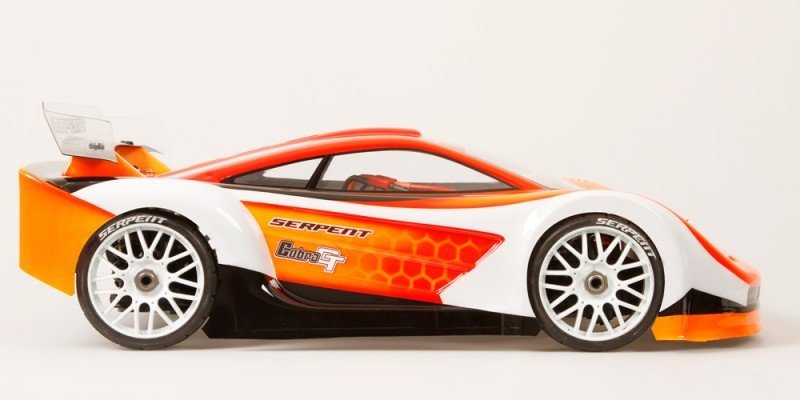

Body
Serpent superlow Cobra GT human body, completely pre-painted actually appealing design and pre-cut too. The reduced human body has exemplary maneuvering and downforce
Tyres / tires
The Cobra comes with premounted DragonRC GT rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with cell-foam inserts. A super-package for excellent hold regarding the most frequent areas.
Sebum and oil
Top-quality silicone shock-oil, silicone diff oil and lots of oil is required to connect because of the standard set-up.
