Cobra GT-E prepared to Race 1/8 electric The RTR version of the effective quality Serpent 1/8 Cobra GT . Detail by detail with DragonRC 2.4 radio, metal-gear servo, brushless engine, waterproof speedo, prepainted-precut GT human body with big straight back wing and premounted GT tyres 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and framework, easy radiobox, low batteryboxes. Totally upgradable with components and choices through high end race-version. This super durable GT framework enables an unbelievable entry inside competition scene, more affordable, and certainly will provide you with complete your activities !
Specs:
- Course: 1/8 scale 4wd GT -e ready to competition
- function: clublevel battle and parking lots
- suspension system: completely separate
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrane layer layer
- Wheelbase: 328mm
- Width: 305mm
- Handbook: color RTR manual, speedo manual, radio manual
- Decals: 2 sheets
- Included: body, radio gear, speedo, motor , tyres-wheels
- possibly perhaps maybe not included: batteries, charger, tools
Features:
- battle ready high-end electric GT 1/8
- specialist pre-assembled and pre-set
- 4wd with cardanshafts, 3 compact ,durable geardiffs, super-easy machined aluminium motormount, superlow longitudinal batteryboxes, compact speedo-servo mount, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll bars FR and RR, 7075 T6 alu shocktower FR and RR, durable suspension system system and transmission elements, captured suspension system system pins, the works !!
- Dragon-RC pistol kind transmitter 2.4 GHz with big LCD display
- Dragon-RC 120A waterproof speedcontroller
- Dragon-RC powerfull 2450kv brushless sensorless engine
- Dragon-RC 10.5kg strong servo with metal gears
- Dragon-RC high hold premounted GT racetyres and tires
- prepainted and precut ultra low GT bodyshell and big rear aero-wing
- color individual manual and decal set included
Transmitter and receiver
The DragonRC pistol sort transmitter includes a fantastic big LCD display, rendering is straightforward to pick through effortless menus. The little and light receiver is ready in the radiobox concerning the automobile.
Speed-controller
The electronic speedcontroller is a completely Waterproof 120A item from DragonRC with effect which fits the Cobra like a glove. This brand new modern design is extremely small and appealing hunting. Topquality soft silicone covered cables.
Brushless engine
The DragonRC brushless sensorless motor is a good 2450kv item provides a lot of torque and amazing topspeed. , that is anodised in same bronze color following the other alu areas of the car.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front part for stable landings. Countersunk holes. Slots for top level and straight back suspension mounts properly. Angled sides to improve tightness.
Bumper
big foam bumper, that's held in place by an upper and repaid nylon bumperplate.
Chassis stiffeners
Composite stiffener front component and right back, to provide extra stiffness, but still enable some flex as needed.
Central radio / servo mount
Composite compact radiobox providing you with good area the steering servo plus the receiver.
Battery-cases / side-guards
the real key eyecatchers would be the acutely low laydown longitudinal destination battery-packs at each and every component regarding the automobile, being the principal side-guards, securely fastened with a fliptop-lid, for effortless and fast battery pack alterations. The extra fat lower in the automobile plus within the best location, balanced. The Lipo holders follow ROAR appropriate packages / proportions.
Motormount:
The motor lies in towards many optimal location inside car, keeping motor-forces and transmission components / placement at heart. Just one-screw is vital to secure the BL motor, in smartly created durable machined aluminium motormount. Area for additional motor-cooling available as required.
The area the motor permits a maximum motor-length of 70mm, which covers numerous favored machines ( excluding the truggy / monstertruck engines).
Steeringblocks construction
Composite steeringblocks alongside 10 dgr C-hubs for accurate steering. Spring steel wheel-axles with big size bearings and larger interior with precision threaded aluminum wheel-hubs with offset . Flanged wheel peanuts to make sure that you will probably maybe not free a wheel nut in a race.
Front suspension system system
Durable oversized paid off suspension system system system arms in strong composite nylon. In regards to the paid off component the initial shaped downstops screws are setup. The paid down shock-mounting pins are guaranteed with a tiny grubscrew through the base.
Front component anti-roll club
The ballraced front side part anti-roll club system, have a spring steel fold cable, that will be led through diff-cases and runs in ballraced steel adaptors. The cable is from paid off suspension system system system supply, with a captured adjustable threaded pivotball, for exceptionally accurate and low friction procedure and simple tuning.
Shocktower and bodymounts front
4.0mm dense aluminium anodised shocktower with 2 top positioning holes the shocks and and 3 holes for roll-center functions. Strong, high adjustable bodymounts with wide top-section to seat your body well.
Angled steering system / servo saver
The bell cranks are angled to lessen the angle of distinction between the full total caster and steering airplane. As a result of this you should have less bump steer and a truer steering Ackermann through the complete level of suspension system system
Ackermann meal
due to the design of steering bell cranks whenever changing the Ackermann you do not need to adjust your steering tie rods. You merely only will be needing truly to modify your end points by yourself radio..
again suspension system system system arms
Durable considerably longer oversized repaid suspension system hands in strong composite nylon. Into the paid off component the very first downstops screws are installed. The paid down shock-mounting pins are fully guaranteed with significantly grubscrew through base.
Back uprights arranged
Composite uprights with 3 top roll-center jobs. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Tough steel wheel-axles with big size bearings and larger inside people who have accuracy threaded aluminum wheel-hubs with offset. Flanged wheel peanuts to make sure you certainly will maybe not free a wheel nut in a race.
Backside anti-roll club
The ballraced front side part anti-roll club system, consist of a springtime steel fold cable, which directed through back wingmount and functions in ballraced metal adaptors. The cable is from the paid off suspension system arm, with a captured adjustable threaded pivotball, for actually exact and low friction procedure.
Shocktower backside
4.5mm dense aluminium shocktower, incorporated towards the trunk area for extra tightness, with 2 top placement holes the shocks and 3 holes for roll-center functions.
Wingmount and bodymounts back
Polycarbonate back low aero wing. Principal straight back bodymount because of the straight back bodypost, and this can be adjustable high effortlessly .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted setup producing in spring-steel quality. This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to show to any angle without binding.
Shockabsorbers RCM big-bore 16mm
Anodised aluminium shockbodies with durable 4mm shock-rods. Pre-load adjuster videos for trip height environment. Shocks use big diameter membranes and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons happen constantly in place by a nut towards polished shock-rods tops. Begin type springtime retainer to allow dust out effortless.
RCM shock springs
Colorcoded contemporary competition surprise springs can be had initial standard set-up and all sorts of forms of kinds of springs are grinded flat top and base, and examined individually for tension and size and are also also matched.
Compact geardifferentials
extremely compact gear differentials with in fact smooth metal sintered gears, and steel shaft. Perfect sealing instance with original gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings The Cobra-GT-E utilizes a 13T / 44T combination gearing. 46T core diff gear. This drive ratio provides you with amazing acceleration utilizing the low car fat.
Front and straight back drive
among the many tips has captured driveshafts using a CVD system. The trunk has durable black colored colored steel driveshafts with difficult steel pins.
hard black colored colored steel transmission elements
Leading and straight back strong hard black colored metal cardan shafts link the differentials .

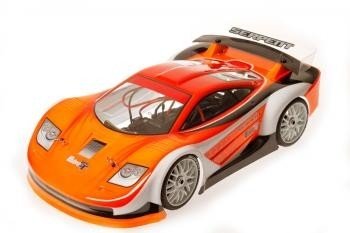

Body
Serpent superlow Cobra GT body, completely pre-painted actually appealing design and pre-cut too. Belly muscles lower torso has excellent maneuvering and downforce
Tyres / tires
The Cobra comes with premounted DragonRC GT rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with cell-foam inserts. A super-package for excellent hold regarding most popular areas.
Sebum and oil
Top-quality silicone shock-oil, silicone diff oil and some grease enables you to meet the standard set-up.
