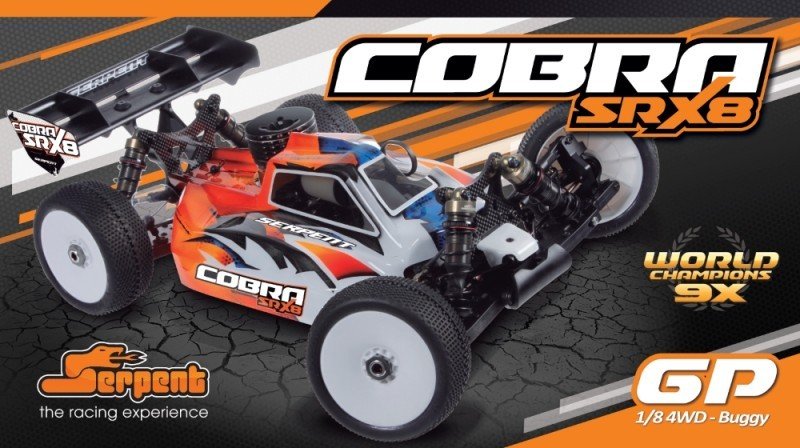

Cobra SRX8 buggy 1/8 GP upper end rushing buggy in 1/8 4wd variation for gaspowered services and products. Principal features include big bore shocks, 3 gear-diffs, twin diskbrake, competition clutch, ballraced anti-roll pubs, springsteel transmission elements and wheel axles.
Needs:
- title: Serpent SRX8 Cobra Buggy
- course: 1/8 scale 4wd buggy
- type: kit-version, high-end competition
- wheelbase: 330mm
- width: 305mm
- weight: 3.300 grms ( battle prepared, is dependent upon radio-gear and motor)
- clutch: 4-shoe centrifugal, carbon shoes
- differential: lightweight, 3 geardiffs
- braking system: piston type with steel disks
- shocks: 16mm big bore with 3.5mm shafts
- fueltank: 125ccm, with built-in bronze filter
- gear-ratio: 4:3:1
- included: Kit, body, wing, silicone oils, color manual-USB, decalsheets.
Features:
- Stunning standard gear
- Cool Innovations
- effectiveness stuffed
- made to last
- effortless upkeep
- Great solution and help
Stunning standard gear
- Hardcoated coated framework 7075 T6, laser etched
- Steeringblocks alu 7075 T6, black colored colored colored colored coated, laser etched
- C-hubs 15 dgr, alu 7075 T6, black colored colored colored coated, laser engraved
- right back uprights, alu 7075 T6, black colored colored coated, laser etched
- 4.5mm carbon fiber shocktowers front and back
- Big-bore shocks with machined pistons and spacers, unique supersmooth x-rings
- Hardcoated engraved shockcaps, 3.5mm rods and synthetic sleeves.
- Front, central and back geardifferentials
- 4-shoe competition clutch
- Durable wishbones prepared to be used with inserts ( moulded standard, carbon optional )
- steel diskbrake system with unique pre-mounted brake-pads
- covered metal included framework skidplate in straight back
- Lightweight and strong hardcoated aluminum camber and tracksrods
- back wing and fresh Avenger design human body
- Springsteel drive-train system with CVD and synthetic defenses footwear
- Ballraced anti-roll bars front and back with pivot system
- Supernice radiobox design and totally included transponder -holder
- Decals the radiobox caps
- Top-quality sealed bearing with seals
Cool Innovations
- the most recent Gear-differentials have really actually a more significant circumstances enabling a lot more oil inside, whilst having a create really compensating system. Both will generate a consistent diff inside longer functions.
- Wishbones which enable mounting inserts both in top like to the base regarding wishbones, that enables for a number of feasible choices to help almost flex, using no inserts, moulded inserts, carbon inserts, or blended inserts.
- Angled steering system for optimal Ackermann and paid down bumpsteer.
Effectiveness loaded
- Fully adjustable for caster, camber, toe-in, toe-out, roll-center, rideheight, wheelbase, downstops, anti squat, kingpin angle, ackermann, the works !
- amazing geometry front side and right back conjunction with exclusive framework form and far longer framework braces to acquire additional agile management, more steering, more straight back hold and improved safety.
- Angled steering system for optimal Ackermann, responsive steering and repaid bumpsteer.
- Hardcoated shocks with groundbreaking internals according to above demands.
- battle clutch with 4- carbon footwear system
- Effective airfilter system with amazing angled synthetic connector and strong wireholder
- unique areo pack with wider Avenger body and completely new right wing for medium downforce. Optional high downforce adjustable polycarbonate straight back wing and a premier downforce human body become released quickly too.
Developed to last
- Hardcoated framework with straight back framework skidplate
- Springsteel transmission elements and wheelaxles
- Aluminium steeringblocks, C-hubs,
- Dust footwear for shocks and all sorts of types of transmission components
- Unique mix composites for super durable moulded elements
- straight back bodymount with artificial damped system
- high-quality greased, sealed bearings throughout
- Durable steering and servo-saver system, and aluminium Ackermann meal with prepressed bearings.
Effortless upkeep
- quite simple front side component and right back differential access with 4 screws just
- simple usage of the main differential and braking system system
- very easy lever system the throttle and stopping system
- fairly simple reduction and re-assembly of engine, radiobox, tank, complete radiobox, complete front part and back, complete center installation
- Supernice fresh fueltank with screw-on sort fueltube holders, insert-system to reduce tankvolume , improved filter/clunk , enhanced fuelcap and springtime.
Great information, solution that really help
- Car-kit includes USB follow color construction in PDF with hotlinks to web sites for easy additional elements selection ( printed manual variation to see).
- Serpent distributors and dealers are active generally in most areas of the rc competition world, for information, solution, help and provide
- Effective Kits, spares and optional supply
- utilizing Serpent site, TeamSerpent website, Serpent Twitter, Serpent Twitter Groups ( per automobile), Serpent Twitter, Serpent Advanced Manuals
- be involved set for Serpent Master Classes ( SMC) by Serpent team-drivers
Framework
The framework cnc machined from 3mm dense aerospace kind 7075 T6 aluminium and comes difficult anodised for durability. The brand new type is wider through back again to merely assist the framework roll and drag in rougher conditions. The kick-up angle is optimised to match as a result of mating elements. All holes in framework are countersunk.
The framework features 2 big pouches, one may be the steel skid supper and one the primary skidplate. There are 2 keyholes to center-fix top and straight back suspension system system system brackets setup. The pocket the flywheel is enough to complement frequently used starterwheels.
The sideguards mount toward fold chassis-sides through inside with pre-threaded holes into the framework. The framework provides good size surfaces the downstops.
Right back skid plate
The cnc machined metal skid dinner will protect the framework within buttocks which it wears many. Its efficiently replacable by a whole new one, with only 4 screws. Optional people in other materials to see.
Steeringblocks
The steeringblocks are manufactured from 7075 T6 aluminium and are usually additionally usually anodised in black colored colored. These steering obstructs take place intended to allow you to change the Ackermann within steering spindle including offer usa aided by the optimal scrub offset in conjuction because of caster block. The bushings push to the obstructs and minmise any undesirable play.
Chassis stiffeners
additional long framework stiffeners, front and back composite product to possess well flex and prevents the framework to flex too much. Simple securing fastening system.
Side-guards
The composite sideguards help with maintaining debris out of the vehicle, have rigidity toward framework and offer the body. The sideguards are fixed towards chassis from most notable in pre-threaded holes toward framework. Because of this the screws are protected well and its own better to re-assembly whenever needed. The sideguards work a pocket externally allowing mounting some felcron tape to steer / fix one's body.
Steering system
The twin axis steeringsystem with important servo saver is established under an angle in inexpensive bumpsteer and a main steering feel. The axis are designed in lightweight aluminium.
the current bellcrank takes a bearing raced crossbar with zero slop. It created combined with the optimal Ackermann to improve the automobiles driveability.
Servo saver
These brand-new servo saver elements not only have the newest Ackermann, and possess actually really the truth is a brand new inside servo saver design. It gives a helix in order to guarantee the appropriate working for the servo saver construction. The servo saver springtime is protected by a dense foam target, to move debris away. The springtime pre-tension clamp nut could be locked in place in order to avoid switching loose.
Radio-tray
the simple to work with and durable radiotray is initiated less than feasible yet such shows that many products match easy and simple well. Its features a seperate area towards front component the battery power, to have the weightier component more front. The lid has 4 screws. Both servos efficiently match well with lots servo-spacers to put together them regarding right height. The framework under the servos has paid down pouches help mounting the servo?s suprisingly low. Ofcourse it is additionally vital to consider chassisflex/torsion, consequently dont mount them too low. The transponder, small or moderate kind, has outstanding flush mounted owner included. The receiver package offers 4 tiny screws for easy and quick access. You are likely to install a regular switch, or utilize provided target using another solution. 2 decals are included to invest in the battery power and receiverbox.
Airfilter
high quality 2 piece dense foam for perfect filtering ( usage topquality airfilter oil simply ). The master enables effortless construction. Regarding front part ?top component the mount is because of this guts advice about a spring cable, fixed with a bodyclip. Probably the most up-to-date artificial elbow permits good airflow and features wide grooves to work well with tie-wraps.
Fueltank
The125cc gas tank is a whole brand-new design. The springtime and restriction allow the force be more equal through the complete the top of restriction, and also the design from restriction won't have flex . The clunk was increased so that it will continue to be in base from tank and certainly will maybe not pop-up or float in to the base. Even though drain area towards the top is enhanced in which there was now a 4mm opening that may enable dirt and debris to flee and not block. The fuel-tube videos now mount on tank with screws therefore you will not should be worried about loosing them. The tank pull licenses faster and more safe refuelling. The tank is re put to make sure its further from exhaust , that'll avoid melting concerning the tank. The kit includes function made insert to reduce this short article if required. The tank mounts on 2 strong composite poles with synthetic grommets for versatile mounting and invite easy dis-assembly for checks and cleansing.
Driveshafts / transmission
The Serpent springsteel driveshaft are equal very long ahead and rear not to mention the key people, which easy for spares stocking.
Center diff mount
Durable center mounts with big size bearings to create the stopping system system and center diferential. A moulded brakedisk guider is set up concerning the brackets. Your whole system is manufactured just simple for CG reasons. The sleek top-cover keeps dust away and guides both stopping system cams.
braking system system
The SRX8 provides a normal braking system with stopping system cams, steel disks and metal pads with effective pre-glued brakepads .
Differential circumstances
The strong moulded differential circumstances such as the differential and aids the shocktowers.
The differential front side part and right back are expunged after taking right out merely 4 screws and eliminating the anti-roll pubs, super-easy !
Differentials
The diff housing ended up being totally re-designed to create way of development in diff technology. The diff now has cavities produced created for shut mobile foam. This foam makes up for expansion through the oil, that will let us fill the diffs more complete, keeping the gears completely engulfed in oil. The cavity in which gears rest in addition was redesigned to ensure that there is not low force areas perhaps not into the gears. This might keep more oil on gears additionally whenever rotating at high rpms. Consequently can keep the diff more constant at low and high rates including hot or cool .
Differential gears 28 / 14 / 44
The hardmetal 28T and 14T satellite gears have actually a much more significant fundamental diameter, to get them to more in oil, making the diff more constant , smoother and much more effective . The metal 44T band gear is lighter and possesses an amazing match utilising the unique 28T gear.
motor mount
Lightweight CNC machined motor install in 7075 T6 aluminium with pre-threaded holes and big contact area with framework, comes grey anodised .
Wingholder straight back
the trunk wing owner is a good durable and light one piece moulded unit . The set includes wing-spacers to put the wing under some views.
Wheel axles / hex / footwear
The durable Serpent springsteel wheelaxles are captured CVD design but still have synthetic footwear to shield the item and bearings against dirt and dirt, in order that it's going to all carry on considerably longer. The wheel hex is a durable difficult aluminium variation which fits all popular tires totally. The pins utilized are 3mm individuals enhance durability.
C-hubs
the newest 15 dgr c-hubs are stated in 7075 T6 alminium and are also additionally anodised in black colored colored. These available design really durable services and products make it possible for enough space permitting essentially the most steering-angle and lalow area to add the synthetic dirt protectors regarding CVD system. As optional you could expect 13 and 17 dgr alu c-hubs too.
Uprights
The uprights are made of 7075 T6 aluminium with black colored colored anodizing plus they are usually usually universal individuals be utilized held and appropriate . The most up-to-date uprights have really definitely the roll center modification offered with tiny inserts . Set screws are accustomed to shrink straight down regarding hinge pin to eradicate any unwanted play. Inside base level 2 threaded holes are made to allow mounting the optional metal many 15 gr each for rough conditions.
Wishbones
in fact durable and intensely long moulded wishbones front and right back. The composite is plumped for to own adequate flex whenever required. The look has pouches in top and base part of each supply to generate the initial moulded insert dishes, and/or optional carbon fiber people. In that way you can actually choose the best supply flex for each and every condition. Additionally various or no inserts front component or right back and combining moulded and carbon inserts is achievable. The moulded inserts will stiffen the arms some, but keeps them cleaner. The carbon individuals, or blended with moulded individuals will stiffen the arms lots. Several choices to make use of.
Mudguards
The mudguards are found in lightweight transparant polycarbonate and are going to be left clear, be painted or skinned as prefered.
Suspension brackets
The suspension system system system brackets are CNC machined in 7075 T6 aluminium and grey anodised. They enter toward framework for perfect fit. The brackets have actually precision machined pouches to work with inserts to improve the set-up.
Anti-roll pubs
The anti-roll club system may be the better around. Precison made cable runs in ballraced adaptors in regards to the front part and straight back diff case-plates. Superfree and stabile. The cable links to a balljoint that is frequently fitted with a pivotbal toward wishbone. The works !
Shocktowers
the main element and right back shocktowers are durable 4.5mm carbon fibre products, CNC machined.
Clutch
The effective 4-carbon footwear competition clutch is continued . It could be totally pre-assembled and stay set up towards motor. The equipment includes a light and little alumnium flywheel and durable springsteel 13T clutch-housing .
Shock springs
Race shock springs that are pre-selected and paired. The shocksprings are grinded flat for perfect procedure.
Shocks
The shocks are a completely overhauled design. Durable polished metal 3.5mm rods are utilized with hard anodised caps and threaded shock-bodies. A brand new sealpack have machined bushings and fresh x-rings which will be held arranged with a little inside clip. The shockpistons are machined delrin items for many helpful performance. The shocks in kit are membrame design, with emulsion kind hardcoated caps and seals become provided as option.
Wing straight back black colored colored
the current flat kind right back wing is an effective medium downforce product with big sidewings. The decalsheet provides sidewing decals to utilize.
Bodymounts
a large part body mount has a synthetic pillow inside. Permits the body mount to produce front component to rear in an evident effect or crash. This saves your system from breaking or tearing. Leading one is a tough and fast type that is effortless available.
Ballbearings
quality shielded bearings with oil through kit.
Body
another Avenger design human anatomy is developed the SRX8 with moderate degree downforce. Cab-forward design body with small fin at the top for security. Sugary going edges with little back upward fins for straight back downforce. Enough room allowing airfilter, enggine mind, carburetor and exhaust / exhaust adaptor. Top-notch polycarbonate. The human body has good trimlines for effortless cutting. Exact same the bodyholes. A masking sheet is roofed to assist with paintjob preps.
