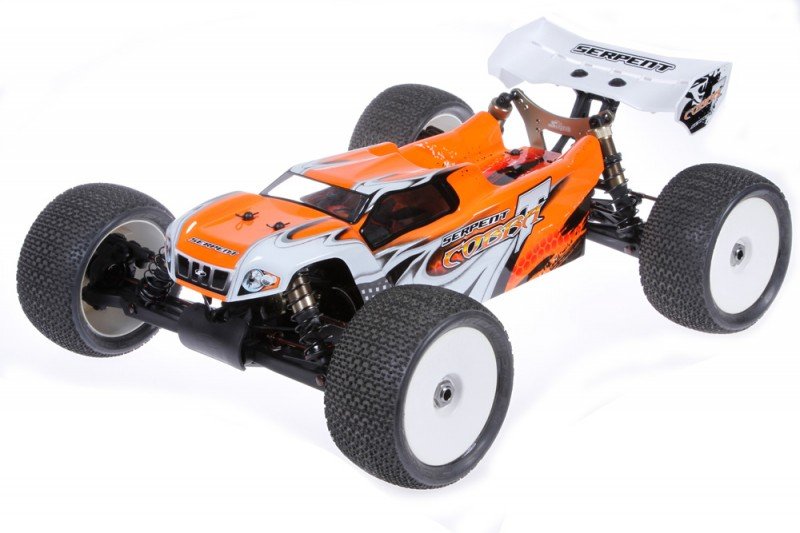

The Serpent Cobra E-Truggy in RTR trim is a phenomenal basher type car that will you will want to take countless beating including its also outstanding package to start out genuine battle !
In line with the Cobra E-Truggy it includes the outright rate, great control, dependability, rigidness and durability you'll need.
Requirements:
- class: 1/8 scale 4wd E-truggy
- kind: RTR-version
- weight: 4.000 grms ( battle ready, is dependent upon gear used )
- differential: lighweight, tiny geardiffs , front, main and rear
- shocks: 16mm big bore
- gear-ratio: 4:3:1
- tires: Serpent premounted truggy wheels/inserts/tyres
- individual individual human body: precut and prepainted E-truggy design
- transmitter: 2.4 GHz transmitter with small receiver
- speedcontroller: waterproof 150A with fan (4-6S)
- engine: 2000 KV brushless
- perhaps possibly maybe not included: Batteries and charger
Features:
- factory assembled rushing framework
- prepainted and precut low type truggy body and big composite back wing
- premounted truggy tyres/wheels/inserts
- pre-set 4S to 6S capable waterproof 150A speedo ( DragonRC)
- 2000kv brushless longbody motor (DragonRC)
- Digital 2.4ghz transmitter (DragonRC)
- steel gear servo 20kg ( DragonRC-Savox)
- 3 oilfilled geardifferentials
- Big bore shocks with synthetic dustboots and machined aluminium shocktowers
- Spring metal transmission elements and turnbuckles, front part and straight back cvd driveshafts
- Front and back anti-roll pubs
- big battery-cases with effortless felcron straps
- Machined aluminium chassisplate
- entirely ballraced
Transmitter
DragonRc 2.4 GHz steeringwheel sort transmitter with lots settings and good range. Includes tiny and light receiver.
Speedo
DragonRC waterproof speedcontroller with a huge 150A capacity to get a grip on the brushless engine and 4S or 6S battery power
Engine
DragonRC longbody 2000kV brushless engine with effortless colorcoded connectors
Body
Prepainted and pre-cut low e-Truggy body, in 4 main colors orange, red, Green and Blue. ( furthermore clear one available as optional)
Tyres
Premounted competition ready tyres / tires with soft substances and pintype profile for amazing hold.
Framework
in fact slim 3mm 7075T6 aluminium framework, with machining about the top face to make it lighter in strategic places also to get a handle on flex. Kick-up front part for appropriate landings. Angled facet of improve cornering approval, and safeguarded and simple mounting component guards with 5 screws. Countersunk holes, pouches to put the suspension system system brackets. Generally the Truggy was created to keep the fat extremely primary and towards the centerline possible, generate outstanding general safety.
Component guards / battery trays
Durable shaped composite component guards / battery trays that stay glued to the sort of the framework, and mount with 5 screws each component. Front and sides sufficient to keep the dirt away. The guards/trays create numerous security. The batteries are setup in longtudinal fashion, maintaining the additional fat suprisingly reduced in the car. The battery trays features user-friendly Serpent noticeable felcron TM straps to secure the batteries set up. Fits 2S and 3S batteries.
Motormount:
The motor lies in many optimal spot inside vehicle, keeping motor-forces and transmission elements / alignment at heart. Merely one-screw must secure the BL engine, on nicely designed durable machined aluminium motormount. Region for extra motor-cooling available as required. The spot the motor enables mounting all popular buggy and (monster)truggy motors.
Composite framework braces
Allows the framework to flex which assists enhance bump managing. Front part and back.
Front bumper
well rounded front component bumper, exactly like regarding Cobra buggy, to guard leading anti-roll club, suspension system brackets, and moves inline with kick-up framework front side for safe landings.
Front side suspension
extended and durable composite reduced wishbones, as well as top spring-steel trackrods. 2 paid down shock-mount functions. Downstops may be used as required. Pivotball type anti-roll club rods.
Front steering / servo saver / angled
Innovative angled front steering construction to reduce the angle of distinction between your total caster and steering airplane. Consequently you need to have less bump steer and a truer steering Ackerman through the whole number of suspension system system system.
Adjustable spring loaded servo-saver system with interchangeable Ackermann dishes. Along with the design the steering bell cranks whenever changing the Ackerman you will not must adjust your steering tie rods. You simply only will must manage your end points on your own radio. Very easy getting your self in and set-up.
The Inboard Bell crank keeps the lever and linkage inside the automobile. It helps with preventing injury to the steering system. Zero scrub radiuses on steering knuckle, assists in easing the jacking effect manufactured by your steering knuckle offset. It provides an even more direct dropped while keeping the automobiles framework more level while switching.
Leading roll center are changed quickly by going the steering knuckle shims due to their appropriate places.
Topped of with a decent composite top-plate.
Front steering-block / c-hubs
acutely durable front side steeringblock / C-hub construction.
Drive-shafts
Longer and lightweight springtime metal services and products with forced in steel pins, laser-engraved. Identical size front side and right back.
Wheel-axles / wheel-nut
Serpent springtime metal threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts to help keep the huge truggy wheels/tyres on program.
Captured universal bones
Guarantees you will complete a competition without loosing a pin or set screw. All elements, axles and drive train elements have really in fact capture pins
Front shocktower
Light, strong and durable machined 5mm aluminium items with 5 functions for shockangle.
Shock-set front and backside
16mm big bore shocks, with hard anodized accuracy threaded shock-bodies. Shockboots in silicone synthetic to keep the dirt away . Chromed shock-shafts for supersmooth shockaction . The larger o bands provide less fundamental force and a far greater seal without dragging on surprise shaft.
Suspension brackets
The hinge-pins / hingepin balls are captured in durable composite suspension system system system brackets . These capture the nylon roll-center inserts.
Anti-roll club / anti-roll club linkage with pivotball
The anti-roll pubs front and right back are made from quality unique springtime steel, and they're captured regarding diff-cased in ballbearing for perfect guidance and control.
Receiver field / servo mount / speedo install
Composite one piece radiobox to firmly install servo? s, speedo and receiver. For optimum safety the light receiver fits the top-case simple, with notably opening allowing cable to protrude. The speedo seats low on a plate just in the framework, therefore quick cables allows you to the engine. The servo is set up in a vertical fashion.
Central diff
Optimised main gear-diff with 50T super-hard spur-gear . Small, compact design to reduce rotating mass towards maximum.
Transmission shafts
Durable but light and slim Serpent springtime steel, laser etched shafts.
Front and right back diff
Optimised gear-diff with superhard spur-gears . Smaller, compact design to minimize rotating mass towards optimum. Very same variation front and rear. Diff coupler in spring steel seated in big barings for durability.
Backside shocktower
Light, strong and durable machined 5mm aluminum item with 5 jobs for shockangle.
Back uprights
Durable composite right back uprights with 3 camber positions
Suspension brackets straight back
Durable composite products and services with eccentric inserts to improve set-up.
Straight back wing mount
The composite back wing mount, permits to improve the angle concerning the rear wing.
Straight back wing
Two phase high down force wing, has two examples of angle, that also includes 2 fins. Helps improve down force and right line capability
Bodymounts
Nylon bodymounts with wider sitting the body, securely fastened on shocktowers.
Super minimal profile e-Truck Body
Enhances appearance plus keeps the profile minimum. Comes precut and prepainted.
Decals
positioned on the human body.
Oils / grease
car is made with a top quality silicone oils the diffs and shocks and black oil. Threadlock used in which required.
