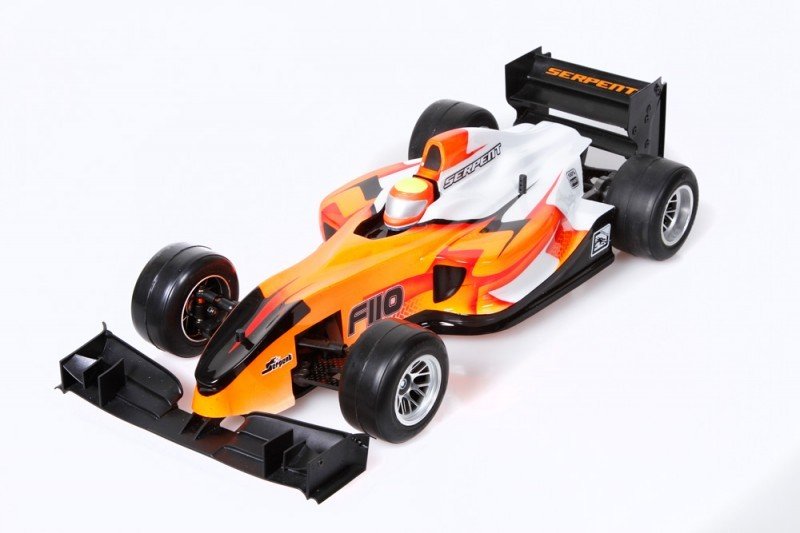

Serpent F110 Formula 1/10 EP SF2 It's a 1/10 scale vehicle, in line with the effective 1/10 and 1/12 pancar platform. The joy, excitement, cost and satisfaction of Formula 1 in an incredible 1/10 scale package ! Comprehensive carbon / alu F1 rushing vehicle with numerous set-up possibilities. Are raced with plastic tyres. The kit contains rushing framework, FR and RR wing, a diffusor and a Protoform F1-15 human body.
Requirements:
- Chassis: Carbon fibre chassisplate in 2.5mm, Chassis and holders enable Shorty and Normal packages.
- Suspension:front component suspension system system system with minimal 3mm carbon wishbones, fully adjustable. Durable springloaded steeringblocks . Adjustable journey height to help both synthetic and foam tyres.
- Shockabsorber: Whole lot primary main shockabsorber RCCX kind, threaded housing.
- Rear axle: Strong and light aluminum rear axle, Durable and light ball-differential, and light alu hex wheel-hubs.
- front component Track Width: 180 with plastic
- Back Track Width: 180 with plastic.
- Bodymounts: Strong nylon bodymounts with fine tuning peanuts.
- Not included: Tyres/wheels/ products, gears.
- Included Protoform F1-15 body
Features:
- Carbon fibre elements inside the F110 SF2: framework dinner in 2.5mm, backside paid suspension meal, right back top-deck, front top-deck, surprise center supper, component meals, human anatomy mount and back plate
- Strong adjustable high downforce front nylon wing
- Front suspension system system with strong 2.5mm repaid carbon wishbones and aero kind composite top suspension system system system system hands ; completely adjustable
- Durable steeringblocks with top pivotball and kingpin springtime system
- Adjustable kingpin inclination with inserts
- Adjustable journey height to aid both artificial and foam tyres
- Caster adjustment with access immediately inserts in top carbon bracket
- Aluminium servo owner and groundbreaking type steering saver system with adjustable ackermann
- amazing, lightweight main shockabsorber RCC kind with threaded housing for finetuning
- Springloaded Link-type right back suspension system system with solitary pipeline
- brand new design bind-free primary pivotball system
- Pancar design buttocks with low CG aluminium/carbon powerpod
- Strong and light aluminum rear axle
- Durable and light ball-differential, and light alu hex wheel-hubs with steel insert
- big durable adjustable 2 degree composite white backside wing
- quality ball-bearings and fasteners
- Strong nylon bodymounts with fine tuning peanuts
- Independent front suspension system system set as an optional set-up.
- Optional wide front side end created for usage with foam tyres
- Protoform f1-15 human body
- rear moulded black colored diffusor
Carbon fibre chassisplate in 2.5mm
Narrow framework in quality woven carbon soluble fbre, rigid sort, but sufficient flex to help with making more hold as needed. Countersunk holes into the base for a quantity surface. The framework design provides alternative methods to add the battery power foremost or backwards, thin servo could be create in 2 means too more front or maybe more toward rear. This allows the motorist to have with fat circulation which includes a considerable effect in F1. The energy packages and servo, alongside the engine are one of the main heaviest parts inside vehicle. Chassis and holders fit Shorty packages
The kit includes both carbon side-plates, and so the speedo and receiver is set up on medial part of framework, still centrally to retain an amazing security. Composite holders keep the Shorty packs able. The Shorty packages nowadays have actually a whole lot energy, that an average 2S packages in no real longer needed to fit.
Great looking high downforce front composite wing
the absolute most up-to-date practical looking composite front part F1 wing creates wide range of downforce. On both edges connected to wing the principal flaps are adjustable, 3 spot to choose. The nylon front part bumper sits flush using the framework and mounts rigidly with 2 big screws towards framework. The bumper will be needing in difficult front crashes.
Front suspension system system with just minimal carbon wishbones
The completely adjustable front suspension system system system system system allows camber and caster alterations, alongside toe and roll center modification. The manual shows good place to start as base set-up. The reduced wishbone-plate is manufactured in durable 2.5mm carbon fibre, and acquire for adequate flex. The meal is machined slimmer in the middle to allow the surplus flex, particularly as soon as the full total suspension system system pivotballs may be used. The utmost effective wishbones are adjustable to make camber. Shims above or in the balls regarding suspension system may be employed for roll-center corrections. Caster is defined aided by the nylon inserts into the leading carbon topplate. Toe-in is ready using the steering rods.
Durable springloaded steeringblocks with pivotballs
The steeringblocks are spring loaded on kingpin, and create supersmooth suspension system travel . Various springs available. The kingpin inclination are changed with inserts. From zero to four quantities, with 2 being standard. All inserts are included. The steeringblocks offer 2 ackermann jobs.
Adjustable journey height to fit both synthetic and foam tyres
The framework supplies the chance to effortlessly change the journey height with spacers.
Strong servo owner and servo saver
The aluminium servo mounts help the servo become installed flat on its component, in either a front component or more backwards spot. The newest centre pivot kind steering system is fairly smooth and accurate, and durable and you will certainly be providing 2 interior ackermann functions. The vehicle can be used utilising the included small servo-saver ( includes splines in 23/24/25T) or solid with a lever ( also 3 included).
brand-new, lightweight main shockabsorber RCC kind with threaded housing for finetuning. A pivotball mounted hydraulic main shockabsorber links to top front part component and back installation. The small shocktower provides 3 holes for set-up changes. The foam insert kind shockabsober function a hardened shockrod, smooth o-ring/shim package and a threaded housing enable springtime preload adjustments with small increments. The initial design permits in addition effortless modification linked to straight back pod droop. The shockspring is opted for and grinded flat for equal action. More springstypes and silicone sebum offered to play with set-up.
Springloaded Link-type back suspension system with solitary pipe
The springloaded pivotball mounted side-links connect to the solitary silicone oil filled pipe in addition to the main top shockabsorber to ceate maximum hold using the back tyres.
Carbon fibre bodymount and topdeck
The bodymount doubles as sidespringholder and pipeline owner. Strong nylon bodymounts with fine tuning peanuts for body-height.
Captured pivotball connection
The captured pivotball links the trunk pod using the framework. This revolutionary rear-central pivot system which connect a large component pod in brand new means in conjunction with chassis, for that reason stops any binding, creating better sidelink action, at any angle. Applying this set-up changing roll-center are quite simple.
Pancar design end
Strong carbon dietary fiber paid down pod and back dish and aluminium powerpod sides. The most suitable alu motorholder fits commonly used machines . The light alu straight back axle seats in bearings in nylon journey height inserts. All 5 types rideheigts inserts come in the kit.
Strong and light aluminum rear axle
The light aluminum backside axle is more powerful and comes near to the fat of a carbon fibre one ( that provides as optional)
Durable and light ball-differential, and light alu hex wheel-hubs
The ball-raced ball differential is supersmooth and easy to build, with light hardened steel dishes. The hexagon diff and wheel adaptor are lightweight and spin supertrue. One spur-gear is roofed.
Large 2 degree adjustable straight back wing
The practical searching high downforce right back wing with 2 quantities connects toward carbon back meal. The top-wing are modified in 3 jobs in the cheap or more downforce / drag.
