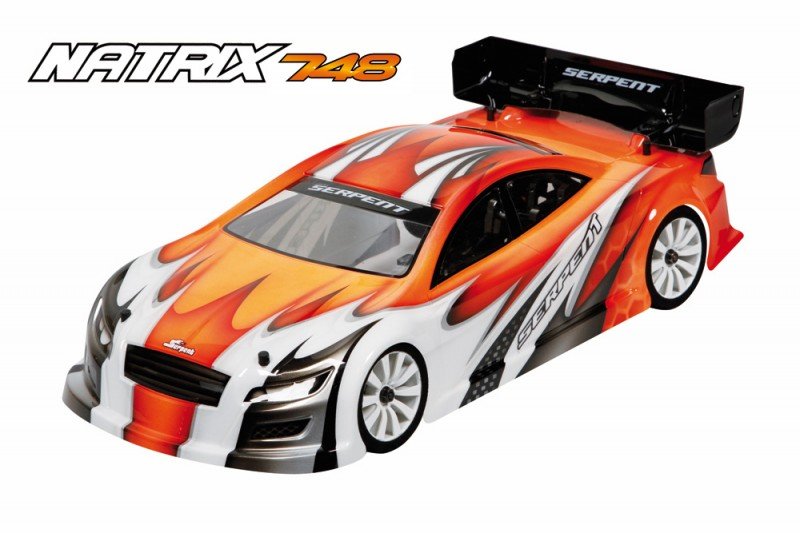

Serpent Natrix 748 1/10 scale 4wd gaspowered 200mm vehicle 4wd, belt-drive, gear-differentials front part and back, Centax TM clutch, 2-speed gearbox, 75cc tank, chassis 7075-T6, carbon radioplate and shocktowers, RCM-SS shocks, ball-raced anti-roll bars, totally adjustable.
Requirements:
- Course: 200mm 1/10th Scale 200mm
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: separate increase wishbone suspension system system
- Radio supper: 2.5mm carbon fibre, CNC machined
- Shock absorbers: RCM SS shock absorbers
- Fuel tank: 75cc design
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-True motion clutch system
- Front axle: Gear Differential
- Back axle: Gear Differential
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- body fat: 1.595kg (prior to radio gear)
- Max. price: 105km/h +
- Acceleration: 0-90km/h 3.0 seconds
- Guidelines: color guide, guide guide
- Maybe perhaps not included: motor and pipeline, human body, radio gear, electric batteries, tires
Features:
- The latest steeringblock system, well proven towards WC winning Viper 977, is totally adjustable, enable a respected, fundamental or trailing spot and have mounting about the optional carbon aero disks
- a brand new fueltank was made, which sits additionally paid down the automobile as ahead of, also it's long and slim
- The lay-down servos are both seated in one single composite owner, since near feasible toward centerline based on the vehicle, creating a lot better general protection and permitting better rotation. The gas-throttle linkages behave like the merchandise incorporated with the Viper 977
- outstanding little and light receiver industry is completed, which seats really near the radio-tray and as much inboard as possible . In the radioplate some owner is equipped to just accept the plugs through the battery pack, to accomplish one thing as on/off switch.
- The ballraced rear anti-roll club is optimised location smart.
- The alumium straight back stopping system and 2-speed shaft holders, that also provide the back anti-roll club are lighter
- This brand-new chassisplate allows the motor be placed up more toward straight back as prior to, causing a much better fundamental security. Therefor the trunk and component gear are completely new too.
- A big component uprights are modified to also accept the optional carbon aero disks
- The radioplate sits extremely paid off the car, cared for included a large invest a new type ballraced flexsystem, which a be used or locked in moments.
- the paid down radiotray made a new steering / servo saver setup necessary, all over again with adjustable ackermann inserts as just before.
- Regarding the front end the bumper is a more impressive low mounted item with the carbon top-plate.
- All together the NATRIX vehicle is lighter than 747 before, as also most aluminium elements might actually happen redesigned to free fat.
Chassis
Symmetrical chassisplate also for flex and torsion, in 7075 T6 aluminium, anodised and laser etched. Chamfered sides to obtain more ground approval whenever cornering and countersunk holes. Central slots to make fat, that'll slip towards right location and fully guaranteed. Radioplate
The 2mm carbon fiber radioplate has numerous functions. It holds the fueltank in position which may be associated with 3 alu articles in rubber. Regarding right hand component the receiver mounts to a well shaped carbon dietary fiber plate that links to your radiotray, sqeezed in right between gear and tank. The radioplate sits yet again compensated towards car , for repaid center of gravity.
Central Flex system
The trunk an element of the radioplate includes an incredible flex-control system. It has 2 machined aluminium components. The lower one links toward radioplate supports a premier about the one with screws towards the top alu dish and radioplate. You are going to either run the 748 rigid with flex . The optional ball-bearings and screws are available seperate. Testing implies that flex in center back concerning the vehicle gets the many effect and reacts numerous predictable as wel.
748 servo owner
a fresh composite servo owner was created to have both servo nearer towards guts distinct the auto also just a small amount as it can be done to. The two lay-down servo?s are seated really near together and install really efficent and easy method. The dog owner mounts towards the radio-tray.
Linkages
The throttle / stopping system linkage is very same design as placed on the 977 1/8 car. A pivot-lever system with an ingenius ball-cup system towards guide the cable while having nearly friction free action.
748 receiver industry
present composite receiver package is tiny but holds and protects the absolute most regular contemporary receivers efficiently. The antenna mounts towards top. The container is securely fastened toward radioplate with a nylon bracket . The box is relocated as a substantial quantity towards the within that one may. Regarding radioplate a little owner is ready to just accept the plugs the battery, to be on/off ?switch?.
Battery-holder
Carbon fibre battery-holder put in the middle of your tank and pipeline, the maximum fat protection. The electric batteries is not hard to strap down with tape towards bracket. Spacers might be constantly install the ability packages greater or lower in line with the battery power you wish to make use of.
748 fueltank
Lower and much longer durable 75ccm nylon fueltank with clear item to effortless see fuel-content. Big springloaded quick-fill limitation with seal with big tank start for without headaches refills. The bronze sintered filter will keep gas neat and ensure tank will clear till final autumn if needed. Fueltank sits suprisingly lower in the automobile for low center of gravity. Fueltank is set up with videos on 3 alu articles with synthetic buffers.
SuperShort RCM shocks
Coated threaded shockbodies in top-notch aluminium. Supersmooth o-ring / bushing package, to steer and seal the spring-steel piston rods. Precision moulded pistons within 3 kinds. Threaded pre-load shocknuts in alu with o-ring in. Light but strong nylon spring-cups. Selected, matched and paired shockabsorber springs with color coding.
Front bumper and bodymount
Front bumper with aerodynamic results and exemplary security. Some parts of the reduced bumper is cut available to produce more steering. Moderate or little foam bumper pad scan nevertheless be fitted as optional. The absolute most known carbon fiber bodyplate mounts towards front part bumper with alu post and secures leading bdyposts
Shocktower front component
Superlow 3.0mm carbon fibre shocktowers with 3 functions for top level level degree shockmounting. In the middle you are likely to install another bodypost as required.
Front part brackets
a succinct and superlight framework of topquality aluminium elements contain top-brackets, L and R equal bearing brackets, paid down suspension system system system system bracket front part. The available style design allows rapidly components change as required, like gear, diff or anti-roll club.
Suspension system system front component
Strong long twice A-arm suspension system system system system system with aluminium pivotballs, which pivot in light nylon cups. Specialized sort composite hands. The hands pivot internally on springsteel pins. The pivot-inserts are acclimatized to change rollcenter. Little grubscrews mount towards top bracket to control downstop. Available and alter trip height, front width, toe-in, caster and camber.
Steeringblocks
great composite steeringblocks with 2 ackermann functions, L and R use exactly the same . The steeringblocks work inserts, which allow to improve the kingpin inclination to several one or trailing spot. The steeringblocks besides allow utilising the optional carbon soluble fbre aero disks become arranged on low priced flex and a direct steering feel.
Wheelaxles / cvd
The spring-steel wheelaxles are seated in high rate bearings. The light and durable spring-steel cvd?s bring all capacity to the main thing tires. Tires are put up to orange anodised high quality aluminium hex-adaptors using flanged wheelnuts.
Anti-roll club front part component
The ballraced cable kind anti-rollbar inside front part is obviously readily available and alter for any other kind or level as required. The anti-roll club has been this repaid a-arms with a genuine pivotball/cup system, provides direct and smooth procedure that will be simple to set and adjust.
Servo-saver / steering
the newest lowered centraly installed metal servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts enable 2 ackermann settings. As a consequence of the available design the linkages with L/R threading is reached effectively. Your entire system allows extremely accurate steering and minimal bumpsteer.
Center shaft owner
Machined 2 piece aluminium center shaft owner, which firmly holds the springtime steel center shaft, and doubles up as owner the pipe-mount.
Backside brackets
exceptionally rigid but available buttocks design with a structure of machined alu brackets, allowing effortless upkeep. The differential brackets, L and R equal, are toothed and chair the excentric bearing owner, which enable developing belttension. Its acutely quick and simple to create a differential and or change a belt. The machined aluminium reduced suspension system system system brackets have in reality really in reality roll-center inserts with 3 jobs available. The trunk bracket will be the slim V1 variation.
The 2-speed gearbox shaft holders, 2 times up as anti-roll mounts, and stopping system system foundation. All topquality machined elements with anodising and laser-engraving.
Brake -system
the paid off mounted braking system system with superlight disk enables smooth and stopping, and also the available system stops overheating. The ball-raced excenter and lever provides an incredibly smooth and direct brake-feeling.
Straight back carbon shocktower and camber bracket
the reduced 3.0mm carbon shocktower has 3 top mounting spot the shocks consequently mounts the body-posts. The camber bracket provides 8 functions from which to choose, 4 interior and 4 out holes. The shocktower gets prepared to install the additional body-protectors, which is optional.
Suspension backside
The rough back composite hands alongside the updated uprights create a wider set-up sweet-spot with extra hold plus much more steering. The most truly effective camber rods link toward carbon camber bracket with 8 mounting functions for roll-center therefore the camber pole is straightforward to attain utilizing and possesses L/R threading for fast customizations. The aluminium pivotball system allows fast alterations wide and toe-in. In reduced within the wishbone pivots on springsteel pins, which seat with roll-center inserts inside anodised alu suspension system system brackets.
Right back wishbones
The difficult composite paid wishbones work a mounting spot the anti-roll club linkage which moves the net hyperlink spot more outside. Its also provides a mounting location for an optional carbon shock-mount bracket, to truly have the repaid shockmount location further out, apart from the mainstream set-up its unneeded. By placing the reduced shock further away, you're going to get way more steering .
Uprights / wheel-axles
Durable moderate sort composite uprights, which seat the wheel-axles bearings. The upright supplies the mounting spot the metal camber-rod with L/R threading. Rolll center chnages are produced within the upright with shims. The upright is made using the optional carbon dietary fiber aero disks for extra back hold and right line security.
Wheelaxles and driveshaft
The durable springtime steel wheelaxles alongside springtime steel driveshafts bring the power from gear-diff towards tires. Tires are fitted on quality anodised alu wheelhex adaptors and assured with flanged wheelnuts.
Anti-roll club straight back
The ballraced cable kind anti-rollbar in back is actually available through the utmost effective and alter for every and every other sort or thickness as required. The anti-roll club might be due to this paid off a-arms with a spring-steel pole.
747 Gear-differentials
Compact, durable and light gear differentials. Pecision moulded steel gears. The durable and light springtime steel lightened diff-adaptors hook up to your driveshafts. Front and right back geardifferential are exact same, just various pullies.
CVD driveshafts
Spring metal, light and extremely durable CVD?s found in the most readily useful. Precision mounted hard steel pins
Drive-shafts
Spring metal, light and extremely durable dogbones found in the trunk. Precision mounted difficult steel pins
Pullies
Precision moulded super-true pullies, which work holed sidewalls enabling debris transfer easier. Light and durable.
Belts
Minimal friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioner
Ball raced belt-tensioner, machined from aluminium and can install over the top or in the radioplate.
Gear-box SL6
The fine verified SL6 gearbox is standard into the 748. Light and compact, with suprisingly low rotating mass. Durable and longlasting gears. High quality bearings. Very grippy springloaded 2-speed footwear, a piece of cake environment.
Real motion Centax clutch
Serpent created the Centax clutch in mid 90-ties, and all sorts of brands attempted it. Little improvements are observed to help make the initial system also. The movement Centax has a collection flywheel, even though taper component on stress meal. This allows the flyweights working in addition to this. The hard anodised aluminium flywheel has 4 holes their should buy comfortable utilization of keep the flywheel constantly produce whenever developing the pre-tension. The flyweights are made of topquality teflon and show another opening to make use of grubscrews to make sure they are heavier. The red friction clutch footwear is quite grippy, and works exemplary utilizing the steel clutch housing. The hard anodised gears screw in regards to the threaded metal bell.
Engine mount
The light machined and anodised motor mounts perfectly seats the engine, well alligned using the gearbox. Tiny modification could possibly be designed to have the motor closer toward gearbox.
