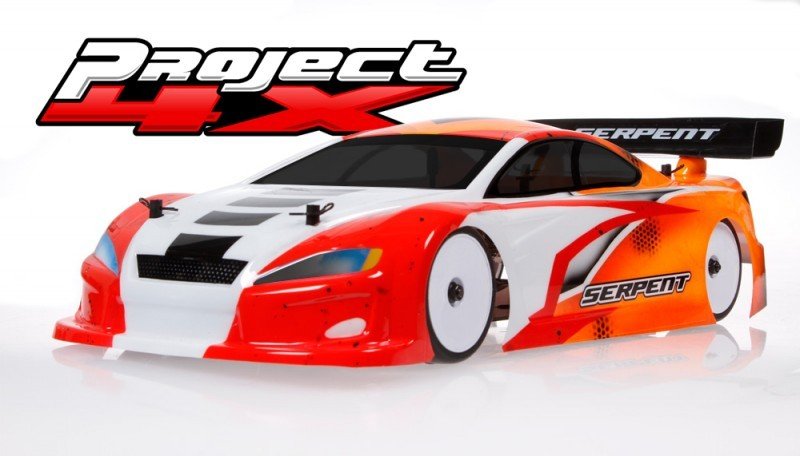

Venture 4X Touringcar EP 1/10 Serpents Venture 4X brand-new, revolutionary and revolutionary 1/10 Touringcar The endeavor 4X touringcar has a real groundbreaking and proven design, which suspensions works in an extremely effective different method, with a remarkably low center of gravity, very easy to possess outcomes on and extremely durable. A facile task to push and lightning fast ! 2016-2017 IFMAR World Championship third location 2016 EFRA EC A-main finalist 2016 several ETS A-main finalist
Specs:
- Car: Venture 4X #400030
- Class: 1/10th scale 190mm Electric
- Purpose: 190mm Competition touring automobile
- Chassis: 2mm carbon, CNC machined
- Suspension system: Separated heave and move system
- Back axle: right back gear- differential with composite gears
- Front axle: Front spool with blades
- Drive system: 4wd through 2 kevlar strengthened timing belts
- Shock absorbers: 2 heave dampers and 2 roll dampers
- Wheel base: 254mm +/- 4mm
- Track-width front component: 190mm + /- 6mm
- Track-width straight back: 190mm + /- 6mm
- Weight (framework): 550 grms
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width and Roll facilities
- not Included: motor, power packs, cost Controller, tires, human anatomy, radio equipment.
Features:
- Separate roll and heave motion towards the automobile to produce set-up easier and many more precise
- Roll and heave dampers are little, they could need simply smaller amounts of oil
- Dampers have machined pistons for a few effective perseverance
- All dampers are through pole piston systems consequently no membrane layer layer required
- Good number of heave and roll springs
- Anti-roll club function within roll damper/springs
- simple and easy quick to improve / replace your entire damper things
- Front and tail are specially almost identical, so less free elements required
- Pivotball suspension system system for ease and free motion
- The Pivotballs are plenty smaller in diameter in comparison with previous touringcars
- Easy diff and spool decrease
- acutely low center of gravity
- Reversed steering system for better Ackermann geometry
- No top deck required (topdeck are had as optional for tough sporting circumstances)
- Center stiffener made out of 7075 T6 aluminium for rigidness and anti-tweak, connecting most important and end
- One piece motorholder which also links toward center stiffener as well as the back RRS system
- Re-Active straight back steering RRS system is standard
- Ballraced mid-shaft holders allow effortless upkeep and changing of spurgears
- Pullrod activated system with rockers to stimulate the dampers
- exact same heave damper front side component and back that may efficiently be installed inside the diff/spool just above the framework for cheapest feasible center of gravity
- groundbreaking differential utilizing amazing gears furthermore for smoother functioning
- Battery mounting system permits reposition the ability packs more front or right back
- in the eventuality of shorty Lipos are used, the Lipo could be possitioned in 3 designs
- One screw ride-height modification from framework component
- Lightweight front part aluminium spool with hardened steel outdrives to make use of blades
- Carbon fibre framework in 2mm as standard
- DJC system in the front part component produced from spring-steel countertop wheelchatter and right back regular cvds constructed from 7075 T6 aluminium save fat
- One fast the other much longer kevlar strengthened drivebelt and supertune working pulleys, midshaft pulleys produced from difficult anodized aluminium for optimum durability
Ball-bearings
good, high precision lubricated longlife NSK bearings made of hardened metal throughout.
Fasteners
Quality metal fasteners for durability. Minimised range different screws for effortless arranged and maintenance
Framework
Carbon fibre framework in 2.0mm level. Countersunk holes and intended to have equal flex left to recommended.
The screws to create trip height are modified from base associated with framework with just a unitary screw ahead and another to the back with a straightforward and effective procedure to change the rideheight.
Battery mounts
present battery power mounts stated in aluminum and carbon fibre and invite to put the battery pack more tot he ahead or straight back and secure it well setup. Shorty lipos sit concentrated, inside front or rearward location.
Drifting servo mount
The servomount is many different a carbon brace and aluminum articles. The carbon brace is bolted towards main brace and could maybe not touch the framework to eradicate any flex impact.
Steering system
The ballraced aluminium steering system consist of an inversed leversystem to raised control the Ackermann environment. The angle huge difference relating to the inside and outside wheel will be more linear versus main-stream designs.
Drivetrain
in front side the 4X features durable springtime steel twin joint cardan shafts, alongside blade kind spool.
toward back lightweight coated aluminium cvd style dogbones are used with durable springtime metal wheelaxles.
Both front component and right back wheelhexes are a lightweight aluminium design
Steeringblocks / uprights
inside front component and rear the very same steeringblocks/uprights remain used. The pivotball system permits simple and fast quick set-up improvements and works actually efficiently. Ahead part there clearly was 3 Ackermann functions and shimming below the steeringrod can be used for fine tuning of bumpsteer characteristics. In back the product enables establishing Reactive right back Steering. This RRS system permits an adjustment of toe-in because the suspension system system system compresses therefore increases cornerspeed.
Wishbones / pullrods / rockers
the repaid wishbones are exactly the same front part and rear along with the identical pertains to the highest arms.
The repaid supply mounts of 2 brief pivot pins coupled with mounts have a bit of space to relax and play with wheelbase with the use of videos. The paid fingers additionally work 2 downstop screws front and straight back.
The top of wishbones help fast caster alterations with videos and run making use of an easily detachable long pivot pin.
Rocker and pullrods system
The pullrods connect with the utmost effective hands and run the ballraced aluminium rockersystem which activates the dampening systems for heave and roll action. All trackrods and pullrods have been manufactured in coated lightweight and tough 7075 T6 aluminum.
Aluminium top hinge pin holders and alu stiffeners
The arranged is split in 2 parts allowing for simple maintenance and alter of settings. The inner top brace links both edges and produces an amazingly strong framework preventing tweak. The topbrace is from low brackets with alu stiffeners. These stiffeners might just removed whenever more flex is needed.
The arranged rest on roll center spacers. To incorporate extra shims for changed cambergain and rollcenter is an easy and quick environment.
Bumpers and bodymounts
inside front side component a great bumper-set using a fantastic size but light foam bumper and this can be sandwiched between paid down composite bumper and top graphite owner. The versatile moulded bodyposts with swivel-system undergo. Optional human body height systems are available.
inside right back the paid off bumper will avoid problems for the straight back of 4X thin moulded bodyposts with swivel system mount on a dense and rigid carbon dish, that is the primary strong end installation.
Suspension System
Inside 4X vehicle the heave and roll linked to the car run and therefore are also set individually. One of the main secrets and end the automobile have grown to be almost identical in design and share many of the identical components front component and right back, and that means you require less various spares.
Heave damper
there clearly was obviously one have actually really damper appropriate right into the front then one in back addition it works with all the very same technique. The heave damper can be acquired right above the framework to minimize the guts of gravity. Pullrods which are connected to the top of arms url towards the rocker system. The rocker system is linked through a swivel product towards heave damper and roll damper item. The tiny heave damper has a small strong shockabsorber springtime and it is oil filled. Different sebum and springs can be utilized for setup work, impacting mainly bump and on-throttle/off-throttle transitions. Its an easy task to find yourself in from base concerning the framework.
The journey height is prepared with a straightforward one screw environment in framework, both front and back.
Roll damper
The roll damper device include an oil human anatomy for dampening with a thru shaft possesses now now some springtime for every component. The item controls the roll the framework, it truly works as an anti-roll club.
Different natural oils and springs can be used for setup work. The whole device comes after releasing merely 2 screws. You could have complete rolldamper assemblies ready to alter settings in moments.
Chassis stiffner
The 7075 T6 main alu brace manages the connection between front part and buttocks and stops undesired tweak and manages torsional anxiety. For a few circumstances it eliminates the need of a topdeck.
Motor mount
Acutely low 7075 T6 aluminium motormount which doubles up as connector the midshaft holders, connection the RRS system, owner the alu stiffener and connector toward primary brace, all-in one.
Gear differential
The nicely shaped renewed gear differential features groundbreaking inside gears which assists its supersmooth. The compact and light product holds sufficient oil to offer stable performance through the whole run. It's without headaches available need certainly to lower and re-mount the differential.
Front spool
The coated aluminium front part spool with lightened springsteel outdrives is a blade type which guarantees superb administration and durability through the whole battle, and it's a simple task to alter blades as required. Its without headaches to own and re-mount the spool. The springsteel is strong sufficient that one can effortlessly finish your run despite a broken blade without damaging the outdrives in excess.
