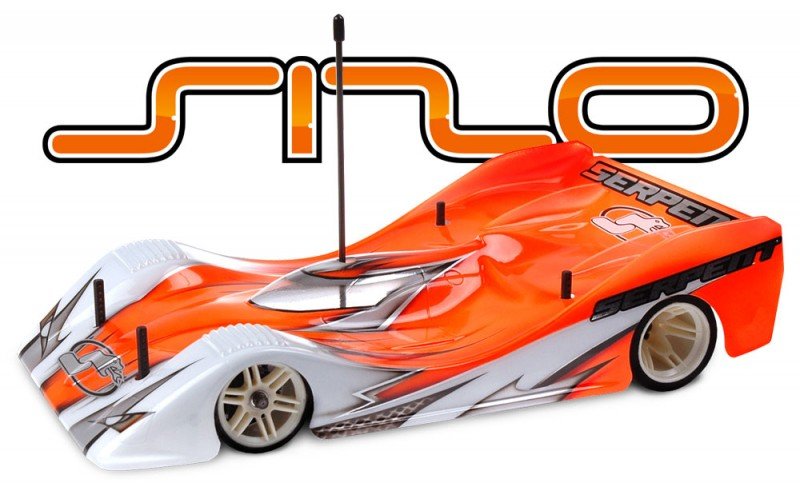

Serpent are especially very happy to introduce the S120, the first entry in resurgent 1/12th scale pan vehicle course. Made using quality components throughout, Serpent invested sometime inside confines of scale and program guidelines to create a genuine, high class and totally adjustable chassis.
Demands:
- program: 1/12th scale
- Function: Competition pan automobile
- Chassis: 2.5mm carbon soluble fbre, 4-cell, CNC machined
- back axle: Graphite shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: primary oil filled surprise absorber and lateral monoshock
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front component: 163mm +/- 3mm
- Track-width back: 170.6mm
- Adjustability: Front Camber, Caster, Front Toe, Track width, Back ride height, T-bar tightness and Roll facilities
- body weight: 840g - 4 Cells incl. BL system (varies impacted by gear utilized)
- directions: complete color guide and reference guide
- not included: motor, Batteries, Speed Controller, tires, human anatomy, steering servo, radio gear
Features:
Front end
Leading end in regards toward automobile features 11 different modifications to acquire the different from your own car, being actually fairly simple to modify and measure. Fixed paid down suspension system system system fingers are on their very own damped by one of the keys strut which makes usage of synthetic o-rings to utilize up the flex in this area, after the grey anodised aluminium front side top wishbone mounts will be various caster views, the auto being given 6 degree variants as standard. Utilising the steering block master pins springtime loaded, the cornering forces are channelled through top wishbone, that help the automobile to part at high rates.
right back engine pod
probably one of the most unique features of S120 will be the back engine pod, that's been machined from only 1 block of high-quality aluminium. This, and all design the pod, make sure that its totally aligned and very rigid, and so all cornering forces are consumed by the automobiles 2 shock absorbers. This motor pod in most cases extremely strong also it's consequently resistant to crash damage and tweaking that may are derived from much effect. It has additionally been created to merely accept each one of today's brushless products, with enough room to install the sensor and power cables.
Tweak location
to simply help change the vehicle, and adjust the worries regarding right back pod, the S120 features a tweak component allows simple tweak modification through utilizing grub screws which have been happen springtime steel blades. This method allows you to not just tweak the automobile but provides racer to ability to adjust the flex anxiety. Providing many settings, they could be effectively modified on track through one screw which accessed through a slot in root of the framework supper. The leading pertaining to tweak part additionally doubles up as a mount the supplied carbon antenna pole.
Monoshock
Another actually unique purpose of S120 is its laterally mounted drifting monoshock which dampens the flex between your framework plus the engine pod. Mounted utilizing ball bones through top of straight back motor pod, both ends of surprise shaft are attached to the the top of back carbon body mount meal on framework, therefore of its design likely the tiniest of movements between front side and back associated with vehicle is effectively consumed. This technique plays a sizable component in how the auto could become a substantial component that could effortlessly be modified by making use of various sebum and surprise pistons.
Central shock absorber
to help straight back traction under acceleration and also to ingest bumps, the S120 recreations a centrally set up surprise absorber. Provided with a soft blue springtime, the pre load which can be modified, the true secret mount using this shock absorber works extremely well for adjusting the trunk down end and range motion regarding the framework and engine pod.
straight back ball differential
The S120 comes provided a durable and effective ball differential. Effortlessly modified by an artificial nut, available through back wheel, the diff uses quality steel balls and meals also it's offered both suitable silicone and graphite oil become used during make and upkeep.
right back axle mounts
The lightweight graphite rear axle is connected with bearings that sit within eccentric composite inserts makes it possible for one to capacity to easily and quickly change a huge component journey height of vehicle by changing between inserts. The kit comes provided all 9 inserts which vary between 0 and 4mm, each differing by 0.5mm and all kinds of forms of forms of kinds of are reversible for a straight wider selection of modification.
Servo saver
The S120 comes provided an exceptional miniature servo saver, which through application of orange anodised shims, has adjustable Ackerman. Further toward servo saver, the automobile includes aluminium servo mounting articles that work an offset mounting opening to the base going for a far more impressive range to just accept an ideal selection of servos.
Battery mounts
inside the S120, the cells are create in 2 different functions by changing the composite battery pack insert mounting destination. Attaching it towards front component or backside the slot means the cells can pass 4mm, well suited for adjusting the cars fat blood supply.
Body articles
For securely mounting our body shell towards S120, the auto has strong artificial body articles front and right back. All 4 articles can be acquired with orange anodised adjustable collars to correctly adjust the body's height plus the articles can be obtained extra lengthy helping you to cut them with regards to individual preferred size. The top human body articles may also be designed to help protect the best for this carbon framework from splitting in the eventuality of much front effect.
