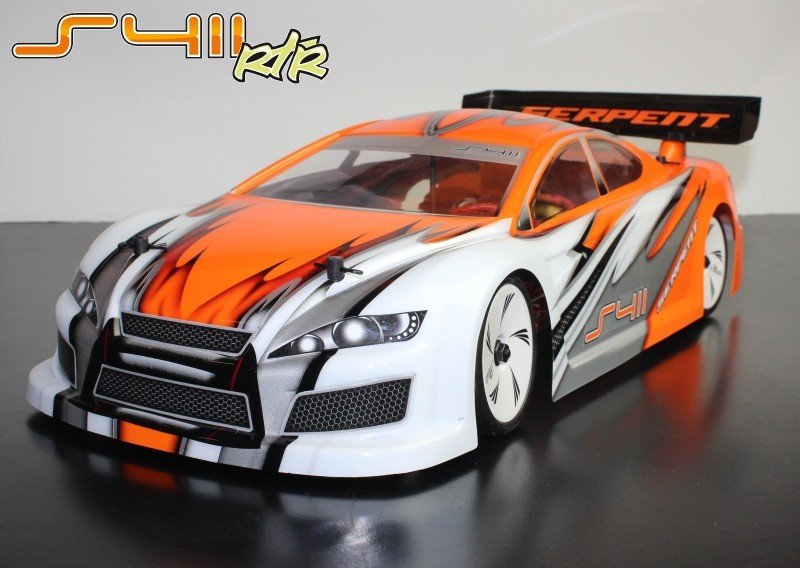

Serpent 190mm 1/10 scale ready-to-Race Touringcar, based on the effective 411 race-cars. Factory assembled, with race-wheel-tyres, pre-cut and prepainted body, Dragon-RC electronic speedo, Dragon-RC brushless 9T engine, Dragon-RC DTS-1 2.4ghZ transmitter. The entire package to begin rushing in electric touringcar category or simply just competition anywhere for enjoyable.
Specs:
- Course: 1/10th scale 190mm Electric
- Function: 190mm touring vehicle
- Chassis: 2.5mm cup soluble fiber, CNC machined
- Suspension: Front C-Hub suspension system system system system system
- Rear axle: right back gear- differential
- Front axle: Front nylon spool
- Drive system: 4wd through 2 kevlar strengthened timing belts
- Shock absorbers: RCM shock absorbers
- Wheel base: 254mm +/- 4mm
- Track-width front component: 190mm /- 6mm
- Track-width backside: 190mm /- 6mm
- Adjustability: Camber, Caster, Up-Down-stops, Toe-in, width & Roll centres
- Guidelines: complete color instructions, guide guide
- Included: motor, cost Controller, tires, body, radio gear.
- Not included: Battery Lipo and 4 x AA battery power for radio, charger
Features:
Chassis
Supernarrow, symmetrical , durable black colored colored colored colored glass-fibre chassisplate with optimised flex design, countersunk holes, primary component holes all totally in center, pockets for geardiff, spool and spur.
Topdeck
Durable black colored colored glass-fibre topdeck with optimised flex design.
Battery-mount brackets and Lipo-holders
user-friendly nylon batter tape owner, which enable the battery tape to accomplish over in place of in framework. The holders are reversed for almost any other battery power spot. The Lipoholders will firmly keep carefully the Lipo constantly set up, also at hard effect.
Servo-mount
The servo is mounteded on another meal, so flex is less impacted.
Shocktower front component
Ebony glass dietary fiber shocktower with 3 top surprise mounting holes available . Holes for a supplementary main bodypost already are made also.
Front side bracket
Machined aluminium front component brackets, with gear anxiety adjusting through excenters. Suspension brackets in durable nylon.
Front suspension system system system
Durable paid down front component wishbones attached to the inner brackets with strong metal pivot pins. An anti-roll club system could be build as choice.
C-hub / steeringblock
The c-hub kind front component system creates an incredible accurate steering feeling with great feedback, and strong wheelguidance without chatter.
Shocktower right back
Ebony glass soluble fiber shocktower with 4 top surprise mounting holes available . The trunk bodyposts sit close up to the top of back shocktower.
Back bracket
Machined aluminium straight back brackets, with gear stress adjusting through excenters. Suspension brackets in durable nylon with 3.0 RR RR and split type 0.0 obstructs RR FR
Back suspension system
Durable paid off right back wishbones with this particular inside brackets with strong metal pivot pins. An anti-roll club system could be put up as choice.
Right back upright
Strong back uprights with 2 top jobs, for perfect guidance of back tires.
Motormount
Machined aluminium motormount / center shaft support.
Center shaft
Ballraced center shaft with 2 small pully?s plus the main Serpent spur gear.
Bumper
Big foam front side part bumper captured by a premiere and repaid nylon bumper
Bodymount
Front bodymount is set up through front bumper, along with back folks are seated regarding the shocktower. Numerous bodyposiiton holes available.
Gear-diff
extremely lightweight ballraced geardifferential in right back, with metal gears and axles for durablity. Supersmooth.
Spool
Front nylon lightweight spool with screw mounted front gearpulley
Transmission / belts / pulleys
Smooth low friction fine pitch belts alongside optimised nylon pulleys
Driveshaft / wheelhex / wheelaxle
metal driveshafts, and ballraced wheelaxles and nylon wheel-hex adaptors
Steering system
Steering system with optimised ackermann for fundamental steering-feeling.
Shockabsorbers
Latest sort RCM competition shockabsorbers with membranes and examined colorcoded competition springs.
Ball-bearings
completely ballraced with oiled higher-level sealed stainless bearings.
Tyres-wheels
The 411-RTR has Dragon-RC synthetic rushing tyres with foam inlays on Serpent TC wheels for super-grip.
Body
The EFRA authorized 1/10 scale Serpent TC human body Lex-is installed, completely pre-cut and prepainted in a fantastic paintjob with 4 colors.
Electronics
The 411 RTR includes Dragon-RC electronic 35A speedcontroller, Dragon-RC non sensored brushless motor 9T 3000 kv, Dragon-RC DTS-1 electronic 2.4 gHz pistol-typetransmitter with big LCD display, Dragon-RC electronic receiver in 2.4 gHz and Dragon-Rc electronic servo 0.13s - 6kg.
Optionals / upgrading
The Serpent 411 Sport is launched into the many really effective end competition form of the 411. All elements from 411 race-version and all optionals, in addition fit the 411 Sport. This permits one to boost your 411 Sport to a more substantial level battle spec action by action, with the elements you decide on. The 411 Sport components manual shows those elements, and you may see them inside optionals section of the 411 Sport and.
