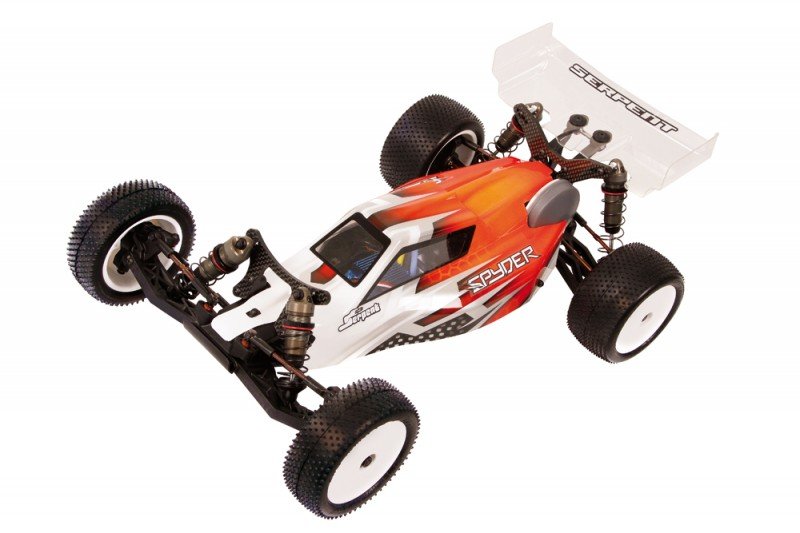

Spyder Buggy SRX-2 MM 2wd 1/10 Serpent MM MidMotor Spyder SRX-2 high-end competition buggy.The mid-motor variation is function built sharing many elements alongside its rear motor general. The idea should be to build two condition particular designs, with the greatest level of performance feasible. Motorists per competition should select either variation, and may maybe not need generate any customizations in those days. Front end on both sorts is quite same, but framework and all sorts of types of types of buttocks is different plenty.
Demands:
- Course: 1/10 buggy 2wd
- Level: Competition
- Length: 385mm
- Width: differs with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Weight: varies with gear utilized
Features:
- Effective race geometry
- Mid engine design
- distinctive steeringblock design
- Big bore 12mm RCM type shocks with double system
- Revolutionary shocktower design
- certainly effective Steering ackermann
- Adjustable backside differential height
- 3 pad slipper clutch
- Narrow composite framework design
- minimal, cab ahead body
Chassis
Composite framework dinner with a design permitting an incredible fat safety, and optimal area the devices, battery pack and servo. Leading Kick-up angle in to the Chassis includes more approval for competition and invite to possess additional nose landings. Carbon fibre front component and back surprise towers. The 4mm thick carbon fiber surprise towers have in fact numerous shock angle jobs enabling clients to fine tune for varying track conditions.
Shock absorbers
Double system 12mm big bore shocks with difficult coated threaded figures, a genuine limitation design, a fantastically sealing o-ring and spacer package. The Shocks can be found in Bladder or Emulsion setups. The shock-set includes some moulded pistons available. An array of 5 springs-sets are must fine-tune the suspension system system system system settings. Shock Collars with internal o-rings are used on threaded systems to set-ride height.
Front top bulkhead
leading top bulkhead is and supports the very best links and shock tower in perfect strategy. One of many recommendations component provides the replacement mount a front wing and sway club item
Front wishbones
the most truly effective Wishbones are constructed of an amazing strong composite item. The hands are angled to optimize the CG and pivot on 3mm captured pins in and away. The hands have actually really 2 mounting functions for surprise angle plus they are willing to take advantage of an optional anti-roll club if needed.
Front and right back Track Rods
Spring steel front component and straight back track rods are positioned as much as durable composite captured ball bones. The track Rods have actually really the truth is L/R threading for easy alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level variation being included. The caster obstructs are incredibly compact and strong items crafted from a distinctive composite item.
Steering Block and back Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights utilize a impressive 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and back uprights utilize most useful high power materials available on the market.
Upright Settings
a sizable part uprights let you adjust, the toe in from -2 to + 2 quantities by using different inserts also included in the kit.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the effectiveness through various several types of corners. You have 3 Ackerman options available.
Wheel-axles and wheel hex.
The springtime metal wheel-axles utilized 12mm hex adapter to keep glued to economy demands. Leading springs metal axle is fixed, although straight back wheel-hex is a clamping aluminum variation.
Battery area mount and fat safety
The battery power is installed totally inside center distinct the car. Its an exact complement saddle packages. In case of utilizing a Shorty-pack, perhaps its relocated to front component or back play with fat safety. Components of hard foam receive doing this is the reason and secure the battery in place. The carbon soluble fbre battery-top-brace has a secure quick launch system with handy twist peanuts.
Differential
The limited autumn ball differential is a good lightweight, effective and durable device. Using 1.8th ins diff balls for ultimate durability. The dwelling and installation is typical enter the program, even so the exemplary components and well operating might produce its noticed. The height of diff may be changed with inserts.
Engine supper and engine guard
The engine supper is a machined aluminum; its then anodized and machined for diet.
Anti-roll bars
Anti-roll bars is included the top part and back associated with automobile, but are optional. They may be utilized on high hold areas to simply help adjust the automobiles performance
Right back Transmission example
The composite rear transmission example is light and durable. Licenses the client to change the differential height every certain condition. Also securely holds the motor dish, differential also supports the trunk wing mount and straight back carbon fibre shock tower.
Back driveshaft system, wheel-axles
The springtime steel drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by the 2 various size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is very captured in order to avoid any failure. These bearings are for most to manage up the rigors of any track condition.
Back suspension system brackets and toe in
The 3mm springtime metal pivot pins happen constantly in place by the suspension system system system bracket made out of aluminum. In bracket you utilize inserts developing toe-in and roll center. It is possible to adjust the toe-in from 2 to 4 levels and adjust the anti squat from 0 to 4 amounts.
Right back suspension system system system hands
The Mid engine particular long and durable angled back suspension system system system system hands are getting become tough what to withstand the rigors the track plus the difficult landings. A sizable part supply provides 2 alternatives for shock spot and two mounting areas the trunk anti-roll club if needed.
back Chassis skid meal
The composite straight back skid supper links towards the framework dinner. This connection lets you unclip the trunk cause one piece, but assists in reducing the sum total price of upkeep. It's also made from extremely high power composite product.
Body shell and back wing
The light and low cab-forward design human body, stated in exceptional clear polycarbonate, has outstanding moving line, high front component windscreen for down force with indents in part if you are viewing windscreen. The shark fin over the top the cabin provides not only design but protection. The smooth body lines boost the cars look and make that take place in virtually any way you prefer
The polycarbonate right back wing utilizes raised cutes into the sides to boost wheel approval.
Back wing owner
The composite straight back wing owner is linked to the trunk bulkhead and surprise tower. It is actually entirely adjustable from 0,2,4,6 and 8 amounts. Its fixed into spot by a washers and screws.
Ballbearings
higher rate sealed stainless ballbearings with aeroshell oil
Fastners
Tricky steel , mostly allen screws, roundhead and countersunk. Minimized level of different allen minds to simply help with making centering on the car easier.
Tires
Durable white nylon flat faced tires, particularly developed to work alongside the advancements inside front component and straight back suspension system geometry.
The kit comes filled with body and tires, color manual and exploded views, a blank and standard set-up sheet and Serpent decals.
