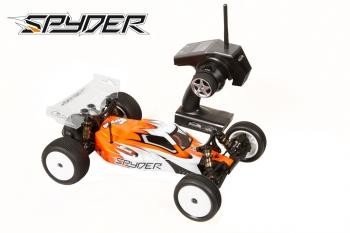

Spyder Buggy SRX-2 RM 2wd 1/10 RTR The RTR Spyder buggy is manufactured regarding the high-end competition as a type of the Spyder RM buggy and stocks numerous elements and geometry. All choice the different regions of your competition variation alsof fit the RTR variation. Major features - prepared to race - Prepainted and precut buggy human body - Dragon-RC 2.4 GHz transmitter TX-RX with LCD - Waterproof Electronic speedcontroller 45A - Brushless, sensorless motor 9T - expert factory installation and set-up - Dragon-RC premounted buggy tyres - springtime steel transmission - Gear differential and solid slipper
Specs:
- Automobile: Spyder SRX-2 straight back engine 2wd RTR
- Class: 1/10 buggy 2wd
- Level: Hobby / Competition
- Length: 385mm
- Width: differs with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body fat: is different with gear utilized
- Not included: TX battery, vehicle battery, charger
Features:
- willing to competition
- Prepainted and precut buggy human anatomy
- Dragon-RC 2.4 GHz transmitter TX-RX with LCD
- Waterproof Electronic speedcontroller 45A
- Brushless, sensorless engine 9T
- expert factory put up and set-up
- Dragon-RC premounted buggy tyres
- complex composite framework and shocktowers
- Spring metal transmission elements
- Gear differential and solid slipper
- effective competition geometry
- back motor design
- Original steeringblock design
- Big bore 12mm RCM type shocks with twin system
- impressive Steering ackermann
- Adjustable right back differential height
- Narrow composite framework design
- minimal, cab ahead specific body
Chassis
Composite framework meal with a design allowing an excellent fat stability, and optimal area the electronics, electric batteries and servo. One of many guidelines Kick-up angle in to the Chassis includes more approval for battle and invite for somewhat more nose landings
Composite front component and back surprise towers. The dense composite shock towers have actually in fact really numerous shock angle functions enabling consumers to fine tune for varying track conditions.
Shock absorbers
Double system 12mm big bore shocks with coated threaded systems, a geniune limitation design, a fantastically sealing o-ring and spacer package. The Shocks can be used in Bladder or Emulsion setups. The shock-set is sold with moulded pistons to choose from. An array of springs-sets could be must fine-tune the suspension system system system settings. Shock Collars with interior o-rings can be used towards threaded systems to set-ride height.
Front top bulkhead
the best top bulkhead is and supports the top links and surprise tower into the perfect technique. The top component provides the replacement mount a front wing and sway club product
Front wishbones
leading Wishbones are produced from a fantastic strong composite product. The fingers are angled to optimize the CG and pivot on 3mm captured pins internally and away. The arms have actually actually actually 2 mounting functions for surprise angle and generally are additionally prepared to make use of an optional anti-roll club if needed.
Front and back Track Rods
Spring metal front component and back track rods are arranged to durable composite captured ball bones. The track Rods have actually really L/R threading for effortless customizations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level variation that are included. The caster obstructs are specially compact and strong services and products made out of a particular composite product.
Steering Block and straight back Upright
The steering obstructs fit 5x10x4 mm bearings. A big part hub uprights use an important 5x14x4 external bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and back uprights use best high power materials on the market.
Upright Settings
a corner uprights enable you to adjust, the toe in from -2 to + 2 amounts by utilization of various inserts furthermore inside the kit.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the effectiveness through several types of corners. You've gotten 3 Ackermann alternatives to pick from.
Wheel-axles and wheel hex.
The springtime steel wheel-axles used 12mm hex adapter to adhere to market requirements. Top springs steel axle is fixed, although the straight back wheel-hex is a clamping aluminium variation.
Battery room mount and fat stability
The battery power is set up entirely inside center distinct the automobile, and may be relocated to front or back again to play with fat security. Aspects of hard foam are supplied to exert effort on this and secure the battery power constantly set up. The battery-top-brace has a secure quick launch system with handy twist peanuts.
Differential
The gear-differential is a great lightweight, effective and durable product. The structure and construction is typical enter this technique, though the quality elements and well functioning causes it to be is noticed. The height for this diff may be changed using the inserts.
Clutch
the car features good slipper along with a steel gear, to obtain a straightforward and durable system. The slipper clutch is optional.
Engine meal and motor guard
The engine dinner is a machined aluminium; its then anodized and machined for fat. The composite motor guard could keep your motor safeguarded despite acquiring the numerous challenging of landings.
Anti-roll pubs
Anti-roll pubs are built in foremost and right back about the vehicle, but are optional. They are often utilized on high hold areas to greatly help adjust the vehicles performance
Right back Transmission example
The composite straight back transmission situation is light and durable. Permits the buyer to improve the differential height each particular condition. It securely holds the engine supper, differential plus supports a corner wing mount and right back carbon fibre surprise tower.
Straight back driveshaft system, wheel-axles
The springtime metal drive shafts are slim and light, yet durable. The springtime metal wheel-axles are 5mm, light and durable, led by both different size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is very captured to quit any failure. These bearings are for several to deal with up the rigors of any track condition.
Right back suspension system system system system brackets and toe in
The 3mm springtime metal pivot pins happen setup by the suspension bracket made from aluminium. To the bracket you have inserts generate toe-in and roll center. You are able to adjust the toe-in from 2 to 4 quantities and adjust the anti squat from 0 to 4 amounts.
Back suspension system fingers
The long and durable angled straight back suspension system system system fingers are tough services to withstand the rigors in regards to the track alongside hard landings. A corner supply provides 2 choices for surprise place and two mounting areas the trunk anti-roll club if needed.
Back Chassis skid dish
The composite straight back skid dish links towards the framework dinner. This connection allows you to unclip the trunk end up in one piece, but assists in reducing the sum total price of maintenance. It is also made from acutely high energy composite item.
Body shell and back wing
The prepainted and pere-cut light and low cab-forward design human body, integral quality clear polycarbonate, has an excellent flowing line, high front side part windscreen for down force with indents in to the area while you're viewing windscreen. The shark fin on the top concerning the cabin provides not only design but security. The smooth body lines improve the automobiles look and try out this by any means you prefer
The polycarbonate back wing makes use of raised cutes inside sides to boost wheel approval.
Back wing holder
The composite right back wing owner is from right back bulkhead and shock tower. Its totally adjustable from 0,2,4,6 and 8 quantities. Its fixed into spot by a washers and screws.
Ballbearings
high cost sealed stainless ballbearings with orange shields and aeroshell oil
Fastners
intensive steel , mostly allen screws, roundhead and countersunk. Minimized number of various allen minds to help make caring for the auto easier.
Tires
Durable white nylon flat faced tires, specifically made to work with advancements in to the front part and right back suspension system system geometry. Dragon-Rc offroad tyres premounted.
RTR gear:
Dragon-RC 2.4GHz transmitter with 10 vehicle memory, high level set-up opportunities, large LCD display. Along side supersmall receiver.
Effective Dragon-RC 9T brushless / sensorless motor.
Waterproof Dragon-RC electronic speedcontroller.
Dragon-RC premounted offroad tyres.
The kit comes as RTR car. Simply demands AA batteries the air and a battery for the car.
