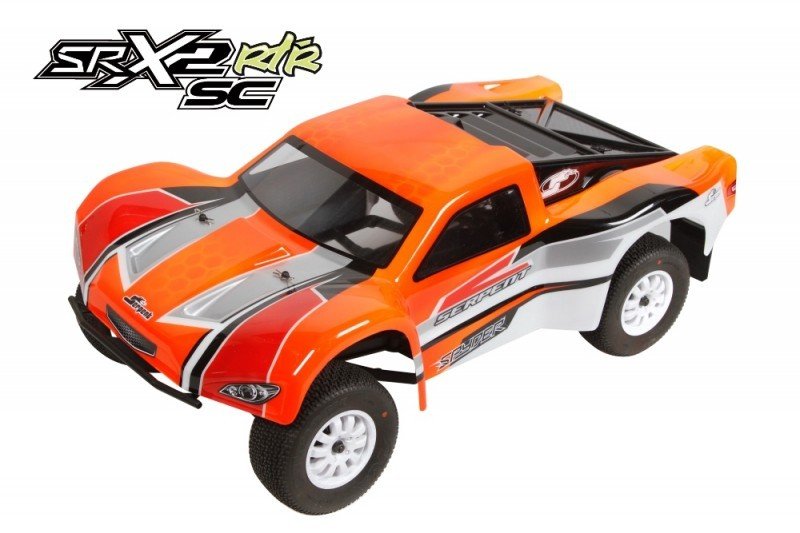

Spyder SCT SRX-2 RM 2wd 1/10 RTR The RTR Spyder SCT depends on the high-end competition variety of the Spyder SCT and stocks many elements and geometry. All choice the different parts of your competitors variation alsof fits the RTR variation. Major features - prepared to race - Prepainted and precut SC human anatomy - Dragon-RC 2.4 GHz transmitter TX-RX with LCD - Waterproof Electronic speedcontroller 45A - Brushless, sensorless engine 9T - expert factory installation and set-up - Dragon-RC premounted SCT tyres - springtime steel transmission - Gear differential and solid slipper clutch
Specs:
- Vehicle: Spyder SCT 2wd RM
- Course: SCT 2wd
- Degree: Competition
- Length:: 540mm ( with human body)
- Width:: 295mm (varies with set-up)
- Height:: 190mm
- Wheelbase:: 330mm
- Gear Ratio:: 2.43:1
- Weight:: varies with electronics utilized
- Included: Body, tires
- Maybe maybe not included: Batteries, tyres, any electronics.
Features:
- willing to fight
- Prepainted and precut SC body
- Dragon-RC 2.4 GHz transmitter TX-RX with LCD
- Waterproof Electronic speedcontroller 45A
- Brushless, sensorless engine 9T
- specialist factory setup and set-up
- Dragon-RC premounted SCT tyres
- Spring metal transmission
- Gear differential and solid slipper clutch
- higher end battle geometry
- long wishbones
- Original steeringblock design
- Big bore 12mm RCM type shocks with dual system
- noteworthy Steering ackermann
- Wide component guards
- back motor design
- Narrow composite framework design
- Light SC human anatomy
Framework
Composite framework dinner with a design allowing outstanding fat security, and optimal room the products, battery pack and servo. Leading Kick-up angle inside Chassis includes more approval for race and have for a lot more nose landings.
Durable composite front part and rear shock towers, with numerous shock angle jobs permitting motorists to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with coated threaded systems, a geniune limit design, a fantastically sealing o-ring and spacer package. The Shocks can be used in Bladder or Emulsion setups. The shock-set is sold with several moulded pistons available. A variety of 5 springs-sets are had to fine-tune the suspension system system settings. Shock Collars with internal o-rings can be used regarding threaded systems to set-ride height.
Front top bulkhead
Leading top bulkhead supports the surface of the links and surprise tower inside most useful feasible technique. The maximum component offers the substitute for install a front sway club item
Front bumper system
The durable composite front bumper system will need within the worst of straight crashes which allows salvage nose landing.
Front wishbones
The long front part Wishbones are constructed of a great strong composite product. The arms are angled to optimize the CG and pivot on 3mm captured pins in and away. The hands have actually 2 mounting jobs for shock angle as they are often frequently frequently frequently prepared to take advantage of an optional anti-roll club if needed.
Front and straight back Track Rods
Spring steel front component and right back track rods are installed to durable composite captured ball bones. The track Rods have in fact actually L/R threading for effortless alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree variation which can be included. The caster obstructs are particularly compact and strong products made out of a specific composite item.
Steering Block and right back Upright
The steering obstructs fit 5x10x4 mm bearings. A large component hub uprights use an even more impressive 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and backside uprights use one of many better high energy materials currently available.
Upright Settings
a large component uprights let you adjust, the toe in from -2 to + 2 amounts with the use of different inserts additionally in kit.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the effectiveness through various different varieties of corners. You have got 3 Ackermann options to choose from.
Wheel-axles and wheel hex.
The springtime metal wheel-axles utilized 12mm hex adapter to see market requirements. Leading springs steel axle is fixed, because of the fact the proper straight back wheel-hex is a clamping aluminium variation.
Battery space mount and fat safety
The battery pack is initiated completely in center type of the auto. Its a precise complement chair packages. In the eventuality of using a Shorty-pack, it could be relocated to front component or in play with fat security. The various elements of hard foam can be acquired doing consequently and secure the battery pack constantly in position. The carbon dietary fiber battery-top-brace has a secure quick launch system with handy alu twist peanuts.
Component guards
The side-guards or nerv-bars are a forward thinking construction. The sideguards are produced wide, so that it supports the edges linked to human anatomy well. The interior associated with the guards may be had, and you will be high in optional polycarbonate sheets. In jumps with SC automobiles you have got the ballooning effect, as wind is captured in the body, losing security. The shut part concerning the Serpent Spyder SC will mostly avoid that from occurring, creating better balanced bouncing and much more security. The precut polycarbonate sheets come clear and can be painted in yr favourite color scheme too !
Differential
The gear-differential is an excellent lightweight, effective and durable product. The dwelling and construction is typical input this system, however the quality elements and well operating can simply help it become be observed. The height regarding the diff is changed with optional inserts.
Clutch
the car features a fantastic slipper as well as a metal gear, to obtain an easy and durable system. The slipper clutch is optional.
Motor dinner and motor guard
The engine dinner comes in anodized aluminium.
Anti-roll pubs
Anti-roll pubs might be integral leading component and right back of car, but are optional. They may be applied to high hold areas to help expand adjust the automobiles performance
Rear Transmission situation
The composite back transmission situation is light and durable. Permits the motorist to manage the differential height every single specific condition. Also firmly holds the engine meal, differential alongside aids a corner wing mount and straight back surprise tower.
Right back driveshaft system, wheel-axles
The springtime metal drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, directed by both different size of bearings, interior 10x14x4 mm and external 5x13x4 mm. The driveshaft pin is completely captured to get rid of any failure. These bearings are for several to try up the rigors of any track condition.
Straight back suspension system system system system brackets and toe in
The 3mm springtime metal pivot pins happen in place by the suspension system system bracket made out of aluminium. In the bracket you utilize inserts developing toe-in and roll center. You are likely to adjust the toe-in from 2 to 4 amounts and adjust the anti squat from 0 to 4 amounts.
Straight back suspension system system system arms
The long and durable angled back suspension system system fingers are specifically tough products to withstand the rigors of track and hard landings. A huge component supply provides 2 alternatives for shock place and two mounting places a sizable part anti-roll bar if needed.
right back Chassis skid dish
The composite back skid meal links toward framework dinner. This connection enables you to unclip a big component result in one piece, but assists in reducing the total cost of maintenance. Mostly it is produced from extremely high energy composite product.
Straight back bumper
the trunk bumper part is a durable product, a simple task to disassemble, and fits well utilising the back for this body, to soak up the worst of back-end crashes.
Body shell and right back wing
The prepainted and precut light practical searching brief program design body, essential high-quality clear polycarbonate, has an excellent flowing line, high front side windscreen for down force . The split flares in the straight back part assist for safety in jumps, higher rate and cornering.
Ballbearings
higher level sealed metal ballbearings with aeroshell oil
Fasteners
intensive steel , mostly allen screws, roundhead and countersunk. Minimized range various allen minds to generate caring for the car easier.
Tires
Durable white Serpent brief program tires and premounted Sc tyres.
RTR gear:
Dragon-RC 2.4GHz transmitter with 10 automobile memory, higher level set-up possibilities, big LCD display. And supersmall receiver.
Effective Dragon-RC 9T brushless / sensorless motor.
Waterproof Dragon-RC electronic speedcontroller.
Dragon-RC premounted offroad tyres.
