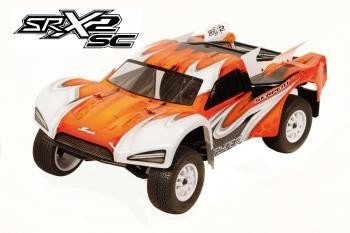

Spyder SRX2 SC RM 2wd 1/10 Competition degree brief Course kit with composite framework and shocktowers, durable big front side part side component and back bumper, ball-differential, slipper clutch, straight back motor variation, double wishbone suspension system with long hands, big-bore 12mm hardcoated shocks with significant travel, SC human body with flares, SC tires, springtime steel metal components, big nerfbars with lexan inserts. Totally adjustable competition automobile.
Specs:
- Name: Spyder SRX-2 back engine SC 2wd
- Course: 1/10 Sc 2wd
- Level: Competition
- Length: 540mm
- Width: 295mm (varies with set-up)
- Wheelbase: 330mm
- Gear Ratio: 2.43:1
- Body fat: differs with gear used
- Included: competition framework, Sc body, rims
- Maybe not included: tyres, tyre-inserts, electronic devices
Features:
- High end battle geometry
- long wishbones
- Unique steeringblock design
- Big bore 12mm RCM type shocks with twin system
- undoubtedly effective Steering ackermann
- Wide component guards with polycarbonate inserts
- right back motor design
- Adjustable right back differential height
- 3 pad slipper clutch / ball differential
- Narrow composite framework design
- Light SC human anatomy with flares

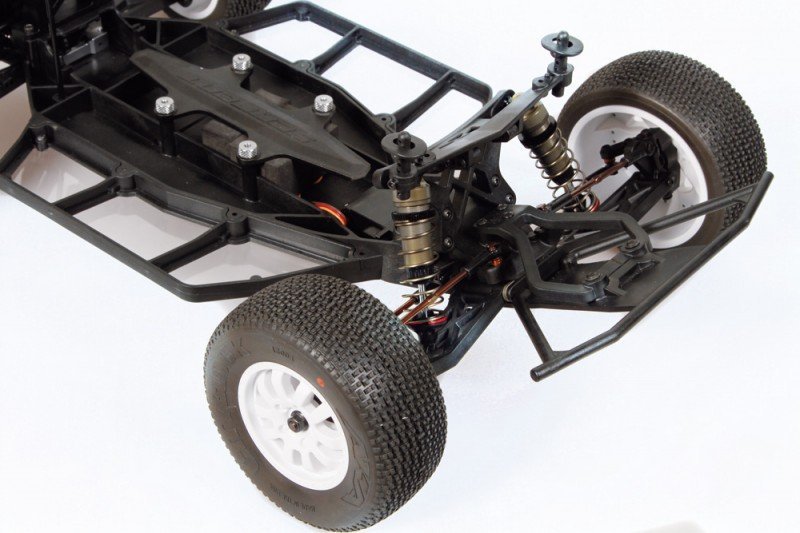

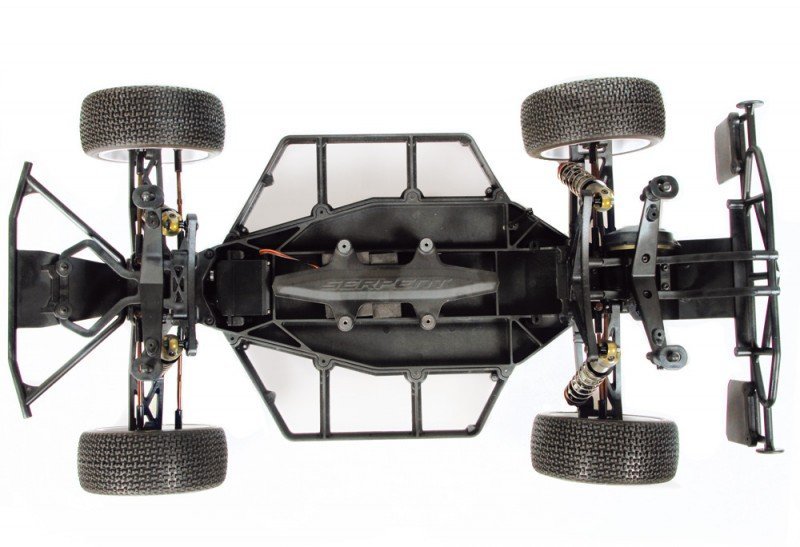

Chassis
Composite framework meal with a design allowing outstanding fat protection, and optimal room the electronics, battery power and servo. The best Kick-up angle in Chassis includes more approval for competition and ask for significantly more nose landings.
Durable composite front side and right back surprise towers, with numerous shock angle jobs allowing motorists to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with difficult coated threaded systems, a real limit design, a superbly sealing o-ring and spacer package. The Shocks can be found in Bladder or Emulsion setups. The shock-set includes several moulded pistons available. Some 5 springs-sets might be must fine-tune the suspension system system system settings. Shock Collars with interior o-rings are utilized on threaded systems to set-ride height.

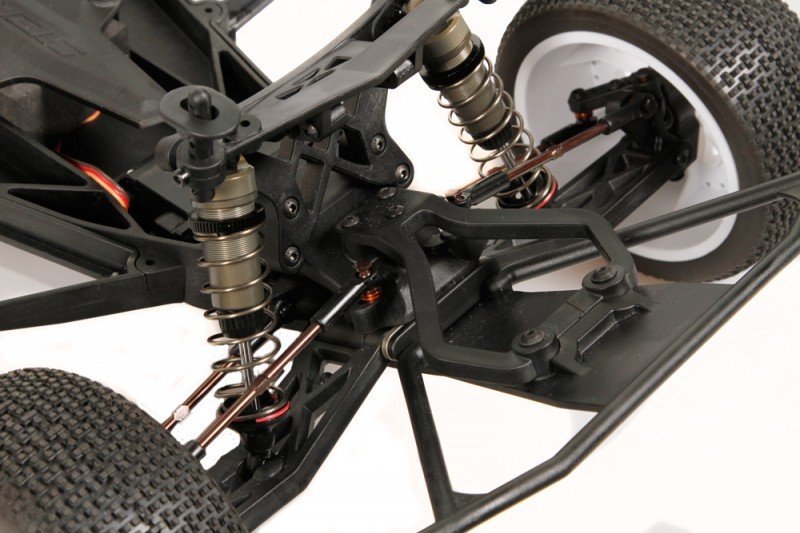

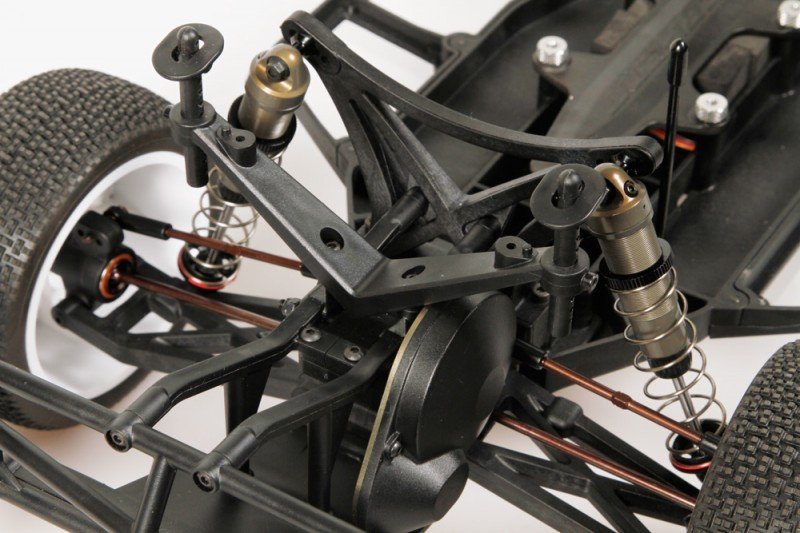

Front top bulkhead
Leading upper bulkhead supports the very best links and shock tower inside most readily useful feasible means. Leading area offers the option to install a front sway club device
Front bumper system
The durable composite front side side component bumper system need to the worst of right crashes and that can allower for protect nose landing.
Front wishbones
The long front side Wishbones are made of an amazing strong composite item. The hands are angled to optimize the CG and pivot on 3mm captured pins internally and away. The hands have actually really really actually 2 mounting jobs for shock angle and they are also willing to use an optional anti-roll club if required.
Front and back Track Rods
Spring metal front component and right back track rods are create to durable composite captured ball bones. The track Rods have actually really actually really L/R threading for effortless improvements.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level variation which can be included. The caster obstructs are incredibly compact and strong services and products produced from a certain composite product.

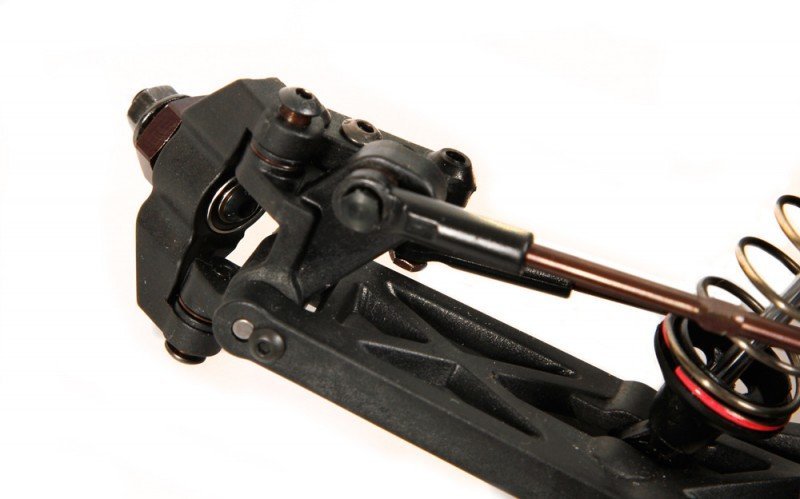

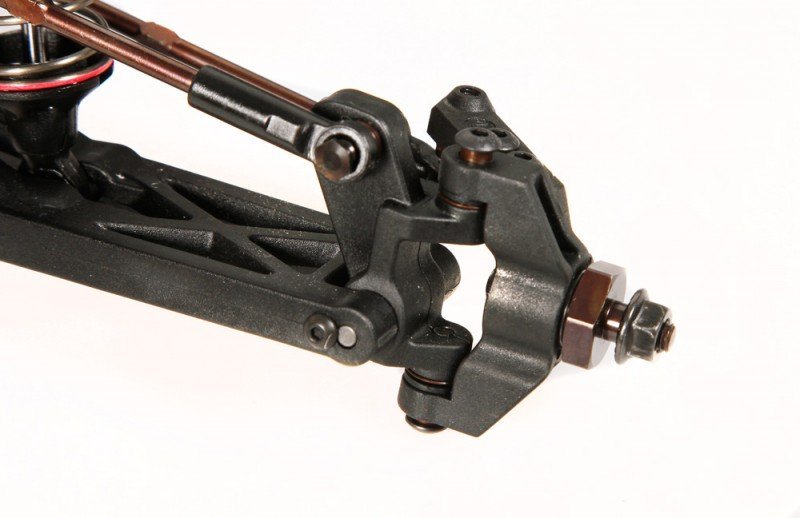

Steering Block and straight back Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights utilize a larger 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and straight back uprights use most useful high energy materials available these days.
Upright Settings
a big component uprights let you adjust, the toe in from -2 to + 2 amounts with the use of various inserts also in the kit.
Steering system and Ackermann
The steering system has a reverse moving pivot system that optimizes the effectiveness through different varieties of corners. You have got 3 Ackerman alternatives available.
Wheel-axles and wheel hex.
The springtime steel wheel-axles utilized 12mm hex adapter to see economy criteria. Leading springs metal axle is fixed, as the straight back wheel-hex is a clamping aluminium variation.
Battery room mount and fat safety
The battery power is set up totally inside center form of the automobile. Its an exact complement chair packages. In case of utilizing a Shorty-pack, maybe it's relocated to front component or back again to play with fat security. Aspects of hard foam get to complete consequently and secure the power packs arranged. The carbon fibre battery-top-brace has a secure quick launch system with handy alu twist peanuts.

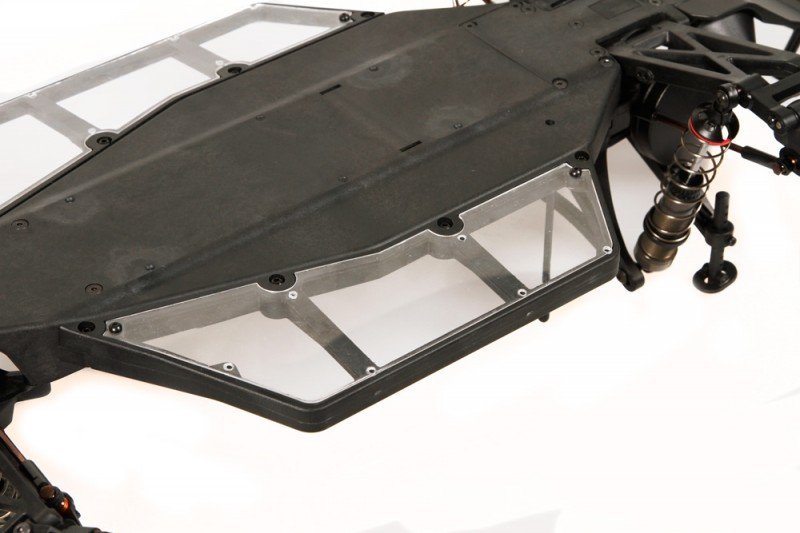

Component guards
The side-guards or nerv-bars are a forward thinking construction. The sideguards were created wide, to make sure that it supports the edges for this human body well. The within with this specific guards can be had, but packed with polycarbonate sheets. In jumps with SC automobiles you have got the ballooning impact, as wind is captured within the body, losing safety. The shut component regarding Serpent Spyder SC will mostly avoid that from occurring, creating better balanced bouncing and a good amount of other items protection. The precut polycarbonate sheets come clear and also will be painted in yr favourite color scheme too !
Differential
The restricted slide ball differential is an excellent lightweight, effective and durable unit. Making use of 1.8th inch diff balls for ultimate durability. The dwelling and construction is typical enter this program, even so the high quality elements and well running helps it be be noticed. The height with this diff are changed with inserts.
Motor meal and motor guard
The engine dinner come sin black colored anodized aluminium.
Anti-roll pubs
Anti-roll bars could be built in top and rear the auto, but are optional. They are usually added to high hold areas to aid adjust the automobiles performance

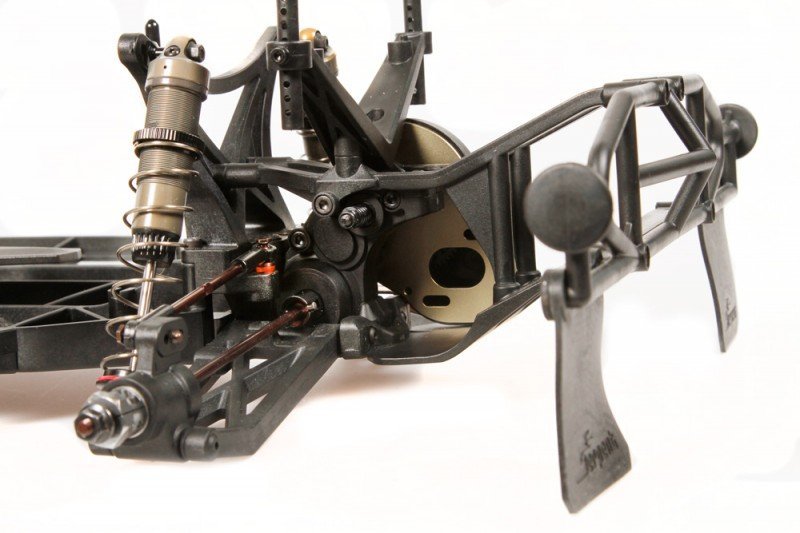

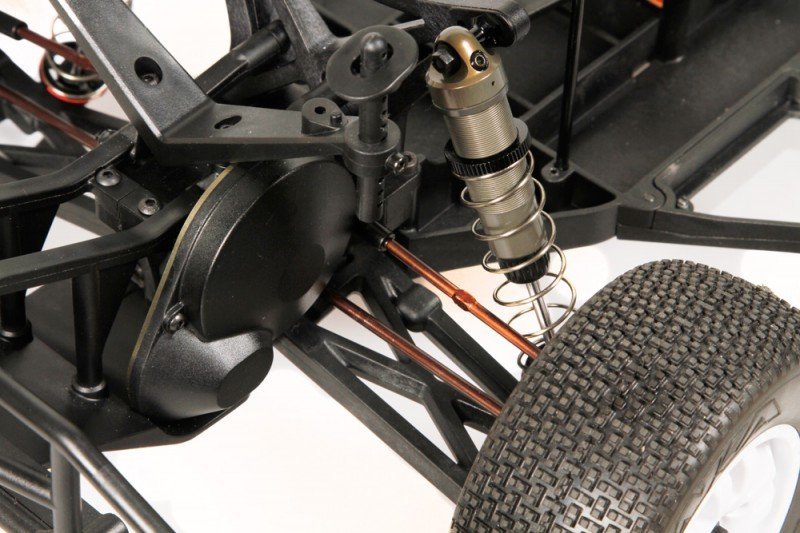

Right back Transmission case
The composite right back transmission situation is light and durable. Permits the motorist to change the differential height every specific condition. In addition securely holds the engine supper, differential also supports the trunk wing mount and back carbon fibre shock tower.

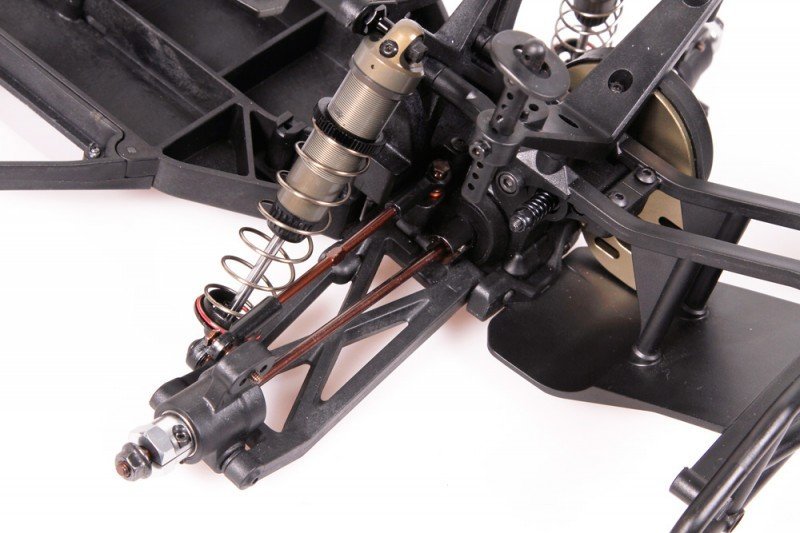

Straight back driveshaft system, wheel-axles
The springtime steel drive shafts are slim and light, yet durable. The springtime metal wheel-axles are 5mm, light and durable, led by both various size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is wholly captured to prevent any failure. These bearings are undeniably to handle up the rigors of any track condition.
Back suspension system brackets and toe in
The 3mm springtime steel pivot pins occur in location by the suspension system system system system bracket made from aluminium. In the bracket you employ inserts developing toe-in and roll center. You'll adjust the toe-in from 2 to 4 amounts and adjust the anti squat from 0 to 4 degrees.
Back suspension system system system system hands
The long and durable angled straight back suspension system system system system fingers are receiving to be tough items to withstand the rigors towards track although the hard landings. The trunk supply provides 2 options for shock location and two mounting places the backside anti-roll club if needed.
right back Chassis skid dish
The composite back skid dinner links on framework plate. This connection allows you to unclip a large component end up in one piece, but assists in reducing the total price of upkeep. Mostly its made from acutely high power composite item.
Backside bumper
a large component bumper area is an incredibly durable item, quite simple to disassemble, and fits well utilising the right back your body, to absorb the worst of back-end crashes.
Body shell and straight back wing
The light practical hunting fast Course design body, integrated quality evident polycarbonate, has good moving line, high front side windscreen for down force . The split flares inside back area support for security in jumps, high rate and cornering.
Ballbearings
high cost sealed stainless ballbearings with aeroshell oil
Fastners
tricky metal , mostly allen screws, roundhead and countersunk. Minimized amount of different allen minds in order to make taking care of the car easier.
Tires
Durable white Serpent Fast Course tires.
