Description

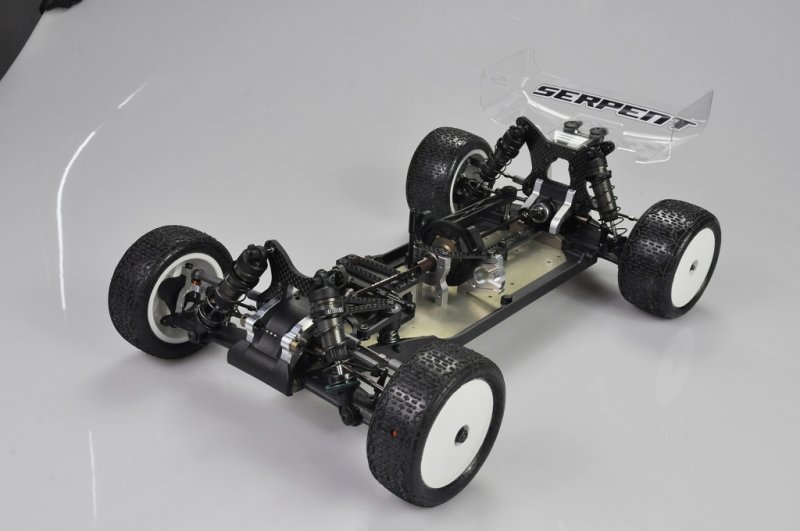

European Champion 2016 Spyder SDX4

The updated Serpent SDX4 EVO 1/10 scale shaft driven 4wd buggy in fact clean, simple and easy available design. Developed to execute on all areas with versatile designs in which motor, battery and speedo might set up in several places. Definitely made for upkeep and set-up, with quantity of screws and screw kinds.

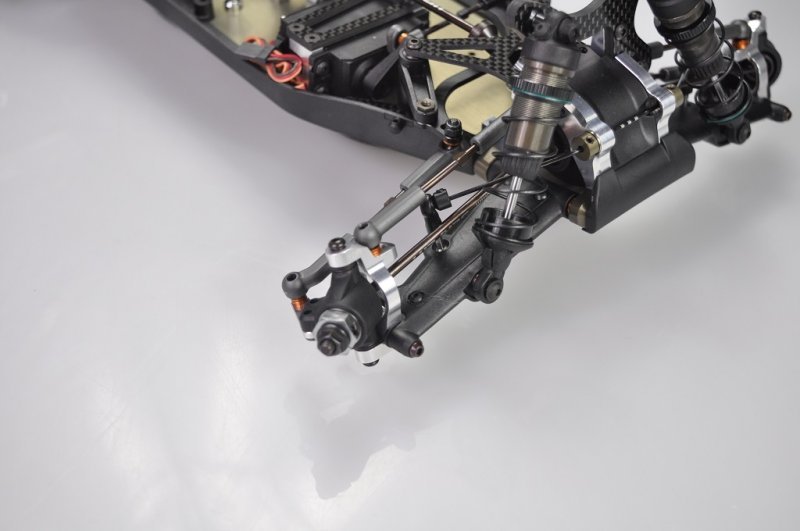

Front suspension system system system
Strong composite paid down suspension system system system system system fingers with mounting spots the pivot ball activated anti-roll club. The hands are a closed sort design for aero effect, rigidity and clean appearance. In regards to the top component optional carbon inserts could possibly be used in example harder hands are expected for administration. Composite insert dishes are standard. Leading fingers have actually actually 2 surprise leverage functions. The hands were updated, your should buy more item through the entire center associated with supply throughout the shock mounting roles to avoid breakage.

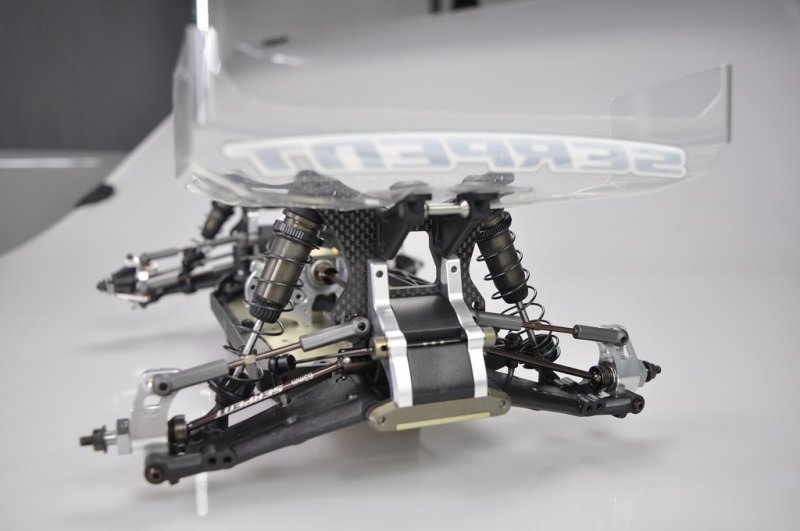

Rear suspension system system system
Strong composite paid down suspension system system system system hands with mounting spots the pivot ball triggered anti-roll bar. The hands are a closed kind design for aero impact, rigidity and clean appearance. Regarding top component, optional carbon inserts are employed whenever harder hands are required for improved control. Composite insert dishes are standard.
a huge component arms have actually actually actually 2 surprise mounting jobs for each and every component, front side and straight back. The true key and straight back surprise mounting jobs differ plus the hands can be utilized on both edges of automobile, consequently you've gotten in fact in fact 4 surprise leverage jobs to select type. Also, a considerable component hands and surprise tower allow shocks become mounted in the front component or behind the trunk hands.
In addition, the arms have been undoubtedly updated regarding surprise mounting face to permit for longer screws to guarantee the shocks cannot grab associated with supply.

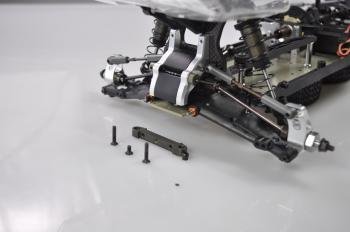

Suspension system brackets
rough covered aluminum suspension system system brackets for both front component and straight back pivots
small but effective composite front side bumper to shield the most effective end. The angled front included kick up enables smoother landings.
The rear/rear suspension system system bracket can be employed standard with o-degree or inverted as 3-degree anti-squat.
Bulkheads
leading and straight back bulkheads made out of 7075-t6 are manufactured to optimize power, and will be providing the shock tower additional power. The transmission housings are very well loaded inside bulkheads to help expand power while enabling easy arranged and disassembly.

Anti-roll club
leading and right back bulkheads allow mounting the ball-raced anti-roll pubs. The cable sort anti-roll pubs are lasered for effortless recognition. The cables relate genuinely to the arms using the verified friction free super smooth pivot ball system. It is very an easy task to locate and influence the anti-roll bars as needed.

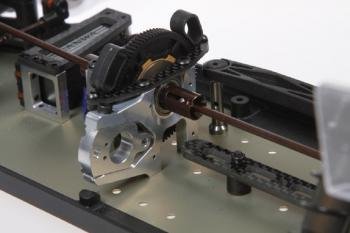

Motor install
The motor is installed securely on CNC machined 7075 T6 aluminum engine autumn. The autumn is slotted into place to ensure constant and dependable gear mesh.

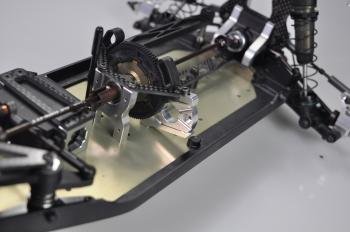

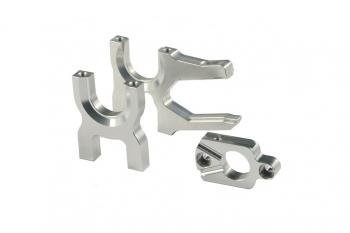

Center drive holders
The slipper clutch product is held constantly in position by the engine mount bracket and a H shaped lightened 7075 T6 aluminum owner topped by a carbon connector dinner that also holds the cable guiders in place. The slipper can also be changed by a gear differential towards center. Its quite simple to find yourself inside slipper or main gear diff.
Uprights
The lightened 7075 T6 aluminum uprights are very same left and right but still have actually 3 camber url roles.

Wheel hex
leading and backside wheel hex are 12mm industry standard size. The hexes are clamp sort and anodized to endure. Flanged wheel peanuts are included to help keep the tires set up.

Body mounts
The strong composite body mounts can be found in situation utilized. As alternate Velcro lay on medial component connected to framework stiffeners/side pubs.

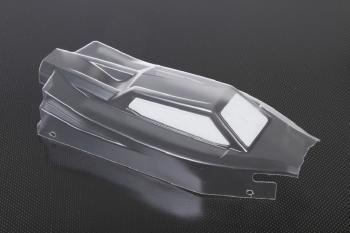

Body
Exemplary clear polycarbonate works extremely well the Spyder SRX4 buggy human body. The nicely shaped human anatomy has flat sides and roof for extra downforce and great management. It creates enough room for electronics and cooling discovers as required. Your body closely follows the framework kind, consequently less debris can enter the car. Our body comes with a white precut masking sheet.

Right back wing and wing owner
The strong clear polycarbonate wing is established on nylon right back wing owner.

tires
Durable Serpent created tires can be found in white color for front component and straight back (tires and inserts aren't included). Back tires are just like SRX2 and SRX4, leading gents and ladies have a different offset and are frequently new. Compliant towards the newest IFMAR directions.

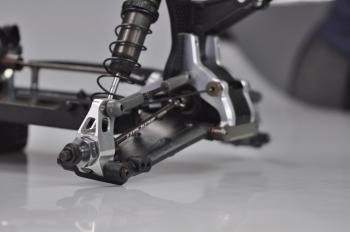

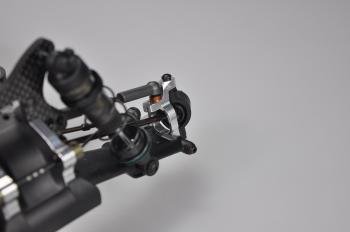

Steering obstructs and c-hubs
The lightweight composite steering obstructs are and aluminum 7075 T6 c-hubs. The c-hubs has 2 functions the camber hyperlink and will be further finetuned using essentially shims. The c-hubs are 10 degree’s, other optional folks are 0, 3 and 5degree.

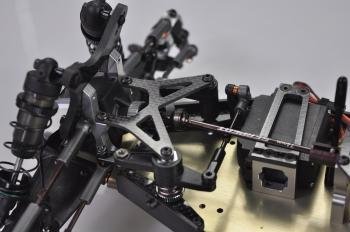

Steering Bell Cranks
The completely ball raced angled dual axis steering system with built-in servo saver function, provides an almost perfect Ackermann impact. Ackermann might be set with smaller meals which mount towards steering hands and also the black colored colored coated aluminum steering brace has 2 holes available. The servo saver has a pre-load nut to efficiently set the specified anxiety.
The steering system is installed on a carbon soluble fbre u-bracket which also links leading staying and right sides and functions stiffener.

new Front/Rear and center CVD’s
The EVO kit is updated working alongside front/rear outboard CVD’s which have captured pins to be sure, you undertake every battle you begin. The center drivetrain isn't any exclusion as it too finished up being updated to own CVD’s, all captured. The outboard CVD’s enhance effectiveness and traction, although the drivetrain enhance effectiveness.

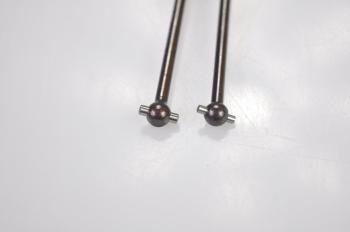

Updated 2.5mm Drivetrain Pins
to enhance dependability, and prolong living from the drivetrain, the Evo drivetrain was in fact updated to perform company with 2.5mm driveshaft pins throughout.

Solid Hinge pins 3mm Hinge Pins
The EVO Kit is updated to utilize solid 3mm hinge pins with regards to the front component and right back interior pivots. This increase dependability and lets you shim both of arms ahead or right back. Obtaining the power to shorten or length the vehicle will assist you to further fine tune your car or truck or car or vehicle for each track condition you can expect to face.
Updated 2 Pad Slipper
The slipper make is actually updated on EVO to utilize 2 pads. As soon as you attend 2 pads, it is going to allow you a broader array of modification on dirt totally around Astroturf and Carpet. You can nevertheless make use of old 3 pad slipper, by swapping straight down elements if you are looking more over less slipper action about the many extreme conditions.

handbook / setup sheet / decals
The Spyder SDX4 is sold with a PDF design color manual on a Serpent USB stick which will show the construction procedure in actions after packed bags. The manual also encloses the exploded views and a ref-guide which makes it readily available the component figures you will need of spares and optional elements. A latest design regarding the manual can invariably be situated on our website as PDF too.
A default set-up sheet is roofed, but more set-ups is seen on our product web site under set-ups.
A Spyder SDX4 decal sheet and a Serpent decal sheet are included.

Packing
The strong kit industry includes the coded bags to gather the car, along with human body, back wing and tires, manual, set-up sheet and decals. Each kit is rather cautiously packed and a checking decal could be had independently for this box
Key features:
- Lightweight clamp fitted Gear Boxes
- front side and back compact and light gear differentials
- 7075 T6 aluminum primary diff/slipper owner and engine mount
- 7075 T6 aluminum bulkheads front component and right back,
- 7075 T6 aluminum 2mm difficult coated framework and carbon stiffeners
- 7075 T6 aluminum 10degee c-hubs
- 7075 T6 aluminum uprights, 0 level L and R
- 7075 T6 aluminum hard coated suspension system system system brackets x 4
- Closed kind suspension system arms with optional carbon top-inserts
- Strong 3mm solid hinge pins with Pivoting balls
- Big bore 1/10 shocks with hard coated systems can be utilized emulsion or membrane layer layer layer layer layer design.
- springtime metal universal drive and primary shafts.
- Carbon surprise towers,
- Carbon framework stiffener
- Carbon mid-section top-plate
- Carbon top steering bracket
- Carbon steering dish u-bracket
- low and sleek 4wd body and big durable back wing
- top-quality ball-bearings

major features

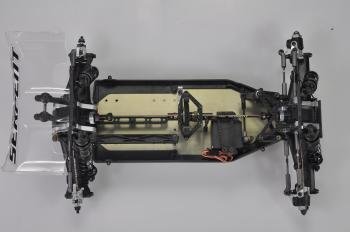

Chassis
The hard coated lightweight 2mm 7075 T6 aluminum framework gets the very best flex coupled with composite side-guards / framework stiffeners and center spline. All holes are countersunk to possess a totally flat bottom area. Holes are focused and symmetrical even for flex.

Chassis stiffener
inside right back the SDX4 features a carbon fibre framework stiffener that may be clamped regarding the rear/front suspension system bracket as well as the bulkhead along side includes the guts. The brace has 5 optional holes to look for the tightness by putting the small stiffener pole and screw or including more poles/screws.
the apparatus influences end flex which is set considering hold amounts and driving design.

Battery and stays
The SDX4 car takes a shorty in standard trim, you could install chair packages as required. The battery power is held setup by a person friendly composite battery-cover with a twist nut comparable part.

Electronics
the best market for this automobile enables numerous area to setup numerous used speedo and receivers, due to the fact transponder. The automobile furthermore permits enough room allow it to be simple for good routing of cables. Quietly the slipper the SDx4 provides 2 unique cable guiders.

designs to pick from
- standard is shorty battery pack backside appropriate, motor straight back kept, speedo/RX front component left, servo ahead right
- motor more on center (and swap front and back main driveshafts)
- Shorty staying and engine right
- Motor front part component kept and esc right back left
- engine front side component left and seat packages in back ( needs optional chair pack battery brace-set)
Servo mount
The servo is set up inside vehicle with a stand constructed from alum and carbon elements, which is arranged regarding centerline inside automobile, to keep additionally flex. Different spacers and horns are included to suit numerous utilized servo brands. An optional component additionally permits the servo become relocated underneath the steering dinner and driveshaft. Desired choice of designs.

Drivetrain
The SDX4 employs lightweight springsteel CVD and driveshafts front side and right back and foremost. The drivetrain was definitely entirely updated to simply accept 2.5mm driveshaft pins.

Gear-diffs and circumstances
lightweight oil-filled gear differentials are employed to the front part and back. These super smooth devices are light and compact and intensely durable. The differentials may very easy to create and they're suprisingly low upkeep.
both external differential circumstances ( front side component and right back) are clamped in the middle of your aluminum bulkheads and require no other fasteners anyhow. Fairly easy and simple fast for maintenance.

Differential primary gear and bevel gear.
The accuracy machined appropriate cut differential main gear and bevel gear are stated in hardened springsteel for smooth procedure.

Ball bones / track rods
fresh design and item ball bones for smooth suspensions and steering. The most notable steering ball bones are angled to clear all rims/tires . The track rods and camber links are stated in slim but durable springsteel with L/R threading for simple adjustment.
Shocks
Serpent hard coated shock numbers and composite shock tops for super smooth procedure and durability. 3.2mm shafts with new pre-oiled X-ring package and molded pistons. The shocks works extremely well either emulsion or membrane layer layer layer configuration. The surprise springs have actually really grounded ends, analyzed and matched for perfect equal procedure. Ride height are effortless set utilising the threaded collars that have O-rings inside to make sure they stay static in location.

Shock towers
the present day created durable 4mm dense carbon fiber front part and back shock towers with 4 jobs the front surprise angle and 4 jobs a corner shock angle. For roll center modification the greatest thing bracket features 5 holes to pick camber url jobs. 3 internal and 2 outside. A large part you've got 6 holes to select from, 3 interior and 3 outside.
Shock continues to be
incredibly durable aluminum shock remains and some bushing and lightweight composite flanged peanuts.

Slipper clutch
This light slipper-clutch product, is an updated springtime loaded 2 pad variation, permits to control the power blood circulation in an important range traction conditions.

Key Optional Components
- different surprise springs dirt and astro-turf
- various anti-roll pubs
- Aluminum C-hubs in 0 and 3 and 5 level
- Aluminum upright with +/- 1
- Front Lexan wing
- Servo mount set to put the servo inside front side center
- Saddle pack mounting set
- Center gear differential
- quantity of Diff spur gears
- hard coated aluminum shock caps
- complete selection of gear pinions in hard coated aluminum
- Carbon suspension system system supply covers front component and straight back
