Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd  [SER500009]

Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd
Price:
CAD$376.21
Brand:
Serpent
Model:
SER500009
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category
Write a review
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"
alt="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd" title="Serpent SER500009 Spyder SRX2 HT TEAM 1/10 2wd"

Specifications

  • Part amount: 500009
  • automobile: Spyder SRX-2 HT TEAM 2wd
  • Class: 1/10 buggy 2wd
  • degree: Competition
  • Length: 385mm
  • Width: varies with set-up
  • Wheelbase: 281mm
  • Gear Ratio: 2.43:1
  • fat: varies with gear used
  • Included: competition framework, body, right back wing, rims
  • maybe not included: tyres, tyre-inserts, devices
  • Promo website: promo.serpent.com/srx2-team

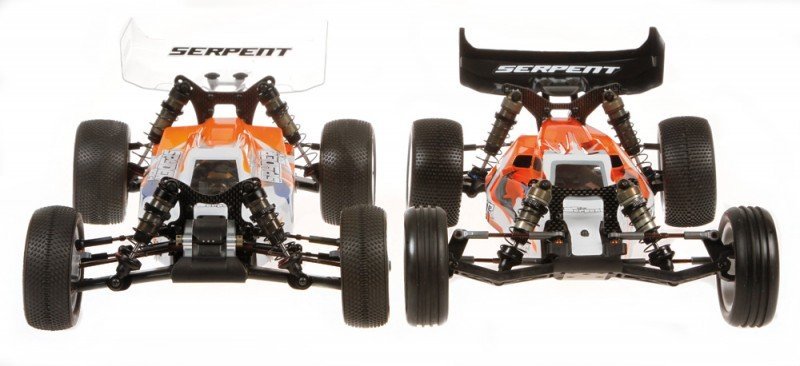

Serpent SPYDER 2wd battle buggy, 1/10 scale, electric,

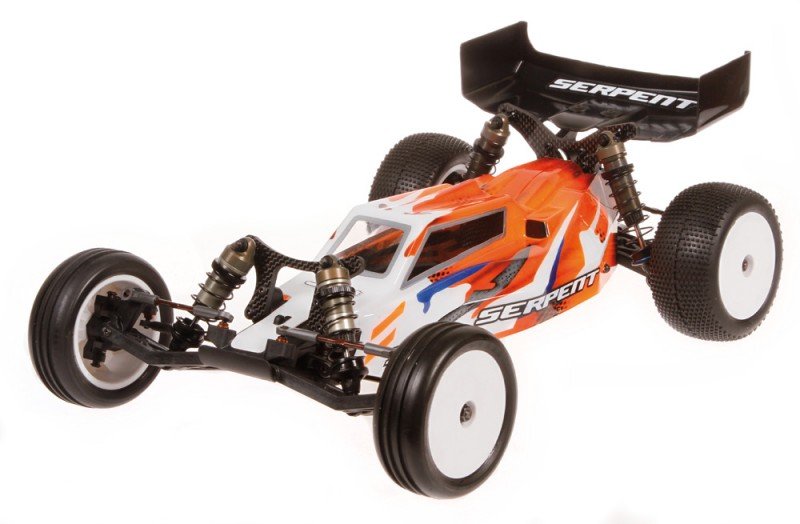

Serpent presents the Spyder SRX2 1/10 buggy in HT TEAM variation .

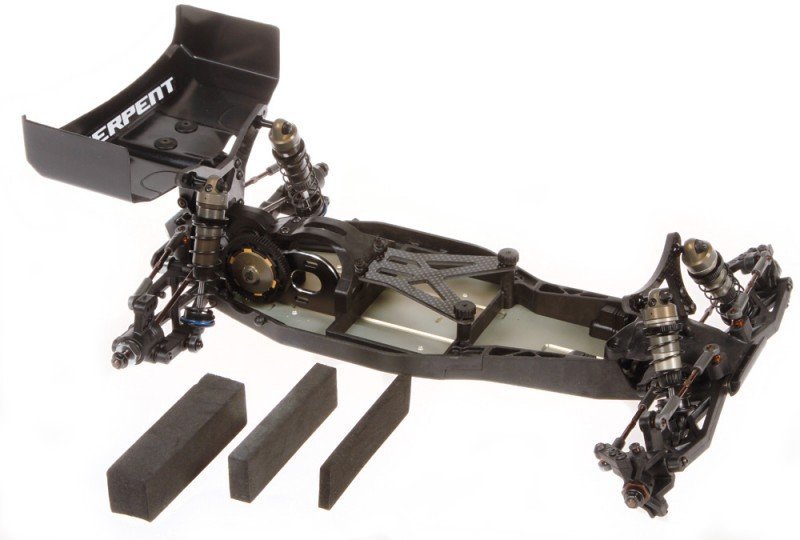

Battery area mount and fat balance

The power packs is initiated entirely inside center distinct the vehicle. Just in case there's using a Shorty-pack, it may be relocated to front or back again to play with fat security. The different parts of hard foam are given to work on this and secure the battery constantly create. The carbon soluble fbre battery-top-brace has a secure quick release system with handy twist peanuts and can become a chassis stiffener too. The flex are effects if you use 2 tiny grubscrews. Utilizing the upright

Differential

The gear differential is a super lightweight, effective and durable item.

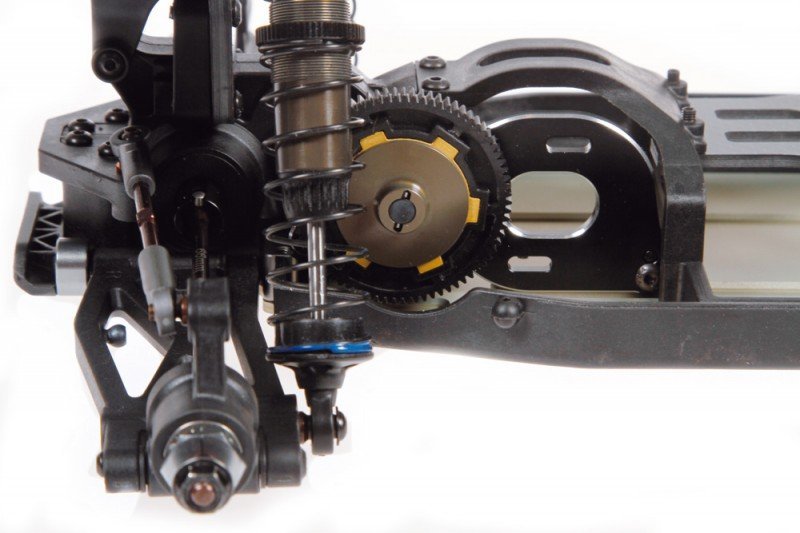

Slipper clutch
The durable slipperclutch utilizes a 3-pad system with resilient pads, difficult anodised aluminium elements and springsteel shaft. The pre-load nut might be simply reached and set.


Motor dinner and motor guard
The motor supper is a machined aluminium; its then anodized and machined for weight-loss.

Anti-roll bars

Anti-roll bars is fitted regarding the front part and rear towards automobile, are optional. They could be placed on high hold areas to simply help expand adjust the automobiles performance

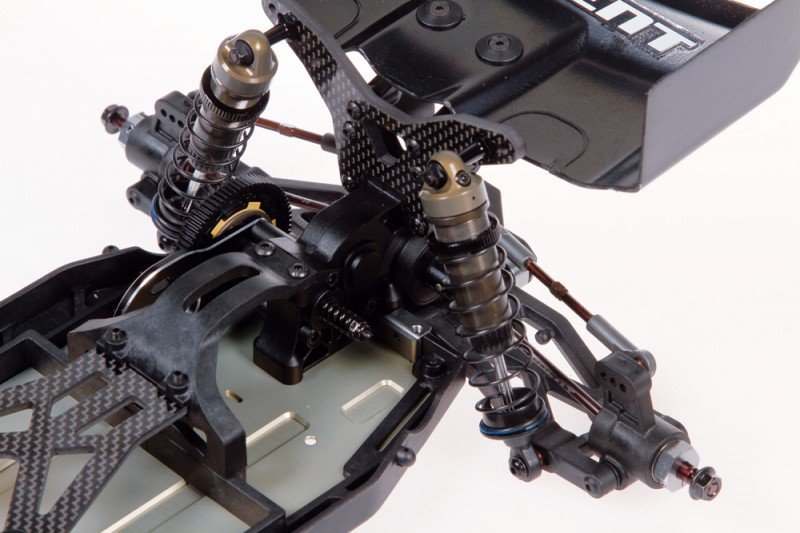

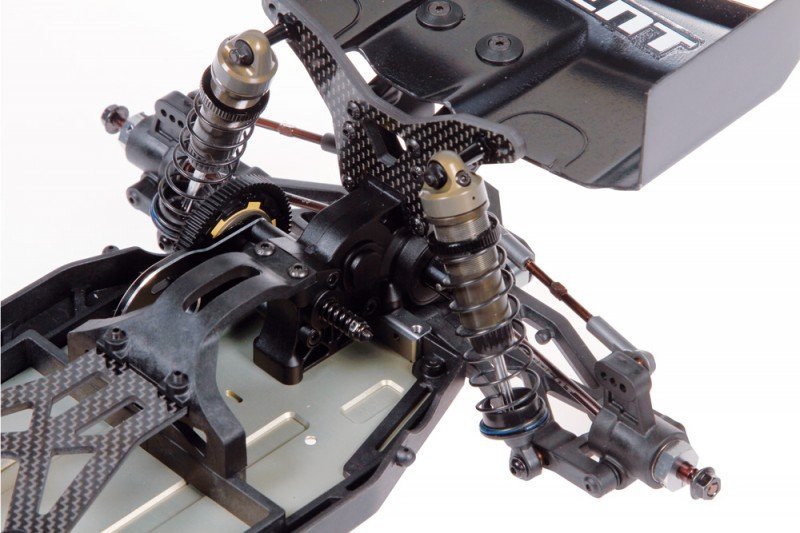

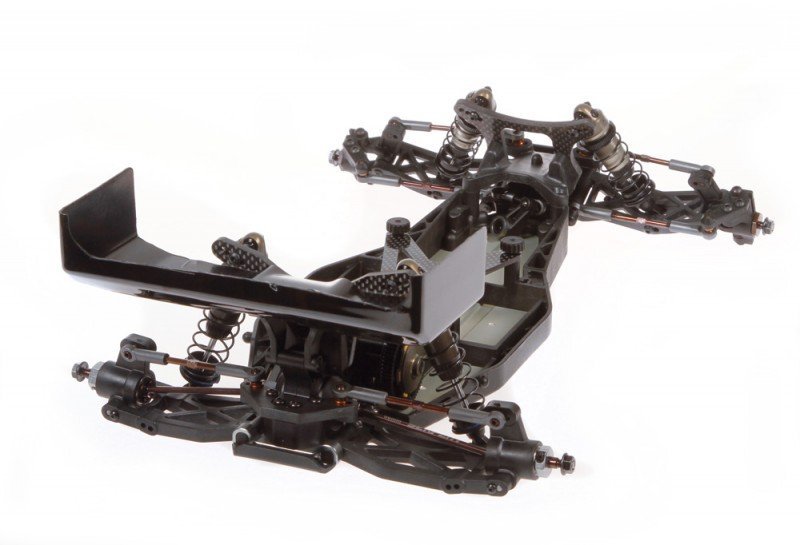

Rear Transmission case
The composite right back transmission example is light and durable. It firmly holds the motor dinner, differential and supports the trunk wing mount and back surprise tower.

Right back driveshaft system, wheel-axles

The springtime metal drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by both different size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is fully captured to eliminate any failure. These bearings are for many to face up the rigors of any track condition.

Rear suspension system system system brackets and toe in
The 3mm springtime metal pivot pins happen constantly set up by the suspension system system bracket created from aluminum. In the bracket you've gotten inserts developing toe-in and roll center. You'll be able to adjust the toe-in from 2 to 4 amounts and adjust the anti squat from 0 to 4 degrees.

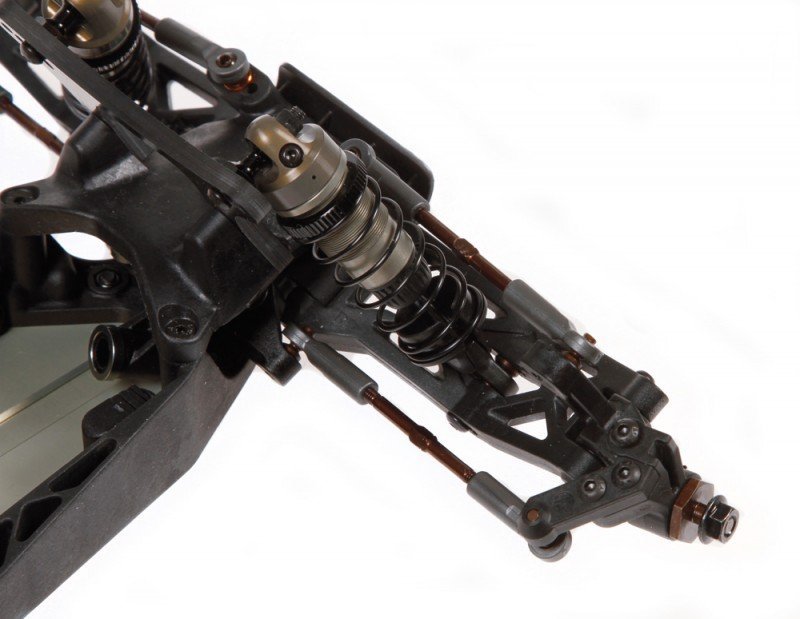

Rear suspension system system system system hands

The long and durable straight back suspension system hands are specially tough devices to withstand the rigors of track also difficult landings. The trunk supply provides 2 options for surprise spot and two mounting places the rear anti-roll club if needed.

Body shell and straight back wing
The light and low cab-forward design body, integral quality clear polycarbonate, has an unbelievable flowing line, high front windscreen for down force with indents inside component while you are viewing windscreen. The shark fin ahead regarding the cabin provides not merely design but security. The smooth human anatomy lines raise the vehicles look and accomplish that in style
The polycarbonate back wing uses raised cutes in sides to improve wheel approval.

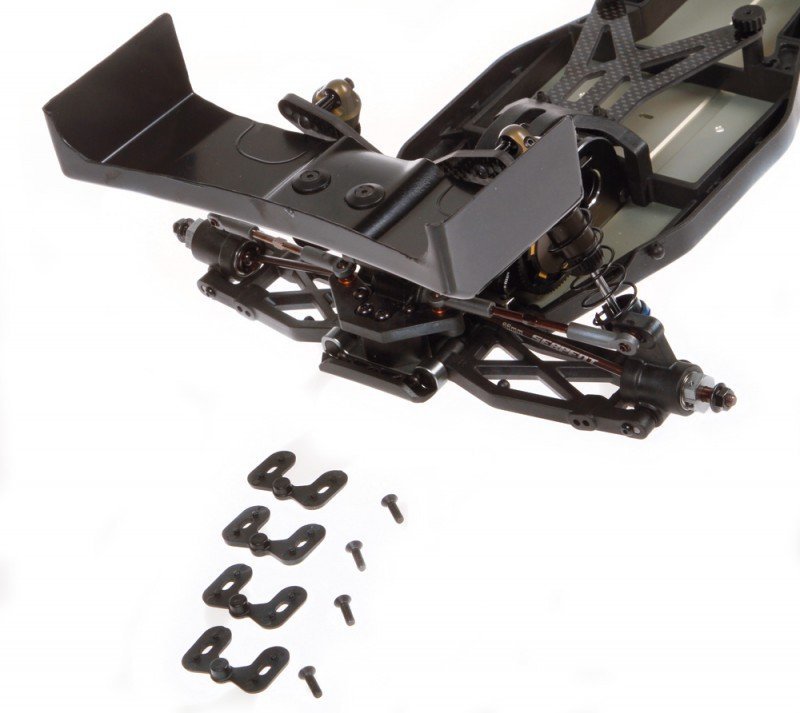

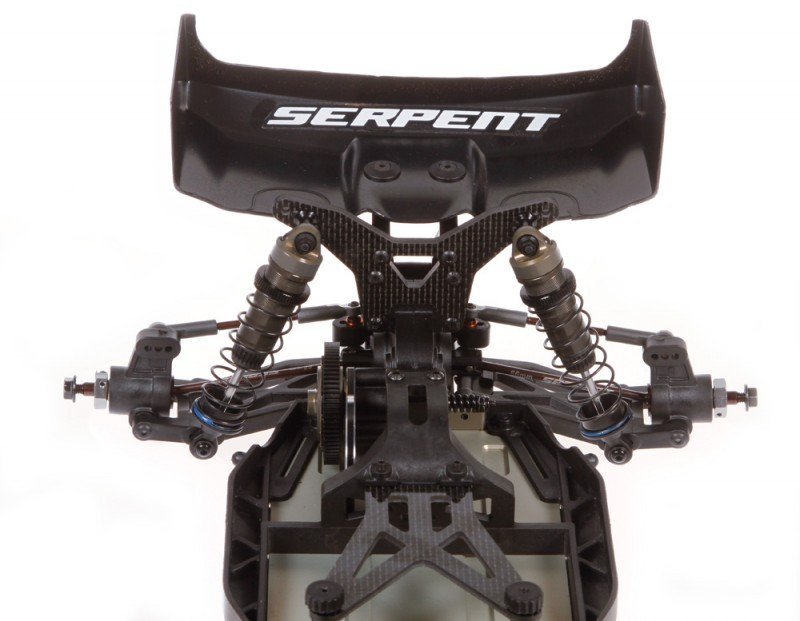

Rear wing holder

The composite right back wing owner is from the trunk bulkhead and shock tower. It is completely adjustable from 0,2,4,6 and 8 amounts. Its fixed into spot by a washers and screws.

Ballbearings
High cost sealed steel ballbearings with oil.

Fastners
rough metal , mostly allen screws, roundhead and countersunk.


Wheels

Durable white nylon flat faced tires, especially developed to utilize advancements inside front component and back suspension system geometry.

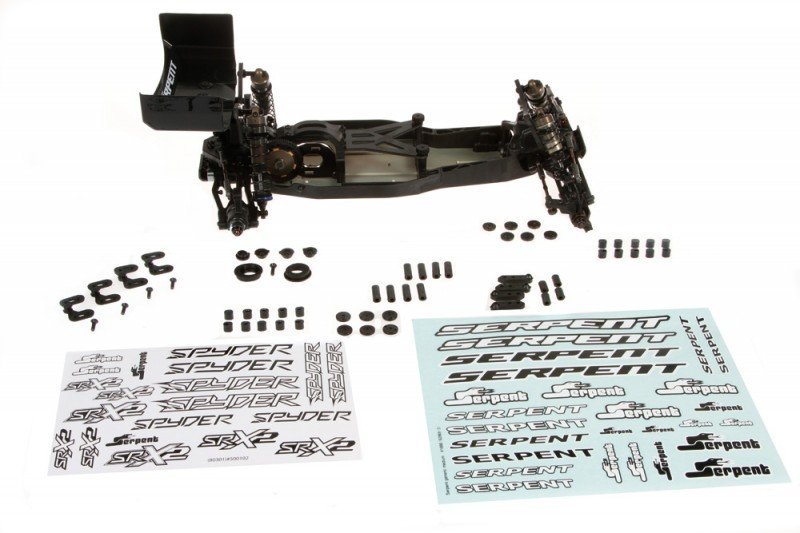

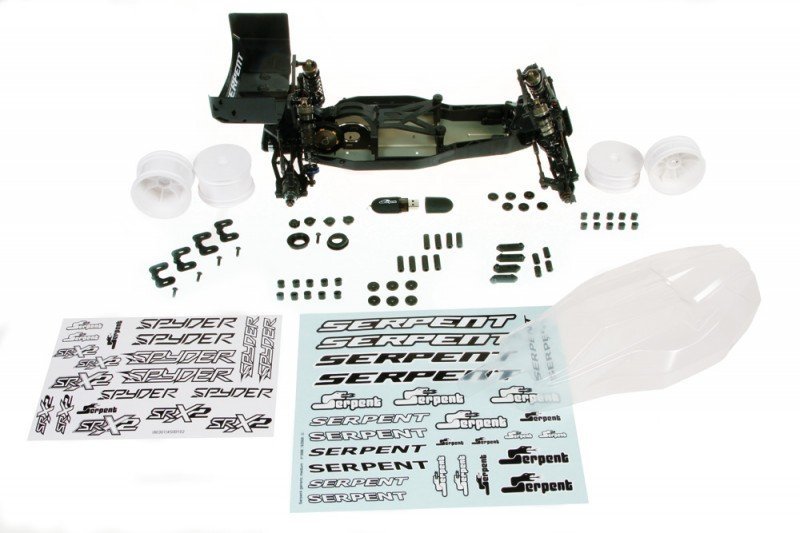

The kit comes detail by detail with body and tires, color manual and exploded views, a blank and standard set-up sheet and Serpent decals.

Set-up opportunities

- Wheelbase
- Caster
- Ackermann
- Axle height Front
- Front and straight back camber
- Front Toe-in and toe-out
- right back Inboard toe-in angle
- back Outboard toe-in angle
- Antisquat
- Roll-centers
- drive height
- fat stability
- hardcoated shocks for dampening and springs, shock angle
- Gear ratios
- Anti-roll club degree ( option)
- gadgets placement

Steering system and Ackermann

The steering system has a reverse going pivot system that optimizes the effectiveness through many forms of corners. You have got 3 Ackermann alternatives.

Wheel-axles and wheel hex.
The springtime metal wheel-axles used 12mm hex adapter to follow market requirements. Leading springs metal axle is fixed, although the back wheel-hex is a clamping aluminum variation.

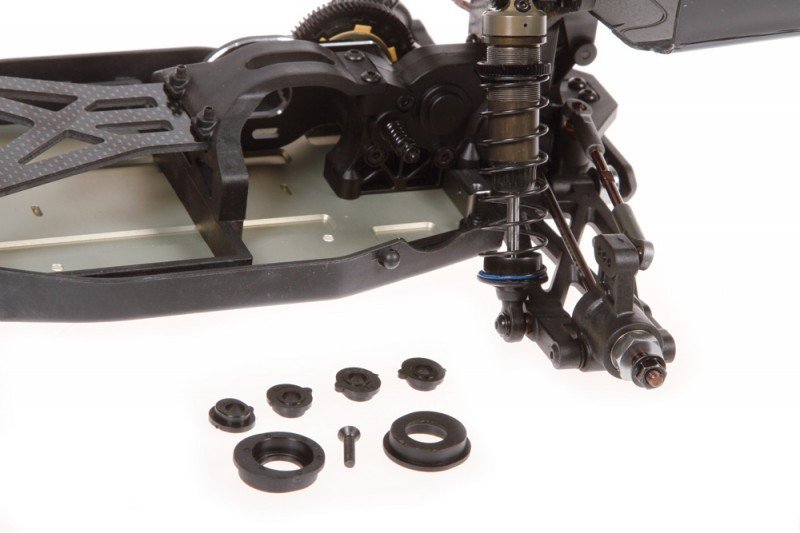

Steering Block and back Upright

The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights utilize a bigger 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and back uprights use big array of better high energy materials available.

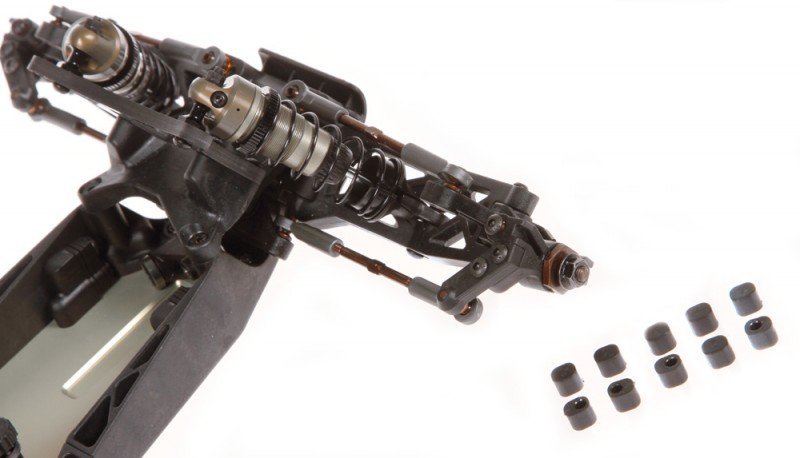

Upright Settings
The right back uprights permit you to adjust, the toe in from -2 to + 2 quantities by using different inserts additionally inside kit.

The Spyder SRX2 HT TEAM ( high-traction) will perform best at high traction tracks like carpeting, astro and high hold clay.

Key highlights of SPYDER 2wd buggy HT _ Team :

- effective battle geometry
- slim lightweight anodised aluminium 7075 T6 framework design with composite sideguards / stiffeners and seperate alminium kick-up meal
- Laydown transmission / motor design with light 3 gear transmission
- really efficient steering Ackermann
- Big bore 12mm hardcoated shocks with twin system
- Carbon shocktowers design for extra hold and durability
- Smooth gear-differential ( ball-diff optional)
- 3 pad slipper clutch
- Composite battery pack holder
- Light minimal, cab ahead body
- Durable and efficient suspension system front part and rear

As optionals Serpent provides the 3-gear upright, 4-gear upright and 4-gear laydown transmissions, being a breeze to produce for a passing fancy aluminum framework.

Spyder SRx2-HT Features

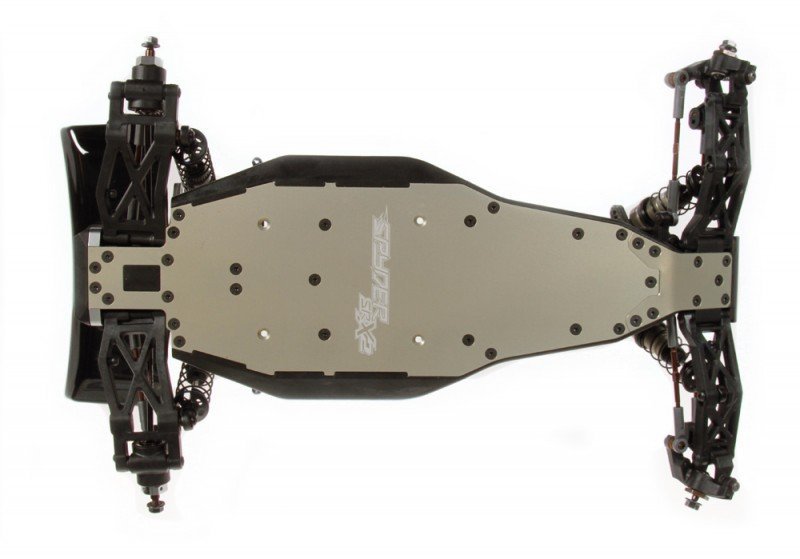

Chassis
Lightweight hard-coated and laser etched 7075 T6 aluminum framework meal with a layout allowing an unbelievable fat security, and optimal area the electronic devices, battery pack and servo. The aluminium front component kick-up dinner is split and angled to have extra approval for battle and invite for better nose landings. ( the split kick-up meal lets you furthermore install the optional carbon chassisplate).

Transmission

3-gear laydown transmission for high traction

Serpent provides some upgrade sets to complement a 4 gear upright transmission system, or a 4 gear laydown transmission furthermore.

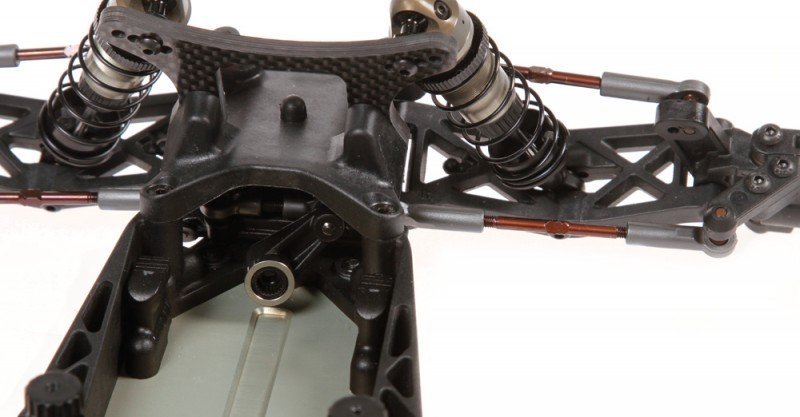

Shocktowers

Carbon front part and backside shock towers. The surprise towers have many shock angle functions allowing motorists to fine-tune for varying track conditions. The carbon towers allow some extra tightness to simply help with general hold.

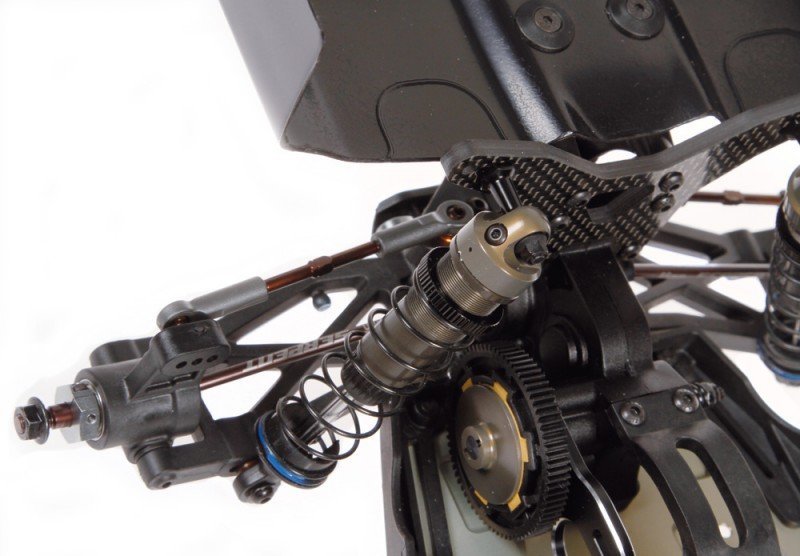

Shock absorbers

Dual system 12mm big bore shocks with hardcoated threaded systems and caps, a fantastic limit design, a superbly sealing o-ring and spacer package. The shocks can be utilized in bladder or emulsion setups.

The shock-set comes with a build up machined square pistons 2-hole 1.3 a range of 5 springs-sets could be must fine-tune the suspension system settings. Shock collars with internal o-rings may be used regarding the threaded figures to set-ride height.

front component top bulkhead

The front top bulkhead is strong and supports the utmost effective links and shock tower inside most useful means. Leading area offers the replacement mount a front wing and sway club unit

The lower front part bulkhead is initiated in 7075 T6 aluminum

front part wishbones
The wishbones are manufactured from an excellent strong composite item. The gullwing hands to optimize the CG and pivot on 3mm captured pins inside and away. The arms have in reality really 2 mounting jobs for surprise angle and are also usually usually willing to use an optional anti-roll club if required.

Front and back Track Rods

Spring steel front part side and right back track rods are installed to durable composite captured ball bones. The trackRods have actually in fact really L/R threading for simple adjustments.

Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level variation that are included. The caster obstructs are getting to be compact and strong items produced from an incredible composite product.
