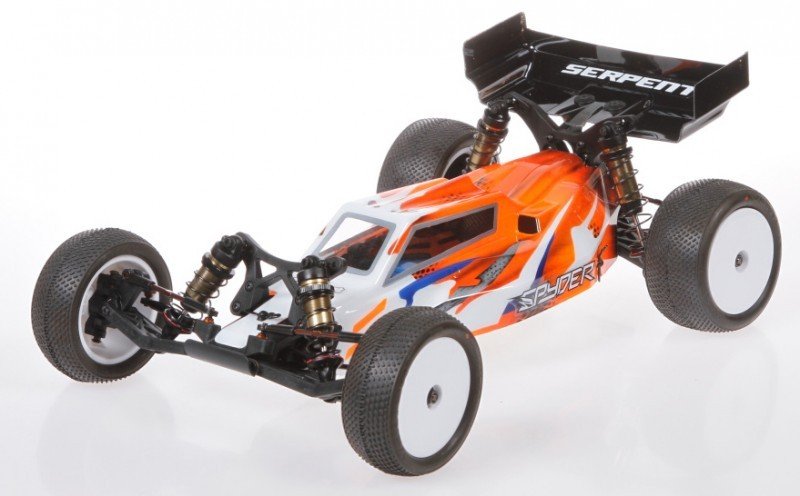

Spyder SRX2 Mid Hybrid 1/10 2wd The SRX2 MH key features - coated aluminium framework with seperate aluminium kick-up dinner - 2 transmissions included: 3-gear standing and 3-gear laydown ( 4-gear standing and 4-gear laydown are optional) - big bore shocks - ball differential - slipper clutch - adjustable carbon battery brace - buggy 2wd MH human body and big right back wing
Specs:
- Automobile: Spyder SRX-2 MidHybrid 2wd
- Class: 1/10 buggy 2wd
- Degree: Competition
- Length: 385mm
- Width: is different with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body fat: varies with gear utilized
- Included: battle chassis, body, right back wing, rims
- Maybe perhaps not included: tyres, tyre-inserts, electronic devices
Features:
- effective competition geometry
- Narrow anodised aluminium 7075 T6 framework design with composite sideguards / stiffeners and seperate aluminium kick-up meal
- Upright transmission / motor design with light 3 gear transmission
- Laydown transmission / motor design with light 3 gear transmission
- exceptionally efficient steering Ackermann
- Big bore 12mm hardcoated shocks with double system
- Composite shocktower design for additional hold and durability
- Smooth ball-differential ( gear-diff optional)
- 3 pad slipper clutch
- Composite battery owner
- minimal, cab ahead human body
- Durable and efficient suspension system system front and rear
The SRX2 MH kit is a 2 in 1 automobile, as Serpent provides 2 form of transmission in kit available. 1 x 3-gear upright transmission for low to moderate traction = LMT 1 x 3-gear laydown transmission for medium to high traction = MHT
The Spyder SRX2 LMT ( minimum to moderate traction) will perform most readily useful at low grip and medium traction tracks like yard, sand and clay. ( For super low traction Serpent provides the Spyder SRX2 right back motor kit).
The Spyder SRX2 MHT ( medium to high-traction) will be successful at medium to high traction songs like carpeting, astro and high hold clay.)
Framework
Coated and laser engraved 7075 T6 aluminium framework dinner with a design allowing an unbelievable fat protection, and optimal area the devices, battery and servo. The aluminium front side component kick-up supper is split and angled for significantly more approval for battle and invite for better nose landings. ( the split kick-up dinner lets you additionally install the optional carbon chassisplate).
Transmission
The SRX2 MH kit is actually a 2 in 1 automobile, as Serpent offers 2 kind of transmission inside kit available.
1 x 3-gear upright transmission for low to moderate traction = LMT
1 x 3-gear laydown transmission for medium to high traction = MHT
Serpent provides some upgrade sets to accommodate a 4 gear upright transmission system, or a 4 gear laydown transmission aswell.
Shocktowers
Composite front component and right back shock towers. The surprise towers have actually numerous shock angle jobs allowing motorists to fine-tune for varying track conditions. The optional carbon variations allow some additional tightness to aid with basic hold.
Shock absorbers
Double system 12mm big bore shocks with hardcoated threaded systems, a geniune limitation design, a fantastically sealing o-ring and spacer package. The shocks works very well in bladder or emulsion setups. The shock-set is sold with an accumulation of moulded pistons available. Many 5 springs-sets are must fine-tune the suspension system settings. Shock collars with inner o-rings are utilized in threaded systems to set-ride height.
Front top bulkhead
Leading top bulkhead is strong and supports the very best links and shock tower inside most useful means. Leading component offers the replacement mount a front wing and sway club device
Front wishbones
The wishbones are produced from an unbelievable strong composite item. The gullwing fingers to optimize the CG and pivot on 3mm captured pins inside and away. The arms have really 2 mounting functions for shock angle as they are usually willing to make use of an optional anti-roll club if needed.
Front and right back Track Rods
Spring steel front side and straight back track rods are generate to durable composite captured ball bones. The trackRods have actually actually in reality actually L/R threading for effortless alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level variation which can be included. The caster obstructs are incredibly compact and strong devices constructed from a specific composite item.
Battery space mount and fat security
The battery pack is made totally in center distinct the car. In case of utilizing a Shorty-pack, possibly it's relocated to front or back once again to play with fat safety. Areas of difficult foam are offered to do this and secure the battery pack put up. The carbon dietary fiber battery-top-brace has a secure fast launch system with handy twist peanuts and certainly will become a chassis stiffener too. The flex are effects making use of 2 small grubscrews. With the upright
Differential
The limited slide ball differential is a superb lightweight, effective and durable unit. Using 1.8th ins diff balls for ultimate durability. The dwelling and put up is typical input this program, though the top-quality elements and well working assists its is noticed.
Slipper clutch
The durable slipperclutch employs a 3-pad system with resilient pads, hard anodised aluminium components and springsteel shaft. The pre-load nut might simply reached and set.
Engine dinner and motor guard
The motor plate is a machined aluminium; its then anodized and machined for fat loss.
Anti-roll bars
Anti-roll bars are fitted regarding front side component and back regarding the car, are optional. They are often positioned on high hold areas to aid expand adjust the cars performance
Back Transmission instance
The composite straight back transmission instance is light and durable. It firmly holds the engine meal, differential plus supports the rear wing mount and backside shock tower.
Right back driveshaft system, wheel-axles
The springtime steel drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, directed by the 2 different size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is completely captured to stop any failure. These bearings are let me tell you to manage up the rigors of any track condition.
Back suspension system brackets and toe in
The 3mm springtime metal pivot pins take place make by the suspension bracket created from aluminium. In the bracket you utilize inserts to create toe-in and roll center. You can adjust the toe-in from 2 to 4 quantities and adjust the anti squat from 0 to 4 quantities.
Right back suspension system hands
The long and durable straight back suspension system system hands are getting to be tough services and products to withstand the rigors concerning the track as well as the hard landings. The trunk supply provides 2 options for shock location and two mounting places the straight back anti-roll bar if needed.
Body shell and straight back wing
The light and low cab-forward design body, stated in quality clear polycarbonate, has a pleasing going line, high front part component windscreen for down force with indents on area whenever you are viewing windscreen. The shark fin near the the surface of the cabin provides not only design but protection. The smooth body lines improve the vehicles look and accomplish that in any manner you'll need
The polycarbonate right back wing utilizes raised cutes on edges to improve wheel approval.
Straight back wing owner
The composite back wing owner is connected to the back bulkhead and surprise tower. It really is totally adjustable from 0,2,4,6 and 8 amounts. Its fixed into location by a washers and screws.
Ballbearings
high level sealed metal ballbearings with oil.
Fasteners
Rough steel , mostly allen screws, roundhead and countersunk.
Tires
Durable white nylon flat faced tires, created specifically doing company with all the current advancements inside front component and back suspension system geometry.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the effectiveness through various different types of corners. You have got 3 Ackermann alternatives.
Wheel-axles and wheel hex.
The springtime metal wheel-axles utilized 12mm hex adapter to keep glued to advertise needs. Leading springs steel axle is fixed, even though the back wheel-hex is a clamping aluminium variation.
Steering Block and right back Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights use a bigger 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and back uprights use one of several better high energy materials available.
Upright Settings
a corner uprights allow you to adjust, the toe in from -2 to + 2 quantities utilizing different inserts moreover within the kit.
