Serpent SER500503 Upgrade-set Aluminium Chassis SRX2 MH  [SER500503]

500503 Upgrade-set aluminium framework SRX2 MH3

The 2mm 7075 T6 framework is difficult anodized and all paid off holes are countersunk. The set includes the sidebars and center moulded elements to help keep the merchandise placed well and stiffen up the framework. The framework can accept the 3 and 4 gear standard transmission and 3 and 4 gear laydown transmissions.

The batteryplate is a well machined carbon fiber one and advances the framework tightness too.

Leading end has another aluminium kickup-plate that may efficiently link on framework utilizing the durable moulded connector brace. This enables you in addition decide to try a carbon fibre framework effectively whenever required and its cheaper plus much more an easy task to alter a kickup meal if needed.

The set also includes the latest Srx2 human body which will efficiently be properly used the present 4-gear automobile, combined with laydown 3 and 4 transmissions.

Leading and end just mount within the framework up-date.

All components offer split a spares additionally.

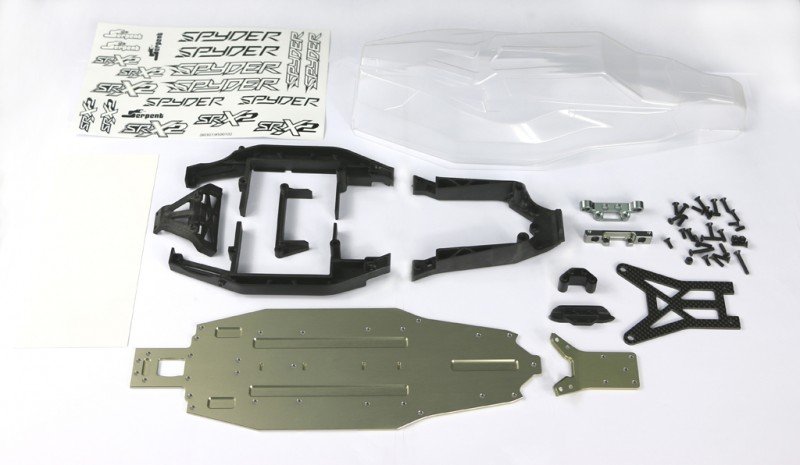

Articles towards set:

• S502 Spyder decal sheet b/wh 1
• S503-MM-Masking sheet 1
• S503-mm-battery-stap 1
• S503-mm-carriage-L 1
• S503-mm-carriage-R 1
• S503-mm-fr-kick-plate 1
• S503-mm-front-section 1
• S503-mm-inline-batt-holder 1
• S503-mm-rear-bulkhead-spacer 1
• S503-mm-rear-bumper 1
• S503-mm-rr-fr-toe-block 1
• S503-mm-rr-rr-toe-block 1
• S503-mm-trans-brace 1
• S503-mm-body 1
• S503-mm-chassis-alu-std 1
• cs-allen-m3x20 2
• cs-allen-m3x8 5
• cs-allen-m3x10 10
• cs-allen-m3x12 8
• CS Allen M3x16 1
• setscrew-m3x8 2
• nylock-nut-m3 3
