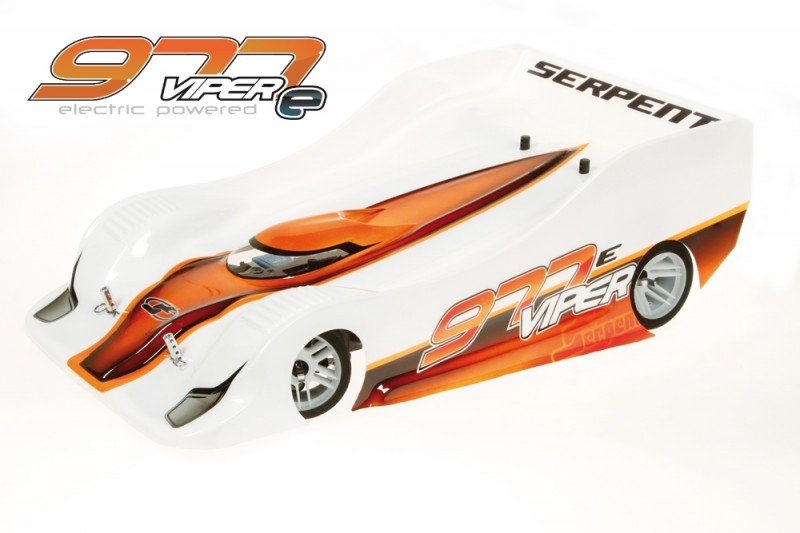

Serpent Viper 977-e is the 1/8 scale electric form of the Viper.
Needs:
- Course: 1/8th scale electric on-road
- function: High-end competition
- fat: 2.3 kg (decided by gear)
- Track-width back: 260mm - 266mm
- Track-width front component: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm carbon fiber, accuracy CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent enhance wishbone suspension system system system
- Shock absorbers: RCM surprise absorbers
- Rear axle: Solid back axle
- Front axle: Aluminium front component axle with one-way bearings
- guidelines: Comprehensive color Instructions
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and right back go centre
- Not Included: radio gear, wheels, tires, electric batteries packages, speedo, engine are not included.
Features:
- Carbon fibre framework 5mm and topplate 2.5mm
- Carbon fibre battery power bolder / protectors, completely adjustable fits numerous 3S LIPO batteries
- Lipo packages mount for every component off center, low and super balanced
- 2 gear system with 5mm belts
- Large pullies and ballraced gear tensioners
- Aluminium 7075 T6 motorholder in center, very easy to alter motor
- Aluminium fan-holder to set up 2 tiny or one bigger fan
- 14T motorpully / 48T spur ratio
- Viper 977 front part and right back suspension system system and shocks
- Race-ready fat around 2600 to 2650 grams
2 gear system with 5mm wide belts for optimized effectivity. Both belts have actually actually in reality ballraced belt-tensioners.
5mm rigid carbon fibre framework in perfect symmetrical sort even for flex and fat circulation.
Countersunk holes, chamfered sides for far more cornering, ground approval. All screws from base are with 2.5mm allen size.
2.5mm carbon dietary fiber top-deck to create a robust and rigid connection betwixt your foremost and rear-end towards vehicle . The servo is mounted toward heart of car and will hold big and low profile servos. The guts provides additionally space fo the receiver which is glued towards the small plate/ videos.
Strong carbon fibre battery holders, which will effectively be effectively modified to accommodate top 2S or 3S electric batteries packages. The batteries is relocated more to your front component and/or right back using the versatile mounting system. This might be usually trade the stability of automobile, to build more steering or hold. The paid down and main place the batteries create the maximum and greatest feasible CG.
Strong carbon fiber speedo supper, which fits hottest speedos well. The dinner with speedo linked may be simply expunged.
Smart machined aluminium motorholder in 8mm in fact durable product, which might stay the enormous power regarding brushless devices. Additionally it is because of this right back bearingblocks to create a rigid, yet versatile construction. The gearmesh is effortlessly modified through base through car. The kit includes a 14T pinion, other pinions might be had as choices.
Center shaft owner in 7075 T6 alumium to put up and offer the mid-shaft and spur (14T/48T). This can effortlessly make changing a spur gear an immediate and simple occasion.
Naturally the 977E has other features relating utilising the 977:
The strong aerodynamic shaped composite bumper comes from the 977 . The upward sides makes it become more stabile, so these wont touch the exterior liner under effect or with a top conditions.
The durable alu front side component side component bodyposts are excentric , to permit going the human body to front component or right back some mm to optimize steering / downforce.
The steeringblock , that can be setup kept or appropriate, provides a solution to enhance the axle spot more to front or right back supplying a trailing or leading steering, this implies power to replace the kingpin-inclination and offset.
The spring-steel steering-rods are fastened towards alu steeringplates, which mount towards the newest steeringblocks. Optional carbon fibre disks is manufactured independently in regards to the steeringblocks to stiffen the installation as well as for aerodynamic reasons.
The steeringblock is appropriate and left similar, and features an aluminium dish allowing you to link the steering-rods, 2 options for Ackermann.
The long durable front side component paid off wishbones, are arranged superlow on automobile, and function a semi covered leg the within suspension system system pin and pivot website link one of the keys anti-roll club system, its includes an expansion the down-stop screw . The lower arms keep the paid off alu shockmount supper, enabling another down and greater mounting point the best shocks. The strong top arms works well kept and appropriate. The key paid down hands relate solely to the alu front part bracket on suprisingly low nylon holders. The kit includes 2 variations, low and superlow. This process furthermore allows you to change a front driveshafts very swift and simple.
The longer top arms are set up concerning the anodized aluminium top brackets, which also supply the suspension system system system pin inserts allowing camber-change alterations with 3 feasible inserts . Under the alu top-brackets spacers lets you modification angle or height. Caster spacers are employed as easy videos towards the very best pivot pins. Identical videos are usually put on the reduced pins to enhance wheelbase.
The topmounted composite bracket provides additional stiffness towards leading component, it holds the 3mm dense carbon dietary fiber front shocktower and get the down-stop screws.
The ballraced front part component anti-roll club is a cable kind, with super easy and quick start access ahead part, captured within the alu front component braces. The normal cable is 2.5mm and 2 other as alternatives. The pivotballs link system directs the capability to the club in a smooth method and simple to handle the tweak with all the captured pivotball.
Inside front side component the alu front side component axle with Japan-made one-way bearings features a truly without any fee of play and super-true pully setup . Springsteel drivecups, strong, long and slim spring-steel driveshafts with CVD system, and ballraced springsteel wheelaxles with alu quick-change levers. The available front side part end design allows quickly and simple treatment with regards to the leading axle or elements.
The springloaded servo-saver allows quick and easy fast Ackermann settings. The servo-saver features a premier mounted insert which can be found in 3 jobs. Another 2 Ackermann functions into the steeringblocks.
The steeringblocks and straight back uprights relate solely to the hands with springsteel 8.5mm pivotballs , which run extremely smooth and well protected in nylon cups, and most of the time are in reality simple to adjust with an allen unit.
All supertrue pullies have actually really holes partly flanges allowing dirt and dirt to go out of easier.
The trunk end construction aided by the alu brackets holds a sizable part axle. Its open design allows eas of upkeep and cleansing, and requires few screws to dis-assemble. Changing a gear in case required, is simple and intensely fast too. The excenter regarding the rear shaft allows gear tensioning.
The ballraced straight back anti-roll club mount in steel adaptors, which operate in nylon spacers inside alu holders as vital the primary back brackets, with 2.5mm as standard cable and 2 other as alternatives. The anti-roll club links toward rear reduced fingers with adjustable trackrod guidance.
The solid back axle with new lightweight 48T pulley in Serpent springsteel, 9mm wide with 4 slots the pin.
The suspension system system system bracket and back dish provide pins firmly while having composite roll-center inserts making it possible for quick and accurate changes.
In right back strong springsteel driveshafts , springsteel wheel-axles with alu quick-change levers and a springsteel back axle. Incredibly durable and suffering drivetrain .
The long durable back paid down wishbones may be used kept and appropriate. The paid back supply holds the lower set up url the trunk anti-roll club and holds the alu mounting full bowl of a corner shocks, allowing a predicament which can be really far on backside as well as the utmost effective for many readily of use performance/ geometry. The reduced hands additionally support the easily obtainable down-stop screws. Nylon videos may be used concerning the reduced backside pins to change wheelbase.
The durable composite uprights wthhold the ballraced springtime metal wheelaxles, with aluminium quick-change levers. The 8.5mm piotballs are used to adjust camber without headaches with the smooth hex-shaped plugs . The hands linked to drifting bodymount mount towards the the most effective uprights. Along with up-right spacers could possibly be added in pivotball to improve rollcenter and camberchange.
Optional carbon fibre disks could be installed on the medial side through the uprights for aerodynamic reasons.
The adjustable back top camber links mount towards a corner carbon camberplate with 2 jobs .
The trunk drifting bodymount is connected to the up-rights with 2 fingers and held constantly constantly in place by a carbon-fibre-steel guider. The two hands have actually 2 functions available, considering human body utilized. Finally associated with the mount enable mounting body-supports , with complete threading enabling precise positioning. They leads the available downforce direct onto in direction of uprights toward tyres.
The kit features high level ballbearings, mostly sealed individuals with aeroshell lubrication or oil. All bearings inside automobile ( except for the servosaver and brakecam) are seated in nylon bushings to reduce vibrations and play.
The shockabsorbers may be the latest Serpent RCM devices with membrames. The threaded homes with setting-nuts ( or-ring inside) makes ride height modifications effortless and exact. One of the most significant guidelines and right back shock are identical. The RCM shocks are receiving become smooth, and simple to assemble and fill. The shocksprings are chosen, matched, flatgrinded, colorcoded services and products.
