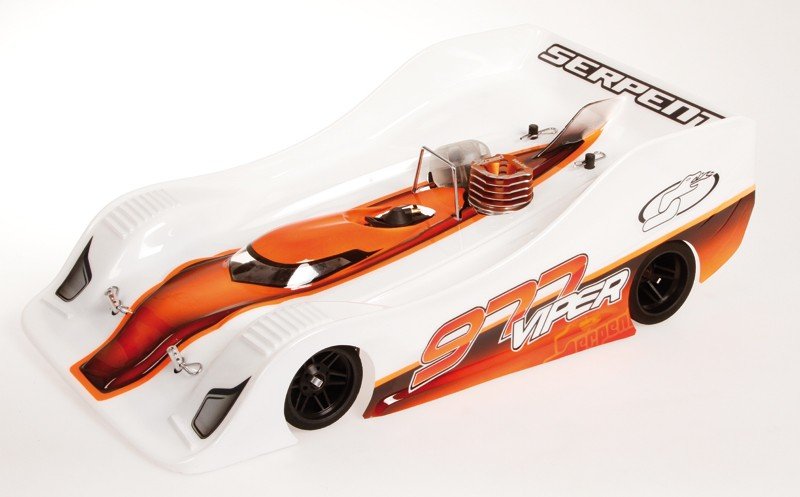

Serpent 1/8 scale Viper 977 competition automobile. 2013-2014 IFMAR TQ and World Champion, Japan Tadahiko Sahashi with Viper 977 Gaspowered toplevel racecar with 4wd, belt-drive, Centax genuine movement clutch, SL8 gearbox, flex-system front component and right back, stopping system on back axle, front one-ways, straight back offered axle, ballraced anti-rollbars. An entirely adjustable battle framework towards latest spec and technology. Lighter, easier, better, fresh geometry, more tuning features.
Needs:
- system: 1/8th scale gas on-road, IFMAR recommendations
- work: High-end competition
- fat: 2.420kg (in accordance with radio gear)
- Track-width straight back: 260mm - 266mm
- Track-width front component: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent enhance wishbone suspension system system
- Shock absorbers: RCM shock absorbers
- car's automobile's automobile's vehicle's gas tank: 125cc design
- straight back axle: Solid back axle
- Front axle: Aluminium front side axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax real movement clutch system
- suggestions: Complete color directions
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and back roll centre
- Maybe perhaps not Included: motor, pipeline, human body, radio gear, tires, tires, battery pack pack
Features:
- Complete groundbreaking platform, 90percent brand new elements
- Lighter, though superstrong and durable
- Lower center of gravity
- fresh front component and rear geometry
- brand new interior drive ratio with brand new pullies
- Brake concerning the right back axle
- new front flex system
- quite simple to exert give attention to with numerous little details according to below
- numerous elements are symmetric left/right (except front lower hands, back 2-speed bearingblocks )
- numerous ballbearings run in artificial bushings ( except brake-cam, servosaver)
5mm aluminium framework in perfect symmetrical form furthermore for flex and fat blood circulation. Aerospace quality 7075 T6 alumnium with engraved logo design. Improved tightness on the motor for better engine performance. Countersunk holes, chamfered sides for more cornering, ground approval. Region in center the primary framework allowing mounting of optimum 3 steel sliding lots, and this can be utilized as set-up device, to relax and play with framework security. It provides big impact on steering, hold and tyre use and it is quite simple and fast to boost. All screws through base are with 2.5mm allen size.
The strong aerodynamic shaped composite bumper comes from the 966-TE . The upward edges helps it be more stabile, so these wont touch the most effective under impact or with a premier conditions.
The durable composite front side side component bodyposts are excentric, permitting going the body to front part or right back several mm to optimize steering / downforce.
The most recent steeringblock , that will be generate kept or appropriate, provides one thing to enhance the axle spot more to front or straight back providing a trailing or leading steering, and capability to alter the kingpin-inclination and offset.
The spring-steel steering-rods are fastened towards alu steeringplates, which mount towards the current steeringblocks. Optional carbon fibre disks is initiated on their own connected with uprights to stiffen the construction as well as for aerodynamic reasons.
The steeringblock works and kept comparable, and features an aluminum supper for linked the steering-rods, 2 options for Ackermann.
The newest a lot longer durable front component paid off wishbones, are put up superlow inside vehicle, and show a semi covered leg for the interior suspension system system pin in addition to the pivot hyperlink the best component anti-roll club system, its also provides an expansion the down-stop screw . The paid down fingers keep the paid down alu shockmount supper, permits one more away and greater mounting point the front shocks. The strong brand new top arms in-may be utilized kept and appropriate. Leading reduced fingers connect with the alu front component bracket on low nylon holders. The kit includes 2 variants, low and superlow. This technique additionally enables you to alter a front driveshafts extremely swift and simple.
The longer top arms are installed linked to the anodized aluminum top brackets, that also offer the suspensionpin inserts allowing camber-change customizations with 3 feasible inserts . In the alu top-brackets spacers might be regularly modification angle or height. Caster spacers can be used as effortless videos regarding top pivot pins. Same videos may also be added to the low pins to improve wheelbase.
The topmounted composite bracket provides extra stiffnes towards front component area, it holds the 3mm dense carbon fiber front side component shocktower and invite the down-stop screws.
The ballraced front part anti-roll club changed to a wire type, with not so difficult and fast available access regarding front side part component, captured in alu front component braces. The conventional cable is 2.5mm and 2 other as options. The pivotballs link system directs the capacity to the club in a smooth technique and an easy task to carry out the tweak aided by the captured pivotball.
Appropriate appropriate ahead component the alu front part axle with Japan-made one-way bearings features now a better pully setup, without play and super-true. Springsteel drivecups, strong, long and slim spring-steel driveshafts with CVD system, and ballraced springsteel wheelaxles with alu quick-change levers. The available front end design permits quickly and easy reduced amount of this leading axle or elements.
The newly created springloaded servo-saver enables effortless and fast Ackermann settings. The servo-saver features a high mounted insert which are generally used in 3 jobs. Another 2 Ackermann functions regarding steeringblocks.
The most up-to-date steeringblocks and right back uprights relate with the fingers with springsteel 8.5mm pivotballs , which operate extremely smooth and well protected in nylon cups, and so are simple to adjust with an allen item.
Lowered split-design 2.5mm carbon fibre radioplate frontplate to lessen the maximum market of gravity and invite the newest optional flex-control system. The frontplate produces an incredibly rigid front side part component component product which also covers the servosaver to improve steering precision. The radioplate holds the fueltank, the receiver electric batteries and important electronic devices bracket/box.
Leading end construction includes an optional system permitting from zero flex for a lot of flex, around essential for optimal usage. An excellent system composed of a bearing and bushing controls the flex. This set is optional. Allowing the flex the radioplate is split in 2 components. One of the secrets dinner allows the torsion, due to the fact the leading component meal keep the front end rigid, thin flex happens simply where most reliable. Standard the flex-space is full of an oval nylon spacer. The flex elements contain 2 bearings and 2 inserts. By loosening the screw of alu owner within the front of main radioplate , the flexsystem might be triggered ( or fasten to de-activate ).
Compact composite brace and package in one, which holds and protects the receiver and mounts both servos, which both lay in the edges, simply feasible, simply a little approval permitting framework flex. The limitation from the receiverbox provides an original yet quick and simple safe owner the cable connectors associated with receiver, which works as a straightforward switch also it's very available.
The optional carbon transponder brace mounts towards the built-in electronic devices brace. Whenever using only just a little receiver, the container has area to keep the transponder too, but must certanly be tested for function in front of the competition. In your test that worked.
Repaid 125ccm fueltank an additional long and slim design, with a premounted bronze filter. The slim tank makes yes an improved fuel-supply towards motor, considering the fact that the gas could possibly get less forward and backward. The labyrinth within the fueltank might keep consitently the gas more stabile and stops foaming. The tank provides elevated parts ahead part, which will make yes the gasoline remains nearby the filter whenever the tank is amlost empty. This creates like a warning sign a matter of moments while watching tank goes completely empty, that will assist you seek out a safer spot to park. The fueltank has a great springloaded limitation and silicone rubber shaped seal, and possesses one of the links the force line. The inner base of th tank allows mounting inserts to lessen amount if needed.
The composite nylon radioplate bracket, holds a corner some the radioplate since the strong chromed angled roll-bar, also mounts the adjustable ballraced belt-tensioner. An aluminum one is optional.
All the topmounted screws might within allen 2.0mm size, excluding the most truly effective suspension system brackets in 2.5mm.
The batteryholder relating to the tank and side gear , ended up being designed to fit the greater amount of common Lipo packages. Furthermore there's demonstrably room enough to permit for a regular batterypack. The master includes a straightforward spacing system allowing this.
The light, hollow 8mm hardcoated aluminium center shaft is held rigidly in location particularly, low spot and light alu owner, that also holds the spring-type exhaust-wire.
Yesteryear drive ratio the auto is 2.286
28T front part pulley
18T mid-inner pulley
25T mid-outer pulley
19T outside lay-shaft pulley
21T interior layshaft pulley
48T back axle pulley.
A lot of the superround and genuine pullies have in fact truly the truth is holes inside component flanges allowing dirt and dirt to venture out easier. The 977 has a complete brand-new number of pullies, with additional teeth, for that reason larger diameter making the belts operate smoother, with less friction.
The belts are low friction type as standard, back one as 8mm, component in 6mm and front 6mm too. The adjustable ballraced belt-tensioner ( carbon, alu) keeps the sidebelt running smooth.
The paid off seated anodized aluminum engine mounts keep the motor in a position and aligned and get heat towards the framework in simplest means.
The most up-to-date end construction using the alu brackets holds the braking system and straight back axle. Its available design permits eas of maintenance and cleansing, and requires acutely small screws to dis-assemble. Changing a belt whenever required, is easy and intensely fast too. The excenter on backside shaft allows gear tensioning. The complete end are eliminated while you product from framework, with handful of screws.
The trunk axle sits low in the automobile than ahead of, to perform more technical hold.
The stopping system relocated towards right back axle, close to the solid axle pully. This decreases the inertia effectation of the brakedisc lots since the straight back axle spins a huge amount sluggish versus twospeed shaft. Combined with the brake-stress inside the right back gear 's very nearly gone. Its a really compact system and well protected against dust, but nevertheless available enough allowing for sufficient coolng. The swimming ventilated brake-disk rotates on a substantial component axle and springloaded cam-operated stopping system pads provides the majority of the stopping energy you will need. Your competition stopping system pad product is baked on strong steel dishes and enables really precise stopping with a decent number of brake-feel / feedback. In place of a cable we preferred the well-proven wire-linkage of the many Serpent cars.
The ballraced braking system activator is bolted in a light alu owner towards the right back bracket.
The ballraced backside anti-roll club mount in metal adaptors, which operate in nylon spacers inside alu holders as essential one of the tips right back brackets, with 2.5mm as standard cable and 2 other as alternatives. The anti-roll club links towards right back repaid arms with adjustable trackrod guidance.
The solid back axle with exclusive lightweight 48T pulley in Serpent springsteel, 9mm wide with 4 slots for the pin.
The aluminium straight back brackets besides the 2-speed layshaft holders have in fact in reality small ears which enable mounting from optional alu or plastic spacer, to handle flex. Either complete flex, no spacer, or some flex with artificial spacer, or zero flex utilizing the aluminium spacer.
The suspension system system system system bracket and straight back meal provide the pins securely and today have finally composite roll-center inserts allowing fast and exact corrections.
In to the right back strong springsteel driveshafts , springsteel wheel-axles with alu quick-change levers and a springsteel straight back axle. Actually durable and suffering drivetrain
This new a lot longer durable backside paid back wishbones can be used held and appropriate. The paid down right back provide holds the reduced set up link a corner anti-roll club and holds the alu mounting plate of a corner shocks, enabling a situation that's acutely far towards a corner and to the most notable for a few effortlessly of use performance/ geometry. The lowr arms additionally keep carefully the available down-stop screws. Nylon videos can be employed regarding repaid backside pins to boost wheelbase.
The durable composite uprights wthhold the ballraced springtime steel wheelaxles, with aluminium quick-change levers. The 8.5mm piotballs are accustomed to adjust camber without headaches due to the smooth hex-shaped plugs . The fingers in regards to the drifting bodymount mount toward the utmost effective uprights. Inside the up-right spacers is added inside the pivotball to improve rollcenter and camberchange.
Optional carbon fibre disks could possibly be attached to the medial invest this excellent uprights to stiffen the construction as well as for aerodynamic reasons.
The adjustable straight back top camber links mount toward back carbon camberplate with 2 jobs .
A big component drifting bodymount is attached to the up-rights with 2 fingers and held constantly in place by a carbon-fibre-steel guider. Both hands have actually really 2 jobs available, dedicated to human body utilized. To conclude with this particular mount permit mounting body-supports , with complete threading permitting precise positioning. The system leads the available downforce direct onto towards uprights towards the tyres.
The compact, light 2-speed gearbox comes through the 966, featuring its verified durable and effective design, superb gears and putting up with one-way. The 8mm springsteel 2-speed shaft is lightened , yet safe side to get rid of flex or breakage .
The newest Serpent genuine Motion Centax clutch is ready. Serpent as creator the original centax clutch, is rolling right out of the clutch in recent times in addition to the current variation excels in energy throughput , reliability and eas of environment. The initial verison is sold with aluminium clutch bell and difficult anodized clutch-gears.
The kit features higher rate ballbearings, mostly sealed individuals with aeroshell lubrication or oil. All bearings into the vehicle ( besides the servosaver and brakecam) are seated in nylon bushings to reduce vibrations and play.
The shockabsorbers may be the latest Serpent RCM devices with membrames. The threaded domiciles with setting-nuts ( or-ring inside) makes ride height improvements effortless and accurate. Leading and right back shock are identical. The RCM shocks are getting become smooth, and easy to create and fill. The shocksprings are plumped for, matched, flatgrinded, colorcoded things, equal size front component and back.
