Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP [SER904005]

Price:

CAD$735.38

Brand:

Serpent

Model:

SER904005

Condition:

Brand New

Quantity:

Write a review

alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"

Description

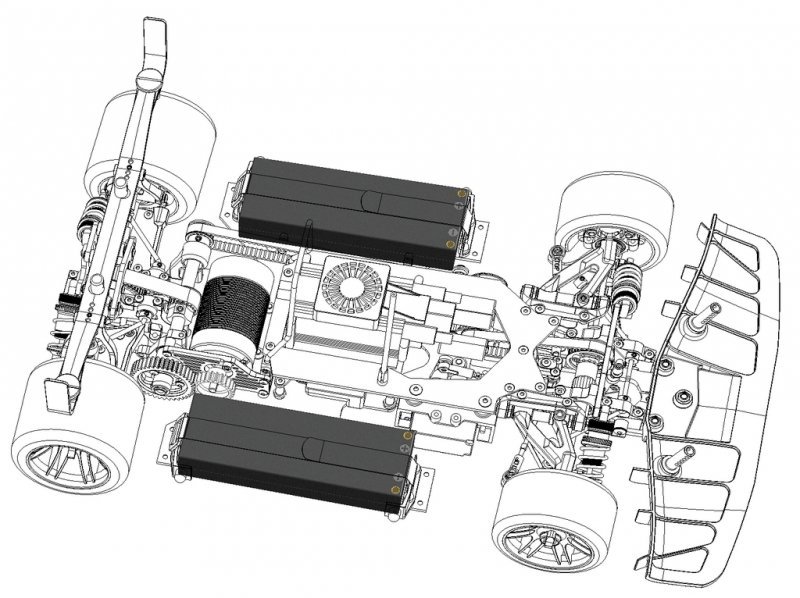

Energy circulation starts using the batteries. We made area for severe power, 4S, 6S or even more. There was clearly enough area for them, nevertheless these are typically suprisingly low inside car.
The batteries are arranged on a 2.5mm dense carbon meal. They are generally arranged in 3 various jobs, changing the CG to change the automobiles behaviour

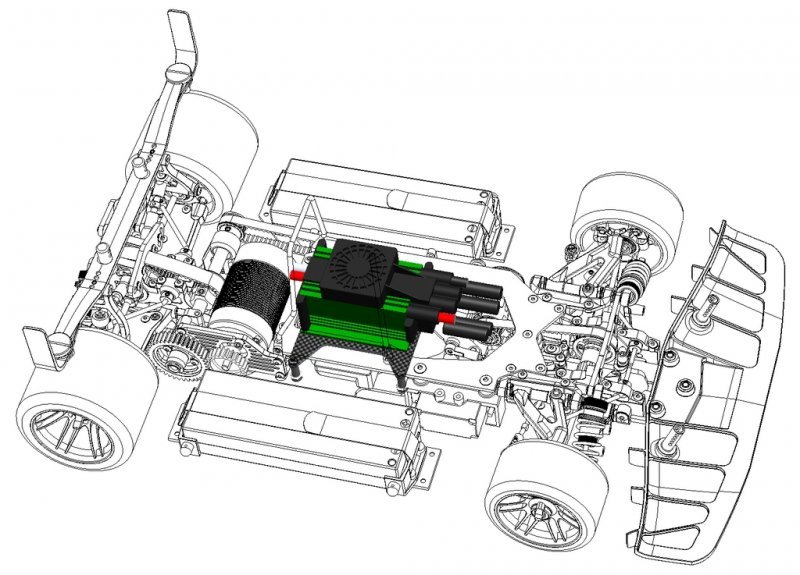

The elevated speedo mounting dinner provides stiffness the electric batteries meals and produces in addition area for oversized speedos. Besides 1-5 scale speedos fit, a tremendously popular option in the dragster rushing scene

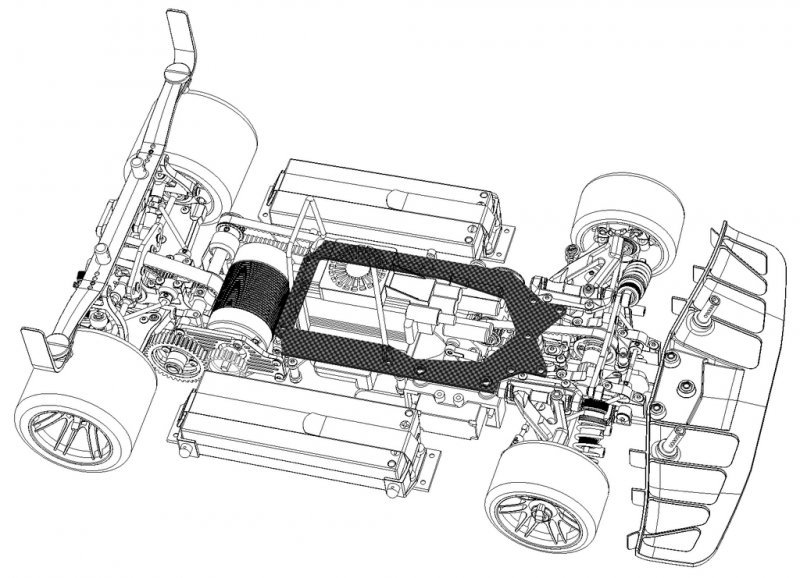

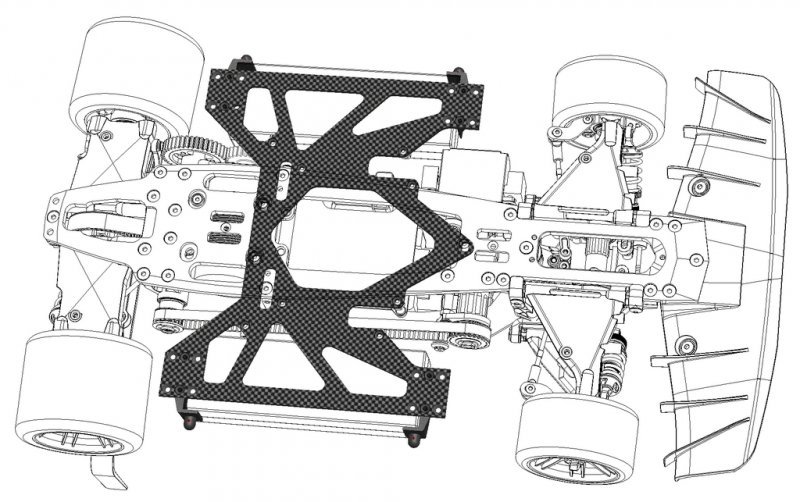

The topdeck is producing enough tightness for your framework and holds the receiver, steering-servo and gear tensioner

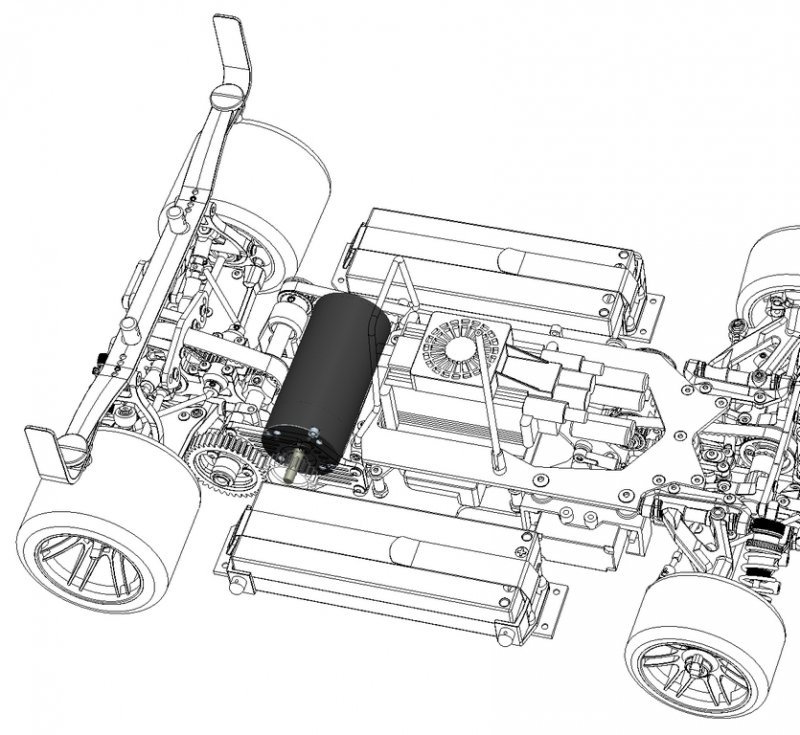

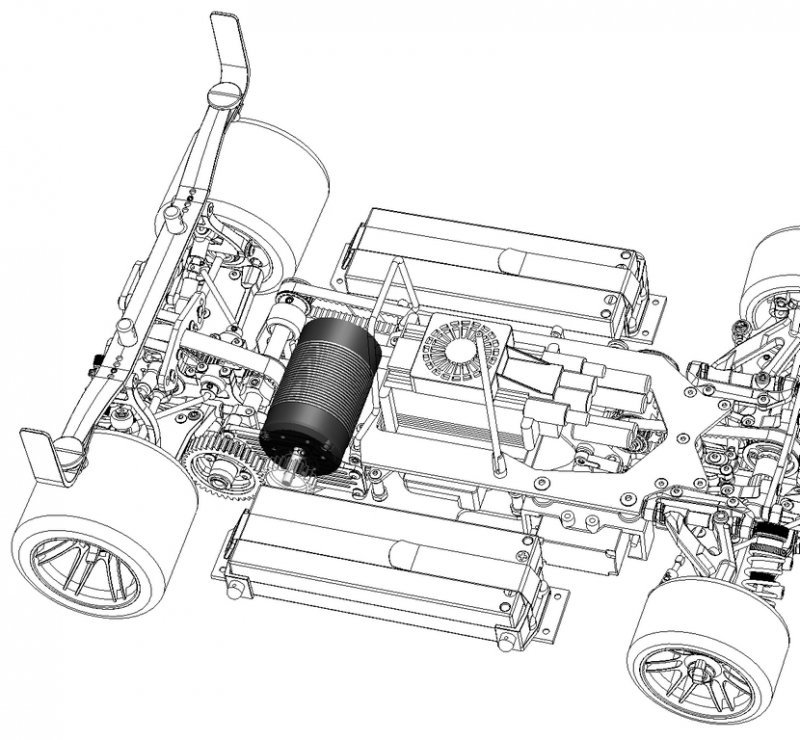

We furthermore took care applying this motor. We created the location for countless engine sizes.
Even long customized machines have enough room

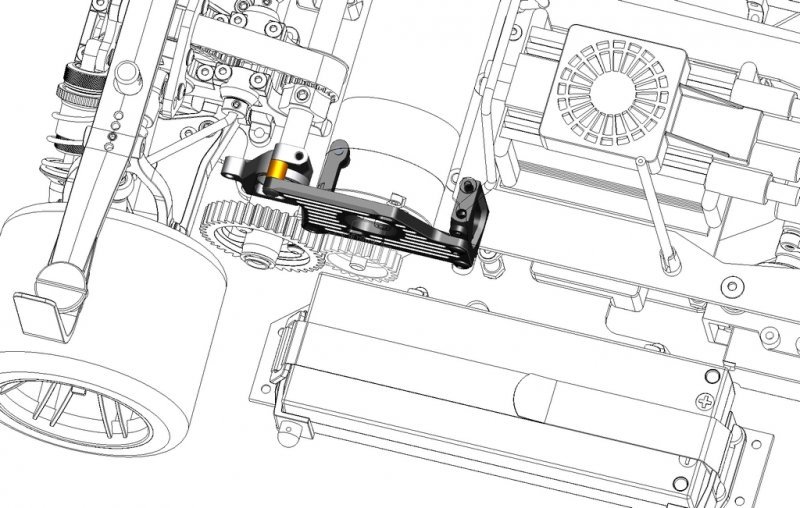

To avoid unwelcome torsional flex, we created a “power industry” through the whole motor, causeing the location of framework exceptionally rigid. To help with making this take place, the motor mounting supper is attached to the bearing-block the spur gear shaft, towards the framework and to the mounting bracket concerning the topdeck

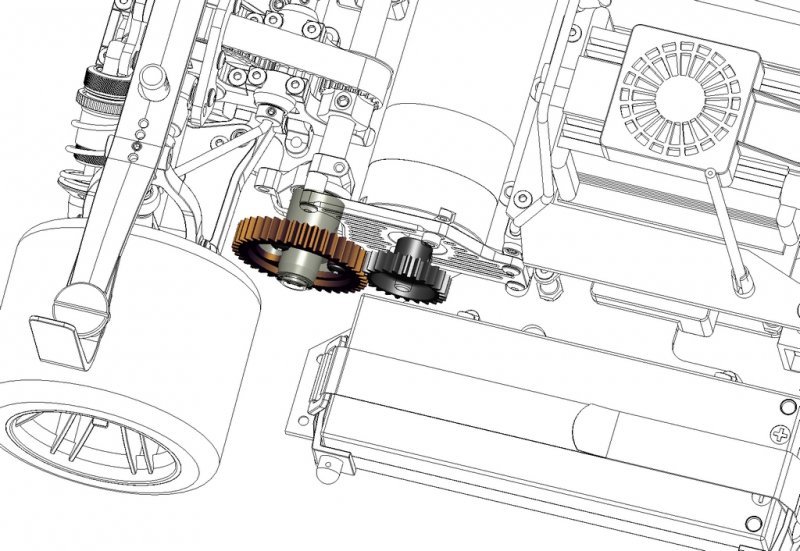

Power is supposed become delivered further with unbreakable, module 1 metal gears

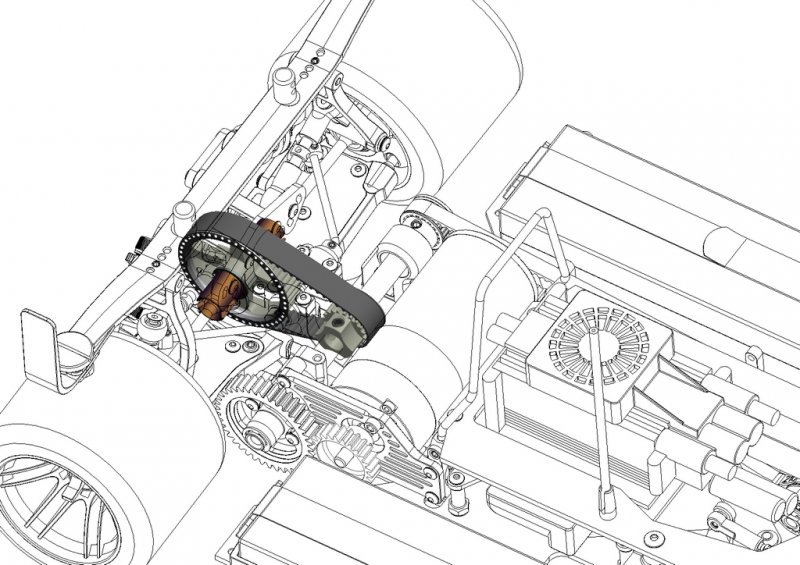

Further down we changed to an excellent wide, 10mm back gear. The power then undergoes the solid straight back axle which holds a n aluminium pulley as well

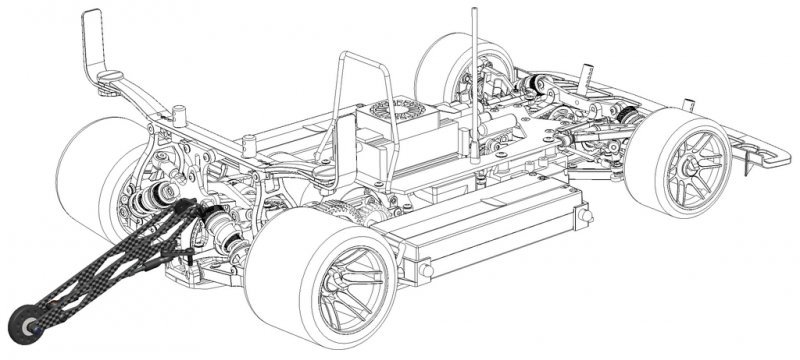

For the dragster enthusiasts you can expect a wheelie club as an option.
Overview associated with main specs
Chassis
Symmetrical framework dinner optimised flex and
torsion, in 7075 T6 aluminium, anodised and
laser etched. Chamfered edges for considerably more
ground approval whenever cornering and
countersunk holes.
Low big bore shocks
Coated threaded surprise systems in quality
aluminium. Supersmooth x-ring / machined
bushing package, to steer and seal the springtime-
steel piston rods. Precision machined pistons
an integral part of 3 kinds. Threaded pre-load
shocknuts in aluminum with O-ring inside. Light but
strong nylon spring-cups. Selected, matched
and paired shock absorber springs with color
coding.
Shocktower front component & right back
The 3mm carbon fibre front side and right back shocktower
with 2 jobs leading and 3 functions
the trunk to find the best degree surprise mounting.
Steering obstructs
exemplary composite steering obstructs with 2
Ackermann positions, L and R use very same .
The steering obstructs work inserts, which
enable to enhance the kingpin inclination to a
leading or trailing spot. The steering
obstructs additionally enable utilization of the optional carbon
soluble fbre aero disks become generate regarding affordable flex
and an even more direct steering feel.
Uprights
Durable moderate kind composite uprights, which
seat the wheel-axles bearings. The upright
provides the mounting place the steel
camber-rod with L/R threading. Roll centre
changes could possibly be manufactured in the upright with
shims. The upright is set up combined with
optional carbon dietary fiber aero disks for lots more straight back
hold and right line security.
Wheel axles and driveshaft
The durable spring metal wheel axles combined
with springtime metal driveshafts bring the capacity
towards the tires.
Pullies
Precision moulded super-true pullies, which
work holed sidewalls enabling debris transfer
easier. Light and durabele.
Belts
Minimal friction Kevlar reinforced belts with fine
pitch. Longlasting and smooth.
Decals
The 989 includes one sheet with Serpent
generic logos and another with 989 logos. Decals
are extremely slim item and come pre-cut.
Serpent Viper 989E
Produced By Michael Salven.
