Tamiya Electronic Speed Controller TEU 201BK (for Twin Motor) 45073


It’s back, and ready to obliterate unfriendly terrain just like before! This time, the Tamiya Super Clod Buster appears as a special Black Edition, with new colors for the body and components, a brand-new sticker design and more!

Two Motors and 4WS System
The Super Clod Buster is equipped with two motors and tightly sealed gearboxes that have been molded as one piece with axle housing. Minimum power loss and smooth cornering are obtained thanks to gear train transmission and differentials. The included Dual Motor ESC provides ample power to get your truck over obstacles. Furthermore, this monster truck is also equipped with a 4WS system for 4-wheel drive steering. This feature makes tight cornering with such a big machine easy!

• 1/10 scale R/C model assembly kit. Length: 480mm, width: 380mm, height: 340mm.
• The truck body is injection molded in black plastic, with detail and realism. Metal- plated parts are included to depict front grille, supercharger air intakes and roll bars.
• Red plastic bumper and damper components.
• The model is based around a bathtub chassis frame, endowed with rigid link suspension and two springs on each wheel that provide ground clearance of 55mm and a superb off-road drive.
• Four-wheel steering.
• Two Type 540 motors included.
• Included: Hobbywing Produced ESC (Tamiya Specification TEU-201 BK)
• New Sticker design.
• Requires: 2 or 3 channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and TS paint.

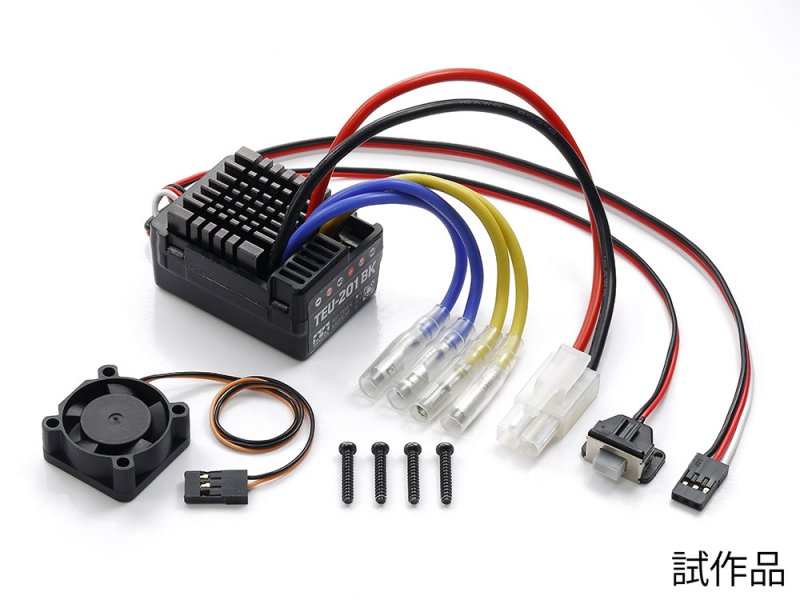

TEU-201 BK (For Twin Motor) ESC
• Compact forward/reverse electronic speed controller for twin-motor R/C models such as Super Clod Buster.
• Large aluminum heat sink and cooling fan allow effective heat dissipation.
• Low voltage protection function limits potential for over discharging of battery pack.
• Compatible with not only NiCd battery packs but also LF battery packs and NiMh batteries.
• Features overheat protection function.
• LED warnings indicate no-signal status and show protection function status.
• Built-in BEC (6V/4A) is compatible with servos such as digital servos.
• Features Tamiya battery connectors.

Specifications:
• Compatible receiver: Ground use R/C receiver
• Control system: High-frequency system (8Khz)
• Max continuous current: (FET Spec): 80A
• Functions: Forward, reverse, and brake
• Output: Forward 100%, reverse 75%
• Power Supply voltage: 606V-7.2V
• Receiver output: BEC 6V/4A
• Compatible motor: Sport Tuned Motor or brushed motor of 25 turns and above.
• Dimensions (including protruding sections): 47.0X36.5X26.5mm (39.0mm including cooling fan)
• Weight: 77.5g

TEU-201 BK Instruction Manual

Specification:
  • Adjustable Gear Ratio : Fixed
  • Bearings : Plastic bushing
  • Body Material : ABS Plastic
  • Body Stickers : Included
  • Chassis Material : ABS Plastic
  • Chassis Type : Monster Truck
  • Construction Type : Assembly Kit
  • Differential Type : Gear
  • Drive Type : 4WD
  • Electronic Speed Control (esc) : Hobbywing Produced ESC (Tamiya Specification TEU-201 BK)
  • Motor : 540-brushed type
  • Required To Complete : 2-channel radio, steering servo, 7.2volt battery with battery charger, and Tamiya PS paint.
  • Scale : 1/10
  • Shock Damper : Friction type
  • Terrain Use : Multi-Purpose
