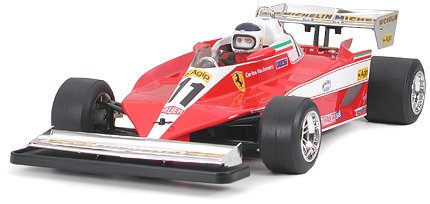

Tamiya 49191 - 1/10 Ferrari 312T3 - F103RS [49191]

Price:

CAD$226.48

Brand:

Tamiya

Model:

49191

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Formula Cars category

Write a review

alt="Tamiya 49191 - 1/10 Ferrari 312T3 - F103RS" title="Tamiya 49191 - 1/10 Ferrari 312T3 - F103RS"

Description

Towards Ferrari 312T3
The sleek and effective Ferrari 312T3 made its battle first toward 1978 South African Grand Prix. Beneath it's aerodynamically polished, wide body lay a 3-liter horizontally installed 12 cylinder engine with 510 horsepower of manufacturing. With motorists Carlos Reutemann and Gilles Villeneuve through the wheel, the Ferrari 312T3 took a general of 4 victories for the Grand Prix duration and took 2nd devote the 1978 Constructors Cup.

Light-weight, no-nonsense framework
Chassis employs FRP half double-deck F103 framework. Front split kingpin coil suspension system and back FRP rigid coil springtime suspension system. Kit comes standard with high-efficiency ball differential gears. Super-durable resin body and a supplementary clear body are added to kit.

Specifications

Overall size: 447mm
Overall width: 201mm
Overall height: 105mm
Clearance: 7mm
Weight fully prepared: 1,210g (dimension includes TP-S3003 servo, CPR device and 1700MP battery power.)
Wheelbase: 260mm
Tread F/R: 170/155mm
Chassis product: FRP
Chassis type: Half twin deck frame
Steering tie pole: 2 component, exact same length
Suspension: Front and straight back double wishbone
Caster angle-F/R: 6deg/0deg
Camber angle-F/R: 0deg/0deg
Toe angle-F/R: adjustable/0deg
Damper F/R: None/Adjustable friction damper
Transmission Type: part winder direct drive
Gear ratio: 3.7:1
Diff. gear system: straight back ball diff.
Recommended cost controller: Electronic price controller
Front tire width/diameter: 30mm/56mm
Rear tire width/diameter: 45mm/58mm
Tread pattern: F/R Slicks
Tire product: F/R both fibre mildew kind A
Motor: RS- Type 540

Required Things (Sold Separately)

R/C unit: Adspec GT-1, or FET 2-channel R/C product with electronic speed control
Battery: Tamiya 7.2V Ni-Cd battery
8 R6/AA/UM3 Batteries

ELECTRIC KITS WANT:(unless stated in another way above)

Radio: 2-Channel with servo(s)
Battery: 6-cell flat with standard Tamiya connector
Charger: AC/DC timed or peak for 6-cell battery
Paint: PS for Polycarbonate/TS for ABS
Misc. Things: Building and track gear
