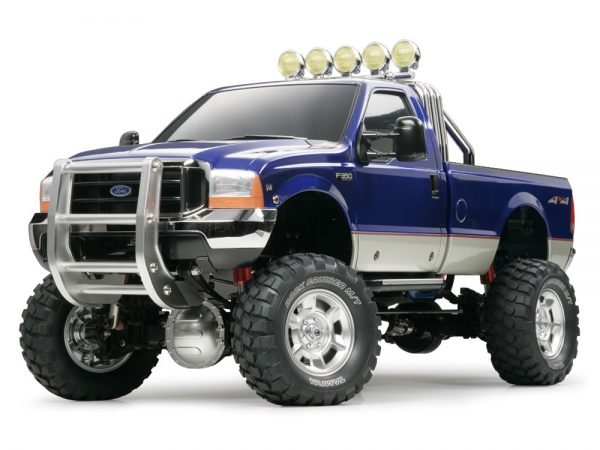

Tamiya 58372-60A - 1/10 Ford F-350 High-Lift (w/o ESC)  [58372-60A]

Electric R/C construction kit of 1 associated with acutely numerous representative usa pick-up cars, the FordF-350. The model features practical ladder framework, 3-speed transmission and shaft drive 4WDsystem. Definitely detail by detail injection molded human body and big diameter tires boost the stylishhigh-ground-clearance look. Initial marking stickers increase the truck&39;s fundamental realism.

METAL & METAL PLATED ELEMENTS

• Sufficient steel elements specially ladder framework, under guard, front part guard, leaf springs and aluminum friction dampers are included.
• Roll club, road light, front grille, front/rear bumper, side-step, diff guard, tires and muffler function metal-plated finish.

MULTI FUNCTION DEVICE This Multi Function unit provides much more satisfaction on procedure associated with R/C Ford F350. Featuring practical noise files recorded from genuine automobiles, controllable Light-emitting Diode lights and also other movement results, this process will notably expand the potential of your respective Ford F350.

LADDER FRAME Durable and practical ladder framework comprises steel channel and resin cross individual.

PROPELLER SHAFTS F/R propeller shafts work universal joint to efficiently move energy even in the big event suspension system system system ismoving along.

FAST BATTERY HOLDER

• Battery held in low location for exemplary fat stability and protection.
• Easy access owner permits running battery become exchanged without eliminating body.

4WS STEERING ROD

• 4 wheel steering are enabled by adding kit provided back axle anxiety pole.
• 4-wheel steering permits additionally tighter tuing radius, perfect when working with car in or inconfined space.

WHEELS & TIRES

• Newly created monster vehicle tires function lug patte appropriate driving on rough surfaces.
• Apply concrete to wheels and tires whenever working on rough terrain.
• Wo out wheel hubs are changed with 53056 Pin type Wheel Adapter.

DIFFERENTIAL GEAR Durable resin gear instance with key die-cast differential gear.

DIFFERENTIAL LOCK

• Differential lock, necessary for driving on rough roadways, might be effectively enabled by reducing F/R diff situation covers as well as the eradication of screw pins.
• By using differential lock, drive power is delivered whether tires using one component aren't grounded.

FRICTION DAMPERS

• Features red anodized aluminum cylinder. Damping impact could possibly be modified by using individually available Friction Damper Grease and including o-rings. Choose in accordance with ground conditions and leaf springtime number.
• Standard: normal operating standard settings.
• Soft: low-speed, high hold operating usage 2 leaf springs and adjust anxiety making use of damper oil (soft) 53174.
• Hard: stable and high-speed operating usage 5 leaf springs while making use of damper oil (medium) 53175 or (difficult) 53176.

BEARINGS

• Kit includes a complete of 42pcs of Metal bearings(bushings) (35pcs x 1150, 4pcs x 1260, 2pcs x 850 size metaland 1pc of 1050 size ball bearings).
• Metal bearings require regular application of oil to maintain performance. Separatelyavailable ball bearings do not require this treatment, and so are usually crucial.

MOTOR

• This kit is built to be used simply with pre-supplied kind 540 engine and pinion gear.

NEEDED ITEMS (never ever INCLUDED)RADIO CONTROL UNITTRANSMITTER, RECEIVER,ELECTRONIC SPEED CONTROLLER (ESC), STEERING SERVO & SHIFT SERVO

• Needs 4-channel, 2-servo electronic proportional R/C product with electronic rate controllerwith adjustable ahead and reverse function.
• Use of Futaba Attack 4WD (4ch) or stick sort transmitter with autumn trim is recommended toperform gear modification while running. The Airtronics VG400/600 model radios could be capable simply because work fall trim and self fundamental control sticks.
• 2ch R/C device cannot be utilized as it cannot go gears.
• PCM sort receiver may possibly not be used as it might trigger radio disruption when utilizing withseparately available Multi Function Unit.

• Use high energy type ESC with reverse function (maximum constant up-to-date: ahead 120A,reverse 60A, FET legislation).
• A high-spec ESC is extremely suggested whenever working on rough terrain.
• TEU-302BK Electronic Speed Controller (ITEM 45028) is recommended.
• perhaps not to ever be utilized with TEU-101BK Electronic Speed Controller.

• While standard kind steering servo can do, high torque servo is advised whenrunning on rough terrain.
• Use of ITEM 50473 tall Torque Servo Saver White or ITEM 51000 tall Torque ServoSaver Ebony will further enhance effectiveness.
• Do not utilize small, big or high-speed servo.

• Tamiya 7.2V working battery
• Eight R6/AA/UM3 batteries for transmitter.

Battery and broadcast information 1. Any Tamiya 7.2V power packs enables you to power the auto. Different milliampere-hour (mAh) values may influence the quantity of operating time enabled by the battery pack. For instance, 7.2V 1400SP battery should most of the time allow ten to fifteen mins of operating time. But simply just take severe realize that genuine working time may decrease considering significant complete throttle and also other high energy running.

2. These 4-channel R/C product (self-neutral stick kind transmitter/receiver) is advised for optimum procedure: FUTABA ATTACK 4WD (T4VWD/FP-R114H) The Airtronics VG400/600 model radios may capable simply because they work fall trim and self fundamental control sticks.

Be aware that utilizing an R/C device without a self-neutral system may increase difficulty of procedure. Without self-neutraling stations (springtime loaded sticks) the operator is kept to spotlight the throttle and steering without help of self-centering springs, making driving the auto harder than it demands become.

4-channel wheel-type transmitters can be utilized with ITEM 58372, but won't be capable be properly used with kit laden up with Multi-Function device (become released).

PPM receivers are very well suited to usage by using this kit.
PCM receivers aren't befitting kit made out of Multi-Function Unit.

Other makers&39; radio control components of 4 or more internet sites can be utilized, but cannot recognize many working from the kit.
Recommended using comparable R/C product as alongside ITEM 56511 Tractor Truck Multi-Function Control
